Now that's an interior, referring to the supra's. some of those imports have sweet interiors. I wonder how much work is involved to swapping in a 90's supra interior like the one shown above. I like the f-body too but love that supra wrap around style. Wish I had a friend with a supra, I'd take some measurements.
IP: Logged
02:06 PM
FIERORICE Member
Posts: 383 From: San Antonio, TX Registered: Jul 2002
Damn that guy killed it on the C/F. What I don't understand, people buy C/F everything yet have super stereos.... Why? I thought C/F was known for its weight reduction.
Back on topic, that Firebird dash looks great, too bad it will be ruined with GM gray plastic on HVAC.
Ricky
------------------ Yeah, I have a cowl induction hood - with NON FUNCTIONAL GAUGES!! HELL YEAH - FieroRice
IP: Logged
07:07 PM
jscott1 Member
Posts: 21676 From: Houston, TX , USA Registered: Dec 2001
Damn I'm lazy.... I still havn't gotten around the scetching anything out yet, but I plan on doing a rap around dash like in the supra but with a smoother look and different passenger side dash panel. Maybe I should do some quick crappy scetches right now...
IP: Logged
11:16 PM
GTFiero1 Member
Posts: 6508 From: Camden County NJ Registered: Sep 2001
looking good jscott1 i had no idea you did this custom stuff. heres a positive rating
------------------ --Adam-- 1987 Blue GT 5-speed IM AOL: GTFiero Remember, always brush your milk, drink your teeth, dont do sleep and get eight hours of drugs
Drive it like you stole it...nice and slow so you dont get your @$$ caught by the cops
IP: Logged
11:29 PM
Nov 10th, 2002
OH10fiero Member
Posts: 1540 From: struther OH Registered: Jun 2002
Wow, when I started this I had no idea that it would go to 80 somethings post Well I am now getting ready for my flight to Florida to pick up another Fiero to add to the family I have, that will now be five for me. This fith car will also be the car to recieve the Firebird dash, so when I return I will go buy a digital camera, because I need one anyway, start the project, and document everything for all to see. When I am done I will see if a kit can be made of this, or if it will be just a matter of taking carefull measurements, either way you will know. See ya in a week and a half
IP: Logged
10:32 AM
Nov 12th, 2002
jscott1 Member
Posts: 21676 From: Houston, TX , USA Registered: Dec 2001
What about on the top of the dash there. Are you going to have to build a piece to fit there, or is there a nother part of the dash that fits in there.
I am talking about the space between the dash and the windshield that is still bare.
Also, do you have a close up of where you cut the back of the door off. Are the panels wrapped in vinyl. The reason I ask, is because if you cut the back off, and it has vinyl, you can stretch the vinyl around so it looks like you never cut it. But, if it is formed plastic, then how are you going to make it have a clean cut on the back of the panels?
[This message has been edited by soup (edited 11-12-2002).]
What about on the top of the dash there. Are you going to have to build a piece to fit there, or is there a nother part of the dash that fits in there.
I am talking about the space between the dash and the windshield that is still bare.
Also, do you have a close up of where you cut the back of the door off. Are the panels wrapped in vinyl. The reason I ask, is because if you cut the back off, and it has vinyl, you can stretch the vinyl around so it looks like you never cut it. But, if it is formed plastic, then how are you going to make it have a clean cut on the back of the panels?
Thanks for the good words JMunilla87GT
Regarding the top of the dash there are a couple of ways to deal with that. If you look a page back Roy has built a custom piece out of fiberglass to fill that are. I plan to take the standard Firebird panel and trim it to size after I get the final dash placement nailed down, (bolted down actually).
As for the door panel ends it is a combination of fabric and formed plastic. I plan to make a custom piece to cover the ends.
What i'd be looking for is a Kit that gave me all the extras that i'd need to make the conversion work assuming that i'd buy the parts.
I do have a few suggestions and questions
Questions ~What exactly is needed from the f-body donor car with regards to interior parts ~Is there any trimming that has to be done on anything else besides the doors. ~What snags were encountered (larger ones...not the little "easy to fix" ones.
I'm not the greatest at fabricating things, however, i feel that if i was guided well I too could do this upgrade.
I suggest that a MSN group or Mailing list be started to keep people that are interested in this "in the loop"
I'd be intersted in buying a Kit that would include the following ~Simple written instructions that cover the important stuff ~All parts that needed to be fabricated to make this dash work
I'd want to buy the parts from the donor car...all i'd need is a kit to make it work w/ the fiero...
Is this possible
JSCOTT1 you've got a big + from me and you've got me HAPPY again...i just finished the engine conversion and was running out of things to do...i just found a P-windows kit from a Fellow Canadian PFF member and it'd go great with an entire interior Retrofit.
Please PM / e-mail me with info on the possibilty of a Kit or anwers to my questions
Thanks A LOT you guys are doing an AMAIZING job!
Keep it up!
Good Luck!
------------------ Steven Rossi 2M4 Cadero Converted GT
IP: Logged
10:24 AM
jscott1 Member
Posts: 21676 From: Houston, TX , USA Registered: Dec 2001
how close is the shifter to the dash?looks tight right there.but still looks sweat!!!!!!!!!
The shifter is pretty close to the dash, but I've got Rodney's short shifter in there for now. I have to see how it works with the console, but I think the stock shifter might have a better angle on it. I have to work with it a little before I know for sure.
You need: The dash and dash frame Gauge cluster The door panels center console (optional).
The dash will fit without any trimming (on the dash) if your willing to cut some metal away around the steering column hoop (the metal piece that holds the steering column). I've mounted mine up against the lip at the base of the windshield -- the same lip where the stock Fiero dash mounts But I chose to cut route where you cut metal away to make it fit.
I made a filler piece to go from the dash to the base of the windshield. I cut the front lip off of the Fiero dash and fastened it to the lip then made a masking tape bridge between the Firebird dash and the Fiero dash section. I then layed fiberglassand used fiber-reinforced Bondo to give it some strength and plastic filler to smooth it. I then cut the defroster holes.

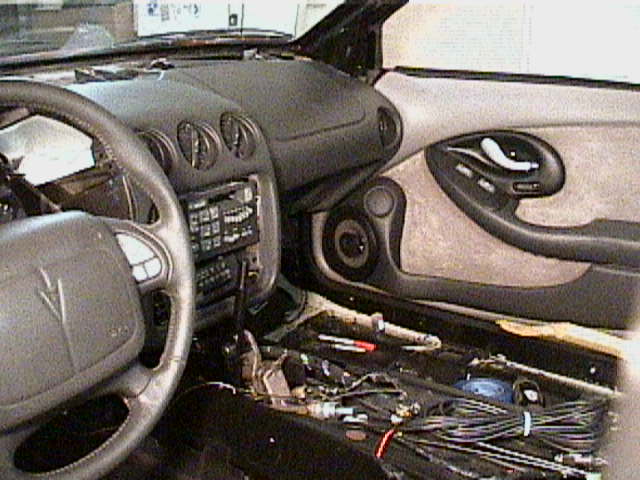

The door panels area a pain any way you build them. Jonathan (jscott1) cut the Firebird panels and plans to make end covers to hide the cut and ease the transition. I flattened the Fiero door panels and am attempting to use the door handle, bezel, and armrest and then cover the door panel to look like the Firebirds. Neather is finished so the story continues.
You asked about snags... LOTS. Remember, this is all hand crafted. Everything needs to be developed and that means a lot of trial and error. Jonathan is a little more confident that this could be made into a kit. I'm not so sure.
I am taking lots of digital pictures of my build up and hope to document the project on a web site (If I can learn how to build one). It should give enough information to help others who want to attempt the project.
In a later note, you asked about the gauges. I mocked mine up to see how they performed and was relieved to see that the speedo, tack, and voltmeter were dead on. I didn't hook up the oil, water or gas because when I compared the sensors using both Helms books and they were the same. Since then, Jonathan has had trouble getting the gas gauge to work correctly. My gauges came out of an earlier model so I'm hoping I don't run into the same problem. If so, I've already got a fix in mind.
the need for speed -- My dash will sit about an inch closer to the windshield. There is plenty of room for a stock shifter.
Fatal Error -- My dash and stuff came from a 94 Firebird but is the same as a 93-95. Jonathan's came from a later model that used digital the odemeter. Anything from 93 or newer will work but there is stll some questions on the gauge cluster.
As I mentioned before, I plan on doing my install into my daily driver over the Thanks giving holiday week. I'll have more pictures to show at that time.
This is exactly the thing we needed for the Fiero!!!
Now if I ever get another Fiero, I will be ripping the insides apart so I can try my hand at this as well.
I have often tried to come up with a newer design for the interior, but have never been able to nail anything down. After reading this article, I and 100% certain this is exactly what Iw ant to do!!!!
Anyone in Atlantic Canada want to donate a Fiero to the Save Randy from Boredom cause
Fatal Error -- My dash and stuff came from a 94 Firebird but is the same as a 93-95. Jonathan's came from a later model that used digital the odemeter. Anything from 93 or newer will work but there is stll some questions on the gauge cluster.
I Hope this helps, Roy
Thanks Roy for taking the time to answer some of the questions that popped up during the day.

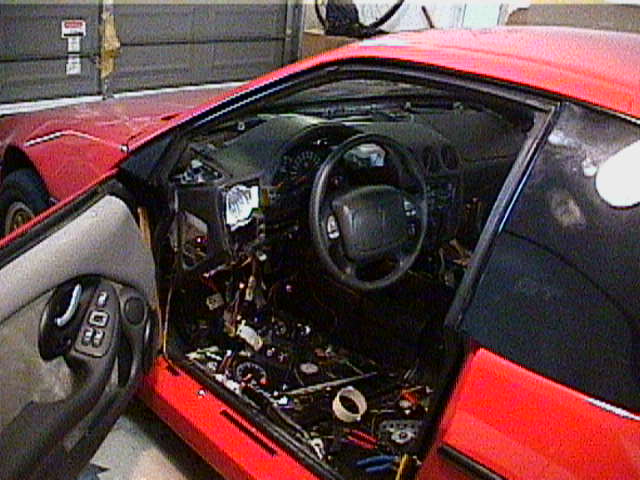

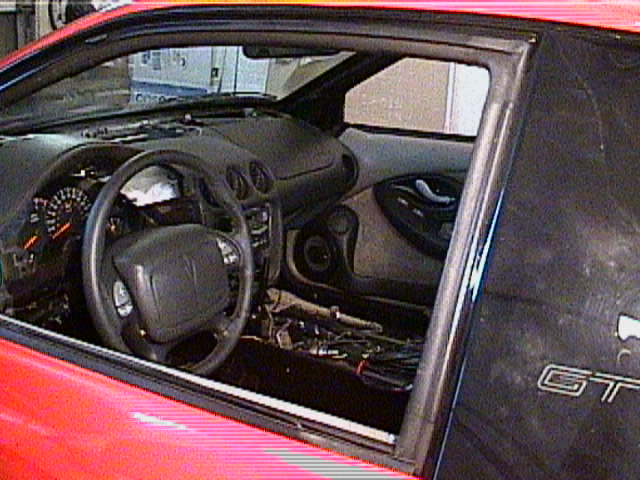

Let me expand a little on the donor Firebird vehicle. All my parts are coming from a 1998 V6 Firebird. Not because I am parting one out, but just to keep a consistent data base and I figure a 10 year update on my '88 sounds good.
Unlike Camaro, the Firebird dash remained largely unchanged from '93 all the way up to 2002. There were some subtle changes to the console in '97 (extra cupholders added) and the odometer went digital. The top filler piece of the dash also took on a slightly different curve but it's a very small difference.
For the most part everything we are talking about here is applicable to any 4th gen Firebird you happen to find in the yards.
I am having an issue with the gas gauge which appears to be digital and not compatible with the analog sensor on the Fiero, but I haven't given up yet. Worse case I need to get a cluster from an older 4th gen. You want one from a V6 to avoid having to recalibrate the tach, (which I have verified works)
Between Roy and I we will document all that we have learned and the next wave or people to do this mod will know exactly what works and what doesn't.

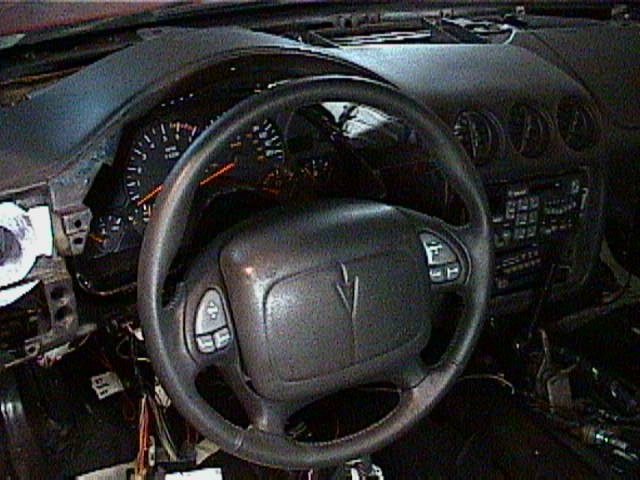

By the way, my airbag is just for show, maybe the next person will take on the challenge of installing the slip ring and wiring it up.

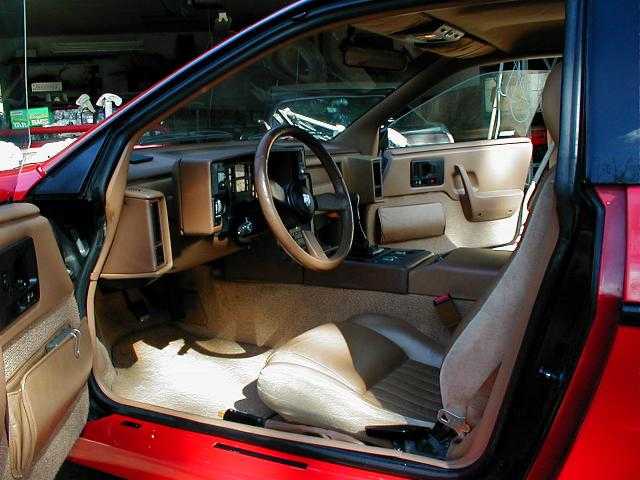

Here is a before shot
The beechwood interior went to a good home. (I don't have any pieces left for sale)
IP: Logged
12:49 AM
soup Member
Posts: 1572 From: Calgary, Alberta, Canada Registered: Nov 2001
Originally posted by mrfixit58: I am taking lots of digital pictures of my build up and hope to document the project on a web site (If I can learn how to build one). It should give enough information to help others who want to attempt the project.
If you send me the pictures, I would gladly set up a webpage for you. I used to do it for a design company all the time.
Plus Steven Rossi said you could host it on his site.
You can email me at soup@soupk.com if you are intersted.
-Jamie Kembel
P.S. I will also copy this thread, and throw it on the web page for a quick answer to questions, and for people to see the initial progresses of this install.
[This message has been edited by soup (edited 11-13-2002).]
I have something else in mind for the dash and console, but I love those doors!
I'm with him on that. WOW what a great thread. This really makes me want to go out and work on mine. Here are a few pics. This is the Archie dash. I'm just using his dash not the door panels.

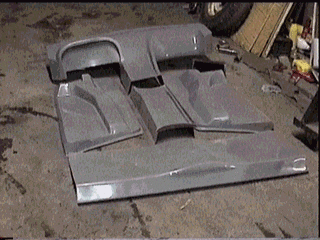

I think that it's a little too expensive for just a mold that need yet to be fit and upholstered.
I think that the Firebird dash is EXACTLY what my Yellow monster needs.
To everyone that is doing the Firebird conversion please let me know if my 10MB space will me useful and what i can do to help getting a website together. I know NOTHING but lord know a lot of ppl on PFF do.
I'm currently looking for a 1993+ Interior and once I find it i'll do the upgrade over the x-mas holiday!
------------------ Steven Rossi 2M4 Cadero Converted GT
IP: Logged
03:30 PM
jscott1 Member
Posts: 21676 From: Houston, TX , USA Registered: Dec 2001
i was wondering if you guys are using the seats from the firebird and what are u going to do w/ the middle console?
if someone made a kit, i'd suggest including precut pieces for the doors to fill in the gaps and also for the gap by the window. and if the middle console f/ the firebird isn't usable, it'd be nice to have a redesigned one that matches the dash. some instructions and specifications on cutting would be nice too. thxs, and good luck to everyone. i hope this thing pans out.
IP: Logged
12:04 AM
jscott1 Member
Posts: 21676 From: Houston, TX , USA Registered: Dec 2001
I agree the stock center console leaves much to be desired. I have some ideas that I am trying out in my Fiero Design Studio (A.K.A. my dining room) but nothing final yet.
I'm using Standard Fiero Seats, but Firebird seats bolt right up to Fiero tracks. If I ever find a good deal on Firebird seats I might swap.
I was initially planning to use a modified Fiero console, but I have made some progress on modifying the Firebird one. I'll post pics shortly.
[This message has been edited by jscott1 (edited 11-14-2002).]
i think if you could keep it cheap but good quality you would sell a ton of them. Some others are 1000 dollars or more and wheni only paid 2000 more the whole car thats too much. But more rounded really is all i needs the stock gauges will be good.
IP: Logged
10:49 AM
mrfixit58 Member
Posts: 3330 From: Seffner, Fl, USA Registered: Jul 99
A little update... I've been able to install the Firebird console. It took quite a bit of surgery on both the Firebrd console and the Fiero tunnel but the fit is pretty good. I also had to make a separate computer-tunnel cover. I'll post pictures of the install on my test mule later tonight. If everything else goes according to plan, you should see pictres of the finished product by the end of the Thanksgiving holiday week.
Roy
[This message has been edited by mrfixit58 (edited 11-14-2002).]
IP: Logged
10:58 AM
jscott1 Member
Posts: 21676 From: Houston, TX , USA Registered: Dec 2001
A little update... I've been able to install the Firebird console. It took quite a bit of surgery on both the Firebrd console and the Fiero tunnel but the fit is pretty good. I also had to make a separate computer-tunnel cover. I'll post pictures of the install on my test mule later tonight. If everything else goes according to plan, you should see pictres of the finished product by the end of the Thanksgiving holiday week.
Roy
I was sworn to secrecy on Roy's progress, but Roy's Firebird console is absolutely beautiful. The only gotcha is that it requires a fair amount of cutting on the Fiero and fiberglass work.
I spent all day yesterday with the jig saw and dremel on my console and I think it will be possible to mount the '97-02 Firebird console without cutting any metal on the Fiero. I have mine in place but I am lacking the Firebird console trim plate that has the ashtray, cupholder and shift boot. I have one on order from GM and should have it tomorrow. When I get that I'll be able to determine the final fitment of the console and dash and post some pics.
The gotcha is that I had to relocate my computer to behind the driver's seat. There is plenty of wire to do this and it only took about 2 minutes. I plan to take what's left of the Fiero console and make a cover for the area where the computer used to be.
Stay tuned.
(edited for spelling)
[This message has been edited by jscott1 (edited 11-14-2002).]
This may have been covered already somewhere that I missed... You are using the steering wheel with controls on it. Did you change the steering column or just run wires for the controls? Also, you still got an airbag in there? Surely that is not functional too, if you do. I would think that would require lots more mods!
Well I am now getting ready for my flight to Florida to pick up another Fiero to add to the family I have, that will now be five for me. This fith car will also be the car to recieve the Firebird dash, so when I return I will go buy a digital camera, because I need one anyway, start the project, and document everything for all to see. When I am done I will see if a kit can be made of this, or if it will be just a matter of taking carefull measurements, either way you will know. See ya in a week and a half
