Rebuild of Indy Fiero #163 Super Duty 4 by fierosound
Started on: 11-03-2008 08:53 AM
Replies: 253 (49450 views)
Last post by: Lilchief on 09-18-2017 09:46 PM
Fierobsessed
Member

Posts: 4776
From: Las Vegas, NV
Registered: Dec 2001


Feedback score: N/A
Leave feedback





Total ratings: 147
Rate this member

Report this Post10-17-2014 07:25 PM Click Here to See the Profile for FierobsessedClick Here to Email FierobsessedSend a Private Message to FierobsessedEdit/Delete MessageReply w/QuoteDirect Link to This Post

No big deal if you need to re-tune. You've probably wrapped your head around what works, whats needed and what you don't need to touch. So you can start over, well informed of what you're going to need to attack.

I've been working with tunerproRT for many, many years. It really is a pretty dam awesome program. For tuning fuel trims, I usually wire my wide band O2 sensor straight to an unused 0-5V input so that it logs in the datastream. Sometimes I can just wire it into something like a deleted corrosivity sensor input, or deleted EGR feedback, but often I have to liven up an unused input, add a read from that pin, and add the value to the datastream. It sounds like a lot, but once its done, tuning gets way easier!

Then, in tunerpro, I create a datastream variable that looks at the current fueling corrections, (INT + BLM) and the end result from the wide band, and makes a correction factor. I use a hystegram to log the averages of this correction factor into a table scaled similarly to the main VE table, then export the data to Excel and have it build me a new VE table based on the one I used when logging and the correction factors. I smooth out the table, then its good to go. I can usually nail it down in 2-3 log and program sessions. If you are interested in this process I can probably help out. But, I don't know how what your process and help is like already.

IP: Logged

Danyel
Member

Posts: 5693
From: Lévis, Québec, Canada
Registered: Sep 2008


Feedback score:    (90)
Leave feedback





Total ratings: 164
Rate this member

Report this Post10-18-2014 12:05 AM Click Here to See the Profile for DanyelClick Here to visit Danyel's HomePageSend a Private Message to DanyelEdit/Delete MessageReply w/QuoteDirect Link to This Post


Can you tell me what intake bowl set up you you have there or what its from .... THX Reread your thread ATI polished aluminum carb bonnet BEAUTIFUL!!!

Danyel

[This message has been edited by Danyel (edited 10-18-2014).]

IP: Logged

fierosound
Member

Posts: 13195
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 271
Rate this member

Report this Post10-18-2014 10:21 AM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageClick Here to Email fierosoundSend a Private Message to fierosoundEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by Fierobsessed:

No big deal if you need to re-tune. You've probably wrapped your head around what works, whats needed and what you don't need to touch. So you can start over, well informed of what you're going to need to attack.



I'm paying someone to do the tuning. He's having to start over.

Everything else you just said is pretty much gibberish to me ...
I gotta get educated on how to use TunerPro...

We're running $12P
http://pcmhacking.net/forum...241b1b92ed947d905bf7

[This message has been edited by fierosound (edited 04-05-2015).]

IP: Logged

fierosound
Member

Posts: 13195
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 271
Rate this member

Report this Post10-18-2014 04:52 PM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageClick Here to Email fierosoundSend a Private Message to fierosoundEdit/Delete MessageReply w/QuoteDirect Link to This Post

Engine won’t start at all now. Just floods till you smell gas and stop cranking.

Ho-hum --- another summer pissed away. The SD4 is not all it's cracked up to be.

[This message has been edited by fierosound (edited 10-18-2014).]

IP: Logged

edfiero
Member

Posts: 739
From: Coatesville, PA
Registered: Nov 2004


Feedback score: N/A
Leave feedback

Rate this member

Report this Post10-22-2014 08:42 AM Click Here to See the Profile for edfieroClick Here to Email edfieroSend a Private Message to edfieroEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by fierosound:


Ho-hum --- another summer pissed away. The SD4 is not all it's cracked up to be.



Sorry to hear that. I was hoping yours would be 'purring like a kitten' or a tiger by now, so as to give me some hope for my SD4 build. I'm finding it frustrating just finding the right parts sometimes. I ordered a bunch of parts from Summit then ended up sending half of them back because there were wrong, didn't fit, etc.

Times like tihs when I miss my old Impala SS. Just buy a new LT-1 Stroker crate engine, drop it in, and off you go.

IP: Logged

fierosound
Member

Posts: 13195
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 271
Rate this member

Report this Post10-24-2014 06:45 PM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageClick Here to Email fierosoundSend a Private Message to fierosoundEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by edfiero:

Sorry to hear that. I was hoping yours would be 'purring like a kitten' or a tiger by now, so as to give me some hope for my SD4 build.


If you can find the parts, putting it together is not the problem. There's little documentation on what plugs to use, plug gaps, timing to use etc.
You go with "common sense" and get it running, but you're never sure if it's as "right" as it could be.
We're still working on getting the tune for the fuel injection, but winter is on my doorstep.

SD4 gets HORRIBLE gas mileage if you put your foot in it around town, fast starts at the lights or really boogying with it. (about 50 miles on 1/2 of an 84 tank)
BUT it is hard to drive this engine slow when it's driving reasonably well. About 20-25mpg cruising on the highway in 5th gear at 70 mph.

[This message has been edited by fierosound (edited 11-06-2014).]

IP: Logged

AzRick
Junior Member

Posts: 1
From: Phoenix, Arizona
Registered: Dec 2014


Feedback score: N/A
Leave feedback

Rate this member

Report this Post01-21-2015 12:51 PM Click Here to See the Profile for AzRickSend a Private Message to AzRickEdit/Delete MessageReply w/QuoteDirect Link to This Post

I LOVE this thread !! I'm building a Duke very similar to this motor build but a different car and have a few questions. I'm using the SD4 iron head and the Edelbrock SD4 intake, what distributor did you use (HEI) that fit under the intake? I have the motor almost done but just found this site and love it. If you have time, I could PM you my questions. Thanks for building this as it helps me decide how to go with the next build (SD4 aluminum head)

AzRick

IP: Logged

fierosound
Member

Posts: 13195
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 271
Rate this member

Report this Post02-07-2015 11:54 AM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageClick Here to Email fierosoundSend a Private Message to fierosoundEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by AzRick:

I LOVE this thread !! I'm building a Duke very similar to this motor build but a different car and have a few questions.
I'm using the SD4 iron head and the Edelbrock SD4 intake, what distributor did you use (HEI) that fit under the intake?

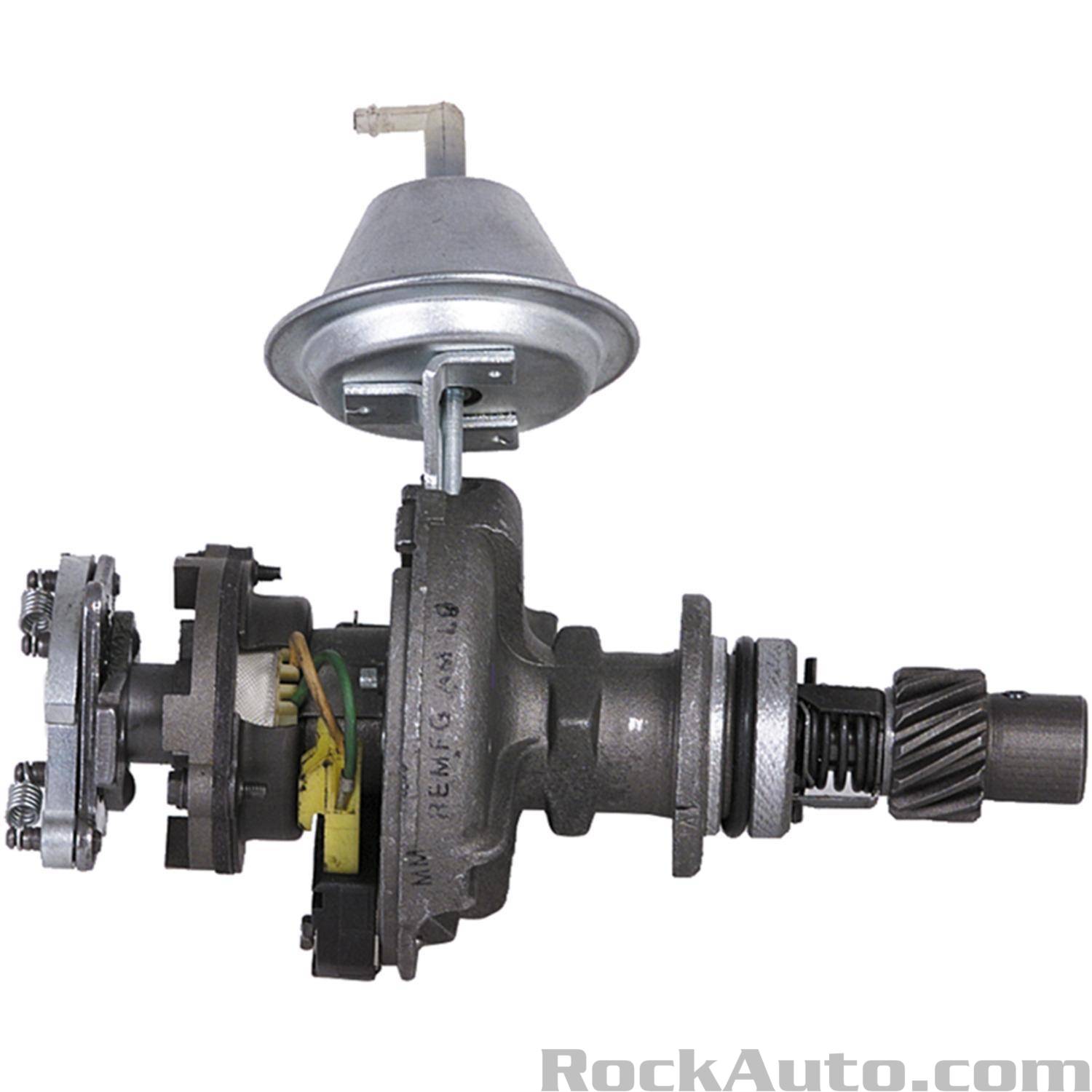

The big cap HEI fits, but is tight and awkward to work with once it's in the car.
An external coil small cap HEI (w/vaccum advance) from a carb'd 1982 Citation w/Duke engine would work as well.
It has the weights and springs you can change to tailor the advance curve.


You can always use the "big cap" one from a carb'd Pontiac/Jeep with 151 Duke engine.
(have the HEI I used in a box since I switched to TBI and computer controlled distributor)
(generic Proform pic below) http://www.summitracing.com.../pro-67093/overview/

[This message has been edited by fierosound (edited 02-07-2015).]

IP: Logged

E.Furgal
Member

Posts: 10893
From:
Registered: Mar 2012


Feedback score:    (23)
Leave feedback





Total ratings: 266
Rate this member

Report this Post02-07-2015 01:48 PM Click Here to See the Profile for E.FurgalClick Here to Email E.FurgalSend a Private Message to E.FurgalEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by fierosound:

Not much interest in any of this?? But someone paints their GT yellow and there's 5 pages of comments?

Here's what I did on the interior. It was completely removed and a thorough cleaning of the door panels and all other components was undertaken. The floor mats and carpeting was steam cleaned. The sun-faded "blue" speaker grills were recovered with new speaker fabric. The shifter surround and shifter plate were reglued.

While the interior was out, sound proofing was installed as well as a new stereo system.
To still maintain a "factory" look a Pontiac CD player was installed, but high-end equipment was used in all hidden locations. New Clearwater speakers were installed in the seat headrests and Infinity component speakers went in the dash.

A factory sub-woofer housing with a Tang-band sub went into the factory location.


To power the sub, a Xtant 1.1i 100 watt mono amp was used. This tiny amp really delivers and is perfect for the job because it can be installed under the passenger seat.
Complete stereo writeup here: http://www.fiero.nl/forum/Forum3/HTML/000031.html

When I received the car, the radio surround was terribly warped and needed to repaired or replaced.


The lack of an oil pressure gauge in the instrument cluster REALLY bothered me because I consider that the MOST important gauge to have. That's why I installed GT gauges and a new radio surround. It's "factory", looks correct, does the job and I needed to replace the warped radio surround anyway. I still have a 2nd voltmeter in the tach, but that's not a big bother.

How to add the gauge cluster: http://www.fiero.nl/forum/Forum2/HTML/093286.html

I never did like the original T-bar type automatic shifter and most others eithers are either too big (Cobra head type) or look wrong (aftermarket aluminum). I found something perfect from 84-96 Corvette - a small size, top-button, dark grey leather wrapped knob that suits the car's interior perfectly. This is smaller than a similar design used in other GMs like Cavaliers, Grand AMs etc. I mounted it on a shortened shifter shaft and installed a new leather boot I purchased from Rodney Dickman.


The previous owner sold the original "mint" Indy seats. Although the Mr Mike's leathers were nice, I'd have preferred a set of originals, but another set of mint seats are few and far between. As luck would have it, we found some OEM red embossed Indy seat fabric which I purchased and had sent off to Mr Mike. Mike did up a beautiful set of repro Indy seats.
I cleaned up the rusty seat rails and repainted them and bought the proper light grey color recliner covers to replace the incorrect dark grey ones the seats in the Indy came with. Once assembled, only an Indy purist would notice that these are not the original seats. The only difference is that the backs of the seats aren't grey fabric like the originals.

The terrible condition of the sunvisors and headliner required that they be replaced. I bought new sunvisors and a headliner recover kit from the Fiero Store. It was a bit of work, but I successfully recovered and reinstalled the headliner and the new visors. I also added the coathooks - 84's didn't have any.



More to come. The engine is next...

Edit: pictures added



did you add the mirror to the sunroof?

IP: Logged

E.Furgal
Member

Posts: 10893
From:
Registered: Mar 2012


Feedback score:    (23)
Leave feedback





Total ratings: 266
Rate this member

Report this Post02-07-2015 03:34 PM Click Here to See the Profile for E.FurgalClick Here to Email E.FurgalSend a Private Message to E.FurgalEdit/Delete MessageReply w/QuoteDirect Link to This Post

sorry about your efi issues,,
What was the reasoning with going with/back to an "o.e.m." ecu?
With this engine, big ports,(head and intake) big flow.. why not got multi port.. getting the fuel out of that large intake plenum , that at the rpm you'll most likely be running at 75% of the time, will just puddle fuel on the intake floor..
a simple missing tooth wheel behind/infront(depending on room, {junkyard crawl part) of the balancer you could even have sequential EFI , injectors and injector harness are only a junkyard away..
4cly harness and 3800 s/c injectors.. measure the intake port spacing and you might find an oem fuel rail that work is off a quad4 or a echotech , then just have the injector bungs welded to the intake..
sell that fancy "fast" TBI unit, and get a 82-88 CCC-q-jet and take the venturi guts out, and now you have a 4 barrel Throttle body with a Throttle position sensor , real cheap,, and won't be to big,, and if you leave the venturi gut alone, it'll work just like every q-jet only opening the secondaries when the engine needs it or you mash the pedal to wide open.. you just might need an adapter if that intake is only drilled for a square bore carb baseplate..
many others have used the 4.0 ford v6 explorer throttle body..

IP: Logged

fierosound
Member

Posts: 13195
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 271
Rate this member

Report this Post02-07-2015 04:29 PM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageClick Here to Email fierosoundSend a Private Message to fierosoundEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by E.Furgal:

did you add the mirror to the sunroof?


Pretty big quote just to ask that question.
No. The stock sunroof - just painted on the topside to body color.

About the FI system. Easier said than done.
Not a lot of room for individual injectors etc. otherwise Pontiac would have done it.
As it is, NO Duke has anything other than carb or TBI.

FAST system's ECM just flooded my engine.
The conclusion was I had a case of "there's nothing wrong - but it just won't work right".
Whole story here: http://www.cpgnation.com/fo...day-not-today.22587/

It's running decent enough with the 7165 ECM - just a real bad bog when you punch it WOT that I can't get rid off.
Plus I have a knock sensor, ignition control etc. that the FAST did not have (fuel control only).
I think I'll need to use a turtle to reduce some of the volume in that huge open plenum.

[This message has been edited by fierosound (edited 05-04-2016).]

IP: Logged

E.Furgal
Member

Posts: 10893
From:
Registered: Mar 2012


Feedback score:    (23)
Leave feedback





Total ratings: 266
Rate this member

Report this Post02-07-2015 05:17 PM Click Here to See the Profile for E.FurgalClick Here to Email E.FurgalSend a Private Message to E.FurgalEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by fierosound:


Pretty big quote just to ask that question.
No. The stock sunroof - just painted on the topside to body color.

About the FI system. Easier said than done.
Not a lot of room for individual injectors etc. otherwise Pontiac would have done it.
As it is, NO Duke has anything other than carb or TBI.
(edit: oops - 1991 Jeeps had port injection Dukes - can't find any details though)

FAST system's ECM just flooded my engine.
The conclusion was I had a case of "there's nothing wrong - but it just won't work right".
Whole story here: http://www.cpgnation.com/fo...day-not-today.22587/

It's running decent enough with the 7165 ECM - just a real bad bog when you punch it WOT that I can't get rid off.
Plus I have a knock sensor, ignition control etc. that the FAST did not have (fuel control only).
I think I'll need to use a turtle to reduce some of the volume in that huge open plenum.


I am going efi and multi port..
there is tons of room.. Pontiac/g.m. didn't because of cost.. and it wasn't needed on a stock duke.. low rpm. good mpg. and didn't need to get every ounce of power and m.p.g. out of it, at that time, besides the olds quad made it pointless for them to invest anymore money in the duke..
anyways good, luck..
for now my indy will have a o.e.m. 2.5 built up some until I can afford a s/d and I'd really like to have the alum block that takes the chevy motorsports smallblock 2.2. head.

as far as the fast efi flooding your engine, it's because the injectors are to big.. for the air flow velocity in that intake/head ports.. at the rpm you'll be running most of the time.. should be interesting if the oem hacked ecu can control that tbi t/b better. or if the same problem will be there, to much fuel parking itself on the intake floor..

[This message has been edited by E.Furgal (edited 02-07-2015).]

IP: Logged

fierosound
Member

Posts: 13195
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 271
Rate this member

Report this Post02-07-2015 05:37 PM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageClick Here to Email fierosoundSend a Private Message to fierosoundEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by E.Furgal:

I am going efi and multi port..



I look forward to seeing that in your build thread.

There was a beautiful setup on eBay some time back. He wanted big money but wouldn't include the "small bits".
And I wasn't sure if it would fit the engine bay or what I could use to control it at the time.
http://www.fiero.nl/forum/A...130314-1-084387.html

[This message has been edited by fierosound (edited 10-06-2015).]

IP: Logged

fierosound
Member

Posts: 13195
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 271
Rate this member

Report this Post10-06-2015 11:46 AM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageClick Here to Email fierosoundSend a Private Message to fierosoundEdit/Delete MessageReply w/QuoteDirect Link to This Post

I had mentioned these WebElectric products earlier in the buildup.
I thought I'd post the website and GIFs of what they do.

http://www.webelectricproducts.com/products.htm

I installed the sequential turn signals module to get this.


I have the brake pulser module for the LED 3rd brake light in the wing.

[This message has been edited by fierosound (edited 10-15-2015).]

IP: Logged

fierosound
Member

Posts: 13195
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 271
Rate this member

Report this Post05-21-2016 08:24 AM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageClick Here to Email fierosoundSend a Private Message to fierosoundEdit/Delete MessageReply w/QuoteDirect Link to This Post

The transmission in the Indy is getting harder to shift, sometimes almost impossible.

I've checked the shifter mechanism itself for broken welds/cracks. Everything's OK.
The cables are new Dickman units. I disconnected them from trans. The shifter/cables work freely.
I tried shifting the transmission manually. It's notchy and binding somewhat. Won't go into 1st at times.
I suppose there's an internal wear problem on the forks or something IN the transmission.

I have a NOS 1992 FWD Getrag 5-speed to install.
Just ordered the parts I need from Rodney.
This trans: http://www.fiero.nl/forum/Forum9/HTML/000038.html

I also ordered the same Bully clutch I have in my GT. I'm tired of that 'heavy" effort Spec clutch I have in there...
Because of the Bully pressure plate redesign, the pedal effort is light while still giving great clamping force.
Bully Clutch: http://www.fiero.nl/forum/Forum2/HTML/129057.html

EDIT: cradle taken out May 21

[This message has been edited by fierosound (edited 06-13-2016).]

IP: Logged

fierosound
Member

Posts: 13195
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 271
Rate this member

Report this Post06-13-2016 03:41 PM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageClick Here to Email fierosoundSend a Private Message to fierosoundEdit/Delete MessageReply w/QuoteDirect Link to This Post

Things are starting to come together.

I had issues with shifting the old Getrag. We split the case and all the gears and differential looked OK.
The problem must be with worn shift forks or something else (synchros replaced not long ago).

Below is a NOS FWD Getrag 5-speed I picked up last year.
I had the Fiero's Getrag bellhousing half of the case swapped over.

The only part I needed from Rodney was the shifter mechanism for the shift shaft.
http://rodneydickman.com/ca...th=28&products_id=58

As I keep telling the guys DETAILING starts BEFORE you put it all together.



[This message has been edited by fierosound (edited 09-08-2016).]

IP: Logged

fierosound
Member

Posts: 13195
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 271
Rate this member

Report this Post06-13-2016 03:43 PM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageClick Here to Email fierosoundSend a Private Message to fierosoundEdit/Delete MessageReply w/QuoteDirect Link to This Post

Of course, now is also a good time to refresh the cosmetics of the engine too.
I needed to replace a leaking rear main seal. Did the oil pan gasket at the same time.
Dirt and grime was washed off and the engine block spray-bombed Gloss Black.



[This message has been edited by fierosound (edited 06-13-2016).]

IP: Logged

fierosound
Member

Posts: 13195
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 271
Rate this member

Report this Post06-13-2016 03:47 PM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageClick Here to Email fierosoundSend a Private Message to fierosoundEdit/Delete MessageReply w/QuoteDirect Link to This Post

You have to do the engine bay and cradle too! It's the easiest time to do all this.
(axles will be cleaned up once transmission is back on cradle)
I'm amazed how many people skip this step - too excited about doing their engine swap I guess.



[This message has been edited by fierosound (edited 06-13-2016).]

IP: Logged

fierosound
Member

Posts: 13195
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 271
Rate this member

Report this Post06-17-2016 09:34 AM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageClick Here to Email fierosoundSend a Private Message to fierosoundEdit/Delete MessageReply w/QuoteDirect Link to This Post

I got my flywheel back from resurfacing and assembly balancing.

The flywheel HAD been zero balanced before, so I was surprised to see it needed anything at all.
The clutch is brand new, but even it needed a tweak to bring it into neutral balance.
This thing should be glass smooth to 8000 rpm!



The rear main seal had a slight leak and needed to be changed.
Easiest way to get it out is to drill 2 small holes in the seal and screw in 2 metal screws.
You can then pull it out with a claw hammer.

[This message has been edited by fierosound (edited 06-17-2016).]

IP: Logged

fierosound
Member

Posts: 13195
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 271
Rate this member

Report this Post06-17-2016 09:37 AM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageClick Here to Email fierosoundSend a Private Message to fierosoundEdit/Delete MessageReply w/QuoteDirect Link to This Post

The cradle is ready to go back in!
When I did my auto-to-manual transmission swap, I forgot to take pics...





[This message has been edited by fierosound (edited 06-17-2016).]

IP: Logged

Fiero Thomas
Member

Posts: 4163
From: Round Lake Beach, IL
Registered: Jul 2005


Feedback score:    (158)
Leave feedback





Total ratings: 120
Rate this member

Report this Post06-18-2016 05:36 PM Click Here to See the Profile for Fiero ThomasClick Here to visit Fiero Thomas's HomePageClick Here to Email Fiero ThomasSend a Private Message to Fiero ThomasEdit/Delete MessageReply w/QuoteDirect Link to This Post

Love this car. Keep up the good work.

------------------
1987 Fiero GT T-Top
2003 BMW 330I
2009 Dodge Charger

FieroNews
FieroNews Spare Tire Cover

IP: Logged

fierosound
Member

Posts: 13195
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 271
Rate this member

Report this Post06-18-2016 07:55 PM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageClick Here to Email fierosoundSend a Private Message to fierosoundEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by Fiero Thomas:

Love this car. Keep up the good work.



Thank you. I may have it running in a couple of days...

Just spent the better part of 2 days figuring out why the A/C system won't hold a charge.

Many thanks to RWDPLZ for his information here:
http://www.fiero.nl/forum/Forum2/HTML/000652.html

Half my O-rings were the wrong type and I DO remember the guy at the A/C shop matching them up saying
"these are a little thinner, but they should still seal fine." NOT!! What a lot of grief it has caused.

I've run the system to a vacuum of 20 lbs. It's still holding 1/2 hour later so far...

IP: Logged

Inferno
Member

Posts: 403
From: Edmonton Alberta Canada
Registered: Nov 2003


Feedback score: (2)
Leave feedback

Rate this member

Report this Post06-24-2016 10:43 PM Click Here to See the Profile for InfernoClick Here to Email InfernoSend a Private Message to InfernoEdit/Delete MessageReply w/QuoteDirect Link to This Post

Looks amazing. I cant wait to see it in person.

IP: Logged

fierosound
Member

Posts: 13195
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 271
Rate this member

Report this Post07-04-2016 12:06 AM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageClick Here to Email fierosoundSend a Private Message to fierosoundEdit/Delete MessageReply w/QuoteDirect Link to This Post

It's up and running. Yay! - no oil leaks anywhere
(new rear main seal, axle seals, transmission halves joint, oil pan gasket)

The clutch and FWD Getrag transmission are working great too.
It's getting better as it 'breaks in' - the Getrag was tight and notchy at first because it is NEW.

I noticed a side benefit of the FWD Getrag is smaller shift and select throws.
This is likely a result of the transmission's shorter shift shaft that Rodney's kit bolts on to.

[This message has been edited by fierosound (edited 07-04-2016).]

IP: Logged

fierosound
Member

Posts: 13195
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 271
Rate this member

Report this Post08-02-2016 11:43 AM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageClick Here to Email fierosoundSend a Private Message to fierosoundEdit/Delete MessageReply w/QuoteDirect Link to This Post

I always had problems with the A/C after converting to R134a.
(new compressor, O-rings, orifice, accumulator etc.)
The A/C worked great, but the charge wouldn't last more than a week.

When I dropped the cradle to replace the clutch and transmission,
I found a cracked A/C hose tube at the compressor end. Got that welded.
I also installed a new condenser I had bought a couple of years ago.
And I replaced all the O-rings in the system with the correct ones this time.

It's now working and is blowing SO cold with R152a that it can freeze you out of the car…
It appears I have finally fixed ALL the leaks once and for all.

More here: http://www.fiero.nl/forum/Forum2/HTML/138319.html

[This message has been edited by fierosound (edited 08-04-2016).]

IP: Logged

Havoc04
Member

Posts: 38
From: Central Point, OR. USA
Registered: Dec 2015


Feedback score: N/A
Leave feedback

Rate this member

Report this Post08-29-2016 08:36 AM Click Here to See the Profile for Havoc04Click Here to Email Havoc04Send a Private Message to Havoc04Edit/Delete MessageReply w/QuoteDirect Link to This Post

Bump! Any updates?

Your build makes me really want an SD4 for my Indy.

IP: Logged

fierosound
Member

Posts: 13195
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 271
Rate this member

Report this Post08-29-2016 06:36 PM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageClick Here to Email fierosoundSend a Private Message to fierosoundEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by Havoc04:

Any updates? .


Working on a MPFI system using the Edelbrock 2-bbl intake.

Here's a mockup of the fuel rail using plastic tube. Have to duplicate it with aluminum.
I got some Holley extruded fuel rail but it's bulky and heavy. Tubing like this may be better.

2-bbl throttle body is from a Dodge 3.9L V6 - twin 42mm bores.
The nice part is the TB topend fits a 4-bbl air cleaner - so my carb bonnet fits.



I did an Autocad drawing for the carb manifold/TB adapter and had it water-jetted.



The injector nozzles are dead center where they should be.




Manifold was drilled using a ShopSmith. We started with the center ones.



They were easy. The end ones have 2 angles to get right.




Injectors are tiny EV14 injectors with extension.
48lb Bosch part number 0 280 158 211





Spray pattern of these Bosch injectors.

[This message has been edited by fierosound (edited 09-04-2016).]

IP: Logged

edfiero
Member

Posts: 739
From: Coatesville, PA
Registered: Nov 2004


Feedback score: N/A
Leave feedback

Rate this member

Report this Post09-01-2016 09:49 AM Click Here to See the Profile for edfieroClick Here to Email edfieroSend a Private Message to edfieroEdit/Delete MessageReply w/QuoteDirect Link to This Post

Will you need a new fuel pump for those injectors?
What ECU / how are you going to tune ?

IP: Logged

fierosound
Member

Posts: 13195
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 271
Rate this member

Report this Post09-01-2016 10:25 AM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageClick Here to Email fierosoundSend a Private Message to fierosoundEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by edfiero:

Will you need a new fuel pump for those injectors?
What ECU / how are you going to tune ?


Same pump, same 1227165 ECM I have in the car right now running the FAST throttle body injection (at 43psi)
Go back one page in this thread. Also here: http://www.cpgnation.com/fo...-today.22587/page-10

[This message has been edited by fierosound (edited 09-03-2016).]

IP: Logged

liv4God
Member

Posts: 392
From: California
Registered: Feb 2011


Feedback score: (5)
Leave feedback

Rate this member

Report this Post10-22-2016 05:07 AM Click Here to See the Profile for liv4GodSend a Private Message to liv4GodEdit/Delete MessageReply w/QuoteDirect Link to This Post

Amazing thread and awesome work! I really enjoyed reading this, thanks for sharing your knowledge and work and lots of pictures
Keep up the great work!

IP: Logged

mender
Member

Posts: 173
From: Didsbury, Alberta, Canada
Registered: Nov 2010


Feedback score: N/A
Leave feedback

Rate this member

Report this Post01-06-2017 10:33 AM Click Here to See the Profile for menderSend a Private Message to menderEdit/Delete MessageReply w/QuoteDirect Link to This Post

Interesting read and nice car, sorry to see how much trouble you've had with the engine and fueling. I have a race shop about an hour north of you and I road race an '87 GT. I worked at Guyon Racing in Calgary when we built Art McKenzie's rally Fiero with the SD4 engines back in the late '80s and early '90s and still have an SD mechanical fuel injection system set up for alcohol. I do a fair bit of EFI work including tuning and am surprised that you've had trouble finding good tuners in Calgary. I built a 2.0 engine for a sports racer with a race cam that idles at 1000 rpm and makes 200 hp at 7500 rpm that runs the SDS system (local company), very easy to tune and designed for engines like yours that are closer to race than street. I've tuned FAST and AEM Infinity systems for race-cammed engines, wasn't all that pleased with their tech support and ended up doing things my way to make their systems work, and although very capable both systems are quite a bit more complex and harder to tune than the SDS. I usually end up doing the driveability tuning after the engine/car gets off the dyno, seems most tuners just want to do the WOT stuff.

Looks like you're on the right track with the MPFI but the 48 lb injectors are a little big if you're going with that size unless you're planning to boost it, which isn't likely with the 10.5:1 compression ratio. WIth the previous 160 hp reading at the wheels with the auto you're probably in the 220 hp range at the crank, so I'd suggest around the 32 lb range, still enough to supply 260 hp but easier to meter at low rpm and loads. I also do show quality custom headers so if you're still having sealing issues and would like a header with a better flange, cleaner welding and proper sized secondary tubing, let me know and we'll talk Fiero.

[This message has been edited by mender (edited 01-06-2017).]

IP: Logged

fierosound
Member

Posts: 13195
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 271
Rate this member

Report this Post01-21-2017 05:29 PM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageClick Here to Email fierosoundSend a Private Message to fierosoundEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by mender:

Looks like you're on the right track with the MPFI but the 48 lb injectors are a little big if you're going with that size unless you're planning to boost it, which isn't likely with the 10.5:1 compression ratio. WIth the previous 160 hp reading at the wheels with the auto you're probably in the 220 hp range at the crank, so I'd suggest around the 32 lb range, still enough to supply 260 hp but easier to meter at low rpm and loads. I also do show quality custom headers so if you're still having sealing issues and would like a header with a better flange, cleaner welding and proper sized secondary tubing, let me know and we'll talk Fiero.



Thanks. I talked a bit with you about your car at last spring's Didsbury show.

If you don't have a V8 Mustang, Camaro, Corvette or a Ricer - there's no tuners here.
I certainly don't know anyone local using TunerPro RT which is the only way to program the setup I have.
The 48# rating is at 58psi. I'll be running 42psi.

I have to get this installed and see where I stand.

[This message has been edited by fierosound (edited 01-21-2017).]

IP: Logged

Stubby79
Member

Posts: 6719
From: GFY county, FY.
Registered: Aug 2008


Feedback score: N/A
Leave feedback





Total ratings: 57
Rate this member

Report this Post01-23-2017 11:37 AM Click Here to See the Profile for Stubby79Send a Private Message to Stubby79Edit/Delete MessageReply w/QuoteDirect Link to This Post

nice work on that intake!

IP: Logged

mender
Member

Posts: 173
From: Didsbury, Alberta, Canada
Registered: Nov 2010


Feedback score: N/A
Leave feedback

Rate this member

Report this Post01-25-2017 10:23 AM Click Here to See the Profile for menderSend a Private Message to menderEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by fierosound:


Thanks. I talked a bit with you about your car at last spring's Didsbury show.

If you don't have a V8 Mustang, Camaro, Corvette or a Ricer - there's no tuners here.
I certainly don't know anyone local using TunerPro RT which is the only way to program the setup I have.
The 48# rating is at 58psi. I'll be running 42psi.

I have to get this installed and see where I stand.


That still puts the rating at about 41 lbs, enough to support over 300 hp. Not the end of the world but everything's easier when the numbers are closer.

Have you checked with Toma at Dynomotive?

IP: Logged

Lilchief
Member

Posts: 1546
From: Vevay,Indiana
Registered: Feb 2004


Feedback score: (3)
Leave feedback

Rate this member

Report this Post06-16-2017 05:22 PM Click Here to See the Profile for LilchiefSend a Private Message to LilchiefEdit/Delete MessageReply w/QuoteDirect Link to This Post

Tony. Any luck with the new intake ?

------------------

85 GT 3.4
14.9 @ 90 1.9 60' Old TH125/3.06
Unknown New 4T60/3.42

IP: Logged

Lilchief
Member

Posts: 1546
From: Vevay,Indiana
Registered: Feb 2004


Feedback score: (3)
Leave feedback

Rate this member

Report this Post06-16-2017 08:08 PM Click Here to See the Profile for LilchiefSend a Private Message to LilchiefEdit/Delete MessageReply w/QuoteDirect Link to This Post

mender, sent you a p m

------------------

85 GT 3.4
14.9 @ 90 1.9 60' Old TH125/3.06
Unknown New 4T60/3.42

IP: Logged

fierosound
Member

Posts: 13195
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 271
Rate this member

Report this Post07-10-2017 06:29 PM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageClick Here to Email fierosoundSend a Private Message to fierosoundEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by Lilchief:

Tony. Any luck with the new intake ?



Not on the car yet - but I've been working on it.

Have to get ends of fuel rail bored/tapped for ORB (O-Ring Boss) fuel fittings.
Then bead blast and powder coat intake, adapter/spacer, alt/dogbone mount and throttle bracket.

The Edelbrock manifold was intended for mechanical fuel injection nozzles of that time.
This arrangement could not possibly fit without the new compact EFI injectors of today.



[This message has been edited by fierosound (edited 07-28-2017).]

IP: Logged

fierosound
Member

Posts: 13195
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 271
Rate this member

Report this Post07-11-2017 12:14 PM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageClick Here to Email fierosoundSend a Private Message to fierosoundEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by mender:

... I worked at Guyon Racing in Calgary when we built Art McKenzie's rally Fiero with the SD4 engines back in the late '80s and early '90s and still have an SD mechanical fuel injection system set up for alcohol.



mender: you have a PM...

A video clip of Art McKenzie's SD4 car...

[This message has been edited by fierosound (edited 07-11-2017).]

IP: Logged

fierosound
Member

Posts: 13195
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 271
Rate this member

Report this Post07-26-2017 09:09 AM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageClick Here to Email fierosoundSend a Private Message to fierosoundEdit/Delete MessageReply w/QuoteDirect Link to This Post

Finally started installation of the Multi-port EFI system I put together.



Here's the 2-bbl and 4-bbl manifolds together to show how huge the open plenum is on the 4-bbl intake.



Just a quick test fit to see how it looks in the engine bay. :-)

IP: Logged

KurtAKX
Member

Posts: 4004
From: West Bloomfield, MI
Registered: Feb 2002


Feedback score:    (9)
Leave feedback





Total ratings: 128
Rate this member

Report this Post07-27-2017 10:25 PM Click Here to See the Profile for KurtAKXSend a Private Message to KurtAKXEdit/Delete MessageReply w/QuoteDirect Link to This Post

curious to see how you make that last bend with the throttle cable- re-using the bellcrank from previous iteration?

IP: Logged

Previous Page | Next Page

This topic is 7 pages long:  1   2   3   4   5   6   7
next newest topic | next oldest topic

All times are ET (US)

Post New Topic  Post A Reply
Hop to:

Contact Us | Back To Main Page

Advertizing on PFF | Fiero Parts Vendors
PFF Merchandise | Fiero Gallery | Ogre's Cave
Real-Time Chat | Fiero Related Auctions on eBay



Copyright (c) 1999, C. Pennock
