Report this Post04-03-2006 10:13 PM Click Here to See the Profile for FieroGTRwidebobyClick Here to visit FieroGTRwideboby's HomePageClick Here to Email FieroGTRwidebobySend a Private Message to FieroGTRwidebobyEdit/Delete MessageReply w/QuoteDirect Link to This Post

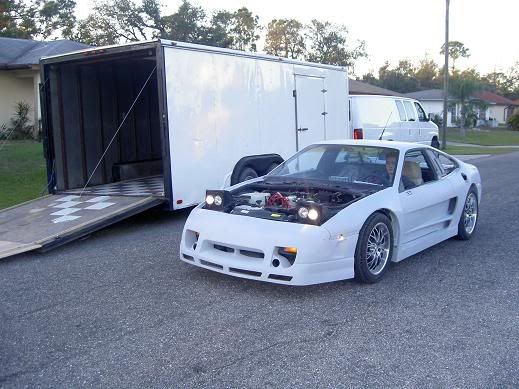

Last two for today:

IP: Logged

Tusch
Member

Posts: 222
From: Dayton, OH
Registered: Mar 2006


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-04-2006 04:39 PM Click Here to See the Profile for TuschClick Here to Email TuschSend a Private Message to TuschEdit/Delete MessageReply w/QuoteDirect Link to This Post

Looking amazing, I love seeing how this thing progessed.

IP: Logged

MinnGreenGT
Member

Posts: 11484
From: Lakeville, MN 55044
Registered: Jul 2001


Feedback score: (1)
Leave feedback





Total ratings: 275
Rate this member

Report this Post04-04-2006 04:43 PM Click Here to See the Profile for MinnGreenGTClick Here to visit MinnGreenGT's HomePageClick Here to Email MinnGreenGTSend a Private Message to MinnGreenGTEdit/Delete MessageReply w/QuoteDirect Link to This Post

Your vision and execution of the design are just stunning!

How much pre-planning did you do? (illustrations, sketches, etc).

IP: Logged

FieroGTRwideboby
Member

Posts: 590
From: Socal (Pasadena)
Registered: Jun 2004


Feedback score: (1)
Leave feedback

Rate this member

Report this Post04-04-2006 06:23 PM Click Here to See the Profile for FieroGTRwidebobyClick Here to visit FieroGTRwideboby's HomePageClick Here to Email FieroGTRwidebobySend a Private Message to FieroGTRwidebobyEdit/Delete MessageReply w/QuoteDirect Link to This Post

MinnGreenGT
To tell you the truth, when we decided to do a car, I was thinking about it for and had that exact design in my mind before it started. I got it on paper and it looked good, so we choose this one. I have sketches of when we started it, I did different quarter views and although i was happy to start it, in the end I felt unexcited, because to me this car design was old, 2 years. I knew what it would look like before we got it done, there was alot of mental thinking on my part about what would look good and what would be hard to do, so we can do it. I have plenty of sketches of this and some other ideas that I have for parts for these cars. If you would like I could post some, so you can see what the initial idea was and how close it is to that. Other than sketches we had no experience with ay of the materials to build it, we just jumped into it and learned from trial and error.
I guess I'll post some sketches of ideas, and other concepts I have done, but after the lambo-door segement of the car that I am about to do.

In other words it was more execution than planning..LOL
Alex

------------------
There's two types of cars in the world, Fieros and everything else.

IP: Logged

FieroGTRwideboby
Member

Posts: 590
From: Socal (Pasadena)
Registered: Jun 2004


Feedback score: (1)
Leave feedback

Rate this member

Report this Post04-04-2006 06:52 PM Click Here to See the Profile for FieroGTRwidebobyClick Here to visit FieroGTRwideboby's HomePageClick Here to Email FieroGTRwidebobySend a Private Message to FieroGTRwidebobyEdit/Delete MessageReply w/QuoteDirect Link to This Post

Lambo-doors::

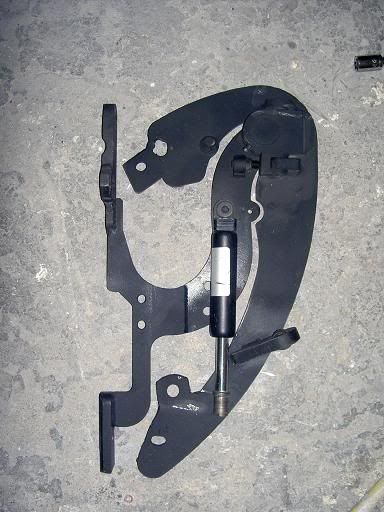

The kit we used was a universal Honda Civic predrilled kit. The great part was that two of the four bolt holes of the honda drilling matched up with the fiero holes on the chasis. We had to weld on a small bracket to redrill the two other wholes and that was it. it bolted right up. This took about 2 days to attach both hinges and 2 more to get all the bugs out and have them completely done. Its not as hard as people make it sound. Pics:

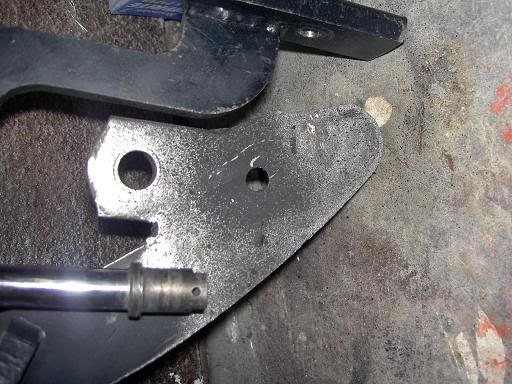

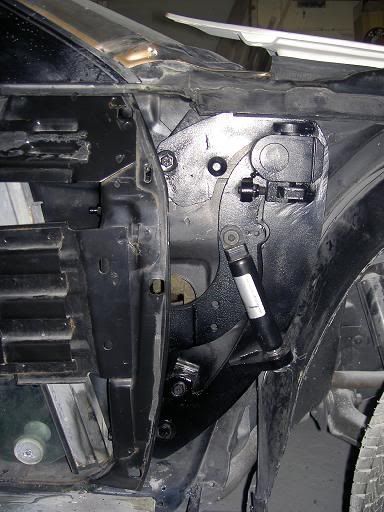

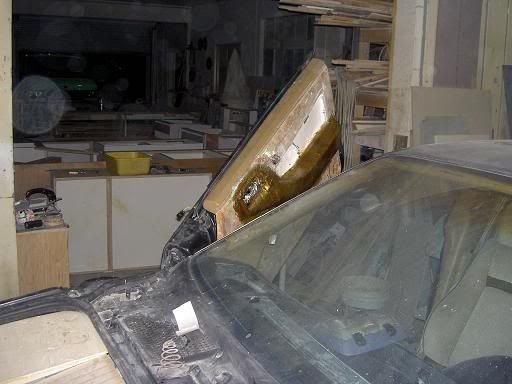

Picture of the hinge with welded tabs for other 2 bolt holes which match fiero pattern:

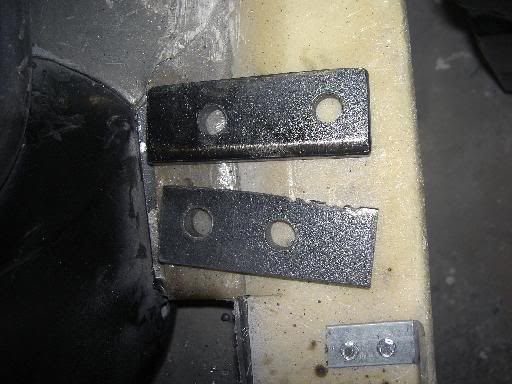

Close up of welded tabs 1/2" thick:

Spacers made of 1/2" thick metal which go in between hinge and chasis on bottom, washers at the top due to little space needed.:

Hinge attached:

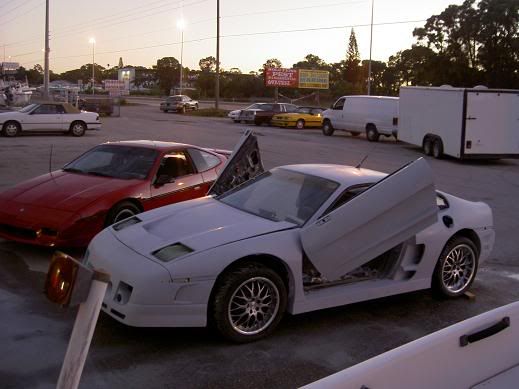

She Moves up and down!!!:

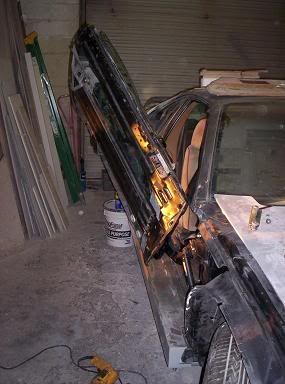

Both doors and I after 2 days of crying and finger smashing form both me and my dad:


IP: Logged

1986 Fiero GT
Member

Posts: 3374
From: Eden, NY USA
Registered: Mar 2005


Feedback score:    (10)
Leave feedback





Total ratings: 54
Rate this member

Report this Post04-04-2006 09:45 PM Click Here to See the Profile for 1986 Fiero GTClick Here to Email 1986 Fiero GTSend a Private Message to 1986 Fiero GTEdit/Delete MessageReply w/QuoteDirect Link to This Post

Damn... Those doors are amazing. How tough was it to modify those Decah hinges? Are those the universal set?

IP: Logged

MinnGreenGT
Member

Posts: 11484
From: Lakeville, MN 55044
Registered: Jul 2001


Feedback score: (1)
Leave feedback





Total ratings: 275
Rate this member

Report this Post04-04-2006 11:29 PM Click Here to See the Profile for MinnGreenGTClick Here to visit MinnGreenGT's HomePageClick Here to Email MinnGreenGTSend a Private Message to MinnGreenGTEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by FieroGTRwideboby:

I have plenty of sketches of this and some other ideas that I have for parts for these cars. If you would like I could post some, so you can see what the initial idea was and how close it is to that...

When you get around to it... I'd definitely like to see your concept drawings!

IP: Logged

FieroGTRwideboby
Member

Posts: 590
From: Socal (Pasadena)
Registered: Jun 2004


Feedback score: (1)
Leave feedback

Rate this member

Report this Post04-05-2006 09:51 PM Click Here to See the Profile for FieroGTRwidebobyClick Here to visit FieroGTRwideboby's HomePageClick Here to Email FieroGTRwidebobySend a Private Message to FieroGTRwidebobyEdit/Delete MessageReply w/QuoteDirect Link to This Post

Okay here are a few.

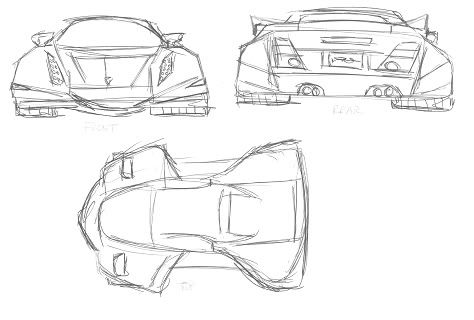

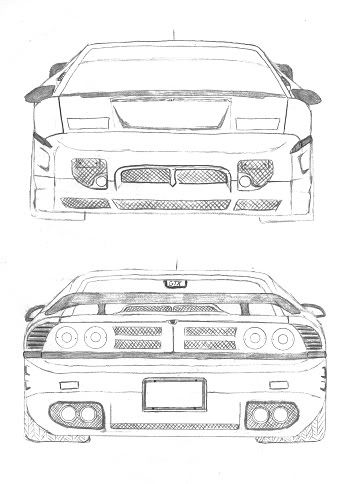

this one is off the original design for the Fiero GTR widebody we constructed:

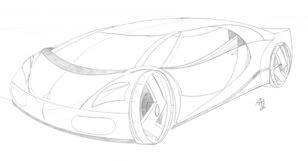

This one if of a 2020 car:

Just another sketch:

I have plenty of fiero concept ideas, but those are in my portfolio, I will get them and scan them so i can show them to you all.

------------------
There's two types of cars in the world, Fieros and everything else.

IP: Logged

Joe Torma
Member

Posts: 3485
From: Hillsborough, NJ USA
Registered: Jul 2001


Feedback score: N/A
Leave feedback





Total ratings: 129
Rate this member

Report this Post04-05-2006 11:55 PM Click Here to See the Profile for Joe TormaClick Here to visit Joe Torma's HomePageClick Here to Email Joe TormaSend a Private Message to Joe TormaEdit/Delete MessageReply w/QuoteDirect Link to This Post

Beautiful car. Incredible craftsmanship...one awesome car.

IP: Logged

Gokart Mozart
Member

Posts: 12143
From: Metro Detroit
Registered: Mar 2003


Feedback score: (1)
Leave feedback





Total ratings: 160
Rate this member

Report this Post04-06-2006 04:59 AM Click Here to See the Profile for Gokart MozartClick Here to visit Gokart Mozart's HomePageSend a Private Message to Gokart MozartEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by FieroGTRwideboby:

Just another sketch:

I have plenty of fiero concept ideas, but those are in my portfolio, I will get them and scan them so i can show them to you all.

The bottom pic looks like the Tandem 2000 we saw at the GM heritage center. Many pics here: http://www.fiero.nl/forum/Forum1/HTML/054553.html

[This message has been edited by Gokart Mozart (edited 04-06-2006).]

IP: Logged

proff
Member

Posts: 7392
From: The bottom of the world
Registered: Oct 2004


Feedback score: N/A
Leave feedback





Total ratings: 87
Rate this member

Report this Post04-06-2006 06:40 AM Click Here to See the Profile for proffClick Here to visit proff's HomePageClick Here to Email proffSend a Private Message to proffEdit/Delete MessageReply w/QuoteDirect Link to This Post

Where can i get hinges like that ?

------------------
Allen
Australia
86 gold SE
85 red SE
01161412119530

IP: Logged

exoticse
Member

Posts: 8506
From: Orlando, Fl
Registered: Jun 2003


Feedback score: N/A
Leave feedback





Total ratings: 105
Rate this member

Report this Post04-06-2006 10:09 AM Click Here to See the Profile for exoticseClick Here to Email exoticseSend a Private Message to exoticseEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by proff:

Where can i get hinges like that ?

Proff,

i think you missed it above. Alex said they are the Decah Honda civic ones. He got his off of ebay, but you can also just order them from decah.

Most people just get the universal ones and modify them, but Alex proved the Honda civic ones work just as well.

But i think even he will tell you, if possible, get the stronger struts they have available, not the standard ones that come with the kit.

IP: Logged

carolinajoe
Member

Posts: 822
From: Spring Hill,Fl.
Registered: Feb 2005


Feedback score: N/A
Leave feedback





Total ratings: 50
Rate this member

Report this Post04-06-2006 11:04 AM Click Here to See the Profile for carolinajoeClick Here to visit carolinajoe's HomePageClick Here to Email carolinajoeSend a Private Message to carolinajoeEdit/Delete MessageReply w/QuoteDirect Link to This Post

Hey Alex,
Love the car and the talent behind it.
Have you thought of entering this contest?
I think you would do real well.

Plus you still haven't said what the Gas Door is from??
Year, Model and where did you get it??

Thanks
Joe

http://speedtv.ign.com/

It is a link to Unique Whips, and I think you would do quite well with your entry.

Enter the Are You Unique contest and score a six day/five night trip to the Unique Whips Shop in Holbrook, New York.
You’ll get to work and chill alongside Will Castro and his team at Unique Autosports.
Guest star in an exclusive webisode of Unique Whips, and get $500 spending cash!
Plus, nine lucky First Prize Winners will receive a Unique Whips jacket signed by Will Castro.

[This message has been edited by carolinajoe (edited 04-06-2006).]

IP: Logged

MinnGreenGT
Member

Posts: 11484
From: Lakeville, MN 55044
Registered: Jul 2001


Feedback score: (1)
Leave feedback





Total ratings: 275
Rate this member

Report this Post04-06-2006 11:14 AM Click Here to See the Profile for MinnGreenGTClick Here to visit MinnGreenGT's HomePageClick Here to Email MinnGreenGTSend a Private Message to MinnGreenGTEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by carolinajoe:

Enter the Are You Unique contest and score a six day/five night trip to the Unique Whips Shop in Holbrook, New York.
You’ll get to work and chill alongside Will Castro and his team at Unique Autosports.
Guest star in an exclusive webisode of Unique Whips, and get $500 spending cash!
Plus, nine lucky First Prize Winners will receive a Unique Whips jacket signed by Will Castro.

[opinion]Alex & his Father make the guys at "unique" look like amateurs[/opinion]

BTW - Alex, thanks for the sketch pics... looks like you guys knew exactly where you were going from the start! Look forward to seeing more of your work in the future.

Any plans for a nice "photo shoot"? I'd offer if I were in the area...

IP: Logged

Tusch
Member

Posts: 222
From: Dayton, OH
Registered: Mar 2006


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-06-2006 02:43 PM Click Here to See the Profile for TuschClick Here to Email TuschSend a Private Message to TuschEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by MinnGreenGT:
[opinion]Alex & his Father make the guys at "unique" look like amateurs[/opinion]

Yeah no offense to anybody, but Unique Whips has got to be the worst car themed show on tv. Throw on some rims and a sound system, and you've got a totally Unique Whip! haha

But anyways, again man, Alex the car is amazing. Any chance of just opening a photobucket or similar account so people can stroll through all the pics?

IP: Logged

madcurl
Member

Posts: 21401
From: In a Van down by the Kern River
Registered: Jul 2003


Feedback score: N/A
Leave feedback





Total ratings: 314
Rate this member

Report this Post04-06-2006 05:55 PM Click Here to See the Profile for madcurlClick Here to Email madcurlSend a Private Message to madcurlEdit/Delete MessageReply w/QuoteDirect Link to This Post

Hey Alex, do you have any pics of you between the door and the car? I'd like to compare the two Decahs. If alll thing being equal, I think the Decah Honda universal might be a better option with little or less work for the Fiero application.


IP: Logged

FieroGTRwideboby
Member

Posts: 590
From: Socal (Pasadena)
Registered: Jun 2004


Feedback score: (1)
Leave feedback

Rate this member

Report this Post04-07-2006 09:54 PM Click Here to See the Profile for FieroGTRwidebobyClick Here to visit FieroGTRwideboby's HomePageClick Here to Email FieroGTRwidebobySend a Private Message to FieroGTRwidebobyEdit/Delete MessageReply w/QuoteDirect Link to This Post

carolinajoe:
The gas door was from a 2003 Mitsibishi Eclipse, I don't think it will work with the stock fiero though, there too much radius on it and it does not match the almost flat surface of the stock fiero location. If you really want a race, or racelook fuel door try one of these:
http://www.nopionline.com/nopistore/dsp_parts.cfm?vL1ID=2&vL2ID=41&vL3ID=270&vL4ID=0&vL5ID=0&vtitle=Custom%20Exterior-Fuel%20Door%20Covers&CFID=22728929&CFTOKEN=89164581
They look to have a relatively small radius and would work great, the only thing to check would be the diameter, 5.5" -6" would work.
Curly: I sent you a PM but I'll state it here too, its 38" from the ground to the upper (lower) door edge.
I think if you look at the 1st and 4th picture with the door you can see the wholes that are to the right of the strut mounting locations at the top, if I move it futher to the right it will lift higher, right?.

Thanks
Alex

IP: Logged

FieroGTRwideboby
Member

Posts: 590
From: Socal (Pasadena)
Registered: Jun 2004


Feedback score: (1)
Leave feedback

Rate this member

Report this Post04-07-2006 10:31 PM Click Here to See the Profile for FieroGTRwidebobyClick Here to visit FieroGTRwideboby's HomePageClick Here to Email FieroGTRwidebobySend a Private Message to FieroGTRwidebobyEdit/Delete MessageReply w/QuoteDirect Link to This Post

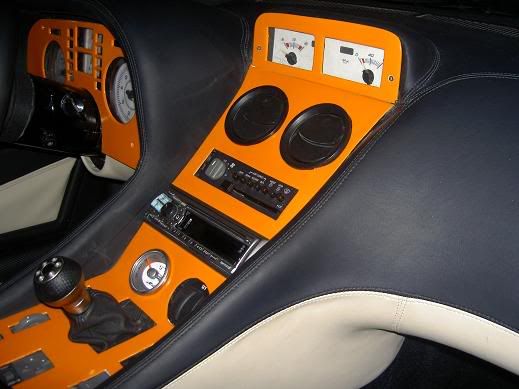

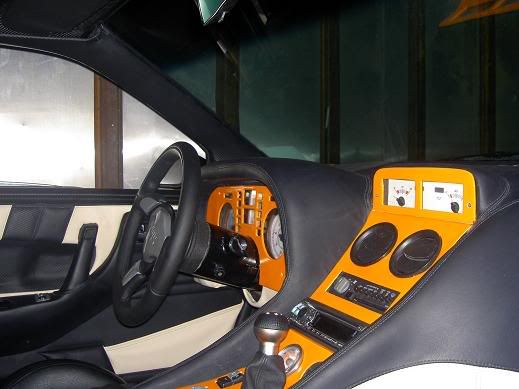

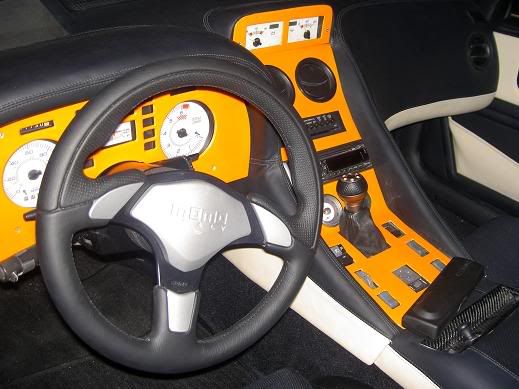

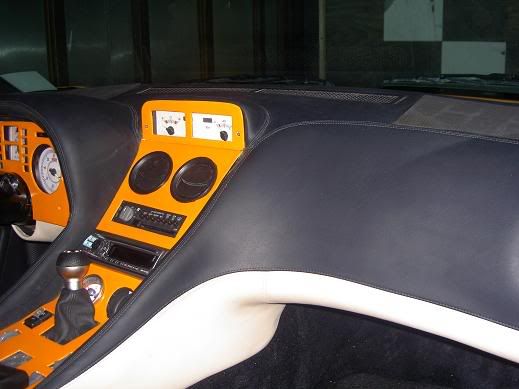

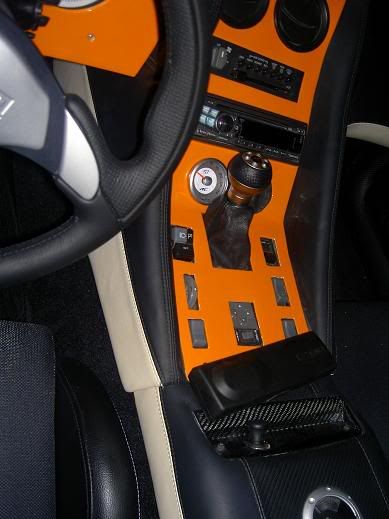

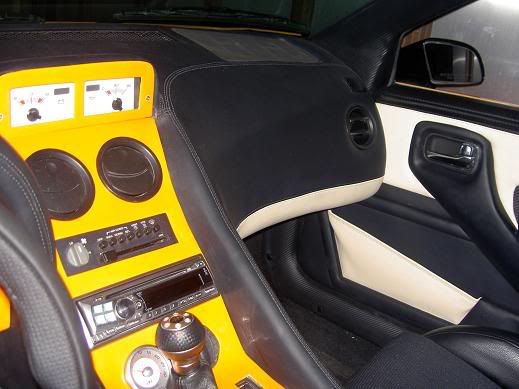

Okay now lets get to the long awaited Archie dash ( Great Products he produces !!!) , I will include all the modifications too:

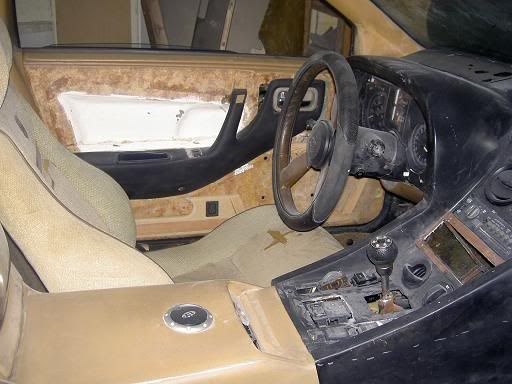

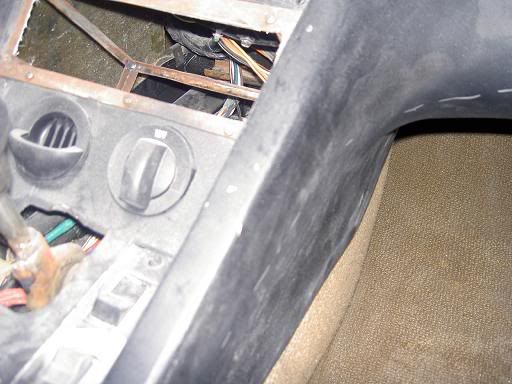

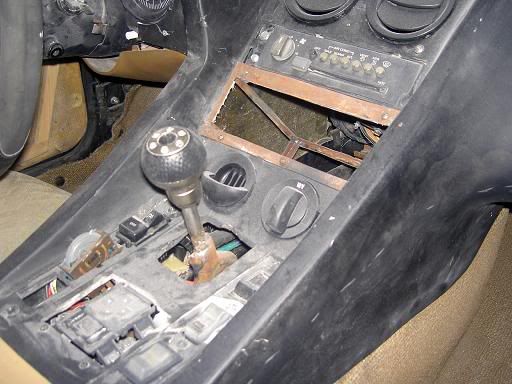

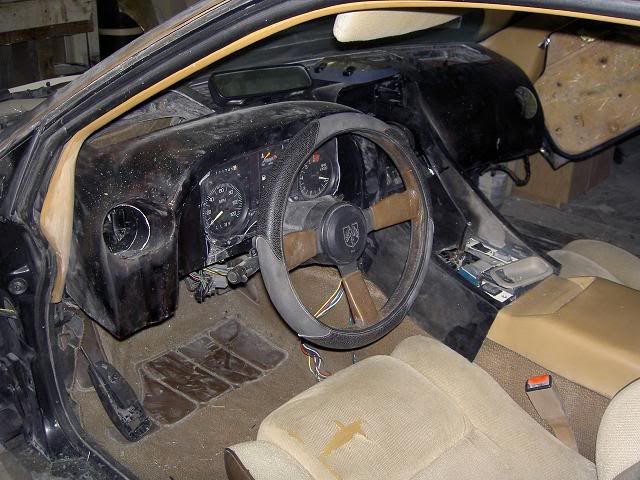

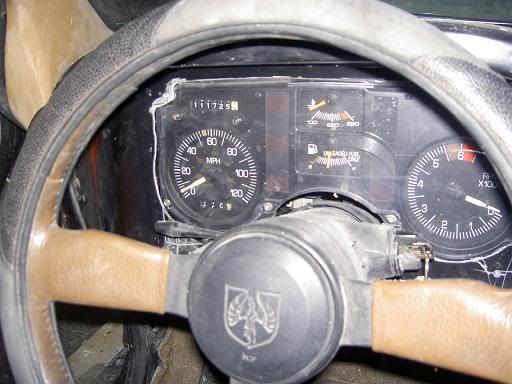

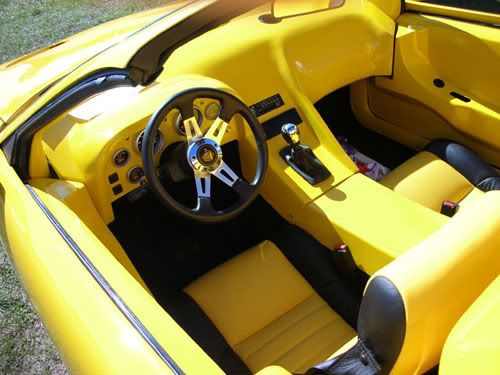

Stock Archie dash as all of you know:

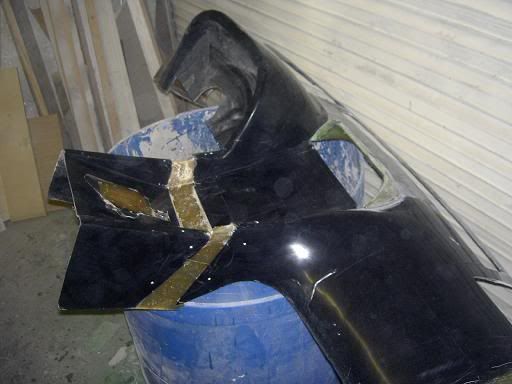

What I Liked about the dash was the connected center console to the upper dash, but I wanted to make the rest because we didn't think the rest was suitable for our car such as the doors, and center console. We cut the ends off the dash which fit up againt the his doors and fiberglassed the new ends to the dash.:

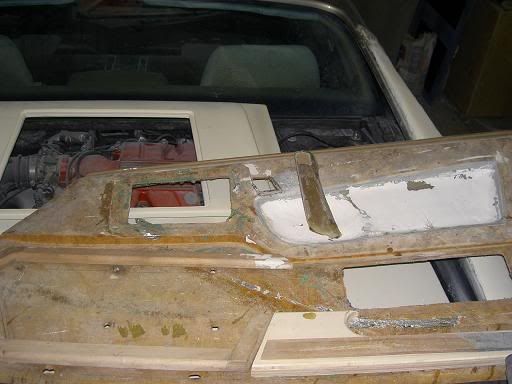

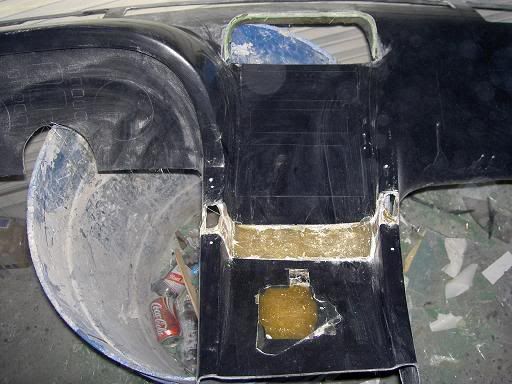

and then elongated the bottom edge of the dash to reach back futher so we could use the factory mounting locations, and brakets which were salvaged from the original dash.

The next thing was the elongation and degree change in the center tunnel of the dash:

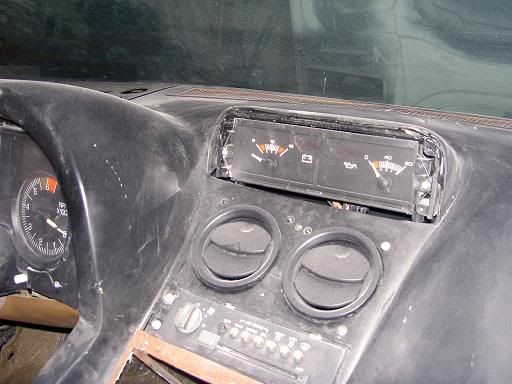

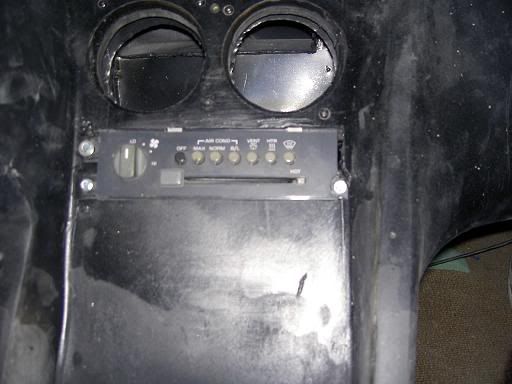

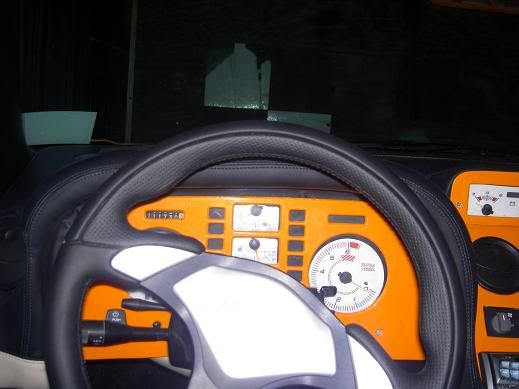

another thing you all may notice is the added fiberglass auxilery gauge pod which was added at the top of the tunnel. I liked the auxilery gauge location and wanted to make it look like it was part of the new dash. When it was covered it looked like it was original.
The last touch was the left AC vent tunnel wich had to be made to accept the F-150 vents.:

IP: Logged

FieroGTRwideboby
Member

Posts: 590
From: Socal (Pasadena)
Registered: Jun 2004


Feedback score: (1)
Leave feedback

Rate this member

Report this Post04-07-2006 10:41 PM Click Here to See the Profile for FieroGTRwidebobyClick Here to visit FieroGTRwideboby's HomePageClick Here to Email FieroGTRwidebobySend a Private Message to FieroGTRwidebobyEdit/Delete MessageReply w/QuoteDirect Link to This Post

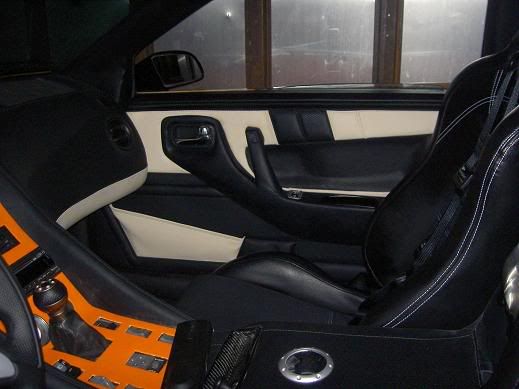

With the fiberglass done, we had to trim out and fabricate mounting brackets for all the accesories: AC vents, AC unit, Radio, Cluster,Boost Gauge, Power-Port, swithes, Defrost vent, and speaker locations.:




IP: Logged

Archie
Member

Posts: 9386
From: Las Vegas, NV
Registered: Dec 1999


Feedback score:    (12)
Leave feedback





Total ratings: 544
Rate this member

Report this Post04-07-2006 10:57 PM Click Here to See the Profile for ArchieClick Here to visit Archie's HomePageClick Here to Email ArchieSend a Private Message to ArchieEdit/Delete MessageReply w/QuoteDirect Link to This Post

Well, I'll tell you what....... You did a heck of a job building a very nice car.

You will go a long way in the design field, just remember us little guys when you get there.

I've bookmarked this as my favorite build up thread.

Archie

------------------

IP: Logged

exoticse
Member

Posts: 8506
From: Orlando, Fl
Registered: Jun 2003


Feedback score: N/A
Leave feedback





Total ratings: 105
Rate this member

Report this Post04-08-2006 01:35 PM Click Here to See the Profile for exoticseClick Here to Email exoticseSend a Private Message to exoticseEdit/Delete MessageReply w/QuoteDirect Link to This Post

Alex how tall was the chin spoiler you added ?

It looks fantastic, and i am trying to compare it to the height of the Fiero Warehouse closed mouth chin spoiler.

IP: Logged

FieroGTRwideboby
Member

Posts: 590
From: Socal (Pasadena)
Registered: Jun 2004


Feedback score: (1)
Leave feedback

Rate this member

Report this Post04-08-2006 04:59 PM Click Here to See the Profile for FieroGTRwidebobyClick Here to visit FieroGTRwideboby's HomePageClick Here to Email FieroGTRwidebobySend a Private Message to FieroGTRwidebobyEdit/Delete MessageReply w/QuoteDirect Link to This Post

Exoticse the lip was 2.5 inches tall, I am not sure what the Fiero Warehouse one is.

IP: Logged

exoticse
Member

Posts: 8506
From: Orlando, Fl
Registered: Jun 2003


Feedback score: N/A
Leave feedback





Total ratings: 105
Rate this member

Report this Post04-08-2006 06:04 PM Click Here to See the Profile for exoticseClick Here to Email exoticseSend a Private Message to exoticseEdit/Delete MessageReply w/QuoteDirect Link to This Post

Thanks.

Is your car lowered at all ?

Springs ? Coilovers ?

IP: Logged

FieroGTRwideboby
Member

Posts: 590
From: Socal (Pasadena)
Registered: Jun 2004


Feedback score: (1)
Leave feedback

Rate this member

Report this Post04-08-2006 06:20 PM Click Here to See the Profile for FieroGTRwidebobyClick Here to visit FieroGTRwideboby's HomePageClick Here to Email FieroGTRwidebobySend a Private Message to FieroGTRwidebobyEdit/Delete MessageReply w/QuoteDirect Link to This Post

The car is on WestCoastFiero coil overs and front lowering springs. Its at 2 inches in the back and 1.5 in front, but don't forget the stagered rim sizes.

IP: Logged

CoolBlue87GT
Member

Posts: 8091
From: Punta Gorda, Florida, USA
Registered: Apr 2001


Feedback score: (3)
Leave feedback





Total ratings: 148
Rate this member

Report this Post04-09-2006 09:32 AM Click Here to See the Profile for CoolBlue87GTClick Here to Email CoolBlue87GTSend a Private Message to CoolBlue87GTEdit/Delete MessageReply w/QuoteDirect Link to This Post

From today's newspaper. (Way to go Alex !!!!!)

(details of story printed below)

Here's the detail of the story.

Local high school student rebuilds car, wins big at Daytona competition

When Alex Alexiev's 1987 Pontiac Fiero was rear-ended about two years ago, the insurance company told him it wasn't worth anything and the car couldn't be fixed.

The Port Charlotte High School student didn't believe that, and didn't want to "total" his car. He told them he would "make it worth something," and on March 25, in Daytona Beach, judges agreed that the car -- with a lot of hard work and time from Alexiev and his father, Bobby -- was the best custom-built car at the show.

"No one believed it would ever get done," the now 19-year old senior said. With help from his father, they completely rebuilt the car -- "interior, exterior, everything. It was like a jigsaw puzzle with no instructions, and we had to first make every piece."

The vehicle -- which took about two years, 4,000 hours of labor from Alexiev and his father, and about $47,000 to complete -- took home first place in the custom car category at the 2006 Spring Daytona Beach Car Show on March 24-26.

"We wanted to make something no one else has," Alexiev said, adding that he had never done anything like this before. "No one wrote a book. It was all trial and error."

Alexiev drew up numerous design plans before they handmade the car. His father has a woodworking business, so they recreated the skeleton of the car out of wood before making the panels.

"I found that designs on paper don't always work right on the car," said Alexiev, adding that the Lamborghini-inspired car frame had to be redone. "It taught me a lot, and for college, the thought process and problem-solving of designing cars."

While building the car, Alexiev discover what he wants to major in at college and do as a profession -- transportation design. He says he wants to work at a major car company, like GM or Lamborghini, designing new cars.

"Before (building this car), I was into the whole airplane thing," he said. "But then I came down to Earth."

Alexiev hopes to attend the Art Institute of Fort Lauderdale or the Academy of Arts University in San Francisco, if he can "find the scholarships or a sponsor." After receiving his bachelor's degree, Alexiev wants to continue his studies and receive a master's from the elite Art Center College of Design in Pasadena, Calif., one of the best schools for his chosen profession, he said.

Work on the car kept Alexiev busy, especially combined with high school and his job at the Ford automobile dealership in Port Charlotte. He said that at some points, he couldn't even walk into his room without tripping over an engine or car part.

"I didn't feel tired while working on the car," he said, adding that many nights he would work until 11 p.m. or midnight. He said that despite the long hours on the project, and keeping his grades high in school at the same time, "it was all worth it."

"The dream came true for them," said Alexiev's mom, Maria. "They built the car -- deep inside, I thought they would be finished, one day, because (Alex) was so persistent. He finally did it."

Even his grandparents stayed a few extra days during their visit from Bulgaria -- where the Alexievs moved from in 1996 -- to see the car show.

During the show, Alexiev said lots of people came over and looked at the Lamborghini pearl orange-colored car.

"It was a show stopper," he said proudly. "We built it for ourselves to show what's possible. Some people are scared to take a step or do something, but they just have to try, or they are always going to regret it.

"I'm never going to sell that car."

[This message has been edited by CoolBlue87GT (edited 04-09-2006).]

IP: Logged

FieroGTRwideboby
Member

Posts: 590
From: Socal (Pasadena)
Registered: Jun 2004


Feedback score: (1)
Leave feedback

Rate this member

Report this Post04-09-2006 07:08 PM Click Here to See the Profile for FieroGTRwidebobyClick Here to visit FieroGTRwideboby's HomePageClick Here to Email FieroGTRwidebobySend a Private Message to FieroGTRwidebobyEdit/Delete MessageReply w/QuoteDirect Link to This Post

Thanks alot Coolblue
I just saw it about an hour ago and ran out to get 7 newspapers. lol The pictures they used are good, but out of the 10 I gave them they could have choosen some better ones.
I guess I will start on the doors today, and other interior pieces.

IP: Logged

ryan.hess
Member

Posts: 20784
From: Orlando, FL
Registered: Dec 2002


Feedback score: (1)
Leave feedback





Total ratings: 319
Rate this member

Report this Post04-09-2006 07:17 PM Click Here to See the Profile for ryan.hessClick Here to Email ryan.hessSend a Private Message to ryan.hessEdit/Delete MessageReply w/QuoteDirect Link to This Post

"4,000 hours of labor from Alexiev and his father, and about $47,000 to complete "

Now I know why my car doesn't look cool yet.

IP: Logged

FieroGTRwideboby
Member

Posts: 590
From: Socal (Pasadena)
Registered: Jun 2004


Feedback score: (1)
Leave feedback

Rate this member

Report this Post04-09-2006 07:54 PM Click Here to See the Profile for FieroGTRwidebobyClick Here to visit FieroGTRwideboby's HomePageClick Here to Email FieroGTRwidebobySend a Private Message to FieroGTRwidebobyEdit/Delete MessageReply w/QuoteDirect Link to This Post

Ryan.hess
Time and money are irrelevent, well maybe time, but keep going, you'll get her done.

Alex

IP: Logged

HarryG
Member

Posts: 587
From: Central Ohio, USA
Registered: Sep 99


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-10-2006 09:01 PM Click Here to See the Profile for HarryGClick Here to Email HarryGSend a Private Message to HarryGEdit/Delete MessageReply w/QuoteDirect Link to This Post

Alex,
Can we back up a little bit?
I've looked at everything you've posted here, and have a couple questions:

How did you get from your drawings to the shapes used for the ribs on the plug? One of the first pics shows your Dad working on the driver's door area. The rib shown has the door shape on the inner side and your new body shape on the outside. Did you use a profile gage to cut and shape these or were they "eyeballed"?
How did you check each side of the car to make sure they matched? Another profile gage?
HarryG

IP: Logged

FieroGTRwideboby
Member

Posts: 590
From: Socal (Pasadena)
Registered: Jun 2004


Feedback score: (1)
Leave feedback

Rate this member

Report this Post04-12-2006 12:20 PM Click Here to See the Profile for FieroGTRwidebobyClick Here to visit FieroGTRwideboby's HomePageClick Here to Email FieroGTRwidebobySend a Private Message to FieroGTRwidebobyEdit/Delete MessageReply w/QuoteDirect Link to This Post

Well to ensure the correct shape and size on both sides, we made the ribs on the right side of the car. and then, from them we made templates, for the left side. It made it easy to do the second side the same because once we were pleased with the right, we just transferred the measurements, but flipped over to the other side.

Many templates and measure five times, cut once was the solution.

[This message has been edited by FieroGTRwideboby (edited 04-12-2006).]

IP: Logged

FieroGTRwideboby
Member

Posts: 590
From: Socal (Pasadena)
Registered: Jun 2004


Feedback score: (1)
Leave feedback

Rate this member

Report this Post04-12-2006 01:31 PM Click Here to See the Profile for FieroGTRwidebobyClick Here to visit FieroGTRwideboby's HomePageClick Here to Email FieroGTRwidebobySend a Private Message to FieroGTRwidebobyEdit/Delete MessageReply w/QuoteDirect Link to This Post

Okay now for the door panels.
The door panles are modified stock door panels, the arm rests are custom fiberglass replacements and the door latched were from a Nissan Altima 96.
The door panels have a indented area for the arm to sit into. This was insiped my a Gallardo I got to drive, I really liked how there was a little more depth. We made them by cutting out the door panel were the indented area would be. To have a backing we kept the cutouts for the indented wall, so we could make a mold. The angles edges were coverd in the strong foil tape to serve as support for the mold.

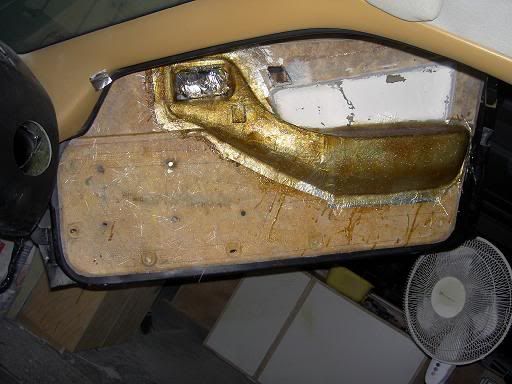

This pictures shows the indent :

Side look: Other trim peices are made of wood, covered in leather.

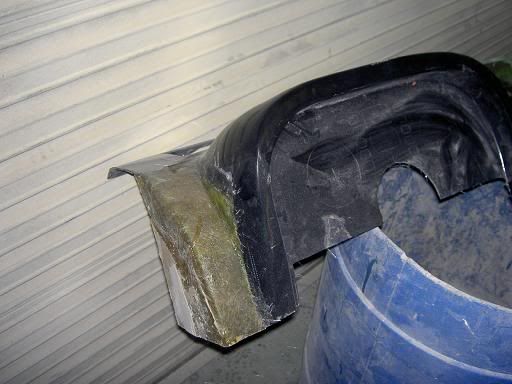

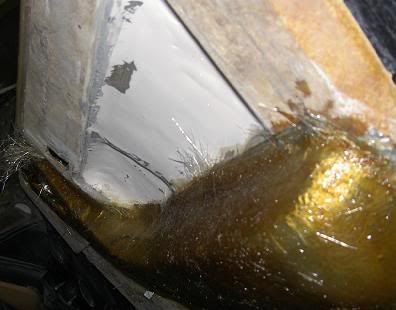

Fiberglass door handle molds being made directly from plug:

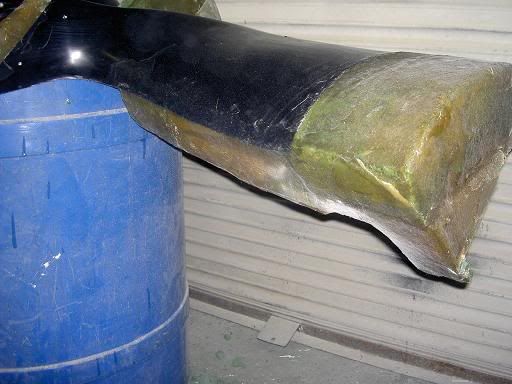

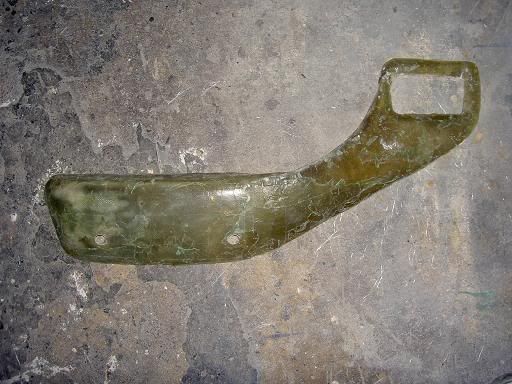

After mold was made the new door handles they were made form the mold:

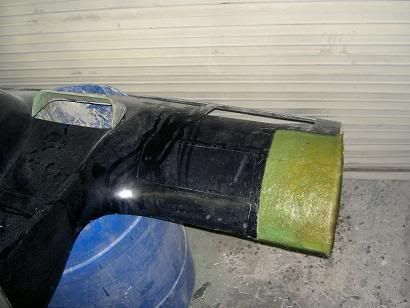

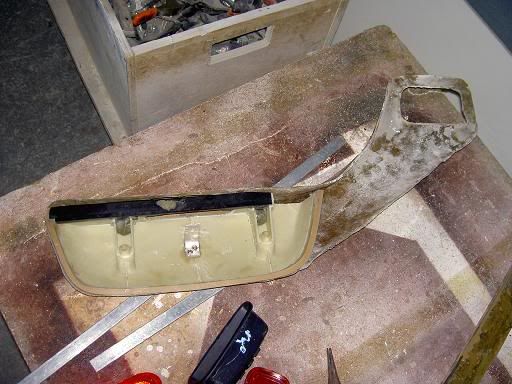

To have the factory mounting locations at the bottom original plastic core was used in new handles:

The handle was moved about 1.5 inches forward so the attachment bracket was relocated on the door.:

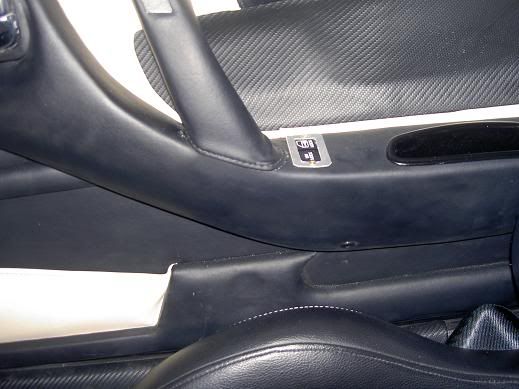

The wiring for the lock buttons was lengthened and the switches were put on the door handles as well. The door grab inserts were from an acura integra 92, painted/dyed to match black.

[This message has been edited by FieroGTRwideboby (edited 04-12-2006).]

IP: Logged

Tusch
Member

Posts: 222
From: Dayton, OH
Registered: Mar 2006


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-12-2006 04:35 PM Click Here to See the Profile for TuschClick Here to Email TuschSend a Private Message to TuschEdit/Delete MessageReply w/QuoteDirect Link to This Post

I was just hoping for a new update, thanks and nice timing haha.

Did you do the upholstery yourselves or did you make the interior and have someone else wrap it up? Looks pretty sweet, I'd love to do something similar.

IP: Logged

FieroGTRwideboby
Member

Posts: 590
From: Socal (Pasadena)
Registered: Jun 2004


Feedback score: (1)
Leave feedback

Rate this member

Report this Post04-12-2006 07:36 PM Click Here to See the Profile for FieroGTRwidebobyClick Here to visit FieroGTRwideboby's HomePageClick Here to Email FieroGTRwidebobySend a Private Message to FieroGTRwidebobyEdit/Delete MessageReply w/QuoteDirect Link to This Post

The inetrior dash, door panels and center console was upholstered by a Trim Shop, but some of the other stuff I did. The simple things like, firewall panel,and B pillars, A pillars, and the floor trim.
They did a good job, not perfect but its very good.
I think i'll post some after upolstery tonight.

Alex

IP: Logged

FieroGTRwideboby
Member

Posts: 590
From: Socal (Pasadena)
Registered: Jun 2004


Feedback score: (1)
Leave feedback

Rate this member

Report this Post04-12-2006 09:21 PM Click Here to See the Profile for FieroGTRwidebobyClick Here to visit FieroGTRwideboby's HomePageClick Here to Email FieroGTRwidebobySend a Private Message to FieroGTRwidebobyEdit/Delete MessageReply w/QuoteDirect Link to This Post

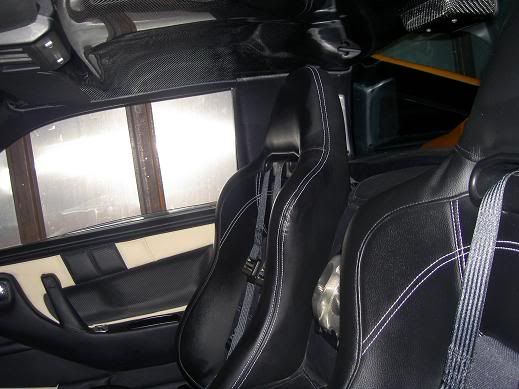

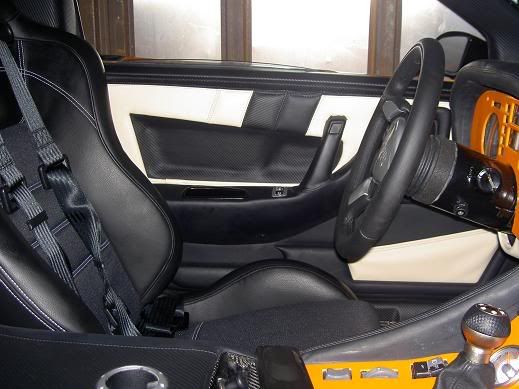

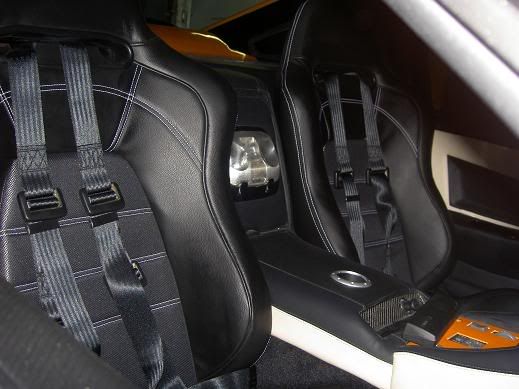

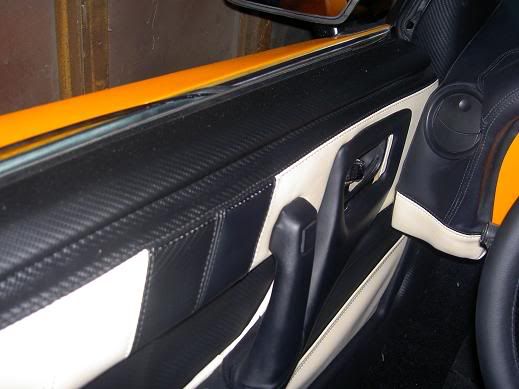

Here we go! The finished interior pictures:













IP: Logged

HarryG
Member

Posts: 587
From: Central Ohio, USA
Registered: Sep 99


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-14-2006 07:34 PM Click Here to See the Profile for HarryGClick Here to Email HarryGSend a Private Message to HarryGEdit/Delete MessageReply w/QuoteDirect Link to This Post

Alex,
What type of resin did you use? (polyester, epoxy?)

IP: Logged

FieroGTRwideboby
Member

Posts: 590
From: Socal (Pasadena)
Registered: Jun 2004


Feedback score: (1)
Leave feedback

Rate this member

Report this Post04-14-2006 11:42 PM Click Here to See the Profile for FieroGTRwidebobyClick Here to visit FieroGTRwideboby's HomePageClick Here to Email FieroGTRwidebobySend a Private Message to FieroGTRwidebobyEdit/Delete MessageReply w/QuoteDirect Link to This Post

polyester, and lots of it.

Alex

IP: Logged

NY_FIERO
Member

Posts: 1552
From: mexico NY
Registered: May 2002


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-15-2006 07:17 AM Click Here to See the Profile for NY_FIEROClick Here to visit NY_FIERO's HomePageClick Here to Email NY_FIEROSend a Private Message to NY_FIEROEdit/Delete MessageReply w/QuoteDirect Link to This Post

ALL I Can say is.......................................
wow.

IP: Logged

Formula
Member

Posts: 5294
From:
Registered: Jul 99


Feedback score: (2)
Leave feedback





Total ratings: 96
Rate this member

Report this Post04-15-2006 11:57 AM Click Here to See the Profile for FormulaSend a Private Message to FormulaEdit/Delete MessageReply w/QuoteDirect Link to This Post

what kind of seat belts are those? are they 4 point, and if so, where did you attach them?

Thanks!

btw, very nice car!

IP: Logged

FieroGTRwideboby
Member

Posts: 590
From: Socal (Pasadena)
Registered: Jun 2004


Feedback score: (1)
Leave feedback

Rate this member

Report this Post04-15-2006 03:56 PM Click Here to See the Profile for FieroGTRwidebobyClick Here to visit FieroGTRwideboby's HomePageClick Here to Email FieroGTRwidebobySend a Private Message to FieroGTRwidebobyEdit/Delete MessageReply w/QuoteDirect Link to This Post

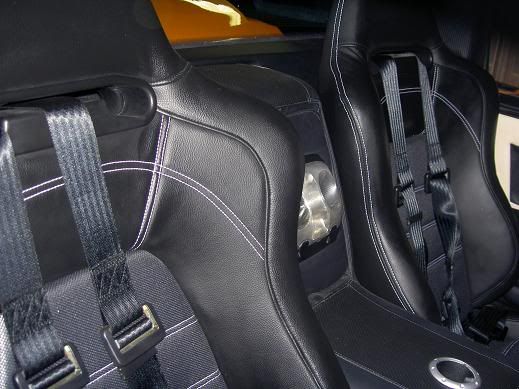

The seatbelts are the 3-point racing harnesses, they actually got attached to the firewall. I don't have a pic, but I will take one for you. What we did was get the bolt in type, the two bottom bolts attach to the stock bottom locations and the top one was attached to the firewall. The thread on the bolts was that same as the lugnuts, so we welded two lug nuts on two brackets, which were 2"x2" and then the plates were welded to the firewall. A small hole was cut out of the firewall cover (carpeted peice, ours we uphoslstered in leather), and bolt it up, took about 1 hr. to do the whole process. I'll get some pics and post them soon.

Alex

IP: Logged

Formula
Member

Posts: 5294
From:
Registered: Jul 99


Feedback score: (2)
Leave feedback





Total ratings: 96
Rate this member

Report this Post04-16-2006 06:08 PM Click Here to See the Profile for FormulaSend a Private Message to FormulaEdit/Delete MessageReply w/QuoteDirect Link to This Post

good idea, thanks!

IP: Logged
