Here is my 3.4L Pushrod swap. From a 95 Camaro to a 87 Fiero GT. I did a lot of cleaning and painting of everything. I posted 204 pics of the engine swap, parts as they were removed, cleaned, painted, powder coated, swaped, reassembled, etc....
If you need info about any bracket on the 2.8L/3.4L engine I should have a pic of it posted here.
Also pics and info for stripping the old powdercoat off of the intake/valve covers, are posted here.
And all of the info that I had to use in the swap.

Randye came in and added rebuild pics, for those of you who want to rebuild it first.

And I added pics of my rebuild with a turbo too.

If this thread has helped anyone please post comments at the end.

------------------
BTW lasvegasfieroclub.com is now lasvegasfieroclub.org
'84 Fiero Sport Quad 4 coming soon
'87 Blue GT 3.4L Swap Completed!!!!!!!!
http://www.lasvegasfieroclub.org/
Rate me if I'm usefull

[This message has been edited by sardonyx247 (edited 09-10-2008).]

IP: Logged

InDeX420
Member

Posts: 567
From: New MILF-ord, CT
Registered: Dec 2003


Feedback score: N/A
Leave feedback

Rate this member

Report this Post05-23-2004 02:35 PM Click Here to See the Profile for InDeX420Click Here to visit InDeX420's HomePageSend a Private Message to InDeX420Edit/Delete MessageReply w/QuoteDirect Link to This Post

All of dem please

IP: Logged

Spyhunter
Member

Posts: 1254
From: San Francisco, CA
Registered: Feb 2002


Feedback score: N/A
Leave feedback





Total ratings: 86
Rate this member

Report this Post05-23-2004 04:03 PM Click Here to See the Profile for SpyhunterClick Here to Email SpyhunterSend a Private Message to SpyhunterEdit/Delete MessageReply w/QuoteDirect Link to This Post

I am going to be doing this swap soon - all the pics would be extremely helpful! Thanks!

------------------

Black '87 GT Auto - Daily Driver & Autocrosser
Eibach springs, Koni shocks, Kosei K1s, Kumho Ecsta V700s, poly bushings, rear swaybar, MSD ignition, shift-kit, custom intake scoop

IP: Logged

sardonyx247
Member

Posts: 5011
From: Nevada, USA
Registered: Jun 2003


Feedback score:    (87)
Leave feedback





Total ratings: 218
Rate this member

Report this Post05-23-2004 04:54 PM Click Here to See the Profile for sardonyx247Click Here to visit sardonyx247's HomePageClick Here to Email sardonyx247Send a Private Message to sardonyx247Edit/Delete MessageReply w/QuoteDirect Link to This Post

OK we will start with these.

Here is the 3.4L out of a '95 camaro, 50,000 miles on it






------------------
'84 Fiero Sport Quad 4 coming soon
'87 Blue GT 3.4L Swap in progress!!!!!!!!
http://www.lasvegasfieroclub.com/
Rate me if I'm usefull

IP: Logged

sardonyx247
Member

Posts: 5011
From: Nevada, USA
Registered: Jun 2003


Feedback score:    (87)
Leave feedback





Total ratings: 218
Rate this member

Report this Post05-23-2004 04:56 PM Click Here to See the Profile for sardonyx247Click Here to visit sardonyx247's HomePageClick Here to Email sardonyx247Send a Private Message to sardonyx247Edit/Delete MessageReply w/QuoteDirect Link to This Post

I have to leave now to go do more work on it.
I will post more later.

IP: Logged

sardonyx247
Member

Posts: 5011
From: Nevada, USA
Registered: Jun 2003


Feedback score:    (87)
Leave feedback





Total ratings: 218
Rate this member

Report this Post05-23-2004 07:39 PM Click Here to See the Profile for sardonyx247Click Here to visit sardonyx247's HomePageClick Here to Email sardonyx247Send a Private Message to sardonyx247Edit/Delete MessageReply w/QuoteDirect Link to This Post

Here are some pics of my old 2.8 still in the car





Can anyone see why I had low oil pressure???
these pics might be too small to see it.


Here is some background on my GT. I had aranged to buy it fairly cheap, Great body, engine sounded ok. He had trouble shifting and said the oil light was always on. He said he bleed the clutch system but the fluid was still black, so he just didn't do it right. The guy said when I was going to go pick it up that he would charge the battery. So I called him eqarly so hecould charge it, what I thought was to put it on a battery charger. Well he went driving to charge it. When I got there it now had a small knock/tapping sound. I figured it had a spun bearing from read through the posts. I thought no biggie, needs an engine. Well on the way home....WHAP WHAP WHAP, now it got LOUD. So I limped it home, and there it sat staring at me everyday. So I looked into engine swaps....a 2.8L $700, a 3.1L stroker kit $499, then I found a 3.4L for $400. The engine got bigger and the price kept going down. Well thats a no brainer on what I was going to do. So I went down and got the 3.4L and that is where the first set of pics starts, when we got it back to the shop.

------------------
'84 Fiero Sport Quad 4 coming soon
'87 Blue GT 3.4L Swap in progress!!!!!!!!
http://www.lasvegasfieroclub.com/
Rate me if I'm usefull

IP: Logged

NotAFieroAnyLonger
Member

Posts: 4413
From: 75762/Texas/USA
Registered: Dec 2003


Feedback score: N/A
Leave feedback





Total ratings: 255
Rate this member

Report this Post05-23-2004 07:46 PM Click Here to See the Profile for NotAFieroAnyLongerClick Here to Email NotAFieroAnyLongerSend a Private Message to NotAFieroAnyLongerEdit/Delete MessageReply w/QuoteDirect Link to This Post

Great so far.. Keep them sucker's a comin'...

------------------
aka."SmoothGT"
Custom Built -- W I D E B O D Y** ~ GT!! One of One!!

** = 2nd WideBody Version coming soon... :)

IP: Logged

sardonyx247
Member

Posts: 5011
From: Nevada, USA
Registered: Jun 2003


Feedback score:    (87)
Leave feedback





Total ratings: 218
Rate this member

Report this Post05-23-2004 10:08 PM Click Here to See the Profile for sardonyx247Click Here to visit sardonyx247's HomePageClick Here to Email sardonyx247Send a Private Message to sardonyx247Edit/Delete MessageReply w/QuoteDirect Link to This Post

Here are a few more of the 3.4L mostly striped down


This oil filter adapter needs to be removed, on the 2.8L there is a 10mm hex fitting inside that you have to transfer to the 3.4L block. Then the oil filter screws on to it.
If you compare these to the first set you can see some of what you have to strip off the 3.4L, pretty much down to the heads(leave them on).

------------------
'84 Fiero Sport Quad 4 coming soon
'87 Blue GT 3.4L Swap in progress!!!!!!!!
http://www.lasvegasfieroclub.com/
Rate me if I'm usefull

IP: Logged

Fastback 86
Member

Posts: 7849
From: Los Angeles, CA
Registered: Sep 2003


Feedback score: (1)
Leave feedback





Total ratings: 231
Rate this member

Report this Post05-23-2004 10:11 PM Click Here to See the Profile for Fastback 86Send a Private Message to Fastback 86Edit/Delete MessageReply w/QuoteDirect Link to This Post

Hmmm that all looks sooooooo familiar.......I wonder why?

IP: Logged

sardonyx247
Member

Posts: 5011
From: Nevada, USA
Registered: Jun 2003


Feedback score:    (87)
Leave feedback





Total ratings: 218
Rate this member

Report this Post05-24-2004 02:18 AM Click Here to See the Profile for sardonyx247Click Here to visit sardonyx247's HomePageClick Here to Email sardonyx247Send a Private Message to sardonyx247Edit/Delete MessageReply w/QuoteDirect Link to This Post

Caliper tied out of the way

Here is a bottom shot.
I was looking at this pic later at home and noticed only one tire was on the ground

Here's my old A/C compressor. Notice the green dye?
I have never jumped out from under a car so fast. The compressor was froze and I thought the freon or 134 was long since gone.

More later........

IP: Logged

sardonyx247
Member

Posts: 5011
From: Nevada, USA
Registered: Jun 2003


Feedback score:    (87)
Leave feedback





Total ratings: 218
Rate this member

Report this Post05-26-2004 05:00 AM Click Here to See the Profile for sardonyx247Click Here to visit sardonyx247's HomePageClick Here to Email sardonyx247Send a Private Message to sardonyx247Edit/Delete MessageReply w/QuoteDirect Link to This Post

The last shot of the 2.8L in the car.

A couple of pics with the craddle supported and unbolted.
An easy trick to getting the front craddle bolts out that I found is to take the nut off and push on the bolt then use a jack to slowly jack up then it will just fly out. The backs just lower down to the stands.


I used a chain hook to the trunk latch and a forklift to raise the back, with the craddle unbolted the back is much lighter.

The 2.8L comming out

IP: Logged

1MohrFiero
Member

Posts: 4362
From: Paducah, Ky
Registered: Apr 2003


Feedback score:    (37)
Leave feedback





Total ratings: 157
Rate this member

Report this Post05-26-2004 06:36 AM Click Here to See the Profile for 1MohrFieroClick Here to Email 1MohrFieroSend a Private Message to 1MohrFieroEdit/Delete MessageReply w/QuoteDirect Link to This Post

Nice! Keep them coming. How about some shots of the starter relocation. Before and after if you have them. Thanks,

------------------

IP: Logged

yons
Member

Posts: 914
From: colliers,wv
Registered: Sep 2003


Feedback score: N/A
Leave feedback

Rate this member

Report this Post05-26-2004 06:44 AM Click Here to See the Profile for yonsClick Here to Email yonsSend a Private Message to yonsEdit/Delete MessageReply w/QuoteDirect Link to This Post

dont stop now keep them coming

------------------
86 fiero GT just got it and loving it
85 Fiero Se

IP: Logged

sardonyx247
Member

Posts: 5011
From: Nevada, USA
Registered: Jun 2003


Feedback score:    (87)
Leave feedback





Total ratings: 218
Rate this member

Report this Post05-26-2004 07:33 AM Click Here to See the Profile for sardonyx247Click Here to visit sardonyx247's HomePageClick Here to Email sardonyx247Send a Private Message to sardonyx247Edit/Delete MessageReply w/QuoteDirect Link to This Post

Well I don't have any yet of the after pics of the starter holes, since I still havent done them yet.
I will get some good before now, then post then after later

IP: Logged

sardonyx247
Member

Posts: 5011
From: Nevada, USA
Registered: Jun 2003


Feedback score:    (87)
Leave feedback





Total ratings: 218
Rate this member

Report this Post05-26-2004 07:39 AM Click Here to See the Profile for sardonyx247Click Here to visit sardonyx247's HomePageClick Here to Email sardonyx247Send a Private Message to sardonyx247Edit/Delete MessageReply w/QuoteDirect Link to This Post

The 2.8 comming out the back on the forklift

Being brought into the shop


The 2.8L as it sat on the craddle


------------------
'84 Fiero Sport Quad 4 coming soon
'87 Blue GT 3.4L Swap in progress!!!!!!!!
http://www.lasvegasfieroclub.com/
Rate me if I'm usefull

IP: Logged

sardonyx247
Member

Posts: 5011
From: Nevada, USA
Registered: Jun 2003


Feedback score:    (87)
Leave feedback





Total ratings: 218
Rate this member

Report this Post05-26-2004 07:50 AM Click Here to See the Profile for sardonyx247Click Here to visit sardonyx247's HomePageClick Here to Email sardonyx247Send a Private Message to sardonyx247Edit/Delete MessageReply w/QuoteDirect Link to This Post

My Fiero as it sits now

IP: Logged

sardonyx247
Member

Posts: 5011
From: Nevada, USA
Registered: Jun 2003


Feedback score:    (87)
Leave feedback





Total ratings: 218
Rate this member

Report this Post05-26-2004 01:04 PM Click Here to See the Profile for sardonyx247Click Here to visit sardonyx247's HomePageClick Here to Email sardonyx247Send a Private Message to sardonyx247Edit/Delete MessageReply w/QuoteDirect Link to This Post

Questions? comments?

IP: Logged

BtotheB
Member

Posts: 2579
From: Peterborough, Ontario
Registered: Dec 2001


Feedback score: (1)
Leave feedback





Total ratings: 77
Rate this member

Report this Post05-26-2004 01:27 PM Click Here to See the Profile for BtotheBClick Here to visit BtotheB's HomePageClick Here to Email BtotheBSend a Private Message to BtotheBEdit/Delete MessageReply w/QuoteDirect Link to This Post

Cool pics, keep 'em coming. A couple questions though: where's the standing in the engine bay picture? And just wondering, what was the reason for the low oil pressure on the old engine?

Brad

IP: Logged

sardonyx247
Member

Posts: 5011
From: Nevada, USA
Registered: Jun 2003


Feedback score:    (87)
Leave feedback





Total ratings: 218
Rate this member

Report this Post05-26-2004 02:51 PM Click Here to See the Profile for sardonyx247Click Here to visit sardonyx247's HomePageClick Here to Email sardonyx247Send a Private Message to sardonyx247Edit/Delete MessageReply w/QuoteDirect Link to This Post

no standing in the bay as I am the one with the camera
And the low oil is a broken lifter, which in turn, caused the engine to get the rod knock

IP: Logged

sardonyx247
Member

Posts: 5011
From: Nevada, USA
Registered: Jun 2003


Feedback score:    (87)
Leave feedback





Total ratings: 218
Rate this member

Report this Post05-27-2004 10:00 PM Click Here to See the Profile for sardonyx247Click Here to visit sardonyx247's HomePageClick Here to Email sardonyx247Send a Private Message to sardonyx247Edit/Delete MessageReply w/QuoteDirect Link to This Post

I found that the back manifilod was cracked. Luckly we have alot of parts around

And I found that stock manifold has this crappy restriction in 2 of the ports.

After a quick porting job there are gone.

this might be good for a couple of horses, mabey.

IP: Logged

Formula88
Member

Posts: 53788
From: Raleigh NC
Registered: Jan 2001


Feedback score: (3)
Leave feedback





Total ratings: 556
Rate this member

Report this Post05-27-2004 10:42 PM Click Here to See the Profile for Formula88Send a Private Message to Formula88Edit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by sardonyx247:

I found that the back manifilod was cracked. Luckly we have alot of parts around

And I found that stock manifold has this crappy restriction in 2 of the ports.

After a quick porting job there are gone.

this might be good for a couple of horses, mabey.

Porting the exhaust manifolds is generally thought to be worth about 8-10 HP on a stock 2.8.
It's one of the most common "free" mods.

One thing you need to do, though, is reinforce the welds on the outside of the manifolds where the port primary tubes come into the main manifold tube. (the joint you grinded on the inside). Otherwise, you risk cracking and leaking at the junctions where you ported.

Did that make any sense?

IP: Logged

TaurusThug
Member

Posts: 4271
From: Simpsonville, SC
Registered: Aug 2003


Feedback score: N/A
Leave feedback





Total ratings: 102
Rate this member

Report this Post05-27-2004 10:52 PM Click Here to See the Profile for TaurusThugClick Here to Email TaurusThugSend a Private Message to TaurusThugEdit/Delete MessageReply w/QuoteDirect Link to This Post

so grinding down those little restrictions is good for about 10 hp on a 135hp engine? damn thats a 7% increase in power DAMN... can you take a better picture of the broken lifter so i can see what it looks like?

------------------
'86 Fiero GT

www.KylesFiero.tk
www.XoticRydz.tk

IP: Logged

Jncomutt
Member

Posts: 8861
From: Ballertown, CT / Charlotte, NC
Registered: Apr 2001


Feedback score: (3)
Leave feedback





Total ratings: 221
Rate this member

Report this Post05-27-2004 11:06 PM Click Here to See the Profile for JncomuttClick Here to Email JncomuttSend a Private Message to JncomuttEdit/Delete MessageReply w/QuoteDirect Link to This Post

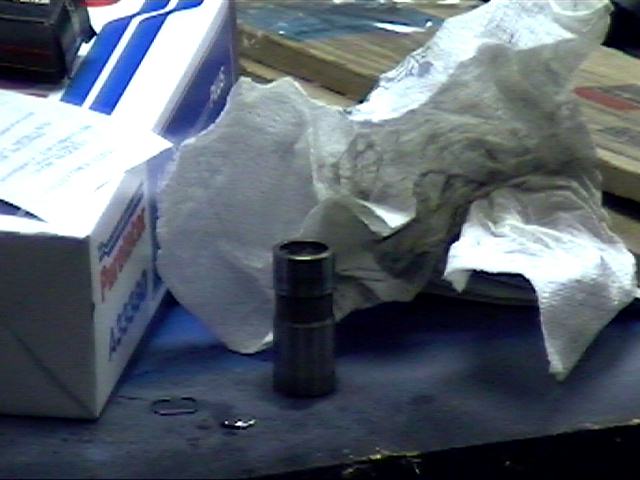

a lil off topic for the thug... Heres a pic of my dead lifter on my 4cyl..

http://www.fiero.nl/uploads/030.jpg

IP: Logged

sardonyx247
Member

Posts: 5011
From: Nevada, USA
Registered: Jun 2003


Feedback score:    (87)
Leave feedback





Total ratings: 218
Rate this member

Report this Post05-27-2004 11:08 PM Click Here to See the Profile for sardonyx247Click Here to visit sardonyx247's HomePageClick Here to Email sardonyx247Send a Private Message to sardonyx247Edit/Delete MessageReply w/QuoteDirect Link to This Post

8-10 on the 2.8? NICE. It just looked bad so I ground it out. I thought it was common sense by just seeing it.

Here are the same pics as before but full size
http://www.lasvegasfieroclu...4L_swap/PIC00679.JPG
http://www.lasvegasfieroclu...4L_swap/PIC00682.JPG

It's in the middle.

------------------
'84 Fiero Sport Quad 4 coming soon
'87 Blue GT 3.4L Swap in progress!!!!!!!!
http://www.lasvegasfieroclub.org/
Rate me if I'm usefull

[This message has been edited by sardonyx247 (edited 09-10-2008).]

IP: Logged

sardonyx247
Member

Posts: 5011
From: Nevada, USA
Registered: Jun 2003


Feedback score:    (87)
Leave feedback





Total ratings: 218
Rate this member

Report this Post05-28-2004 03:01 AM Click Here to See the Profile for sardonyx247Click Here to visit sardonyx247's HomePageClick Here to Email sardonyx247Send a Private Message to sardonyx247Edit/Delete MessageReply w/QuoteDirect Link to This Post

Here are the two flywheels.
You need a neutraly balanced flywheel, The one for the '88 Fiero will work just fine.
I got mine at Partsamerica.com for only $39.99
Just set 'your car' as an '88 Fiero V6 and look up and order the $39.99 flywheel( The part# is Standard Flywheels 6500 )with a $35 core
You can order online and pick up at the store. Then take back your old flywheel the next day for the core.

The old '87 2.8L is on the left, The new ''88 2.8L flywheel is on the right. Notice the weight on the old one.


A side shot


2013 Edit to add:
I don't think they have the flywheel at that price anymore.
The Fiero Store now carries the 88 neutrally balanced flywheel needed for the 3.4 swap, at $59.95 Just FYI for everyone.

http://www.fierostore.com/P...px?s=54020&d=203&p=1

[This message has been edited by sardonyx247 (edited 04-22-2013).]

IP: Logged

Fastback 86
Member

Posts: 7849
From: Los Angeles, CA
Registered: Sep 2003


Feedback score: (1)
Leave feedback





Total ratings: 231
Rate this member

Report this Post05-28-2004 03:11 AM Click Here to See the Profile for Fastback 86Send a Private Message to Fastback 86Edit/Delete MessageReply w/QuoteDirect Link to This Post

Yeah, DON'T forget about the flywheel weight. Else you'll be pulling the whole thing back out to replace it. Or you'll destroy you're main bearings, negating the entire swap.

Trust me on this one.

Sardonyx247 knows what I'm talking about.

IP: Logged

sardonyx247
Member

Posts: 5011
From: Nevada, USA
Registered: Jun 2003


Feedback score:    (87)
Leave feedback





Total ratings: 218
Rate this member

Report this Post05-28-2004 10:43 PM Click Here to See the Profile for sardonyx247Click Here to visit sardonyx247's HomePageClick Here to Email sardonyx247Send a Private Message to sardonyx247Edit/Delete MessageReply w/QuoteDirect Link to This Post

The old water pump from the 3.4 (Left, and the new one 2.8 type(right) Waterpumps are cheap so I recomend getting a new one at this time to save headaches latter.

You have to use the timing cover from the 2.8L
the 3.4 flows the opposite way

The 2.8L timing cover

The 3.4L timing cover

------------------
'84 Fiero Sport Quad 4 coming soon
'87 Blue GT 3.4L Swap in progress!!!!!!!!
http://www.lasvegasfieroclub.com/
Rate me if I'm usefull

IP: Logged

sardonyx247
Member

Posts: 5011
From: Nevada, USA
Registered: Jun 2003


Feedback score:    (87)
Leave feedback





Total ratings: 218
Rate this member

Report this Post05-29-2004 06:29 AM Click Here to See the Profile for sardonyx247Click Here to visit sardonyx247's HomePageClick Here to Email sardonyx247Send a Private Message to sardonyx247Edit/Delete MessageReply w/QuoteDirect Link to This Post

More pics while my powder coat in baking........
While the cover was off I decided to replace the seal.
When they say "just pry it out with a small screwdriver" I had a hell of a time getting mine out
But to put it in just use a block of wood and a hammer.

The old seal still in and first paint

old seal out, new one ready to go in

New seal in and the tools used

Yes I know the timing marks are upside down. I corrected this as you can see in other pics

[This message has been edited by sardonyx247 (edited 05-29-2004).]

IP: Logged

Formula88
Member

Posts: 53788
From: Raleigh NC
Registered: Jan 2001


Feedback score: (3)
Leave feedback





Total ratings: 556
Rate this member

Report this Post05-29-2004 11:45 AM Click Here to See the Profile for Formula88Send a Private Message to Formula88Edit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by sardonyx247:

If the 3.4L you get is an auto like mine was, and you have a stick, like mine is, you also need to get a PILOT BUSHING too.

No you don't. The Fiero doesn't use a pilot bushing. The transmission has an input shaft bearing built into it that supports the input shaft, so no pilot bushing is needed. If it makes you feel better to use one, go ahead. The input shaft will never reach it.

IP: Logged

sardonyx247
Member

Posts: 5011
From: Nevada, USA
Registered: Jun 2003


Feedback score:    (87)
Leave feedback





Total ratings: 218
Rate this member

Report this Post05-29-2004 01:55 PM Click Here to See the Profile for sardonyx247Click Here to visit sardonyx247's HomePageClick Here to Email sardonyx247Send a Private Message to sardonyx247Edit/Delete MessageReply w/QuoteDirect Link to This Post

No hmmm........Thats nice to know.

Here's some more pics to try to catch up to where I'm at

The engine with degreaser on it, kind of a weird pic since the degreaser causes the black

My painted 3.4L (First color)

Our shop the first night after we bruoght the 2.8L in

The 3.4L without the timing cover

The 3.4L with the 2.8 timing cover and new 2.8 water pump

[This message has been edited by sardonyx247 (edited 03-08-2005).]

IP: Logged

sardonyx247
Member

Posts: 5011
From: Nevada, USA
Registered: Jun 2003


Feedback score:    (87)
Leave feedback





Total ratings: 218
Rate this member

Report this Post05-29-2004 02:13 PM Click Here to See the Profile for sardonyx247Click Here to visit sardonyx247's HomePageClick Here to Email sardonyx247Send a Private Message to sardonyx247Edit/Delete MessageReply w/QuoteDirect Link to This Post

You also need to transfer timing marks from the 2.8 balancer to the 3.4 one.
I lined up the groove on the inside by stacking them, I got a straight edge and scribed a new mark.
Then I got a hacksaw and made a deeper groove
you can see the smaller groove in this pic

I painted the balancer,

Taped off for the new line

And the new line

The 3.4L with the old 2.8L

IP: Logged

sardonyx247
Member

Posts: 5011
From: Nevada, USA
Registered: Jun 2003


Feedback score:    (87)
Leave feedback





Total ratings: 218
Rate this member

Report this Post05-29-2004 02:22 PM Click Here to See the Profile for sardonyx247Click Here to visit sardonyx247's HomePageClick Here to Email sardonyx247Send a Private Message to sardonyx247Edit/Delete MessageReply w/QuoteDirect Link to This Post

My exhaust in high temp blue

IP: Logged

Racingman24
Member

Posts: 2304
From: Land of 10,000 Idiots
Registered: Apr 2003


Feedback score: N/A
Leave feedback





Total ratings: 103
Rate this member

Report this Post05-29-2004 02:23 PM Click Here to See the Profile for Racingman24Click Here to visit Racingman24's HomePageClick Here to Email Racingman24Send a Private Message to Racingman24Edit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by sardonyx247:


I spy another Fiero in amongst all those Camaro's. Parts Car???

IP: Logged

sardonyx247
Member

Posts: 5011
From: Nevada, USA
Registered: Jun 2003


Feedback score:    (87)
Leave feedback





Total ratings: 218
Rate this member

Report this Post05-29-2004 02:55 PM Click Here to See the Profile for sardonyx247Click Here to visit sardonyx247's HomePageClick Here to Email sardonyx247Send a Private Message to sardonyx247Edit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by Racingman24:


I spy another Fiero in amongst all those Camaro's. Parts Car???

go to our site and click on "pics of our yard" they are old pics but you will get the idea

Oh and BTW there are 6 Fieros in that pic. 2 of them are hard to tell but I know whats there
If you guys want to try to find them all here is the full sized pic.
http://www.lasvegasfieroclub.com/3.4L_swap/PIC00719.JPG

------------------
'84 Fiero Sport Quad 4 coming soon
'87 Blue GT 3.4L Swap in progress!!!!!!!!
http://www.lasvegasfieroclub.com/
Rate me if I'm usefull

[This message has been edited by sardonyx247 (edited 05-29-2004).]

IP: Logged

sardonyx247
Member

Posts: 5011
From: Nevada, USA
Registered: Jun 2003


Feedback score:    (87)
Leave feedback





Total ratings: 218
Rate this member

Report this Post05-29-2004 03:06 PM Click Here to See the Profile for sardonyx247Click Here to visit sardonyx247's HomePageClick Here to Email sardonyx247Send a Private Message to sardonyx247Edit/Delete MessageReply w/QuoteDirect Link to This Post

The 3.4L with the intake off

The 3.4L with the new intake gasket on.

A close up of the intake ports
See the restrictions in them? Anyone know if these can be ground out? Just for future reference.

The 2.8L lower intake painted

And installed on to the 3.4L

------------------
'84 Fiero Sport Quad 4 coming soon
'87 Blue GT 3.4L Swap in progress!!!!!!!!
http://www.lasvegasfieroclub.com/
Rate me if I'm usefull

IP: Logged

JazzMan
Member

Posts: 18612
From:
Registered: Mar 2003


Feedback score:    (7)
Leave feedback





Total ratings: 653
User Banned

Report this Post05-29-2004 03:40 PM Click Here to See the Profile for JazzManClick Here to Email JazzManSend a Private Message to JazzManEdit/Delete MessageReply w/QuoteDirect Link to This Post

Those "restrictions" are actually vanes that set up a vortex flow around the valve stem. Removing those on a normally-aspirated motor is good for a 10-15 HP loss, not gain.

BTW, nice buildup thread.

JazzMan

IP: Logged

sardonyx247
Member

Posts: 5011
From: Nevada, USA
Registered: Jun 2003


Feedback score:    (87)
Leave feedback





Total ratings: 218
Rate this member

Report this Post05-29-2004 05:23 PM Click Here to See the Profile for sardonyx247Click Here to visit sardonyx247's HomePageClick Here to Email sardonyx247Send a Private Message to sardonyx247Edit/Delete MessageReply w/QuoteDirect Link to This Post

They looked too big to not be there by design, is what I was thinking.

IP: Logged

avengador1
Member

Posts: 35467
From: Orlando, Florida
Registered: Oct 2001


Feedback score:    (7)
Leave feedback





Total ratings: 572
Rate this member

Report this Post05-29-2004 05:45 PM Click Here to See the Profile for avengador1Click Here to Email avengador1Send a Private Message to avengador1Edit/Delete MessageReply w/QuoteDirect Link to This Post

You can polish the fins a bit to help with the air flow.

IP: Logged

sardonyx247
Member

Posts: 5011
From: Nevada, USA
Registered: Jun 2003


Feedback score:    (87)
Leave feedback





Total ratings: 218
Rate this member

Report this Post05-30-2004 01:01 AM Click Here to See the Profile for sardonyx247Click Here to visit sardonyx247's HomePageClick Here to Email sardonyx247Send a Private Message to sardonyx247Edit/Delete MessageReply w/QuoteDirect Link to This Post

The '87 craddle just after I pulled the engine off of it

Craddle minus transmission

Craddle getting ready for paint


And painted It looks Sooooo much better

IP: Logged

sardonyx247
Member

Posts: 5011
From: Nevada, USA
Registered: Jun 2003


Feedback score:    (87)
Leave feedback





Total ratings: 218
Rate this member

Report this Post05-30-2004 04:17 AM Click Here to See the Profile for sardonyx247Click Here to visit sardonyx247's HomePageClick Here to Email sardonyx247Send a Private Message to sardonyx247Edit/Delete MessageReply w/QuoteDirect Link to This Post

A bunch of brackets from the 2.8L, cleaned and painted. I thought they might help people in future reference of brackets.

Pulleys


IP: Logged

Previous Page | Next Page

This topic is 16 pages long:  1   2   3   4   5   6   7   8   9   10   11   12   13   14   15   16
next newest topic | next oldest topic

All times are ET (US)

Post New Topic  Post A Reply
Hop to:

Contact Us | Back To Main Page

Advertizing on PFF | Fiero Parts Vendors
PFF Merchandise | Fiero Gallery | Ogre's Cave
Real-Time Chat | Fiero Related Auctions on eBay



Copyright (c) 1999, C. Pennock
