pr0j3c1 turbo 3800 71k mile guru wheelie machine by Justinbart
Started on: 01-13-2013 02:55 PM
Replies: 505 (21809 views)
Last post by: Justinbart on 02-21-2015 08:58 AM
Justinbart
Member
Posts: 3259
From: Flint, MI
Registered: Sep 2009


Feedback score: N/A
Leave feedback





Total ratings: 119
Rate this member

Report this Post01-13-2013 02:55 PM Click Here to See the Profile for JustinbartSend a Private Message to JustinbartEdit/Delete MessageReply w/QuoteDirect Link to This Post
This is a Justinbart and darkhorizon quick and dirty collaboration build.

Major parts List:
Precision billet 6262sp turbo (.68 t-4,4" anti-surge)
Precision billet wastegate 50mm
Tial q blow off valve 50mm
Turbosmart dual stage boost controller Turbonetics style regulator top port controller.
ZZP SS powerlog
DEI T4 turbo blanket
DEI header wrap
Stattama ST2 Camshaft
Rollmaster double timing chain
PAC 130# valve spings
Titanium modified retainers
Viton valve seals
Siemens Deka 60# Injectors
ZZP 4T65E (HD) Transmission with ALL the goodies
ZZP aluminum trans pan cooler
Meziere Billet Flex Plate
ZZP 245mm Torque Converter - 3500 2750
Deatchwerks DW300 fuel pump
ZZP mini-afc
Meziere electric waterpump (to replace the motor's water pump)
Meziere intercooler waterpump 20gpm
eBay big a2w intercooler
Series III na uim and lim, zzp tb adapter
ZZP HV3 insert
Velocity stack with 6" air filter
New ac delco coils/wires/ignition module
phonedawgz wiring harness
AEM wideband
Autometer boost gauge
Darkhorizontune


Drove to Pittsburgh, picked up the car.

This is what I had to start with. It didn't run very good at all. I don't think this would even pass for DH quality.




Did a compression check. All was good

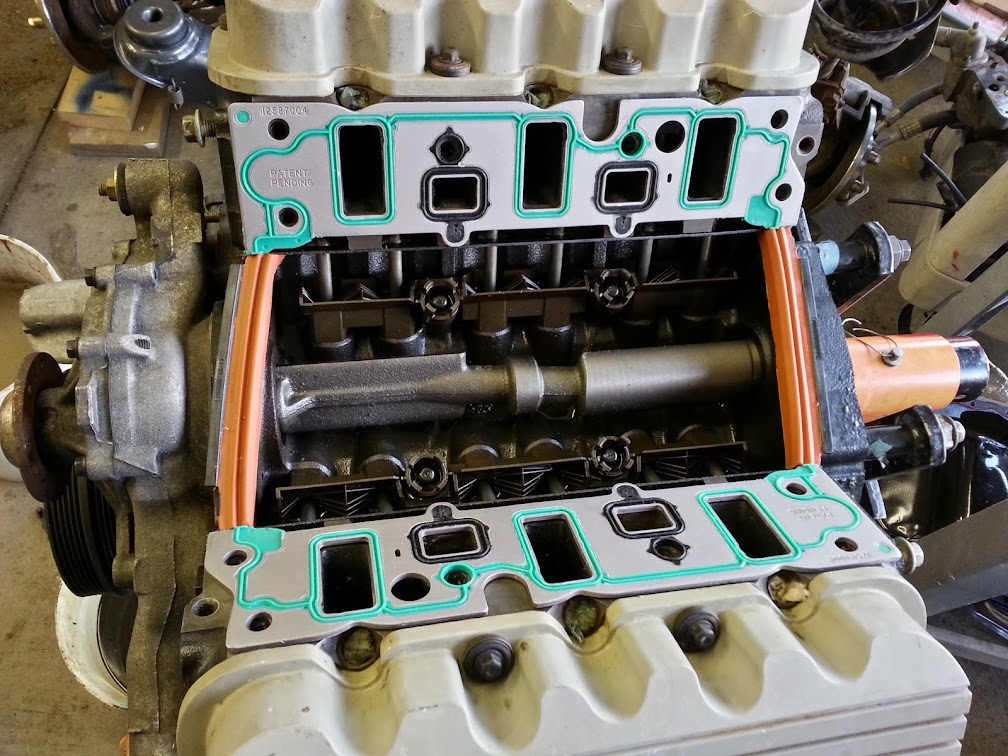

Tore down most of the engine for new wire harness upper and lower intakes etc. Later the owner decided to go with a built transmission so the whole thing came out.

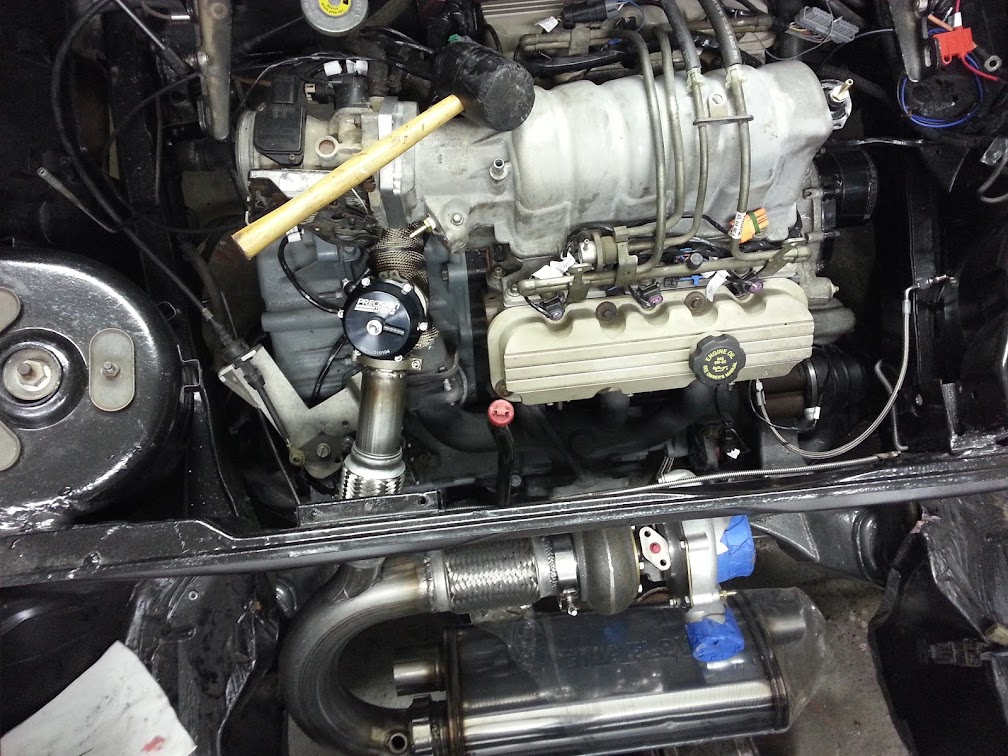

Rear mount turbo using Nosrac's adapter welded on.


Made two more engine mounts to eliminate the dog-bone. Made everything straight and level. It was terrible... Dropped the cradle and cleaned it up.


Found this gem


Made a run to ZZP


This thing had factory rubber trans mounts so I ditched those and got Rodney polly mounts.


Out with the old. Pulled the ST2 from DH's car.


New springs, retainers, seals.

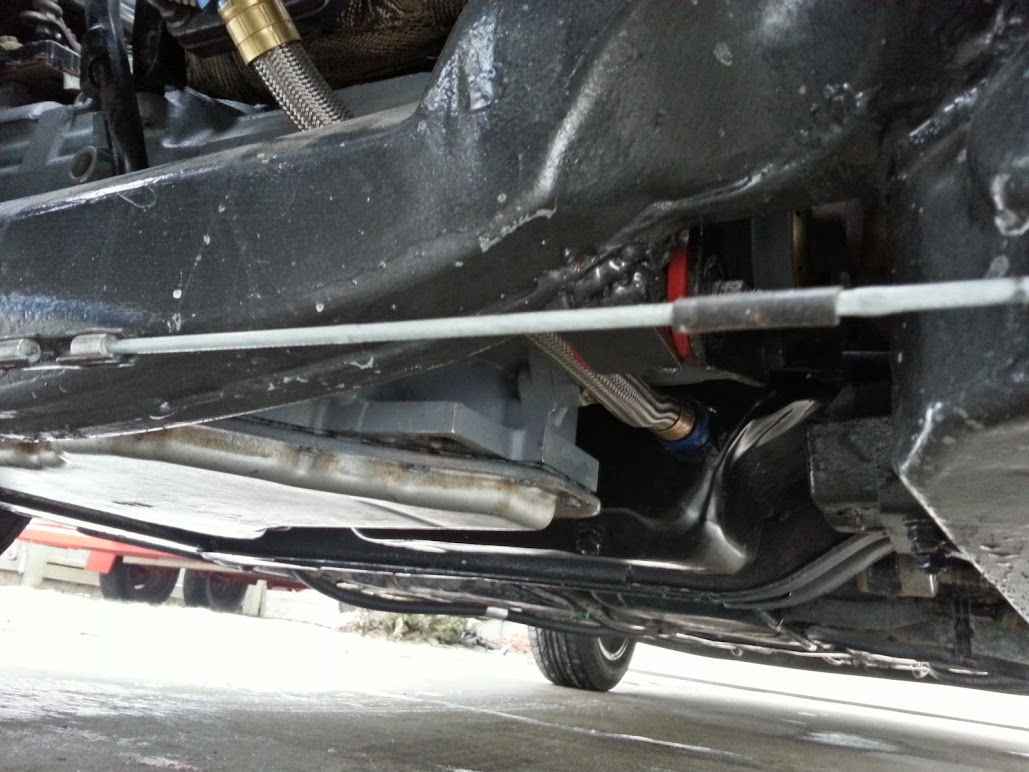

Oil drain. an-12




Rollmaster chain

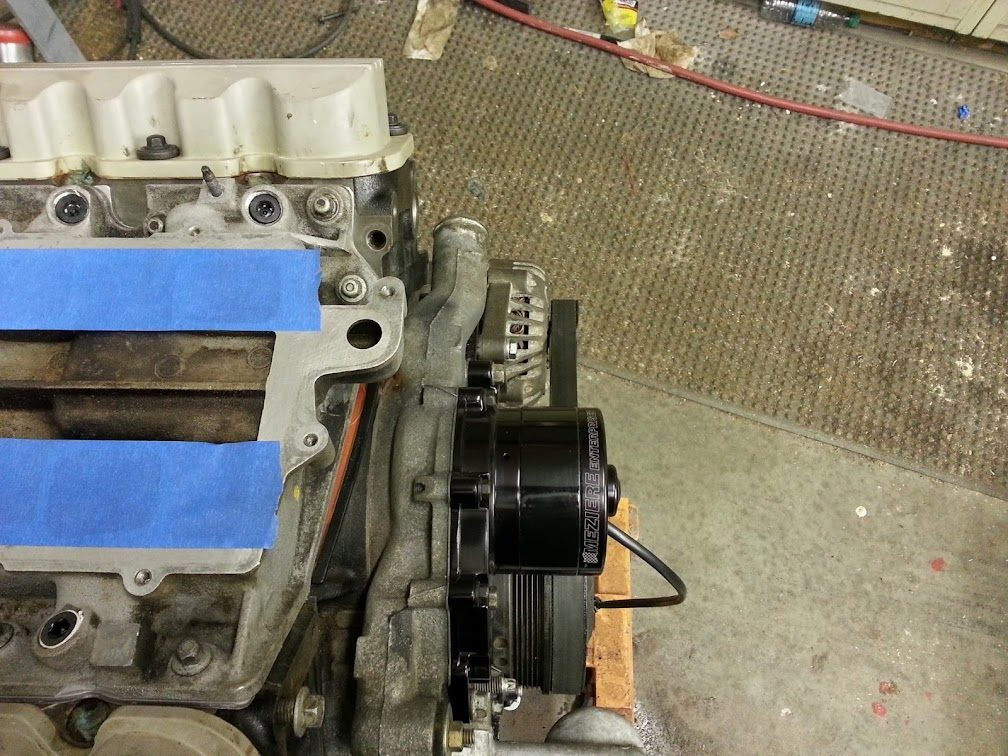

Relocated the alternator









Back in the car

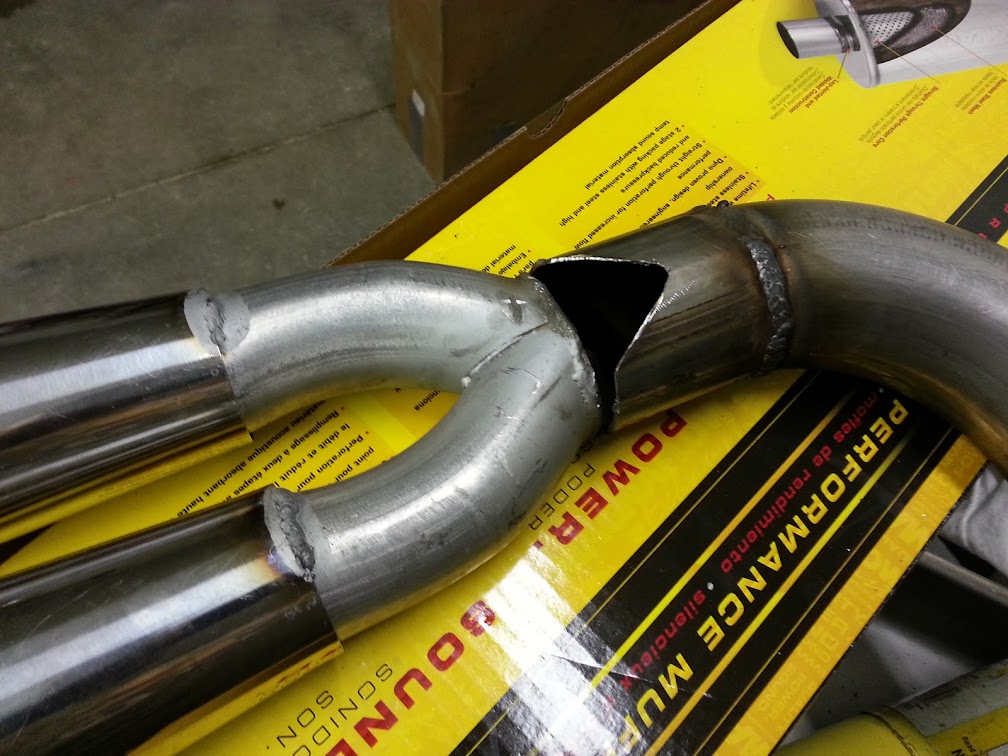

Exhaust

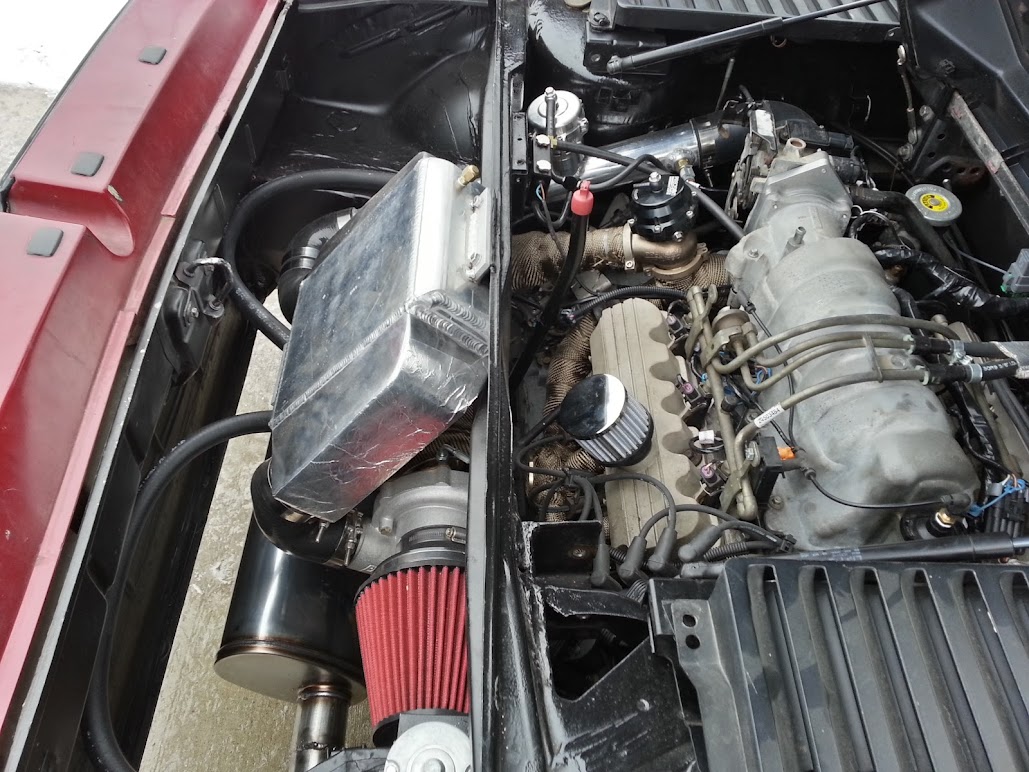

Intercooler stuff










Added another brace for the turbo

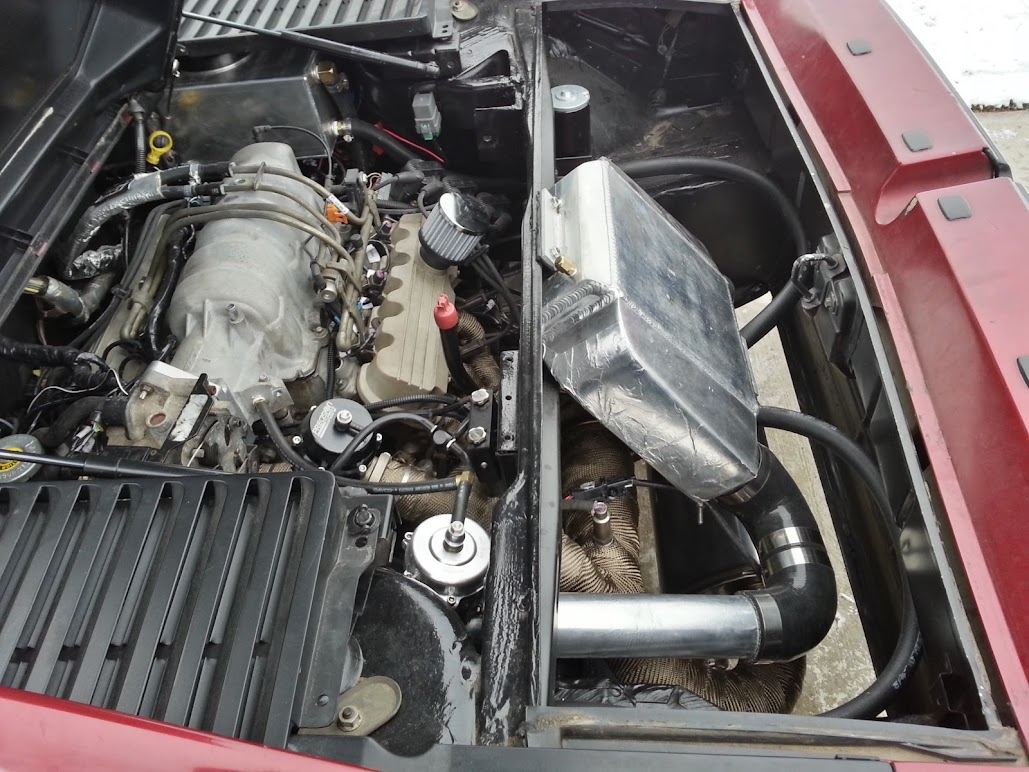

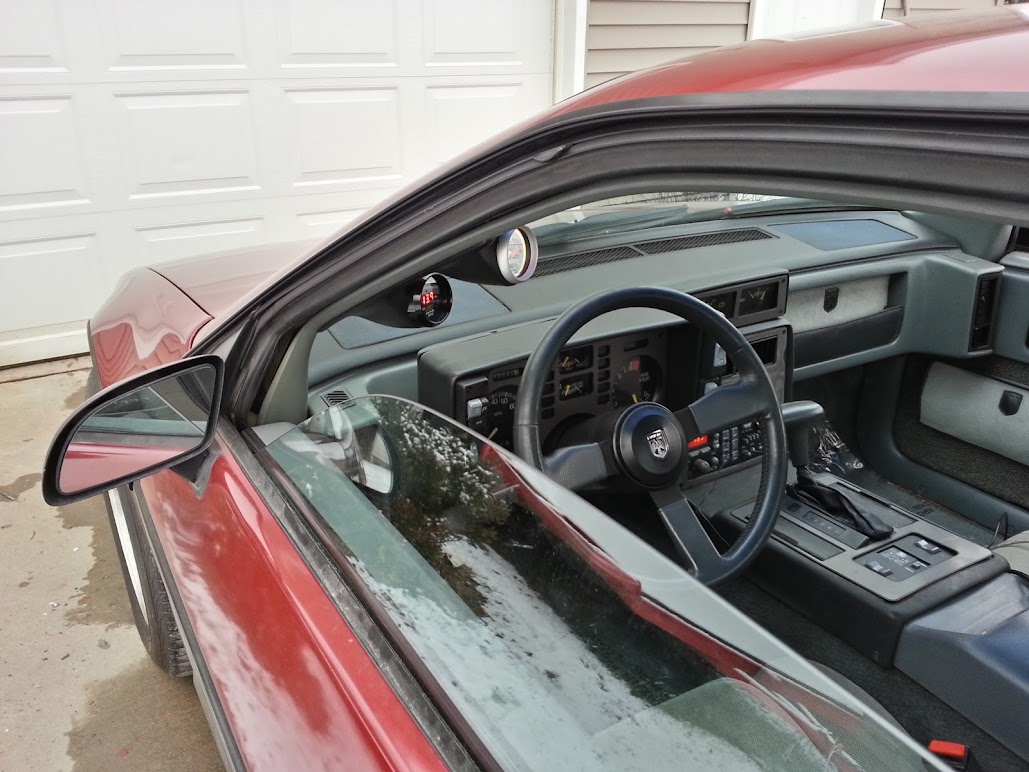

It's pretty close now to being done. Need DH to do some tuning

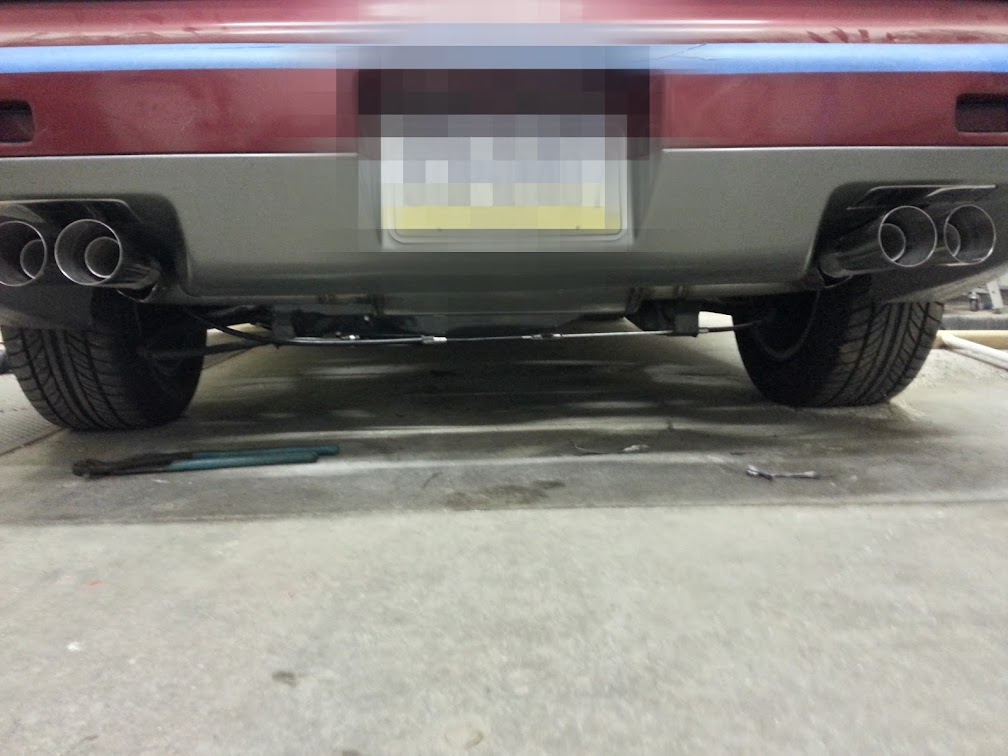

First drive with full exhaust.


Who knows if these clips mean anything...
With muffler from 5 feet


With dump pipe from 5 feet


With muffler from 25 feet


With dump pipe from 25 feet

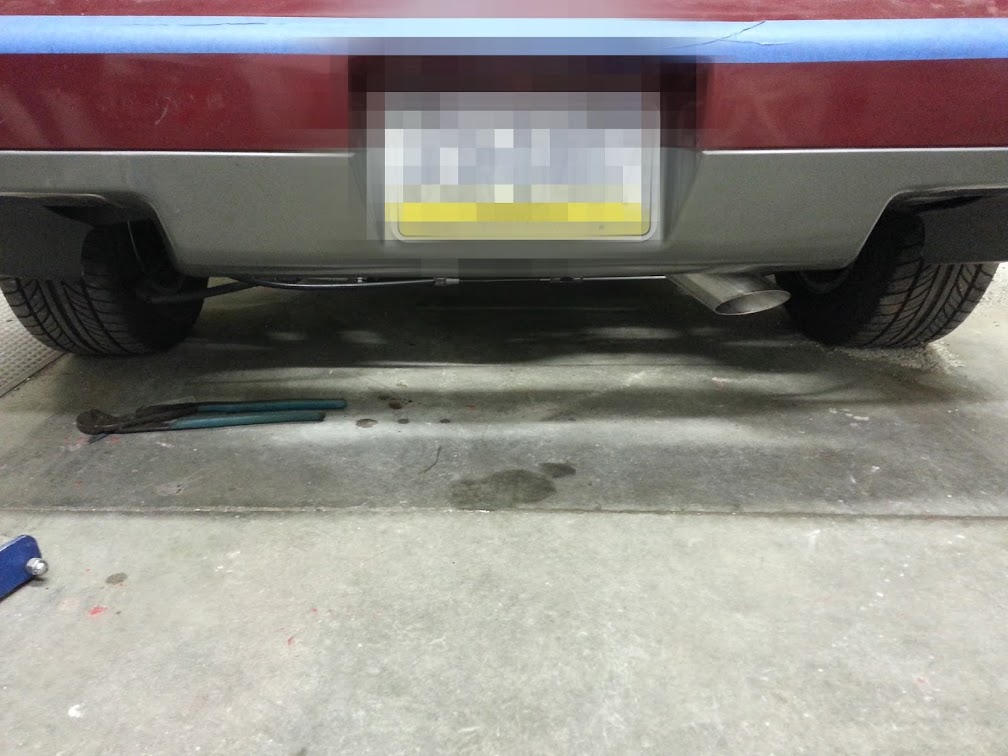

Went for another short drive, this time with the dump pipe. Windows were down half way. I did some funny things while driving it. I kept letting off the gas trying to shift it like I do my car. lol. I don't think I ever went over 50% throttle. I didn't want to spin the tires while I was watching the wideband.



Still working on this post.

------------------
Turbo 3800 E85 F23 5spd spec5
11.17@132.6

[This message has been edited by Justinbart (edited 04-19-2013).]

IP: Logged
PFF
System Bot
darkhorizon
Member
Posts: 12277
From: Flint Michigan
Registered: Jan 2006


Feedback score: (1)
Leave feedback





Total ratings: 451
Rate this member

Report this Post01-13-2013 02:59 PM Click Here to See the Profile for darkhorizonSend a Private Message to darkhorizonEdit/Delete MessageReply w/QuoteDirect Link to This Post
As you can see in the video, we were able to wheelie roughly 2 feet in the air.
IP: Logged
BV MotorSports
Member
Posts: 4821
From: Oak Hill, WV
Registered: May 2001


Feedback score:    (7)
Leave feedback





Total ratings: 189
Rate this member

Report this Post01-13-2013 03:20 PM Click Here to See the Profile for BV MotorSportsSend a Private Message to BV MotorSportsEdit/Delete MessageReply w/QuoteDirect Link to This Post
Looks good guys! I like the modular exhaust, very clever. Good luck meeting your goals. Oh yeah.. cheeky title!

[This message has been edited by BV MotorSports (edited 01-13-2013).]

IP: Logged
Jfrost
Member
Posts: 1092
From: Brookfield, IL
Registered: Jul 2009


Feedback score:    (29)
Leave feedback

Rate this member

Report this Post01-13-2013 03:37 PM Click Here to See the Profile for JfrostSend a Private Message to JfrostEdit/Delete MessageReply w/QuoteDirect Link to This Post
Nice build, and I agree, the exhaust set-up is very clever. Any more info on the additional engine mount near the alternator? Did you fabricate the poly mount portion or is that a modified mount? Looks like something I could use on my swap to secure things a bit more.
IP: Logged
Justinbart
Member
Posts: 3259
From: Flint, MI
Registered: Sep 2009


Feedback score: N/A
Leave feedback





Total ratings: 119
Rate this member

Report this Post01-13-2013 03:46 PM Click Here to See the Profile for JustinbartSend a Private Message to JustinbartEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by Jfrost:

Nice build, and I agree, the exhaust set-up is very clever. Any more info on the additional engine mount near the alternator? Did you fabricate the poly mount portion or is that a modified mount? Looks like something I could use on my swap to secure things a bit more.




I made it from scratch. I used part of the expanded portion from the factory tip to go around the polly bushing. The bushing is the same as the ones used in the 88 rear suspension. The bottom portion is some square stock that was notched out.

------------------
Turbo 3800 E85 F23 5spd spec5
11.17@132.6

[This message has been edited by Justinbart (edited 01-13-2013).]

IP: Logged
nosrac
Member
Posts: 3520
From: Euless, TX, US
Registered: Jan 2005


Feedback score:    (6)
Leave feedback





Total ratings: 51
Rate this member

Report this Post01-13-2013 03:49 PM Click Here to See the Profile for nosracSend a Private Message to nosracEdit/Delete MessageReply w/QuoteDirect Link to This Post


Neoice. Low 10 sec car


Throw some paint on or wire brush that intake.

IP: Logged
1988holleyformula
Member
Posts: 4109
From: SE MN
Registered: Jul 2009


Feedback score: (3)
Leave feedback





Total ratings: 68
Rate this member

Report this Post01-13-2013 03:51 PM Click Here to See the Profile for 1988holleyformulaSend a Private Message to 1988holleyformulaEdit/Delete MessageReply w/QuoteDirect Link to This Post
Hey now that's an idea...

Do the whole build in one post so you can't let any of the 3800 trolls criticize your processes.

err, wait...
IP: Logged
Justinbart
Member
Posts: 3259
From: Flint, MI
Registered: Sep 2009


Feedback score: N/A
Leave feedback





Total ratings: 119
Rate this member

Report this Post01-13-2013 03:56 PM Click Here to See the Profile for JustinbartSend a Private Message to JustinbartEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by nosrac:



Neoice. Low 10 sec car


Throw some paint on or wire brush that intake.


The owner said he didn't care what it looked like. I tried to make it as simple as possible. Some powder coat and fuel rails could easily be added down the road. I hear powder coating adds 6 months to the build though.

------------------
Turbo 3800 E85 F23 5spd spec5
11.17@132.6

IP: Logged
Formula
Member
Posts: 5339
From:
Registered: Jul 99


Feedback score: (2)
Leave feedback





Total ratings: 96
Rate this member

Report this Post01-13-2013 03:58 PM Click Here to See the Profile for FormulaSend a Private Message to FormulaEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by Justinbart:


The owner said he didn't care what it looked like. I tried to make it as simple as possible. Some powder coat and fuel rails could easily be added down the road. I hear powder coating adds 6 months to the build though.


Actually, Nosrac should recognize that intake...
IP: Logged
Custom2M4
Member
Posts: 4414
From: Winnipeg, Manitoba Canada
Registered: Sep 2004


Feedback score: (3)
Leave feedback





Total ratings: 114
Rate this member

Report this Post01-13-2013 04:00 PM Click Here to See the Profile for Custom2M4Send a Private Message to Custom2M4Edit/Delete MessageReply w/QuoteDirect Link to This Post
Looking good so far!

------------------

IP: Logged
Formula
Member
Posts: 5339
From:
Registered: Jul 99


Feedback score: (2)
Leave feedback





Total ratings: 96
Rate this member

Report this Post01-13-2013 04:17 PM Click Here to See the Profile for FormulaSend a Private Message to FormulaEdit/Delete MessageReply w/QuoteDirect Link to This Post
Because I think there are only 2 or 3 members here from Pittsburgh, I should probably come out and say this is my Fiero (before people start calling Rotrex Fiero).

I bought it in this thread: //www.fiero.nl/forum/Forum4/HTML/062731.html

I must say, Justin and DH have done a terrific job so far and have always kept me up to date with progress pics. They even drove down to Pittsburgh to pick it up. That's good service!

I pretty much gave them a pile of parts and said that I didn't care if things were fancy and painted unless it adds functionality (like preventing rust). We also added more parts during the build to make it that much better. They are only around 5 months ahead of schedule right now
IP: Logged
PFF
System Bot
nosrac
Member
Posts: 3520
From: Euless, TX, US
Registered: Jan 2005


Feedback score:    (6)
Leave feedback





Total ratings: 51
Rate this member

Report this Post01-13-2013 04:57 PM Click Here to See the Profile for nosracSend a Private Message to nosracEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by Formula:


Actually, Nosrac should recognize that intake...


LoL, I redneckonize quite a few parts and design que's.

It looks very good already and can go over the top with some
look good parts and hidden components.

I know It is already as fast as hell.
IP: Logged
Formula
Member
Posts: 5339
From:
Registered: Jul 99


Feedback score: (2)
Leave feedback





Total ratings: 96
Rate this member

Report this Post01-13-2013 05:08 PM Click Here to See the Profile for FormulaSend a Private Message to FormulaEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by nosrac:


LoL, I redneckonize quite a few parts and design que's.

It looks very good already and can go over the top with some
look good parts and hidden components.

I know It is already as fast as hell.


That's right, the boost controller is from you too
IP: Logged
Justinbart
Member
Posts: 3259
From: Flint, MI
Registered: Sep 2009


Feedback score: N/A
Leave feedback





Total ratings: 119
Rate this member

Report this Post01-13-2013 05:09 PM Click Here to See the Profile for JustinbartSend a Private Message to JustinbartEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by nosrac:


LoL, I redneckonize quite a few parts and design que's.


What size oil drain was this? It was too long and I wanted something bigger so I got the an-12. Big difference.



------------------
Turbo 3800 E85 F23 5spd spec5
11.17@132.6

[This message has been edited by Justinbart (edited 01-13-2013).]

IP: Logged
nosrac
Member
Posts: 3520
From: Euless, TX, US
Registered: Jan 2005


Feedback score:    (6)
Leave feedback





Total ratings: 51
Rate this member

Report this Post01-13-2013 05:28 PM Click Here to See the Profile for nosracSend a Private Message to nosracEdit/Delete MessageReply w/QuoteDirect Link to This Post
I think AN12 I will get specs to you when i get to my computer.

I have the same one on mine located under the diff.

[This message has been edited by nosrac (edited 01-13-2013).]

IP: Logged
mattwa
Member
Posts: 7106
From: Lorain, Ohio
Registered: Sep 2008


Feedback score:    (41)
Leave feedback





Total ratings: 88
Rate this member

Report this Post01-13-2013 07:05 PM Click Here to See the Profile for mattwaSend a Private Message to mattwaEdit/Delete MessageReply w/QuoteDirect Link to This Post
Justin, I'm interested in hearing what you think of this setup compared to your 3800 Turbo setup with a manual. Like turbo spool, lag time, overall power, overall drive-ability...?

Either way, very nice!! Makes me want to build my own again...
IP: Logged
FieroMaster88
Member
Posts: 7680
From: Mattawan, MI
Registered: Nov 2000


Feedback score:    (43)
Leave feedback





Total ratings: 168
Rate this member

Report this Post01-13-2013 07:25 PM Click Here to See the Profile for FieroMaster88Send a Private Message to FieroMaster88Edit/Delete MessageReply w/QuoteDirect Link to This Post
Good work guys!

------------------

88 Coupe: 2.0L Turbo 4 Cylinder, W2A, T25 Turbo.
84 Indy #64: Restoration Project!

IP: Logged
darkhorizon
Member
Posts: 12277
From: Flint Michigan
Registered: Jan 2006


Feedback score: (1)
Leave feedback





Total ratings: 451
Rate this member

Report this Post01-13-2013 07:36 PM Click Here to See the Profile for darkhorizonSend a Private Message to darkhorizonEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by mattwa:

Justin, I'm interested in hearing what you think of this setup compared to your 3800 Turbo setup with a manual. Like turbo spool, lag time, overall power, overall drive-ability...?

Either way, very nice!! Makes me want to build my own again...


its a hard comparison....probably not much you can gauge between the 2.
IP: Logged
Nebiros88
Member
Posts: 1394
From: Nampa, Idaho
Registered: Apr 2003


Feedback score: N/A
Leave feedback





Total ratings: 59
Rate this member

Report this Post01-13-2013 07:49 PM Click Here to See the Profile for Nebiros88Click Here to visit Nebiros88's HomePageSend a Private Message to Nebiros88Edit/Delete MessageReply w/QuoteDirect Link to This Post
Nice work.

Any shots of the oil drain with everything assembled?
IP: Logged
Justinbart
Member
Posts: 3259
From: Flint, MI
Registered: Sep 2009


Feedback score: N/A
Leave feedback





Total ratings: 119
Rate this member

Report this Post01-13-2013 08:36 PM Click Here to See the Profile for JustinbartSend a Private Message to JustinbartEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by Nebiros88:

Nice work.

Any shots of the oil drain with everything assembled?


It looks like I missed a few things I wanted to post. I'll have to take more picture this week.

Mattwa, It's going to be a handful unless I can talk Tom into getting some drag radials for it. That video is the only time I've driven it so far. Only gave it about 30% throttle and it was wet. First impressions were it spooled up way faster than I thought it would and it sounds awesome. Hopefully we get a stretch of warm weather soon. I'm excited to put some miles on it.

------------------
Turbo 3800 E85 F23 5spd spec5
11.17@132.6

IP: Logged
Formula
Member
Posts: 5339
From:
Registered: Jul 99


Feedback score: (2)
Leave feedback





Total ratings: 96
Rate this member

Report this Post01-13-2013 08:53 PM Click Here to See the Profile for FormulaSend a Private Message to FormulaEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by Justinbart:


It looks like I missed a few things I wanted to post. I'll have to take more picture this week.

Mattwa, It's going to be a handful unless I can talk Tom into getting some drag radials for it. That video is the only time I've driven it so far. Only gave it about 30% throttle and it was wet. First impressions were it spooled up way faster than I thought it would and it sounds awesome. Hopefully we get a stretch of warm weather soon. I'm excited to put some miles on it.



I was going to buy some anyway, ill send a pm
IP: Logged
PFF
System Bot
katatak
Member
Posts: 7136
From: Omaha, NE USA
Registered: Apr 2008


Feedback score:    (8)
Leave feedback





Total ratings: 82
Rate this member

Report this Post01-13-2013 09:12 PM Click Here to See the Profile for katatakSend a Private Message to katatakEdit/Delete MessageReply w/QuoteDirect Link to This Post
Curious about the cost of parts? Getting ready to do a 3800 Swap and am considering going the Turbo route (I know nothing about Turbo's)! PM me if you do not want to "advertise" costs. Thanks in advance.

Pat

IP: Logged
Formula
Member
Posts: 5339
From:
Registered: Jul 99


Feedback score: (2)
Leave feedback





Total ratings: 96
Rate this member

Report this Post01-13-2013 09:16 PM Click Here to See the Profile for FormulaSend a Private Message to FormulaEdit/Delete MessageReply w/QuoteDirect Link to This Post
I'll send you a pm (just parts), Justin can send labor rates if he wants to

[This message has been edited by Formula (edited 01-13-2013).]

IP: Logged
mattwa
Member
Posts: 7106
From: Lorain, Ohio
Registered: Sep 2008


Feedback score:    (41)
Leave feedback





Total ratings: 88
Rate this member

Report this Post01-13-2013 09:23 PM Click Here to See the Profile for mattwaSend a Private Message to mattwaEdit/Delete MessageReply w/QuoteDirect Link to This Post
Yea I didn't expect a full answer right now, but I'm interested in what you find out between the two over time.
IP: Logged
ericjon262
Member
Posts: 3082
From: everywhere.
Registered: Jan 2010


Feedback score:    (10)
Leave feedback





Total ratings: 66
Rate this member

Report this Post01-13-2013 09:26 PM Click Here to See the Profile for ericjon262Send a Private Message to ericjon262Edit/Delete MessageReply w/QuoteDirect Link to This Post
looks good! lets see some track times now!
IP: Logged
nosrac
Member
Posts: 3520
From: Euless, TX, US
Registered: Jan 2005


Feedback score:    (6)
Leave feedback





Total ratings: 51
Rate this member

Report this Post01-13-2013 09:31 PM Click Here to See the Profile for nosracSend a Private Message to nosracEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by Justinbart:



My bad it is 10AN.
The actual length according to ebay was 22" and I Think I have a 20" that came in their kit.
The installer said mine was too short so I purchased this one but IIRC he took the 20" hose to a custom hose shop and they modded it.

http://www.ebay.com/itm/10-...&hash=item3a7cf31c9c
IP: Logged
BV MotorSports
Member
Posts: 4821
From: Oak Hill, WV
Registered: May 2001


Feedback score:    (7)
Leave feedback





Total ratings: 189
Rate this member

Report this Post01-13-2013 09:37 PM Click Here to See the Profile for BV MotorSportsSend a Private Message to BV MotorSportsEdit/Delete MessageReply w/QuoteDirect Link to This Post
-4AN is the typical feed size, -10AN is the typical return size. Def nothing smaller.
IP: Logged
nosrac
Member
Posts: 3520
From: Euless, TX, US
Registered: Jan 2005


Feedback score:    (6)
Leave feedback





Total ratings: 51
Rate this member

Report this Post01-13-2013 09:45 PM Click Here to See the Profile for nosracSend a Private Message to nosracEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by Justinbart:





Air Filter Heat Shield

http://compare.ebay.com/lik...ceItemTypes&var=sbar
IP: Logged
nosrac
Member
Posts: 3520
From: Euless, TX, US
Registered: Jan 2005


Feedback score:    (6)
Leave feedback





Total ratings: 51
Rate this member

Report this Post01-13-2013 09:50 PM Click Here to See the Profile for nosracSend a Private Message to nosracEdit/Delete MessageReply w/QuoteDirect Link to This Post

nosrac

3520 posts
Member since Jan 2005

quote
Originally posted by BV MotorSports:

-4AN is the typical feed size, -10AN is the typical return size. Def nothing smaller.


Yeah, but the ID looks kinda small. I did purchase from a quality USA made shop. I think....
The package was never opened so I had NO idea what the ID was like. Bought it and sent to installer.
Well, I'm pretty sure that is whats on my car.
IP: Logged
Justinbart
Member
Posts: 3259
From: Flint, MI
Registered: Sep 2009


Feedback score: N/A
Leave feedback





Total ratings: 119
Rate this member

Report this Post01-13-2013 10:45 PM Click Here to See the Profile for JustinbartSend a Private Message to JustinbartEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by nosrac:


Air Filter Heat Shield


Pointless.

------------------
Turbo 3800 E85 F23 5spd spec5
11.17@132.6

IP: Logged
ericjon262
Member
Posts: 3082
From: everywhere.
Registered: Jan 2010


Feedback score:    (10)
Leave feedback





Total ratings: 66
Rate this member

Report this Post01-13-2013 10:52 PM Click Here to See the Profile for ericjon262Send a Private Message to ericjon262Edit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by Justinbart:


Pointless.



Agreed.

------------------
there's a Group on 60degreeV6.com for us 660 Fiero owners!

Fiero Owner's group on 60degreeV6.com

I know these lines Look crooked on paper, but I swear I've got them straight in my head.

IP: Logged
PFF
System Bot
nosrac
Member
Posts: 3520
From: Euless, TX, US
Registered: Jan 2005


Feedback score:    (6)
Leave feedback





Total ratings: 51
Rate this member

Report this Post01-14-2013 12:13 AM Click Here to See the Profile for nosracSend a Private Message to nosracEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by Justinbart:


Pointless.



LoL.....
IP: Logged
mitchjl22
Member
Posts: 1144
From: Boise, Idaho
Registered: Sep 2011


Feedback score: (5)
Leave feedback

Rate this member

Report this Post01-14-2013 12:28 AM Click Here to See the Profile for mitchjl22Send a Private Message to mitchjl22Edit/Delete MessageReply w/QuoteDirect Link to This Post
Please excuse my youthful ignorance, but it kind of stumps me how the exhaust is routed on a turboed engine. Do you take the exhaust from both manifolds to spin the turbo? One side? It looks like the manifold with the flange on it still has the output for the Y- Pipe, so do just add the turbo on the manifold and let the exhaust pass through normally? I just don't get it. Please help me understand where the exhaust goes as well after its pushed through the turbine.
IP: Logged
ericjon262
Member
Posts: 3082
From: everywhere.
Registered: Jan 2010


Feedback score:    (10)
Leave feedback





Total ratings: 66
Rate this member

Report this Post01-14-2013 12:44 AM Click Here to See the Profile for ericjon262Send a Private Message to ericjon262Edit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by nosrac:


LoL.....


air moves, a heat shield won't prevent the air from getting hot and being sucked into the turbo. if it were some kind of duct to catch air from away from the turbo, maybe...
IP: Logged
ericjon262
Member
Posts: 3082
From: everywhere.
Registered: Jan 2010


Feedback score:    (10)
Leave feedback





Total ratings: 66
Rate this member

Report this Post01-14-2013 12:46 AM Click Here to See the Profile for ericjon262Send a Private Message to ericjon262Edit/Delete MessageReply w/QuoteDirect Link to This Post

ericjon262

3082 posts
Member since Jan 2010

quote
Originally posted by mitchjl22:

Please excuse my youthful ignorance, but it kind of stumps me how the exhaust is routed on a turboed engine. Do you take the exhaust from both manifolds to spin the turbo? One side? It looks like the manifold with the flange on it still has the output for the Y- Pipe, so do just add the turbo on the manifold and let the exhaust pass through normally? I just don't get it. Please help me understand where the exhaust goes as well after its pushed through the turbine.


the front manifold has a crossover that joins to the rear manifold, which outputs to the turbo.
IP: Logged
Justinbart
Member
Posts: 3259
From: Flint, MI
Registered: Sep 2009


Feedback score: N/A
Leave feedback





Total ratings: 119
Rate this member

Report this Post01-14-2013 12:54 AM Click Here to See the Profile for JustinbartSend a Private Message to JustinbartEdit/Delete MessageReply w/QuoteDirect Link to This Post

------------------
Turbo 3800 E85 F23 5spd spec5
11.17@132.6

IP: Logged
mptighe
Member
Posts: 3321
From: Houston, TX
Registered: Aug 2009


Feedback score: (1)
Leave feedback





Total ratings: 122
Rate this member

Report this Post01-14-2013 01:07 AM Click Here to See the Profile for mptigheSend a Private Message to mptigheEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by 1988holleyformula:

Hey now that's an idea...

Do the whole build in one post so you can't let any of the 3800 trolls criticize your processes.

err, wait...


Yeah considering the resident build thread trolls are doing this thread I don't see much happening in that area.
IP: Logged
Formula
Member
Posts: 5339
From:
Registered: Jul 99


Feedback score: (2)
Leave feedback





Total ratings: 96
Rate this member

Report this Post01-14-2013 07:36 AM Click Here to See the Profile for FormulaSend a Private Message to FormulaEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by mitchjl22:

Please excuse my youthful ignorance, but it kind of stumps me how the exhaust is routed on a turboed engine. Do you take the exhaust from both manifolds to spin the turbo? One side? It looks like the manifold with the flange on it still has the output for the Y- Pipe, so do just add the turbo on the manifold and let the exhaust pass through normally? I just don't get it. Please help me understand where the exhaust goes as well after its pushed through the turbine.


Yes, both manifolds (there is a crossover), after the turbine it just goes into a regular exhaust.
http://auto.howstuffworks.com/turbo.htm

[This message has been edited by Formula (edited 01-14-2013).]

IP: Logged
Jncomutt
Member
Posts: 8899
From: Charlotte, NC
Registered: Apr 2001


Feedback score: (3)
Leave feedback





Total ratings: 221
Rate this member

Report this Post01-14-2013 08:46 AM Click Here to See the Profile for JncomuttSend a Private Message to JncomuttEdit/Delete MessageReply w/QuoteDirect Link to This Post
I think that heat shield is a good idea. Not for the heat though. I bet that shield would keep a lot of road crap off the filter making cleanings less frequent.
IP: Logged
fieroguru
Member
Posts: 12107
From: Champaign, IL
Registered: Aug 2003


Feedback score:    (45)
Leave feedback





Total ratings: 257
Rate this member

Report this Post01-14-2013 09:11 AM Click Here to See the Profile for fieroguruSend a Private Message to fieroguruEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by mitchjl22:

Please excuse my youthful ignorance, but it kind of stumps me how the exhaust is routed on a turboed engine. Do you take the exhaust from both manifolds to spin the turbo? One side? It looks like the manifold with the flange on it still has the output for the Y- Pipe, so do just add the turbo on the manifold and let the exhaust pass through normally? I just don't get it. Please help me understand where the exhaust goes as well after its pushed through the turbine.


The exhaust is setup very similar to the stock 3800 with the front bank dumping into the rear bank via the crossover pipe with a single exit from the rear manifold going to the turbo (with flow from both banks).
The second section of tubing entering the exhaust post turbo is from the wastegate which is mounted on the crossover pipe.
IP: Logged
