| Recognize this heat shield? (Page 2/3) |
|
85fieroguy
|
NOV 28, 10:59 AM
|
|
|
I have a 85 GT 4 speed, V-6 with air and this shield fits between the trunk and engine. Easy to get out, hard to get in. The screws are not easy to replace. This shied is OVER the cooling tubes...or just leave it off.
|
|
|
fierofool
|
NOV 28, 11:06 AM
|
|
|
I just checked my brother's 86GT and it has the shield. I was correct that the dipstick/filler tube for the automatic transmission passes up through the large hole in the shield. Using notwohorns' first picture, it would be oriented as if you rotated the picture 180 degrees, looking down at it with the trunk wall near you.
|
|
|
|
MulletproofMonk
|
NOV 30, 07:24 AM
|
|
|
|
|
fierofool
|
NOV 30, 09:46 AM
|
|
|
If you look closely in #21 and #22 you can see the dipstick and automatic shift cable. What purpose does it really serve other than maybe slightly reducing heat to the trunk wall?
|
|
|
|
theogre
|
DEC 01, 09:56 PM
|
|
More likely, It save L4 engine electrics etc from heat from the muffler.
Above is for stick cars.
Ones w/ big hole open are for auto trans.------------------
Dr. Ian Malcolm: Yeah, but your scientists were so preoccupied with whether or not they could, they didn't stop to think if they should.
(Jurassic Park)
The Ogre's Fiero Cave
|
|
|
|
notwohorns
|
DEC 05, 08:44 PM
|
|
Found out where is goes. Got back to work on the car today. It goes on the left side of the truck wall
Thanks to everyone
|
|
|
|
sardonyx247
|
DEC 05, 10:58 PM
|
|
Just for everyones FYI, Autos have that heat shield but that one did not come on an auto, as the hole is not fully punched out for the dip stick tube, not too common to see one not on an auto, but when I have I noticed the hole not punched out. Just about every auto I have worked on has that shield. It also goes under the alt cooler tube and uses 2 10 mm bolts to hold it. (do I work on these cars too much.?.?)
edit to add:didn't see Orge's post just above[This message has been edited by sardonyx247 (edited 12-05-2015).]
|
|
|
Patrick
|
DEC 05, 11:43 PM
|
|
| quote | Originally posted by sardonyx247:
It also goes under the alt cooler tube
|
|
No... the coil cooler tube.
|
|
|
|
sardonyx247
|
DEC 06, 09:56 PM
|
|
| quote | Originally posted by Patrick:
No... the coil cooler tube.
|
|
Nope, the alt tube

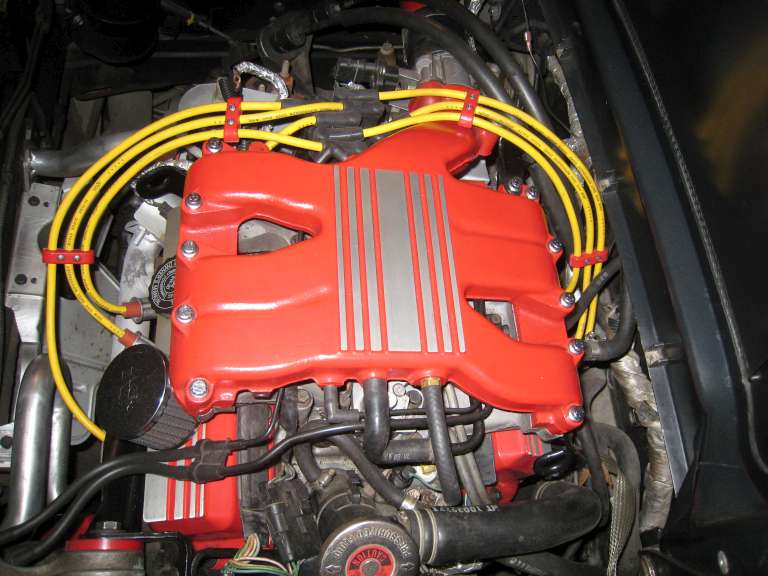

Here is a pic I found to show, I am talking about mounting point.
|
|
|
Patrick
|
DEC 06, 10:39 PM
|
|
| quote | Originally posted by sardonyx247:
Here is a pic I found to show, I am talking about mounting point.
|
|
That's a crummy angle. If it ever stops raining here, I'll take a picture of the shield on my '86 GT from directly above.
|
|
|
