Installing a HUD Heads-Up Display by MulletproofMonk
Started on: 09-01-2012 12:05 AM
Replies: 33 (3530 views)
Last post by: mental floss on 01-10-2015 11:21 AM
MulletproofMonk
Member

Posts: 2843
From: Dayton, OH (Bellbrook, OH 45305)
Registered: Oct 2005


Feedback score:    (49)
Leave feedback





Total ratings: 77
Rate this member

Report this Post09-01-2012 12:05 AM Click Here to See the Profile for MulletproofMonkClick Here to visit MulletproofMonk's HomePageSend a Private Message to MulletproofMonkEdit/Delete MessageReply w/QuoteDirect Link to This Post

Okay, so the first thing that I did was read up on all the other HUD threads. jscott1 has a pinout on his HUD install.
http://www.fiero.nl/forum/A...21-2-093356.html#p19

So, my HUD was from a 1996 Grand Prix and i needed a wiring pinout. Here are the pinouts for 2 newer HUD's:

1994-1996 HUD wiring:

A1: BROWN - HUD on/off
A2: GRAY/BLACK - PARK LAMPS on
A3: EMPTY
A4: DARK GREEN - VSS
A5: TAN - OIL PRESSURE
A6: DARK GREEN/WHITE - LOW FUEL
A7: LIGHT BLUE - LEFT turn
A8: BLACK - GROUND

B1: YELLOW - HUD up
B2: BROWN - HUD down
B3: LIGHT BLUE - E/M conversion
B4: BROWN - CHARGE indicator
B5: DARK GREEN - COOLANT temp
B6: LIGHT GREEN - HIGH BEAMS
B7: DARK BLUE - RIGHT turn
B8: WHITE - DISPLAY Dimmer

1997+ HUD wiring:

A1: BROWN - HUD on/off
A2: BROWN - CHARGE indicator
A3: TAN - OIL PRESSURE
A4: DARK GREEN - COOLANT temp
A5: DARK GREEN - SERIAL DATA) this is to the radio.
A6: WHITE - DISPLAY Dimmer
A7: DARK GREEN - VSS
A8: BLACK - GROUND

B1: YELLOW - HUD up
B2: BROWN - HUD down
B3: LIGHT BLUE - E/M conversion, ground for metric
B4: DARK GREEN/WHITE - LOW FUEL
B5: LIGHT GREEN - HIGH BEAMS
B6: EMPTY
B7: LIGHT BLUE - LEFT turn
B8: DARK BLUE - RIGHT turn

1994-2003 Grand Prix HUD switches:

Row 1:
A: PNK Switched 12v Ignition Feed
B: GRY Dimming signal
C: WHT HUD display dimming signal, to HUD unit A6
D: Blank

Row 2:
E: YEL Mirror motor UP, to HUD unit B1
F: BRN HUD switch output
G: BLK ground
H: BRN Mirror motor DOWN, to HUD unit B2

------------------
-Brian

My 87 GT Poly Suspension Upgrade (all pics) thread
Removing the roof panel

[This message has been edited by MulletproofMonk (edited 08-01-2013).]

IP: Logged

MulletproofMonk
Member

Posts: 2843
From: Dayton, OH (Bellbrook, OH 45305)
Registered: Oct 2005


Feedback score:    (49)
Leave feedback





Total ratings: 77
Rate this member

Report this Post09-01-2012 12:16 AM Click Here to See the Profile for MulletproofMonkClick Here to visit MulletproofMonk's HomePageSend a Private Message to MulletproofMonkEdit/Delete MessageReply w/QuoteDirect Link to This Post

So, first here is what the whole HUD unit looks like and the HUD dimmer/up+down switch.


I was thinking that maybe I could put the HUD dimmer/up+down switch in the power window plate, but I have power mirrors...


Plus I decided to use a fog light switch that I found. It fits nicely below the trunk popper.


Since the whole HUD wouldn't fit in the dash, I took it apart. You can strip it down to the circuit board, ribbon cable and display.


Like most people I noticed a double image on the windshield. However, I noticed that when I pointed the image up into the tinted portion of the windshield, the double image vanished (second picture)...



I cut the plastic housing up so that the circuit board would be protected in the dash without shorting against something metal. Ignore the IDE cable in the picture, I thought that I could use it to extend the HUD display. I was going to need more length if I was going to point it up into the tint. Well, the IDE cable didn't work...


So, I did it the hard way... Cut and splice... Make sure those wires don't touch...


I couldn't get it where I wanted it.. So I put it in the dash.



The image ended up right in the center of the windshield. Great location, but I have that double image...

[This message has been edited by MulletproofMonk (edited 09-01-2012).]

IP: Logged

MulletproofMonk
Member

Posts: 2843
From: Dayton, OH (Bellbrook, OH 45305)
Registered: Oct 2005


Feedback score:    (49)
Leave feedback





Total ratings: 77
Rate this member

Report this Post09-01-2012 12:55 AM Click Here to See the Profile for MulletproofMonkClick Here to visit MulletproofMonk's HomePageSend a Private Message to MulletproofMonkEdit/Delete MessageReply w/QuoteDirect Link to This Post

So, what wires did I hookup specifically?
1994-1996 HUD wiring:

A1: BROWN - HUD on/off.................. Fog Lamp switch (also connect B4-Power and A8-Ground)
A2: GRAY/BLACK - PARK LAMPS on..... N/A
A3: EMPTY..................................... N/A
A4: DARK GREEN - VSS..................... 7730 ECM (jscott1 uses a pin on the 88 speedo, someone else said there was another pin but it didn't work for me)
A5: TAN - OIL PRESSURE.................. N/A
A6: DARK GREEN/WHITE - LOW FUEL... N/A
A7: LIGHT BLUE - LEFT turn............... C3 pin 2
A8: BLACK - GROUND........................ C3 pin 11

B1: YELLOW - HUD up....................... N/A
B2: BROWN - HUD down.................... N/A
B3: LIGHT BLUE - E/M conversion........ N/A
B4: BROWN - CHARGE indicator........... C3 pin 5
B5: DARK GREEN - COOLANT temp....... N/A
B6: LIGHT GREEN - HIGH BEAMS.......... C3 pin 12
B7: DARK BLUE - RIGHT turn............... C3 pin 4
B8: WHITE - DISPLAY Dimmer............. N/A

Fog Lamp switch also needs connected to B4 for Power and A8 for Ground

[This message has been edited by MulletproofMonk (edited 09-01-2012).]

IP: Logged

CowsPatoot
Member

Posts: 2785
From: Dayton, OH
Registered: May 2007


Feedback score:    (29)
Leave feedback





Total ratings: 83
Rate this member

Report this Post09-01-2012 01:10 AM Click Here to See the Profile for CowsPatootClick Here to visit CowsPatoot's HomePageSend a Private Message to CowsPatootEdit/Delete MessageReply w/QuoteDirect Link to This Post

What prevented you from getting it up into the tinted area?

IP: Logged

Marvin McInnis
Member

Posts: 11568
From: ~ Kansas City, USA
Registered: Apr 2002


Feedback score: N/A
Leave feedback





Total ratings: 226
Rate this member

Report this Post09-01-2012 01:12 AM Click Here to See the Profile for Marvin McInnisClick Here to visit Marvin McInnis's HomePageSend a Private Message to Marvin McInnisEdit/Delete MessageReply w/QuoteDirect Link to This Post

Previously posted on PFF:

GM HUD Conversion Info

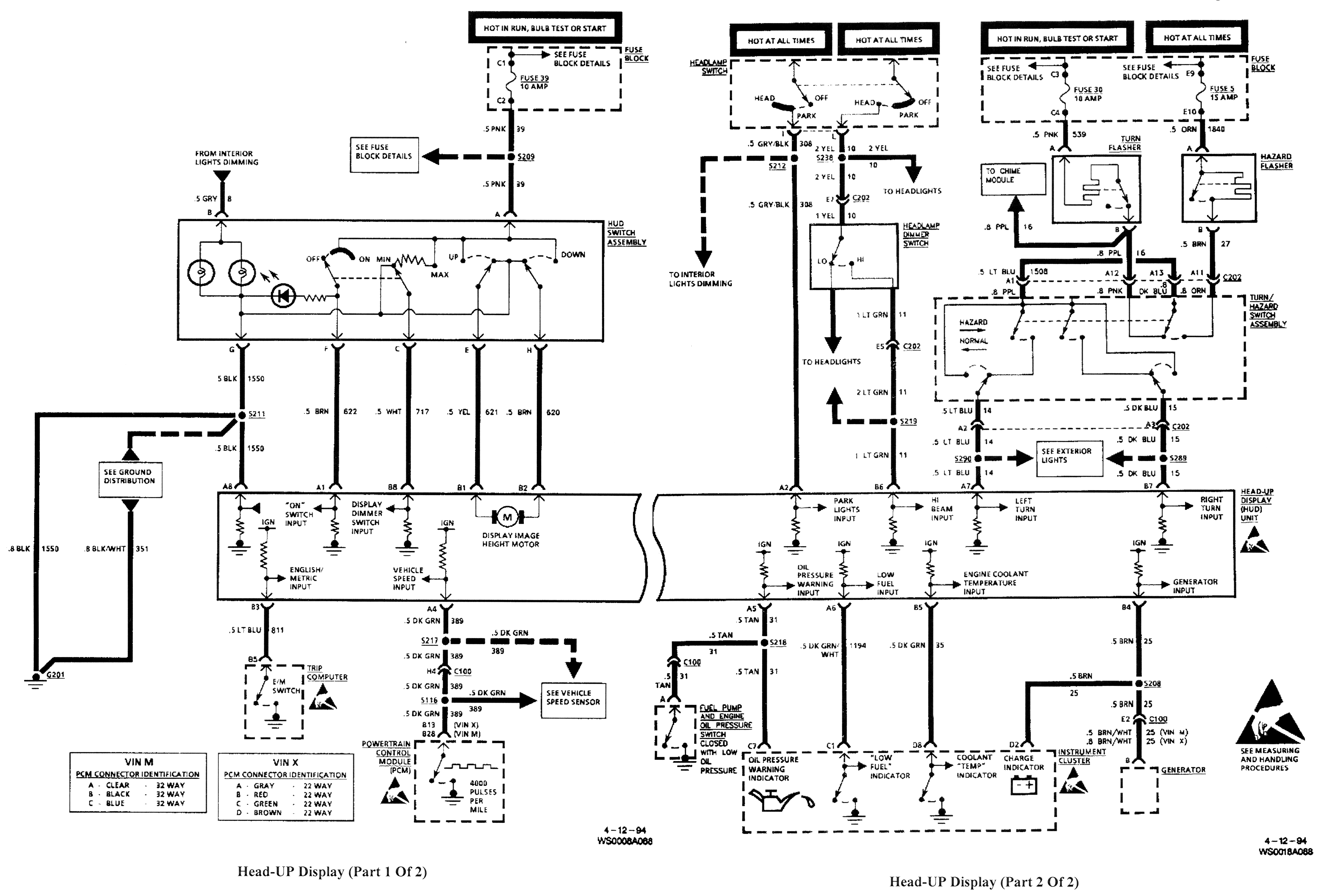

GM HUD Schematic - 96 Grand Prix

As I'm sure you are now aware, by removing the optics from the assembly you significantly reduce the quality and effectiveness of the HUD display. The OEM optics serve 1) to enlarge the projected image, and 2) to focus the image at infinity, so it is projected down the road and you don't have to constantly refocus your eyes to read it.

[This message has been edited by Marvin McInnis (edited 09-01-2012).]

IP: Logged

MulletproofMonk
Member

Posts: 2843
From: Dayton, OH (Bellbrook, OH 45305)
Registered: Oct 2005


Feedback score:    (49)
Leave feedback





Total ratings: 77
Rate this member

Report this Post09-01-2012 01:24 AM Click Here to See the Profile for MulletproofMonkClick Here to visit MulletproofMonk's HomePageSend a Private Message to MulletproofMonkEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by CowsPatoot:

What prevented you from getting it up into the tinted area?


It would have required me to get it almost on top of the gauge cluster...

IP: Logged

MulletproofMonk
Member

Posts: 2843
From: Dayton, OH (Bellbrook, OH 45305)
Registered: Oct 2005


Feedback score:    (49)
Leave feedback





Total ratings: 77
Rate this member

Report this Post09-01-2012 01:29 AM Click Here to See the Profile for MulletproofMonkClick Here to visit MulletproofMonk's HomePageSend a Private Message to MulletproofMonkEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by Marvin McInnis:
As I'm sure you are now aware, by removing the optics from the assembly you significantly reduce the quality and effectiveness of the HUD display. The OEM optics serve 1) to enlarge the projected image, and 2) to focus the image at infinity, so it is projected down the road and you don't have to constantly refocus your eyes to read it.


Yup. I knew that going into it. I hooked up the whole HUD unit and the up+down switch. I even tried using the mirrors with the unit out of the HUD. I figured that I could cut the mirrors down and build something to mount them on. I may still go back and do that, but it would be a static location on the windshield. When I get around to doing the Firebird dash I will modify it like jscott1 did.

IP: Logged

johnyrottin
Member

Posts: 5087
From: Illinoisistan
Registered: Oct 2007


Feedback score:    (8)
Leave feedback





Total ratings: 82
Rate this member

Report this Post09-01-2012 08:13 PM Click Here to See the Profile for johnyrottinClick Here to Email johnyrottinSend a Private Message to johnyrottinEdit/Delete MessageReply w/QuoteDirect Link to This Post

I am not as technically capable as these fellas are. We messed around with HUDs and I found for $0 dollars I could install this one and place it wherever I wanted.

http://www.androidblip.com/...-hud-pro-100899.html

Give this one a go and see what you think.

[This message has been edited by johnyrottin (edited 09-01-2012).]

IP: Logged

Marvin McInnis
Member

Posts: 11568
From: ~ Kansas City, USA
Registered: Apr 2002


Feedback score: N/A
Leave feedback





Total ratings: 226
Rate this member

Report this Post09-02-2012 01:23 AM Click Here to See the Profile for Marvin McInnisClick Here to visit Marvin McInnis's HomePageSend a Private Message to Marvin McInnisEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by johnyrottin:

... I found for $0 dollars I could install this one and place it wherever I wanted.



$0 ... yeah, right. $0 after the cost of the phone itself and the monthly cost of service, that is. Does it display warnings and advisories for oil pressure, fuel level, coolant temperature, high beams, and turn signals? Does it include custom optics to project the display at infinity? Your phone may work just fine for you, and that's OK, but you're comparing apples to oranges.

[This message has been edited by Marvin McInnis (edited 09-02-2012).]

IP: Logged

MulletproofMonk
Member

Posts: 2843
From: Dayton, OH (Bellbrook, OH 45305)
Registered: Oct 2005


Feedback score:    (49)
Leave feedback





Total ratings: 77
Rate this member

Report this Post09-06-2012 01:06 AM Click Here to See the Profile for MulletproofMonkClick Here to visit MulletproofMonk's HomePageSend a Private Message to MulletproofMonkEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by johnyrottin:

I am not as technically capable as these fellas are. We messed around with HUDs and I found for $0 dollars I could install this one and place it wherever I wanted.

http://www.androidblip.com/...-hud-pro-100899.html

Give this one a go and see what you think.



Yes, I tried that App on my phone. It is nice, but my phone is a phone. I could also throw my TomTom up in the window and leave it plugged in.

Mostly this was just something to mod my car. I have always loved the Firebird dash swap jscott1 did. He must have used a different HUD because the pins on mine didn't match his. I posted the two other pinouts I found and the fact that I extended the wires. I didn't know if it could be done since they are so thin, but it can be done.

The only issue for me is not having the 88 speedo for the 4,000ppm, but I was upgrading to the 7730 ecm anyways... Which gives me the 4,000ppm that I need.

IP: Logged

Purple86GT
Member

Posts: 1592
From: Ontario, Canada
Registered: Mar 2012


Feedback score: (1)
Leave feedback





Total ratings: 63
Rate this member

Report this Post09-06-2012 10:47 AM Click Here to See the Profile for Purple86GTClick Here to Email Purple86GTSend a Private Message to Purple86GTEdit/Delete MessageReply w/QuoteDirect Link to This Post

Just a small FYI, not sure if it would help anyone... But in the old days, I used to mount my CB-radio over the center console (just in front of the back window) so that I can see the signal level and the channel in my windshield. So.. Maybe the HUD can be mounted there somehow and reflect much the same way?

[This message has been edited by Purple86GT (edited 09-06-2012).]

IP: Logged

johnyrottin
Member

Posts: 5087
From: Illinoisistan
Registered: Oct 2007


Feedback score:    (8)
Leave feedback





Total ratings: 82
Rate this member

Report this Post09-06-2012 10:54 AM Click Here to See the Profile for johnyrottinClick Here to Email johnyrottinSend a Private Message to johnyrottinEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by Marvin McInnis:


$0 ... yeah, right. $0 after the cost of the phone itself and the monthly cost of service, that is. Does it display warnings and advisories for oil pressure, fuel level, coolant temperature, high beams, and turn signals? Does it include custom optics to project the display at infinity? Your phone may work just fine for you, and that's OK, but you're comparing apples to oranges.



No, as far as I know it doesn't display any of those but it does tell me temperature, weather, and street names which the HUDs don't seem to do. I more mentioned it as an option for those who don't have the technical abilities some folks have but want to mock HUD expierience or just want to try some stuff. Yes, I had to get a phone (mine was free by the way) and yes I have a monthly bill for my phone ($50 monthly thru Verizon with unlimited data, unlimited text, 2000 minutes) but many people have phones. I didn't mean to offend you by offering it up to others. It was meant as an "I don't have the abilities you have so I settled for second place" option for HUDs.

IP: Logged

Marvin McInnis
Member

Posts: 11568
From: ~ Kansas City, USA
Registered: Apr 2002


Feedback score: N/A
Leave feedback





Total ratings: 226
Rate this member

Report this Post09-07-2012 12:08 AM Click Here to See the Profile for Marvin McInnisClick Here to visit Marvin McInnis's HomePageSend a Private Message to Marvin McInnisEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by johnyrottin:

I didn't mean to offend you by offering it up to others.



No offense taken, but as I said before, you're comparing apples to oranges. The essential defining characteristic of a HUD is the optics that project the displayed image through the windshield so your eyes don't have to refocus. I use a dash-mounted GPS, too, but it's not a HUD.

IP: Logged

johnyrottin
Member

Posts: 5087
From: Illinoisistan
Registered: Oct 2007


Feedback score:    (8)
Leave feedback





Total ratings: 82
Rate this member

Report this Post09-07-2012 10:33 AM Click Here to See the Profile for johnyrottinClick Here to Email johnyrottinSend a Private Message to johnyrottinEdit/Delete MessageReply w/QuoteDirect Link to This Post

I know people mention tint as a way to stop the double image. What about a clear piece of film of some sort...like Invisaguard or something?

IP: Logged

MulletproofMonk
Member

Posts: 2843
From: Dayton, OH (Bellbrook, OH 45305)
Registered: Oct 2005


Feedback score:    (49)
Leave feedback





Total ratings: 77
Rate this member

Report this Post09-07-2012 07:32 PM Click Here to See the Profile for MulletproofMonkClick Here to visit MulletproofMonk's HomePageSend a Private Message to MulletproofMonkEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by johnyrottin:

I know people mention tint as a way to stop the double image. What about a clear piece of film of some sort...like Invisaguard or something?


Do you have a piece of clear film? If so, throw it in an envelope, I will try it and post pictures. I have not tried using a piece of tint yet. The tint I mentioned is the factory tint on the top of the window.

IP: Logged

johnyrottin
Member

Posts: 5087
From: Illinoisistan
Registered: Oct 2007


Feedback score:    (8)
Leave feedback





Total ratings: 82
Rate this member

Report this Post09-08-2012 12:25 AM Click Here to See the Profile for johnyrottinClick Here to Email johnyrottinSend a Private Message to johnyrottinEdit/Delete MessageReply w/QuoteDirect Link to This Post

I dont have any here but for a check to see if it works just cut a piece of plastic wrap and sick it in the window...see what happens.

IP: Logged

dutch13
Member

Posts: 114
From: ottawa
Registered: Apr 2010


Feedback score: N/A
Leave feedback

Rate this member

Report this Post09-08-2012 12:30 AM Click Here to See the Profile for dutch13Send a Private Message to dutch13Edit/Delete MessageReply w/QuoteDirect Link to This Post

I know a buddy of mine broke his windshield on a 240sx with hud and instead of paying the extra cost for a hud windshield, after research he found that certain cell phone covers work perfect. Dont know if it helps any

IP: Logged

MulletproofMonk
Member

Posts: 2843
From: Dayton, OH (Bellbrook, OH 45305)
Registered: Oct 2005


Feedback score:    (49)
Leave feedback





Total ratings: 77
Rate this member

Report this Post08-01-2013 01:15 AM Click Here to See the Profile for MulletproofMonkClick Here to visit MulletproofMonk's HomePageSend a Private Message to MulletproofMonkEdit/Delete MessageReply w/QuoteDirect Link to This Post

Using some tint does stop the double image. The issue that I have is I put the HUD image in my line of sight. That would make the tint a pain for normal driving.

IP: Logged

dematrix86gt
Member

Posts: 490
From: havana arkansas
Registered: Jul 2013


Feedback score: (2)
Leave feedback

Rate this member

Report this Post08-01-2013 01:31 AM Click Here to See the Profile for dematrix86gtClick Here to Email dematrix86gtSend a Private Message to dematrix86gtEdit/Delete MessageReply w/QuoteDirect Link to This Post

I used this same method in the mid 80's for voltage meters on amplifiers in the rear of my truck reflected off the back glass of the SnugTop. Worked like a champ!!!.

quote
Originally posted by Purple86GT:

Just a small FYI, not sure if it would help anyone... But in the old days, I used to mount my CB-radio over the center console (just in front of the back window) so that I can see the signal level and the channel in my windshield. So.. Maybe the HUD can be mounted there somehow and reflect much the same way?



IP: Logged

thesameguy
Member

Posts: 1238
From: California
Registered: Dec 2012


Feedback score: N/A
Leave feedback

Rate this member

Report this Post08-01-2013 02:21 AM Click Here to See the Profile for thesameguyClick Here to Email thesameguySend a Private Message to thesameguyEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by dutch13:

I know a buddy of mine broke his windshield on a 240sx with hud and instead of paying the extra cost for a hud windshield, after research he found that certain cell phone covers work perfect. Dont know if it helps any


I suspect the double image comes from the clear glass and the outer laminate. Putting some piece of film on the inside of the glass to reflect the bulk of the image should reduce or eliminate the double image effect. I imagine that's why cell phone screen covers work. I'd try a clear window tint (maybe 3M Crystalline). I don't recall spending any time in a GM HUD-equipped car, but I recently spent a couple days in a new 328i with one and the HUD's film was clearly visible in the window. I'm sure there always needs to be something serving as a "screen" where the HUD is projected.

[This message has been edited by thesameguy (edited 08-01-2013).]

IP: Logged

mitchjl22
Member

Posts: 1136
From: Boise, Idaho
Registered: Sep 2011


Feedback score: (5)
Leave feedback

Rate this member

Report this Post08-01-2013 02:38 AM Click Here to See the Profile for mitchjl22Click Here to Email mitchjl22Send a Private Message to mitchjl22Edit/Delete MessageReply w/QuoteDirect Link to This Post

I've been looking EVERYWHERE for a thread where someone installed am 04+ HUD from a GTP and found nothing. Any word on this?



Edit: Sorry just found your reply on another thread

[This message has been edited by mitchjl22 (edited 08-01-2013).]

IP: Logged

jscott1
Member

Posts: 21617
From: Houston, TX , USA
Registered: Dec 2001


Feedback score:    (15)
Leave feedback





Total ratings: 414
Rate this member

Report this Post09-03-2013 12:07 AM Click Here to See the Profile for jscott1Send a Private Message to jscott1Edit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by MulletproofMonk:


Yes, I tried that App on my phone. It is nice, but my phone is a phone. I could also throw my TomTom up in the window and leave it plugged in.

Mostly this was just something to mod my car. I have always loved the Firebird dash swap jscott1 did. He must have used a different HUD because the pins on mine didn't match his. I posted the two other pinouts I found and the fact that I extended the wires. I didn't know if it could be done since they are so thin, but it can be done.

The only issue for me is not having the 88 speedo for the 4,000ppm, but I was upgrading to the 7730 ecm anyways... Which gives me the 4,000ppm that I need.


It's been over a decade since I did my HUD, I'm not sure which Bonneville it was from anymore. I have a newer model one in my parts room with the electric up/down. It's on my list of things to do to give myself an upgrade next time my dash is out. After 11 years of the Firebird dash it's time to freshen it up a bit.

I just realized today that I never took a pic of the HUD in action... well here it is. I'm holding the camera below eye level so it puts the image more in the line of sight than it would normally appear. But yeah I have the double images too. If you could get it low enough you could use tint or a coating on the glass and it wouldn't be too distracting.



FWIW - regarding cellphone HUD, if you have an old android cellphone laying around that no longer has service, I can tell you that you can still download apps from Google play (over wi-fi) and GPS will still operate. I don't know about other OS, but I've been using my old HTC as a GPS for over a year since I deactivated it.

IP: Logged

MulletproofMonk
Member

Posts: 2843
From: Dayton, OH (Bellbrook, OH 45305)
Registered: Oct 2005


Feedback score:    (49)
Leave feedback





Total ratings: 77
Rate this member

Report this Post09-03-2013 10:24 AM Click Here to See the Profile for MulletproofMonkClick Here to visit MulletproofMonk's HomePageSend a Private Message to MulletproofMonkEdit/Delete MessageReply w/QuoteDirect Link to This Post

jscott1 you honor me! Yours was my motivation for cramming it in there.

If I had mounted it so the image would be lower, a small piece of window tint would fix the problem. Putting the HUD image right at eye level was a mistake... but hindsight is 20/20.

IP: Logged

johnyrottin
Member

Posts: 5087
From: Illinoisistan
Registered: Oct 2007


Feedback score:    (8)
Leave feedback





Total ratings: 82
Rate this member

Report this Post11-04-2014 10:58 AM Click Here to See the Profile for johnyrottinClick Here to Email johnyrottinSend a Private Message to johnyrottinEdit/Delete MessageReply w/QuoteDirect Link to This Post

Any updates on the installation of your HUDs?

IP: Logged

MulletproofMonk
Member

Posts: 2843
From: Dayton, OH (Bellbrook, OH 45305)
Registered: Oct 2005


Feedback score:    (49)
Leave feedback





Total ratings: 77
Rate this member

Report this Post11-04-2014 01:01 PM Click Here to See the Profile for MulletproofMonkClick Here to visit MulletproofMonk's HomePageSend a Private Message to MulletproofMonkEdit/Delete MessageReply w/QuoteDirect Link to This Post

Not really. I have done it on 3 Fieros now. The one in the purple car is hooked up to a newer gm cd player so I see the channel changes. I also hooked up the turn signals and high beam indicators.

IP: Logged

mental floss
Member

Posts: 362
From: CSA
Registered: Aug 2014


Feedback score: (2)
Leave feedback

User Banned

Report this Post01-01-2015 09:21 PM Click Here to See the Profile for mental flossSend a Private Message to mental flossEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by MulletproofMonk:

1997+ HUD wiring:

A1: BROWN - HUD on/off
A2: BROWN - CHARGE indicator
A3: TAN - OIL PRESSURE
A4: DARK GREEN - COOLANT temp
A5: DARK GREEN - SERIAL DATA) this is to the radio.
A6: WHITE - DISPLAY Dimmer
A7: DARK GREEN - VSS
A8: BLACK - GROUND

B1: YELLOW - HUD up
B2: BROWN - HUD down
B3: LIGHT BLUE - E/M conversion, ground for metric
B4: DARK GREEN/WHITE - LOW FUEL
B5: LIGHT GREEN - HIGH BEAMS
B6: EMPTY
B7: LIGHT BLUE - LEFT turn
B8: DARK BLUE - RIGHT turn

1994-2003 Grand Prix HUD switches:

Row 1:
A: PNK Switched 12v Ignition Feed
B: GRY Dimming signal
C: WHT HUD display dimming signal, to HUD unit A6
D: Blank

Row 2:
E: YEL Mirror motor UP, to HUD unit B1
F: BRN HUD switch output
G: BLK ground
H: BRN Mirror motor DOWN, to HUD unit B2


So I pulled a HUD w/ dimmer control (and even the ENG/MET/TRAC CNTL panel because wires were attached to it).
The setup is from a '98 GP and now I'd like to bench test it. Hopefully there's no reason this shouldn't be done,
because I don't know that it works.

So, do I apply 12V+ to the dimmer control A1 PINK? I guess both grounds need to be to ground from the HUD and dimmer control?
Anything else imperative to hook up?

[This message has been edited by mental floss (edited 01-01-2015).]

IP: Logged

MulletproofMonk
Member

Posts: 2843
From: Dayton, OH (Bellbrook, OH 45305)
Registered: Oct 2005


Feedback score:    (49)
Leave feedback





Total ratings: 77
Rate this member

Report this Post01-01-2015 09:38 PM Click Here to See the Profile for MulletproofMonkClick Here to visit MulletproofMonk's HomePageSend a Private Message to MulletproofMonkEdit/Delete MessageReply w/QuoteDirect Link to This Post

You definitely neednthe grounds and power hooked up. You might need power to the charge indictor too...

IP: Logged

mental floss
Member

Posts: 362
From: CSA
Registered: Aug 2014


Feedback score: (2)
Leave feedback

User Banned

Report this Post01-01-2015 10:54 PM Click Here to See the Profile for mental flossSend a Private Message to mental flossEdit/Delete MessageReply w/QuoteDirect Link to This Post

Okay, it works. Didn't need the charge wire connected, just connected PINK to 12V+, and both GROUNDS to negative terminal.
I expected it to be brighter than it is though.
Thanks for that pin out posting and response.

IP: Logged

MulletproofMonk
Member

Posts: 2843
From: Dayton, OH (Bellbrook, OH 45305)
Registered: Oct 2005


Feedback score:    (49)
Leave feedback





Total ratings: 77
Rate this member

Report this Post01-01-2015 10:58 PM Click Here to See the Profile for MulletproofMonkClick Here to visit MulletproofMonk's HomePageSend a Private Message to MulletproofMonkEdit/Delete MessageReply w/QuoteDirect Link to This Post

Try hooking up the dimmer and see if you can make it brighter. As there is a light sensor that goes bad... try opening it up and putting a piece of tape over it, or at least make sure you are in a dark room...

IP: Logged

mental floss
Member

Posts: 362
From: CSA
Registered: Aug 2014


Feedback score: (2)
Leave feedback

User Banned

Report this Post01-02-2015 12:32 AM Click Here to See the Profile for mental flossSend a Private Message to mental flossEdit/Delete MessageReply w/QuoteDirect Link to This Post

There's a dimmer other than the dial dimmer? EDIT: I had the dimmer hooked up and it worked. Just expected brighter.
I'll try it tomorrow in the dark. I did have the room overhead light on tonight.

[This message has been edited by mental floss (edited 01-02-2015).]

IP: Logged

johnguzman1212
Member

Posts: 212
From: port lavaca tx
Registered: Feb 2014


Feedback score: N/A
Leave feedback

Rate this member

Report this Post01-02-2015 01:03 AM Click Here to See the Profile for johnguzman1212Click Here to Email johnguzman1212Send a Private Message to johnguzman1212Edit/Delete MessageReply w/QuoteDirect Link to This Post

they make a ob2 hud that connects to it costs 100 bucks ebay

IP: Logged

mental floss
Member

Posts: 362
From: CSA
Registered: Aug 2014


Feedback score: (2)
Leave feedback

User Banned

Report this Post01-02-2015 01:16 AM Click Here to See the Profile for mental flossSend a Private Message to mental flossEdit/Delete MessageReply w/QuoteDirect Link to This Post

I paid $22, but shouldn't have bought the $3.50 panel I included. Don't have OBDII.

IP: Logged

mental floss
Member

Posts: 362
From: CSA
Registered: Aug 2014


Feedback score: (2)
Leave feedback

User Banned

Report this Post01-03-2015 04:33 PM Click Here to See the Profile for mental flossSend a Private Message to mental flossEdit/Delete MessageReply w/QuoteDirect Link to This Post

Here's a shot of the factory dimmer turned all the way up and viewed through a mirror. Is this a normal illumination level? Seems pretty dim.

IP: Logged

mental floss
Member

Posts: 362
From: CSA
Registered: Aug 2014


Feedback score: (2)
Leave feedback

User Banned

Report this Post01-10-2015 11:21 AM Click Here to See the Profile for mental flossSend a Private Message to mental flossEdit/Delete MessageReply w/QuoteDirect Link to This Post

Found a 2001 Aztec with HUD in a yard, so I pulled it after reading a post here that they have a red display.
It appears the difference is a red gel in place where the GP HUD has a clear gel. Flip a HUD unit over and look at the heat sink.
There is a clear gel sandwiched in there for most. The Aztec is red. Might be the only difference.
The plugs and wiring is not the same as the 1998 era GP, so you can't just swap them. I'm going to try to swap gels.

[This message has been edited by mental floss (edited 01-10-2015).]

IP: Logged


next newest topic | next oldest topic

All times are ET (US)

Post New Topic  Post A Reply
Hop to:

Contact Us | Back To Main Page

Advertizing on PFF | Fiero Parts Vendors
PFF Merchandise | Fiero Gallery | Ogre's Cave
Real-Time Chat | Fiero Related Auctions on eBay



Copyright (c) 1999, C. Pennock
