Chrysler 3.5 HO V6 swap by seajai
Started on: 08-03-2012 06:21 PM
Replies: 317 (34052 views)
Last post by: Toddster on 07-14-2019 02:51 PM
seajai
Member
Posts: 1541
From: Linwood Township, Minnesota
Registered: Feb 2012


Feedback score:    (42)
Leave feedback





Total ratings: 52
Rate this member

Report this Post06-05-2013 10:58 PM Click Here to See the Profile for seajaiSend a Private Message to seajaiEdit/Delete MessageReply w/QuoteDirect Link to This Post
Got my NOS front calipers from calipersonline.com today. These were assembly line pieces and never boxed as replacement parts, they are in great condition and still look brand new.





I had to eliminate my e-brake because of my cradle mods so it's no big deal putting front calipers on the rear.

I am dropping the car off Thursday morning for exhaust work, I will post pics of the finished system.

Edit: Wow! I get page 6 too....what are the odds!

[This message has been edited by seajai (edited 10-02-2023).]

IP: Logged
David Hambleton
Member
Posts: 1580
From: Stoney Creek Ontario Canada
Registered: Nov 2012


Feedback score: N/A
Leave feedback

Rate this member

Report this Post06-06-2013 02:43 PM Click Here to See the Profile for David HambletonSend a Private Message to David HambletonEdit/Delete MessageReply w/QuoteDirect Link to This Post
Amazing thread - kudos to the genius that can make this kind of transplant successfully! I'm dragging my heels on an '87 Duke swap into an '86 Duke. Shame on me!

I wonder what percentage of E brakes are actually functional. I prefer to have them even on auto trans vehicles. The E brake has to work to pass the safety certificate for ownership transfer. I've seen some cars with separate parking brake calipers. I guess if you wanted to sell it, you could sell uncertified...

[This message has been edited by David Hambleton (edited 06-06-2013).]

IP: Logged
TXOPIE
Member
Posts: 2734
From: Leonard, TX, USA
Registered: Mar 2012


Feedback score:    (13)
Leave feedback

Rate this member

Report this Post06-06-2013 02:50 PM Click Here to See the Profile for TXOPIEClick Here to visit TXOPIE's HomePageSend a Private Message to TXOPIEEdit/Delete MessageReply w/QuoteDirect Link to This Post
Just ordered me the same front & rear set from same location...thanks for the post!
I am using them with my e-brake and they are going on an 86GT with BMWGuru's adaptors!
IP: Logged
seajai
Member
Posts: 1541
From: Linwood Township, Minnesota
Registered: Feb 2012


Feedback score:    (42)
Leave feedback





Total ratings: 52
Rate this member

Report this Post06-06-2013 04:47 PM Click Here to See the Profile for seajaiSend a Private Message to seajaiEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by David Hambleton:

Amazing thread - kudos to the genius that can make this kind of transplant successfully! I'm dragging my heels on an '87 Duke swap into an '86 Duke. Shame on me!

I wonder what percentage of E brakes are actually functional. I prefer to have them even on auto trans vehicles. The E brake has to work to pass the safety certificate for ownership transfer. I've seen some cars with separate parking brake calipers. I guess if you wanted to sell it, you could sell uncertified...



My cables were all in pretty good shape, but mine isn't a rust belt car. Among the many nice things about living in Minnesota is no emissions testing (thanks Jessie Ventura), and no vehicle safety inspections ( except for commercial vehicles), so the lack of an e-brake isn't an issue.

[This message has been edited by seajai (edited 06-06-2013).]

IP: Logged
David Hambleton
Member
Posts: 1580
From: Stoney Creek Ontario Canada
Registered: Nov 2012


Feedback score: N/A
Leave feedback

Rate this member

Report this Post06-06-2013 08:08 PM Click Here to See the Profile for David HambletonSend a Private Message to David HambletonEdit/Delete MessageReply w/QuoteDirect Link to This Post
I'm surprised there is anyplace in North America that you can get license plates for a vehicle without a safety inspection certificate. I'd be a little concerned about used vehicle sales to unsuspecting purchasers...

A little internet research revealed there are 30 states not requiring safety certificates to get license plates. Hmmmm......

Do the insurance companies charge more for the 'uncertified' vehicles?

[This message has been edited by David Hambleton (edited 06-06-2013).]

IP: Logged
seajai
Member
Posts: 1541
From: Linwood Township, Minnesota
Registered: Feb 2012


Feedback score:    (42)
Leave feedback





Total ratings: 52
Rate this member

Report this Post06-07-2013 12:17 AM Click Here to See the Profile for seajaiSend a Private Message to seajaiEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by David Hambleton:

Do the insurance companies charge more for the 'uncertified' vehicles?



There a few dealerships offering "certified" used cars, but that is purely an in-house inspection to make sure what they sell is in good shape. Plus it's a good sales gimmick. As far as I know, insurance rates in MN are based mainly upon a persons driving record and the type of vehicle insured and not the mechanical quality of said vehicle.
IP: Logged
carbon
Member
Posts: 4767
From: Eagan, MN
Registered: Apr 2004


Feedback score: (2)
Leave feedback





Total ratings: 132
Rate this member

Report this Post06-07-2013 08:51 AM Click Here to See the Profile for carbonSend a Private Message to carbonEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by David Hambleton:

I'm surprised there is anyplace in North America that you can get license plates for a vehicle without a safety inspection certificate. I'd be a little concerned about used vehicle sales to unsuspecting purchasers...



Rust kills them so fast here that some are off the road before they hit 100,000 miles. We haven't had testing in MN since the mid 90s... we do have a 'lemon law' however, so its in the best interest of sellers to make sure the car is in decent shape before the sale.
IP: Logged
seajai
Member
Posts: 1541
From: Linwood Township, Minnesota
Registered: Feb 2012


Feedback score:    (42)
Leave feedback





Total ratings: 52
Rate this member

Report this Post06-08-2013 11:52 PM Click Here to See the Profile for seajaiSend a Private Message to seajaiEdit/Delete MessageReply w/QuoteDirect Link to This Post
Update: It's been a week now since I got her back on the road. The 3.5HO engine revs to 6500 rpm and has a manifold tuning valve and a short runner valve that changes the airflow through the intake above 5000 rpm. The result is this engine just pulls hard and smooth all the way from idle to redline, making it a helluva lot of fun to drive. Filled the tank today, 7.3 gallons for 139 miles driven, so just under 20 mpg. Pretty good considering there has been more than a handful of full throttle runs, and plenty of idling while I worked out a few bugs. TorquePro indicates instant fuel economy around 25 while cruising on the highway. The engine is turning about 2100 rpm at 65 mph so I anticipate decent highway mileage if I can keep my foot out of it.

Been dealing with a cooling system issue, the SAAB coolant tank has a 20lb cap and the cap on the radiator was only 15lbs. When the front cap would try and vent, it would leak out around the cap because I had plugged the overflow port. I ended up plugging the radiator opening with a Dorman rubber expansion plug which so far has cured my leak problem. I can't find a 15lb threaded cap to fit the SAAB tank so I may go back to the pick n pull to look for a different coolant tank that uses a standard cap. I'm not sure what the long term effects would be of running a system at a higher pressure than stock.

Got my exhaust done by Tim's Custom Exhaust in Anoka. They did a great job of fitting it all in, it's amazing how little room there is. The twin MagnaFlow mufflers sound sweet with a nice mellow tone when driving normally and a good bark when the loud pedal hits the carpet. Stay tuned for an updated video...

[This message has been edited by seajai (edited 10-02-2023).]

IP: Logged
donnie072003
Member
Posts: 1956
From: LaSalle, IL.
Registered: Feb 2010


Feedback score:    (12)
Leave feedback

Rate this member

Report this Post06-09-2013 12:18 AM Click Here to See the Profile for donnie072003Click Here to visit donnie072003's HomePageSend a Private Message to donnie072003Edit/Delete MessageReply w/QuoteDirect Link to This Post
At 65mph in my 300M I'm right at 2100rpm too. My car gets 25mpg on the highway all day long so I expect you will fare a bit better than that. I was expecting more in the 30 range for you. I'm very impressed with this build and have been following it since the start. I would love to see this beast in person. I know how well this motor pulls my 300 and can't even imagine what it does for a fiero! Good job can't wait for the video with the exhaust on it.
IP: Logged
seajai
Member
Posts: 1541
From: Linwood Township, Minnesota
Registered: Feb 2012


Feedback score:    (42)
Leave feedback





Total ratings: 52
Rate this member

Report this Post06-09-2013 09:33 PM Click Here to See the Profile for seajaiSend a Private Message to seajaiEdit/Delete MessageReply w/QuoteDirect Link to This Post
Swapped out the SAAB coolant tank for a Saturn one with a 16# cap instead of the 20 pounder.



Took this pic, thought it looked cool. Think it may become my new avatar.

[This message has been edited by seajai (edited 10-02-2023).]

IP: Logged
BV MotorSports
Member
Posts: 4821
From: Oak Hill, WV
Registered: May 2001


Feedback score:    (7)
Leave feedback





Total ratings: 189
Rate this member

Report this Post06-09-2013 10:37 PM Click Here to See the Profile for BV MotorSportsSend a Private Message to BV MotorSportsEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by seajai:

Update: It's been a week now since I got her back on the road. The 3.5HO engine revs to 6500 rpm and has a manifold tuning valve and a short runner valve that changes the airflow through the intake above 5000 rpm. The result is this engine just pulls hard and smooth all the way from idle to redline, making it a helluva lot of fun to drive. Filled the tank today, 7.3 gallons for 139 miles driven, so just under 20 mpg. Pretty good considering there has been more than a handful of full throttle runs, and plenty of idling while I worked out a few bugs. TorquePro indicates instant fuel economy around 25 while cruising on the highway. The engine is turning about 2100 rpm at 65 mph so I anticipate decent highway mileage if I can keep my foot out of it.

Been dealing with a cooling system issue, the SAAB coolant tank has a 20lb cap and the cap on the radiator was only 15lbs. When the front cap would try and vent, it would leak out around the cap because I had plugged the overflow port. I ended up plugging the radiator opening with a Dorman rubber expansion plug which so far has cured my leak problem. I can't find a 15lb threaded cap to fit the SAAB tank so I may go back to the pick n pull to look for a different coolant tank that uses a standard cap. I'm not sure what the long term effects would be of running a system at a higher pressure than stock.

Got my exhaust done by Tim's Custom Exhaust in Anoka. They did a great job of fitting it all in, it's amazing how little room there is. The twin MagnaFlow mufflers sound sweet with a nice mellow tone when driving normally and a good bark when the loud pedal hits the carpet. Stay tuned for an updated video...





Some may not like it, but I love the way fabricated (cut & weld vs U & J bends) exhaust looks.
IP: Logged
PFF
System Bot
seajai
Member
Posts: 1541
From: Linwood Township, Minnesota
Registered: Feb 2012


Feedback score:    (42)
Leave feedback





Total ratings: 52
Rate this member

Report this Post06-13-2013 06:51 PM Click Here to See the Profile for seajaiSend a Private Message to seajaiEdit/Delete MessageReply w/QuoteDirect Link to This Post
Engine wouldn't start today after a quick 10 min stop at the auto parts store. First time that has happened, pretty warm today, think it may be a heat soak issue. Started again after leaving the trunk lid open for 10 minutes. Thinking I may need to add a couple decklid vents to let the heat out. Any suggestions?
IP: Logged
Jake_Dragon
Member
Posts: 32846
From: USA
Registered: Jan 2001


Feedback score: (5)
Leave feedback





Total ratings: 403
Rate this member

Report this Post06-13-2013 07:35 PM Click Here to See the Profile for Jake_DragonSend a Private Message to Jake_DragonEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by seajai:

Engine wouldn't start today after a quick 10 min stop at the auto parts store. First time that has happened, pretty warm today, think it may be a heat soak issue. Started again after leaving the trunk lid open for 10 minutes. Thinking I may need to add a couple decklid vents to let the heat out. Any suggestions?



Obviously it was just sitting on the car, I cut the flange off and it fit the deck lid pretty well.

I assume that you also have the stock side vent, I put some Archie rockers on to add air flow.

Scoops in the windows

Also a big vent for the radiator

My car will hold 190 under normal driving and on ocasion has hit 210 under very spirited driving but the fan will pull it back off after I get out of it.
Thanks for sharing your build, its very out of the box. Well done.

[This message has been edited by Jake_Dragon (edited 06-13-2013).]

IP: Logged
seajai
Member
Posts: 1541
From: Linwood Township, Minnesota
Registered: Feb 2012


Feedback score:    (42)
Leave feedback





Total ratings: 52
Rate this member

Report this Post06-13-2013 07:58 PM Click Here to See the Profile for seajaiSend a Private Message to seajaiEdit/Delete MessageReply w/QuoteDirect Link to This Post
My car will run down the road all day at 195-198 deg and never higher than 213 when idling in traffic. I think I need something to let the heat rise out of the engine compartment when parked. A scoop would be cool, seen a couple pics of 84 center decklid vent being retrofit too.
IP: Logged
Jake_Dragon
Member
Posts: 32846
From: USA
Registered: Jan 2001


Feedback score: (5)
Leave feedback





Total ratings: 403
Rate this member

Report this Post06-14-2013 09:05 AM Click Here to See the Profile for Jake_DragonSend a Private Message to Jake_DragonEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by seajai:

My car will run down the road all day at 195-198 deg and never higher than 213 when idling in traffic. I think I need something to let the heat rise out of the engine compartment when parked. A scoop would be cool, seen a couple pics of 84 center decklid vent being retrofit too.


Just make sure that you can get air flow in as well as out.
There was a reproduction in fiberglass but I don't recall who sold it.
IP: Logged
Jake_Dragon
Member
Posts: 32846
From: USA
Registered: Jan 2001


Feedback score: (5)
Leave feedback





Total ratings: 403
Rate this member

Report this Post06-15-2013 09:25 PM Click Here to See the Profile for Jake_DragonSend a Private Message to Jake_DragonEdit/Delete MessageReply w/QuoteDirect Link to This Post
//www.fiero.nl/forum/Forum1/HTML/089703.html
Here is one of the vents I was thinking about
IP: Logged
seajai
Member
Posts: 1541
From: Linwood Township, Minnesota
Registered: Feb 2012


Feedback score:    (42)
Leave feedback





Total ratings: 52
Rate this member

Report this Post06-16-2013 02:01 AM Click Here to See the Profile for seajaiSend a Private Message to seajaiEdit/Delete MessageReply w/QuoteDirect Link to This Post
Yeah, I was eying up that one too. Although I really like the custom vent that SkiTime did on his car too. Decisions, decisions........

Edit: WooHoo!, my thread made it into the construction zone.

[This message has been edited by seajai (edited 06-16-2013).]

IP: Logged
carbon
Member
Posts: 4767
From: Eagan, MN
Registered: Apr 2004


Feedback score: (2)
Leave feedback





Total ratings: 132
Rate this member

Report this Post06-16-2013 11:04 AM Click Here to See the Profile for carbonSend a Private Message to carbonEdit/Delete MessageReply w/QuoteDirect Link to This Post
IP: Logged
seajai
Member
Posts: 1541
From: Linwood Township, Minnesota
Registered: Feb 2012


Feedback score:    (42)
Leave feedback





Total ratings: 52
Rate this member

Report this Post06-18-2013 01:40 AM Click Here to See the Profile for seajaiSend a Private Message to seajaiEdit/Delete MessageReply w/QuoteDirect Link to This Post
Car had a seizure on the freeway today and left me stranded against the concrete center divider. The engine just shut off and the PRNDL and odometer displays went dark, the speedo went to 120, the odometer display came back on with a "no bus" message for a few seconds, and then went back to normal. When I tried to restart, the starter would stutter like the relay was shutting off and the PRNDL and odometer displays would blink in unison. Opened the trunk lid and let things cool for about 10 minutes or so, hoping not to get rear-ended as I sat there. After a few failed attempts, the engine started and ran fine the rest of the trip. I know there are a few 300M owners out there in Fiero land, anybody ever experience something similar? It's pretty tough to find any useable diagnostic info about this engine on the web. Best I could tell, it may be a failing crank sensor.

I've got about 350 miles on it so far, and It's been a fun car to drive, but there are a few bugs popping up I need to deal with.
The stalling / no start issue.
I think I have a wheel bearing going bad.
The radiator has had trouble keeping up at 70mph on the freeway the last couple warm days, it runs 197-199 when the temps are cool but Sunday when it was 85 and sunny it was 208-212. So I think I may get a Champion 3-row aluminum Radiator to remedy that.
My engine has developed an incontinence problem and will randomly leave a small coolant spot on the garage floor, it's never more than a tablespoonful. I think my new waterpump from O'reillys is the culprit. (That one irks me because I wasn't particularly sanguine about using the MasterPro brand went for it anyway). Since I'd hafta pull the engine out to replace it, I'm gonna let it go for now because it only dribbles after the engine has cooled down.
IP: Logged
kennn
Member
Posts: 272
From: Green Valley, AZ USA
Registered: Apr 2006


Feedback score: (2)
Leave feedback

Rate this member

Report this Post06-18-2013 10:13 AM Click Here to See the Profile for kennnSend a Private Message to kennnEdit/Delete MessageReply w/QuoteDirect Link to This Post
You may have already explored this, but I wonder if there could be a grounding issue.

Ken

------------------
'88 Formula V6
'88 GT TPI V8

IP: Logged
donnie072003
Member
Posts: 1956
From: LaSalle, IL.
Registered: Feb 2010


Feedback score:    (12)
Leave feedback

Rate this member

Report this Post06-25-2013 09:36 PM Click Here to See the Profile for donnie072003Click Here to visit donnie072003's HomePageSend a Private Message to donnie072003Edit/Delete MessageReply w/QuoteDirect Link to This Post
Any updates yet?
IP: Logged
PFF
System Bot
Gary W
Member
Posts: 1092
From: Cape Coral, FL
Registered: Oct 2001


Feedback score: N/A
Leave feedback

Rate this member

Report this Post06-25-2013 10:31 PM Click Here to See the Profile for Gary WSend a Private Message to Gary WEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by seajai:

Car had a seizure on the freeway today and left me stranded against the concrete center divider. The engine just shut off and the PRNDL and odometer displays went dark, the speedo went to 120, the odometer display came back on with a "no bus" message for a few seconds, and then went back to normal. When I tried to restart, the starter would stutter like the relay was shutting off and the PRNDL and odometer displays would blink in unison. Opened the trunk lid and let things cool for about 10 minutes or so, hoping not to get rear-ended as I sat there. After a few failed attempts, the engine started and ran fine the rest of the trip. I know there are a few 300M owners out there in Fiero land, anybody ever experience something similar? It's pretty tough to find any useable diagnostic info about this engine on the web. Best I could tell, it may be a failing crank sensor.



My boss had a 300M that did the exact same thing. It was a crank sensor.
IP: Logged
seajai
Member
Posts: 1541
From: Linwood Township, Minnesota
Registered: Feb 2012


Feedback score:    (42)
Leave feedback





Total ratings: 52
Rate this member

Report this Post06-25-2013 11:19 PM Click Here to See the Profile for seajaiSend a Private Message to seajaiEdit/Delete MessageReply w/QuoteDirect Link to This Post
Finally got around to installing the new crank sensor tonight. As a test, I tugged on harnesses and wire connectors with the engine running to check for a loose connection or bad wire but the engine didn't miss a beat, so hopefully the sensor fixes it. Drove it for the first time since Thursday last week, life always gets so busy and it cuts into my Fiero time.

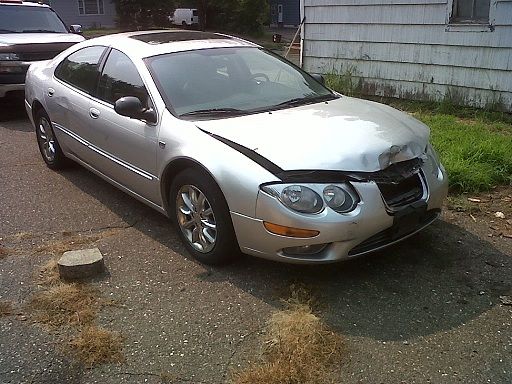

This project come full circle today with the disposal of the donor car. It's been in my driveway and in my garage for the last 10 months, it's weird not to see it around anymore. I paid $1500 for the car, sold around $400 worth of parts, and got $189 when I scrapped it today, so I'm into it for a shade over a grand. I probably spent another $1100-$1200 bucks in parts and steel. So my grand total is about $2200, not too bad I think.

The car comes home:



The car goes bye-bye:

[This message has been edited by seajai (edited 10-02-2023).]

IP: Logged
seajai
Member
Posts: 1541
From: Linwood Township, Minnesota
Registered: Feb 2012


Feedback score:    (42)
Leave feedback





Total ratings: 52
Rate this member

Report this Post07-01-2013 12:22 AM Click Here to See the Profile for seajaiSend a Private Message to seajaiEdit/Delete MessageReply w/QuoteDirect Link to This Post
A short video of the finished product. Hope you like it.

[This message has been edited by seajai (edited 07-01-2013).]

IP: Logged
RCR
Member
Posts: 4397
From: Shelby Twp Mi
Registered: Sep 2002


Feedback score:    (7)
Leave feedback





Total ratings: 102
Rate this member

Report this Post07-01-2013 04:49 PM Click Here to See the Profile for RCRSend a Private Message to RCREdit/Delete MessageReply w/QuoteDirect Link to This Post
Great job. Looks awesome. Watch out for the potholes, though.

Bob
IP: Logged
seajai
Member
Posts: 1541
From: Linwood Township, Minnesota
Registered: Feb 2012


Feedback score:    (42)
Leave feedback





Total ratings: 52
Rate this member

Report this Post07-05-2013 12:28 AM Click Here to See the Profile for seajaiSend a Private Message to seajaiEdit/Delete MessageReply w/QuoteDirect Link to This Post
Another project completed today.... I had been running an air filter right off the end of the intake boot as a temporary setup til i could decide on what I wanted to do. The problem with that setup was IAT readings of 125deg or more when idling around in traffic, and a lack of power because of it. I have been trying to decide between decklid scoop or an intake tube/remote filter, I really didn't want to cut a hole in my lid so I decided on a cold air intake tube. I had to custom make one seeing as nobody carries one for a Fiero with a Chrysler engine. I started out with a 6' length of 3.5" dia exhaust pipe. The curved sections are welded up from a series of pie shaped wedges. The welds were ground smooth and the pipes painted. I built it in 3 sections to make it easier to install and connected them together with rubber pipe couplers. I haven't had a chance to drive it yet, but I'm thinking my IAT #'s should be a lot lower. Eventually there will be a couple of Fiero Fiberglass open side scoops to feed even more cool air to the filter but that's another day.......




[This message has been edited by seajai (edited 10-02-2023).]

IP: Logged
seajai
Member
Posts: 1541
From: Linwood Township, Minnesota
Registered: Feb 2012


Feedback score:    (42)
Leave feedback





Total ratings: 52
Rate this member

Report this Post07-11-2013 09:35 AM Click Here to See the Profile for seajaiSend a Private Message to seajaiEdit/Delete MessageReply w/QuoteDirect Link to This Post
Got the car weighed.

LF= 579 RF= 605 Total front= 1184
LR= 873 RR= 825 Total rear= 1698

That gives me a 59% rear weight bias, and an overall weight of 2882 pounds without the driver and a half tank of fuel.
IP: Logged
Xyster
Member
Posts: 1444
From: Great Falls MT
Registered: Apr 2011


Feedback score: N/A
Leave feedback

Rate this member

Report this Post07-12-2013 12:50 AM Click Here to See the Profile for XysterSend a Private Message to XysterEdit/Delete MessageReply w/QuoteDirect Link to This Post
I love the way that engine bay looks. I can't think of anything uglier than a transverse motor in a car intended to perform.

Normally I dislike an engine/car manufacturer mismatch, but I think you found a very appropriately matched combo.

+1
IP: Logged
seajai
Member
Posts: 1541
From: Linwood Township, Minnesota
Registered: Feb 2012


Feedback score:    (42)
Leave feedback





Total ratings: 52
Rate this member

Report this Post07-18-2013 08:04 AM Click Here to See the Profile for seajaiSend a Private Message to seajaiEdit/Delete MessageReply w/QuoteDirect Link to This Post
Installed a receiver hitch in preparation for the trip to The Tyler show. I decided to mount it to my rear transmission cross member and just use an offset ball mount to bring it up. I wanted to make the hitch removable, so step one was to make up some weld nuts. I just welded some grade 8 nuts to a piece of bar stock and cut them into pieces.



I drilled the mounting hole along with 2 smaller flanking holes.



I slipped the nut inside the cross member, plug welded it in place, and ground the welds flush.



Mounted to the cross member. To make the hitch I bought a bare weld-in receiver tube and welded it to a piece of 3/16" plate that had been bent 90 deg.



A pic with the bumper cover reinstalled. I welded the loops shut on a couple eye bolts and installed them for safety chain holders.



Got the new Champion 3 core radiator installed as well. Only $199 bucks on ebay and free shipping to boot! Had to modify the rubber mounts as well as the upper radiator bracket but it fits quite nicely.

[This message has been edited by seajai (edited 10-02-2023).]

IP: Logged
Patrick
Member
Posts: 36239
From: Vancouver, British Columbia, Canada
Registered: Apr 99


Feedback score: (1)
Leave feedback





Total ratings: 458
Rate this member

Report this Post07-19-2013 04:04 PM Click Here to See the Profile for PatrickSend a Private Message to PatrickEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by seajai:

A short video of the finished product. Hope you like it.


I like it, but my right ear feels cheated.
IP: Logged
katore8105
Member
Posts: 1519
From: Upstate NY US
Registered: Dec 2009


Feedback score:    (28)
Leave feedback

Rate this member

Report this Post08-01-2013 10:00 AM Click Here to See the Profile for katore8105Click Here to visit katore8105's HomePageSend a Private Message to katore8105Edit/Delete MessageReply w/QuoteDirect Link to This Post
I've been watching this build since the beginning. What a fantastic job you're doing! I can't wait to see it drive!

------------------
http://www.automotiveadvocatesllc.com

87 SE
98 Oldsmobile 88 3800 N/A
www.NYFOC.com

IP: Logged
PFF
System Bot
seajai
Member
Posts: 1541
From: Linwood Township, Minnesota
Registered: Feb 2012


Feedback score:    (42)
Leave feedback





Total ratings: 52
Rate this member

Report this Post08-01-2013 05:52 PM Click Here to See the Profile for seajaiSend a Private Message to seajaiEdit/Delete MessageReply w/QuoteDirect Link to This Post
Put on almost 500 miles last weekend with the trip to Frazee and back for the Tyler show. The car ran great, got 26 MPG, and didn't give me a lick of trouble the entire time. There isn't too much happening build-wise right now, I'm just enjoying the hell outta the car and doing a few oddsy-endsy things to it. There are plenty of things on the to-do list for this winter though.
IP: Logged
seajai
Member
Posts: 1541
From: Linwood Township, Minnesota
Registered: Feb 2012


Feedback score:    (42)
Leave feedback





Total ratings: 52
Rate this member

Report this Post08-03-2013 05:33 PM Click Here to See the Profile for seajaiSend a Private Message to seajaiEdit/Delete MessageReply w/QuoteDirect Link to This Post
I finally got around to installing my deck lid struts ( thanks Blake). I've got the modified hinge mounts and found I needed to add an extra brace to the hinge to stop them from flexing the firewall and skewing the deck lid when shut. Originally I used the SG304046 strut, but with no wing the deck lid was like a catapult. After much Google-ing, I found a 65# rated strut that worked great. I used the Stabilus ball stud kit # SG900001 $3.29 from O'Reilly's and the Stabilus SG 459027 lift strut $18.99 from O'Reilly's. I decided not to use a bracket and mounted the ball stud to the strut tower.





[This message has been edited by seajai (edited 10-02-2023).]

IP: Logged
seajai
Member
Posts: 1541
From: Linwood Township, Minnesota
Registered: Feb 2012


Feedback score:    (42)
Leave feedback





Total ratings: 52
Rate this member

Report this Post08-11-2013 11:48 PM Click Here to See the Profile for seajaiSend a Private Message to seajaiEdit/Delete MessageReply w/QuoteDirect Link to This Post
Finally got my 90mm Hella projectors installed. They look pretty sweet and they really light the road from shoulder to shoulder.


[This message has been edited by seajai (edited 10-02-2023).]

IP: Logged
seajai
Member
Posts: 1541
From: Linwood Township, Minnesota
Registered: Feb 2012


Feedback score:    (42)
Leave feedback





Total ratings: 52
Rate this member

Report this Post09-11-2013 12:08 AM Click Here to See the Profile for seajaiSend a Private Message to seajaiEdit/Delete MessageReply w/QuoteDirect Link to This Post
I was never completely happy with the white faced gauges and the electroluminescent backlighting. The white faces didn't fit with the style of the car and at night the EL was too bright and I had no way to dim it. On a recent trip to the pick-n-pull, I spotted some black faced gauges in a 2002 Chrysler Concorde. I liked the look and the cluster looked to be the same size as the 300M cluster so for $21 bucks I grabbed it. The Concorde gauges plugged right in to the 300 cluster and worked fine. I added some flexible LED light strip to backlight the new gauges.


Cluster before:





Cluster after:



[This message has been edited by seajai (edited 10-02-2023).]

IP: Logged
CPR85Fiero
Member
Posts: 15
From: Ashtabula, OH
Registered: Sep 2013


Feedback score: N/A
Leave feedback

Rate this member

Report this Post09-18-2013 10:25 PM Click Here to See the Profile for CPR85FieroSend a Private Message to CPR85FieroEdit/Delete MessageReply w/QuoteDirect Link to This Post
Great build Seajai! took me almost a week on and off to read the whole thing but well worth the time! Great out of the box thinking and problem solving! Very well done, hel[ping me come up with some out of the box ideas of my own. Hehe!
IP: Logged
DotTC
Member
Posts: 2345
From: Hamlet, North Carolina
Registered: Nov 2003


Feedback score: N/A
Leave feedback





Total ratings: 154
Rate this member

Report this Post09-19-2013 01:15 AM Click Here to See the Profile for DotTCClick Here to visit DotTC's HomePageSend a Private Message to DotTCEdit/Delete MessageReply w/QuoteDirect Link to This Post
Downright beautiful Makes me want my "GT" on the road so much more

------------------
Wannabe 88 Fiero GT .. That's my project!

IP: Logged
Francis T
Member
Posts: 6620
From: spotsylvania va. usa
Registered: Oct 2003


Feedback score: (1)
Leave feedback





Total ratings: 119
Rate this member

Report this Post11-05-2013 01:52 AM Click Here to See the Profile for Francis TClick Here to visit Francis T's HomePageSend a Private Message to Francis TEdit/Delete MessageReply w/QuoteDirect Link to This Post
I one of those engines in my big Chry and it halls as* should make your GT fly an dget great gas millage. Good luck the project.

------------------
http://i16.photobucket.com/...ancis44/100_1147.jpg
[/URL]
[IMG]http://i16.photobucket.com/albums/b50/francis4
4/000_0451-1.jpg[/IMG]
trueleo.com
RSpiderII@aol.com

IP: Logged
seajai
Member
Posts: 1541
From: Linwood Township, Minnesota
Registered: Feb 2012


Feedback score:    (42)
Leave feedback





Total ratings: 52
Rate this member

Report this Post11-11-2013 10:59 PM Click Here to See the Profile for seajaiSend a Private Message to seajaiEdit/Delete MessageReply w/QuoteDirect Link to This Post
Well, the weather is cold and the fuel tank is empty so I have made the decision to call it a season for the Fiero. It was a quick 5 months that included a few car shows, including a trip to Frazee, and a 750 mile round trip to Illinois to pick up a part from Fiero Thomas. Total miles driven: 5200, number of breakdowns: 1 failed crank sensor (two if you count the damn wheel incident). I wanted to go for one last drive tonight but the battery was stone dead from sitting in the cold the last couple weeks, which meant my last drive was me pushing it into the garage. I am planning on pulling the engine apart to clean, paint, and replace anything that looks worn. I also plan on having the throttle body bored out to 70mm and installing an intake plenum spacer which is supposed to improve mid-range torque. The transmission is going to get a new transfer chain and sprockets to change the final drive gear ratio from 3.66 to 3.89, this should give me a little more punch out of the hole and combined with the engine mods hopefully will get my 0-60 times under 6 seconds. There is a dash swap in there somewhere as well and I am hoping to paint too if the money holds out.

Stay tuned.....
IP: Logged
carbon
Member
Posts: 4767
From: Eagan, MN
Registered: Apr 2004


Feedback score: (2)
Leave feedback





Total ratings: 132
Rate this member

Report this Post11-12-2013 10:48 AM Click Here to See the Profile for carbonSend a Private Message to carbonEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by seajai:

Cluster after:





Oh that is so much better!! Looks great!
IP: Logged
Previous Page | Next Page

This topic is 8 pages long:  1   2   3   4   5   6   7   8
next newest topic | next oldest topic

All times are ET (US)

Post New Topic  Post A Reply
Hop to:

Contact Us | Back To Main Page

Advertizing on PFF | Fiero Parts Vendors
PFF Merchandise | Fiero Gallery | Ogre's Cave
Real-Time Chat | Fiero Related Auctions on eBay



Copyright (c) 1999, C. Pennock
