1227165 ecu with custom code much better than stock ecu. by chetw77cruiser
Started on: 10-16-2011 09:57 PM
Replies: 249 (13270 views)
Last post by: fierosound on 02-01-2020 11:20 AM
chetw77cruiser
Member
Posts: 426
From: Walden, Colorado
Registered: Aug 2009


Feedback score: N/A
Leave feedback

Rate this member

Report this Post10-16-2011 09:57 PM Click Here to See the Profile for chetw77cruiserSend a Private Message to chetw77cruiserEdit/Delete MessageReply w/QuoteDirect Link to This Post
Here is the back story. Last week I installed a different ecu into an 86 SE V6 with a 4 speed. The ecu I used is the 1227165. This is the same ecu used in the 86-89 camero and corvette with tpi. That is where the similarities end. Here is the reasoning behind this project; the ecu fits in the stock location, a total of five wires need re-pinned to work with the modified code, and this ecu is relatively easy to find. Even better is that the memcal from the 7730/7727 will work in this computer, just with a different code in the chip.

Now this is where things start to get weird. The code I am using is highly modified and is not based on anything closely related to the 7165 or the 7730. The good thing is that this code can run a 4, 6, or 8 cylinder engine whether it uses a distributor or not (DIS), so all our bases are covered in the ignition department. Well, at least for anything other than LT1 or LSX based. This code is MAP based, not MAF. This includes from 1 bar to 3 bar sensors. Wideband control is implemented and with the right hardware in the ecu, auto learn of the fueling tables is a reality. Let me sum it up to this, this combo can do just about anything megasquirt can do and still retain onboard diagnostics and factory wiring.

So far I have used it fir a week and I can tell you that it is worth while for those who want to swap their ecus and have the ability to do some tuning. I so far have gone from 25 MPG to 32 for that same route. This includes going from the altitude of 4500 feet to 10k in less than 60 miles, and having to travel through Fort Collins traffic to boot. I usually never go below 65 mph, so yes I do speed a bit.

I will post more information if anyone is interested.

Chet W.
IP: Logged
PFF
System Bot
fieroguru
Member
Posts: 11081
From: Champaign, IL
Registered: Aug 2003


Feedback score:    (45)
Leave feedback





Total ratings: 255
Rate this member

Report this Post10-16-2011 10:04 PM Click Here to See the Profile for fieroguruSend a Private Message to fieroguruEdit/Delete MessageReply w/QuoteDirect Link to This Post
I am curious as to what you are running and the mods done to the bin.

My old SBC swap ran the 7730 with the AUJP V4 custom bin that was developed by a few guys over on thirdgen.org... the features they added vs. the stock 8D configuration were quite impressive.
IP: Logged
RWDPLZ
Member
Posts: 14236
From: Michigan
Registered: May 2002


Feedback score:    (11)
Leave feedback





Total ratings: 294
Rate this member

Report this Post10-16-2011 10:31 PM Click Here to See the Profile for RWDPLZClick Here to visit RWDPLZ's HomePageSend a Private Message to RWDPLZEdit/Delete MessageReply w/QuoteDirect Link to This Post
Interested! Does it require a knock sensor like the 7730, or a digital EGR valve? Did Ryan do the programming?
IP: Logged
chetw77cruiser
Member
Posts: 426
From: Walden, Colorado
Registered: Aug 2009


Feedback score: N/A
Leave feedback

Rate this member

Report this Post10-16-2011 10:57 PM Click Here to See the Profile for chetw77cruiserSend a Private Message to chetw77cruiserEdit/Delete MessageReply w/QuoteDirect Link to This Post



quote
Originally posted by RWDPLZ:

Interested! Does it require a knock sensor like the 7730, or a digital EGR valve? Did Ryan do the programming?


A knock sensor is not required, but is recommended. Now, there area couple of options with the sensor. If using a memcal with a knock filter attached, as is in the 7730's case, the sensor is run like the 7730 with the signal being fed into a certain pin on the ecu. If using an external knock filter, like the 7747 or normal 7165 tpi installation, the signal is fed into a different pin on the ecu. Oh, and get this, the code has a knock count logging function.

This code is not originally setup to control an egr valve, but using one of the programmable output pins, egr is easily implemented. And a digital EGR valve is not needed. I am controlling my egr with this code.

To answer your last question, no, Ryan did not program this.

Chet W.
IP: Logged
chetw77cruiser
Member
Posts: 426
From: Walden, Colorado
Registered: Aug 2009


Feedback score: N/A
Leave feedback

Rate this member

Report this Post10-16-2011 11:18 PM Click Here to See the Profile for chetw77cruiserSend a Private Message to chetw77cruiserEdit/Delete MessageReply w/QuoteDirect Link to This Post
Another thread brought up a point about this ecu and code setup; no need for the cold start injector. I have the wiring disconnected on my engine and it starts as fast or faster than the the stock setup.

This setup idles better as well. I have set the idle down to 600 RPM just for the heck of it. Smooth with no hunting but when the cooling fan kicks in, it usually dies when set that low. I have it set for 800 with no problems so far. Now I just need to wire the fan to the ecu and let the ecu idle up before turning o the fan.
IP: Logged
BlackGT Codde
Member
Posts: 1107
From: Gallup, New Mexico
Registered: Mar 2008


Feedback score: N/A
Leave feedback

Rate this member

Report this Post10-17-2011 12:10 AM Click Here to See the Profile for BlackGT CoddeClick Here to Email BlackGT CoddeSend a Private Message to BlackGT CoddeEdit/Delete MessageReply w/QuoteDirect Link to This Post
hmmmm, i currently have a 7165 ecm in my clutches... 1987 s10 2.5L duke!
you say that MEM/CAL will fit the 7730?
i am purchasing a 7730 ecm from a fellow forum member as well to do some programming and learning on so this will be a interesting find. id like to see where this heads! what kind of hardware did you use to reprogram your setup with? i was looking at the Moates apu1 programming package seems like a good deal.
as with all great threads...

PICS!!!
IP: Logged
chetw77cruiser
Member
Posts: 426
From: Walden, Colorado
Registered: Aug 2009


Feedback score: N/A
Leave feedback

Rate this member

Report this Post10-17-2011 07:35 AM Click Here to See the Profile for chetw77cruiserSend a Private Message to chetw77cruiserEdit/Delete MessageReply w/QuoteDirect Link to This Post
The memcal should fit the 7730. Are you going with the 7730 for a 2.5 or the 2.8?
I use the APU1 and the pocket programmer II for all my chip burning duties. As soon as I get som mods done to the ecu I will be able to tune directly through the aldl port and not have to use an emulator. Basically turns the ecu into a flash based computer.


quote
Originally posted by BlackGT Codde:

hmmmm, i currently have a 7165 ecm in my clutches... 1987 s10 2.5L duke!
you say that MEM/CAL will fit the 7730?
i am purchasing a 7730 ecm from a fellow forum member as well to do some programming and learning on so this will be a interesting find. id like to see where this heads! what kind of hardware did you use to reprogram your setup with? i was looking at the Moates apu1 programming package seems like a good deal.
as with all great threads...

PICS!!!


IP: Logged
Blacktree
Member
Posts: 20123
From: Central Florida
Registered: Dec 2001


Feedback score:    (10)
Leave feedback





Total ratings: 346
Rate this member

Report this Post10-17-2011 09:37 AM Click Here to See the Profile for BlacktreeClick Here to visit Blacktree's HomePageClick Here to Email BlacktreeSend a Private Message to BlacktreeEdit/Delete MessageReply w/QuoteDirect Link to This Post
I'm definitely interested. My Fiero currently has a 7730 ECM, but I am looking for something with wideband O2 support. And fuel trim auto-tuning would rock! Any additional information you can provide would be very appreciated.
IP: Logged
chetw77cruiser
Member
Posts: 426
From: Walden, Colorado
Registered: Aug 2009


Feedback score: N/A
Leave feedback

Rate this member

Report this Post10-17-2011 03:00 PM Click Here to See the Profile for chetw77cruiserSend a Private Message to chetw77cruiserEdit/Delete MessageReply w/QuoteDirect Link to This Post
I will try to get some pic's today or tomorrow of the computer in place.

To use the learn function the ecu needs to be modified and a nvram module installed. With this mod the aldl flash tuning and auto learn can be enabled, otherwise tuning is by burning multiple chips or with an emulator.
IP: Logged
Alex4mula
Member
Posts: 7395
From: Lake Worth, FL,US
Registered: Dec 1999


Feedback score:    (11)
Leave feedback





Total ratings: 153
Rate this member

Report this Post10-17-2011 08:47 PM Click Here to See the Profile for Alex4mulaClick Here to Email Alex4mulaSend a Private Message to Alex4mulaEdit/Delete MessageReply w/QuoteDirect Link to This Post
When I did my TPI I used the stock Fiero V6 harness with the 165 and the 5D BIN from the australian V8s (5.0l). I had to modify the tune a lot for the 5.7 plus my mods (I have all Moates stuff for onboard programing with emulator-Ostrich). But the install looks stock. Which other BIN you say will run a V8? I may be more inclined to change to an LSx ECM and get all the benefits of newer tecnology.

[This message has been edited by Alex4mula (edited 10-17-2011).]

IP: Logged
chetw77cruiser
Member
Posts: 426
From: Walden, Colorado
Registered: Aug 2009


Feedback score: N/A
Leave feedback

Rate this member

Report this Post10-17-2011 09:30 PM Click Here to See the Profile for chetw77cruiserSend a Private Message to chetw77cruiserEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by Alex4mula:

When I did my TPI I used the stock Fiero V6 harness with the 165 and the 5D BIN from the australian V8s (5.0l). I had to modify the tune a lot for the 5.7 plus my mods (I have all Moates stuff for onboard programing with emulator-Ostrich). But the install looks stock. Which other BIN you say will run a V8? I may be more inclined to change to an LSx ECM and get all the benefits of newer tecnology.



This code will operate a 4, 6, or 8 cylinder engine in either tbi or pfi mode, just depends on a few mods or the proper memcal. Going to the LSx computer opens up a whole new can of worms, especially when dealing with the crank sensors and pattern wheels. There are adapters out there, but they are quite expensive.
IP: Logged
PFF
System Bot
chetw77cruiser
Member
Posts: 426
From: Walden, Colorado
Registered: Aug 2009


Feedback score: N/A
Leave feedback

Rate this member

Report this Post10-19-2011 10:15 PM Click Here to See the Profile for chetw77cruiserSend a Private Message to chetw77cruiserEdit/Delete MessageReply w/QuoteDirect Link to This Post
So far the temps around where I live have been in the teens and the car has started up without issue. Runs a little rich once started but idle is smooth and does not hunt around like the original computer did. Keep in mind that I have the cold start injector disconnected. I drove to Steamboat Springs and back today and was able to attain 33 MPG at 65 in the mountains up to 10K feet. 125 Miles with that milage seems pretty darned good to me, especially with a 4 speed Muncie. Anyone who has been to Steamboat knows that highway 40 going east there is about a 7 mile climb at about a 7% or more grade. Now I just need to get cruise installed.
IP: Logged
joshua riedl
Member
Posts: 1426
From: watertown wi USA
Registered: Jan 2004


Feedback score: N/A
Leave feedback

Rate this member

Report this Post10-19-2011 10:35 PM Click Here to See the Profile for joshua riedlSend a Private Message to joshua riedlEdit/Delete MessageReply w/QuoteDirect Link to This Post
Are you using a wide band O2 sensor to run the computer now? If so what were the modifications to do that? I don't care to have another gauge on my dash but if I could buy a sensor and read it with my scanner or tunerpro that would be something I would be interested in. Are wide bands heated?
IP: Logged
chetw77cruiser
Member
Posts: 426
From: Walden, Colorado
Registered: Aug 2009


Feedback score: N/A
Leave feedback

Rate this member

Report this Post10-19-2011 10:52 PM Click Here to See the Profile for chetw77cruiserSend a Private Message to chetw77cruiserEdit/Delete MessageReply w/QuoteDirect Link to This Post
I do have a wideband installed.I have it sending both wideband and narrowband signals to the computer just for grins. The only mod needed is a wideband controller tied into the computer through the ecm connector. As long as the controller sends out a linear voltage signal, it is compatible with this code and ecu. The narrowband is wired as normal for a 7165 ecu. The wideband data is sent out to tunerpro so no gauges needed.

Yes, wideband sensors are heated. They will not function correctly if they are not. The wideband controller is able to sense the temp of the sensor and keeps the temo within a certain range. Wideband sensors can even be installed in the tailpipe far away from the engine and still function.


quote
Originally posted by joshua riedl:

Are you using a wide band O2 sensor to run the computer now? If so what were the modifications to do that? I don't care to have another gauge on my dash but if I could buy a sensor and read it with my scanner or tunerpro that would be something I would be interested in. Are wide bands heated?


IP: Logged
joshua riedl
Member
Posts: 1426
From: watertown wi USA
Registered: Jan 2004


Feedback score: N/A
Leave feedback

Rate this member

Report this Post10-19-2011 11:02 PM Click Here to See the Profile for joshua riedlSend a Private Message to joshua riedlEdit/Delete MessageReply w/QuoteDirect Link to This Post
Are there any issues with the computer looking for crosscounts? Maybe wide bands work on crosscounts also, I have no idea.
IP: Logged
chetw77cruiser
Member
Posts: 426
From: Walden, Colorado
Registered: Aug 2009


Feedback score: N/A
Leave feedback

Rate this member

Report this Post10-19-2011 11:09 PM Click Here to See the Profile for chetw77cruiserSend a Private Message to chetw77cruiserEdit/Delete MessageReply w/QuoteDirect Link to This Post
The computer does look for crosscounts on the narrowband side of life. The wideband controller I use outouts a simulated narrowband signal that I feed to the narrowband input on the ecu. As far as it knows, the signal that is sent to the narrow side is from a normal o2 sensor. The wideband signal is a different part of the computer logic and does not look for crosscounts.


quote
Originally posted by joshua riedl:

Are there any issues with the computer looking for crosscounts? Maybe wide bands work on crosscounts also, I have no idea.


IP: Logged
ericjon262
Member
Posts: 2557
From: everywhere.
Registered: Jan 2010


Feedback score:    (10)
Leave feedback





Total ratings: 63
Rate this member

Report this Post10-19-2011 11:33 PM Click Here to See the Profile for ericjon262Send a Private Message to ericjon262Edit/Delete MessageReply w/QuoteDirect Link to This Post
IP: Logged
BlackGT Codde
Member
Posts: 1107
From: Gallup, New Mexico
Registered: Mar 2008


Feedback score: N/A
Leave feedback

Rate this member

Report this Post10-20-2011 02:39 PM Click Here to See the Profile for BlackGT CoddeClick Here to Email BlackGT CoddeSend a Private Message to BlackGT CoddeEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by chetw77cruiser:
As soon as I get som mods done to the ecu I will be able to tune directly through the aldl port and not have to use an emulator. Basically turns the ecu into a flash based computer.



huh? this is possible? how?
IP: Logged
ericjon262
Member
Posts: 2557
From: everywhere.
Registered: Jan 2010


Feedback score:    (10)
Leave feedback





Total ratings: 63
Rate this member

Report this Post10-20-2011 03:05 PM Click Here to See the Profile for ericjon262Send a Private Message to ericjon262Edit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by BlackGT Codde:


huh? this is possible? how?


I didn't read that part of the thread, but a company makes a 7730 kit to do just that..

http://dynamicefi.com/

I've been tuning my "tow rig" with one of there '747 versions.

------------------
there's a Group on 60degreeV6.com for us 660 Fiero owners!

Fiero Owner's group on 60degreeV6.com

IP: Logged
KurtAKX
Member
Posts: 4006
From: West Bloomfield, MI
Registered: Feb 2002


Feedback score:    (9)
Leave feedback





Total ratings: 128
Rate this member

Report this Post10-20-2011 03:54 PM Click Here to See the Profile for KurtAKXSend a Private Message to KurtAKXEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by ericjon262:


I didn't read that part of the thread, but a company makes a 7730 kit to do just that..

http://dynamicefi.com/

I've been tuning my "tow rig" with one of there '747 versions.



The P4 flash tunes through the ALDL?

I have the "regular" EBL Flash and it definitely requires a separate "phone" cable to flash.

[This message has been edited by KurtAKX (edited 10-20-2011).]

IP: Logged
ericjon262
Member
Posts: 2557
From: everywhere.
Registered: Jan 2010


Feedback score:    (10)
Leave feedback





Total ratings: 63
Rate this member

Report this Post10-20-2011 03:56 PM Click Here to See the Profile for ericjon262Send a Private Message to ericjon262Edit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by KurtAKX:


The P4 flash tunes through the ALDL?

I have the "regular" EBL Flash and it definitely requires a separate "phone" cable to flash.



Mybad, I think you're right, but I imagine you could repin the serial cable to the aldl.

IP: Logged
PFF
System Bot
Blacktree
Member
Posts: 20123
From: Central Florida
Registered: Dec 2001


Feedback score:    (10)
Leave feedback





Total ratings: 346
Rate this member

Report this Post10-20-2011 04:21 PM Click Here to See the Profile for BlacktreeClick Here to visit Blacktree's HomePageClick Here to Email BlacktreeSend a Private Message to BlacktreeEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by chetw77cruiser:

The computer does look for crosscounts on the narrowband side of life. The wideband controller I use outouts a simulated narrowband signal that I feed to the narrowband input on the ecu. As far as it knows, the signal that is sent to the narrow side is from a normal o2 sensor. The wideband signal is a different part of the computer logic and does not look for crosscounts.

So your ECM isn't actually getting a wideband signal, right? You're using a WBO2 controller to simulate a narrowband signal. So I'm assuming the ECM itself can't read a wideband (i.e. 0-5V) signal?
IP: Logged
chetw77cruiser
Member
Posts: 426
From: Walden, Colorado
Registered: Aug 2009


Feedback score: N/A
Leave feedback

Rate this member

Report this Post10-20-2011 09:20 PM Click Here to See the Profile for chetw77cruiserSend a Private Message to chetw77cruiserEdit/Delete MessageReply w/QuoteDirect Link to This Post
In regard to being able to flash tune the ecu through the aldl, the 7165 was never designed to do such a thing. What enables it to flash tune is two parts. One is that the EPROM is replaced with a form of non-volatile ram chip. Two is through the use of a highly modified code that allows the nvram to be written to as well as read from. The processor is capable of this if it is programmed correctly.
IP: Logged
chetw77cruiser
Member
Posts: 426
From: Walden, Colorado
Registered: Aug 2009


Feedback score: N/A
Leave feedback

Rate this member

Report this Post10-20-2011 09:26 PM Click Here to See the Profile for chetw77cruiserSend a Private Message to chetw77cruiserEdit/Delete MessageReply w/QuoteDirect Link to This Post
I can get a signal from a wideband sensor and it does use that information for many functions. I just have the controller feeding the ecu both wideband and narraowband signals at the same time. My controller allows for that. So the ecu can read a wideband signal. This is not necessary, but what the hey. If you wanted to you could have a WBO2 snesor and a NBO2 sensor also installed into another O2 sensor bung in the exhaust. Could be used as a way to doublecheck that either is working correctly.


quote
Originally posted by Blacktree:

So your ECM isn't actually getting a wideband signal, right? You're using a WBO2 controller to simulate a narrowband signal. So I'm assuming the ECM itself can't read a wideband (i.e. 0-5V) signal?


IP: Logged
timgray
Member
Posts: 2461
From: Muskegon,MI,USA
Registered: Jul 2006


Feedback score: (4)
Leave feedback





Total ratings: 59
Rate this member

Report this Post10-21-2011 01:50 PM Click Here to See the Profile for timgrayClick Here to visit timgray's HomePageClick Here to Email timgraySend a Private Message to timgrayEdit/Delete MessageReply w/QuoteDirect Link to This Post
http://www.moates.net/nvsra...-p-131.html?cPath=64

far cheaper than that other one mentioned. All someone needs to do is edit the codemask for the V6 to do the ALDL changes.
Heck I think if someone talked to the guy he might give someone all the info they need to change the typical v6 Codemask to use this device.
------------------



Get your copy of the Fiero 25th Anniv book at http://www.blurb.com/bookstore/detail/349809

My Motorcycle Camping Hints and tips. http://motorcyclecamper.blogspot.com/

[This message has been edited by timgray (edited 10-21-2011).]

IP: Logged
Blacktree
Member
Posts: 20123
From: Central Florida
Registered: Dec 2001


Feedback score:    (10)
Leave feedback





Total ratings: 346
Rate this member

Report this Post10-21-2011 02:46 PM Click Here to See the Profile for BlacktreeClick Here to visit Blacktree's HomePageClick Here to Email BlacktreeSend a Private Message to BlacktreeEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by chetw77cruiser:

I can get a signal from a wideband sensor and it does use that information for many functions. I just have the controller feeding the ecu both wideband and narraowband signals at the same time. My controller allows for that. So the ecu can read a wideband signal. This is not necessary, but what the hey. If you wanted to you could have a WBO2 snesor and a NBO2 sensor also installed into another O2 sensor bung in the exhaust. Could be used as a way to doublecheck that either is working correctly.

OK, thanks for clearing that up. In that case, I am definitely interested in this ECM setup. I have lots of questions. Should I send you a PM, or can I post them here?
IP: Logged
chetw77cruiser
Member
Posts: 426
From: Walden, Colorado
Registered: Aug 2009


Feedback score: N/A
Leave feedback

Rate this member

Report this Post10-21-2011 03:46 PM Click Here to See the Profile for chetw77cruiserSend a Private Message to chetw77cruiserEdit/Delete MessageReply w/QuoteDirect Link to This Post
Go ahead and post them here. Remember from school what the teachers said: Ask the question anyway, because someone else probably has the same question and is to shy to ask. I was usually the shy one.
IP: Logged
chetw77cruiser
Member
Posts: 426
From: Walden, Colorado
Registered: Aug 2009


Feedback score: N/A
Leave feedback

Rate this member

Report this Post10-21-2011 03:51 PM Click Here to See the Profile for chetw77cruiserSend a Private Message to chetw77cruiserEdit/Delete MessageReply w/QuoteDirect Link to This Post

chetw77cruiser

426 posts
Member since Aug 2009
Basically the same thing. I like the 7165 because it fits in the 7170 tray and uses the same ecm plugs. More of a plug and play operation. I will check to see if the code I use is compatible with this nvram board. What I am making is a little bit cheaper but requires the memcal to be modified.

If anyone wants to try this nvram with the modified 8D code, I have a base tune from my 86 GT with 4 speed. Transfer most of the parameters to the nvram code and thisng should work.


quote
Originally posted by timgray:

http://www.moates.net/nvsra...-p-131.html?cPath=64

far cheaper than that other one mentioned. All someone needs to do is edit the codemask for the V6 to do the ALDL changes.
Heck I think if someone talked to the guy he might give someone all the info they need to change the typical v6 Codemask to use this device.

[This message has been edited by chetw77cruiser (edited 10-22-2011).]

IP: Logged
chetw77cruiser
Member
Posts: 426
From: Walden, Colorado
Registered: Aug 2009


Feedback score: N/A
Leave feedback

Rate this member

Report this Post10-22-2011 06:52 PM Click Here to See the Profile for chetw77cruiserSend a Private Message to chetw77cruiserEdit/Delete MessageReply w/QuoteDirect Link to This Post
So far within a little over a week of tuning, I have the engine running much better than the stock ecu ever did. The engine pulls better and longer than it did before. Several times I have hit the rev limiter(5500) in no time whereas the stock ecu would strugle to get there. Did I mention that this code has a soft rev limiter that is fully configurable. If anyone wants to take a peek at the code, PM me for information. I should have a few pictures here shortly if I could just find my camera.
IP: Logged
chetw77cruiser
Member
Posts: 426
From: Walden, Colorado
Registered: Aug 2009


Feedback score: N/A
Leave feedback

Rate this member

Report this Post10-22-2011 07:55 PM Click Here to See the Profile for chetw77cruiserSend a Private Message to chetw77cruiserEdit/Delete MessageReply w/QuoteDirect Link to This Post
Here are some pics.

The first two are of the victim. Nevermind the missing decklid, it is in the garage curing after a fresh painting.





As one can see, the ecu is installed in the stock location in the stock ecm tray. I have the autoprom running the show right now while I am changing code quite frequently.


Just to show that the wideband is functional. I have a different WBO2 controller that will be installed in the ecu case and will use the stock connectors, just need to run a few extra wires. I do have this computer running the cooling fan by the way.


Just for the doubters out there. Your average 2.8 V6 stock, no mods with a 4 speed muncie.
IP: Logged
BlackGT Codde
Member
Posts: 1107
From: Gallup, New Mexico
Registered: Mar 2008


Feedback score: N/A
Leave feedback

Rate this member

Report this Post10-23-2011 08:42 AM Click Here to See the Profile for BlackGT CoddeClick Here to Email BlackGT CoddeSend a Private Message to BlackGT CoddeEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by chetw77cruiser:

Basically the same thing. I like the 7165 because it fits in the 7170 tray and uses the same ecm plugs. More of a plug and play operation. I will check to see if the code I use is compatible with this nvram board. What I am making is a little bit cheaper but requires the memcal to be modified.

If anyone wants to try this nvram with the modified 8D code, I have a base tune from my 86 GT with 4 speed. Transfer most of the parameters to the nvram code and thisng should work.




what kind of re-pinning have you done to the stock bulkhead connector? im intrigued or was there any, because it doesnt seem that you messed with the engine wiring harness
IP: Logged
PFF
System Bot
chetw77cruiser
Member
Posts: 426
From: Walden, Colorado
Registered: Aug 2009


Feedback score: N/A
Leave feedback

Rate this member

Report this Post10-23-2011 09:34 AM Click Here to See the Profile for chetw77cruiserSend a Private Message to chetw77cruiserEdit/Delete MessageReply w/QuoteDirect Link to This Post
I did not have to re-pin the bulkhead connector. All I needed t do was re-pin the ecm connector, and that really only needed about 5 wires to be moved and a couple to be removed. For instance, the stock ecm used two signal lines from the map sensor, whereas the 7165 only needs one. Most everything else can stay in their normal location. This makes going back to the stock ecm really easy if needed.
IP: Logged
phonedawgz
Member
Posts: 16990
From: Green Bay, WI USA
Registered: Dec 2009


Feedback score:    (23)
Leave feedback





Total ratings: 288
Rate this member

Report this Post10-23-2011 04:05 PM Click Here to See the Profile for phonedawgzClick Here to visit phonedawgz's HomePageClick Here to Email phonedawgzSend a Private Message to phonedawgzEdit/Delete MessageReply w/QuoteDirect Link to This Post

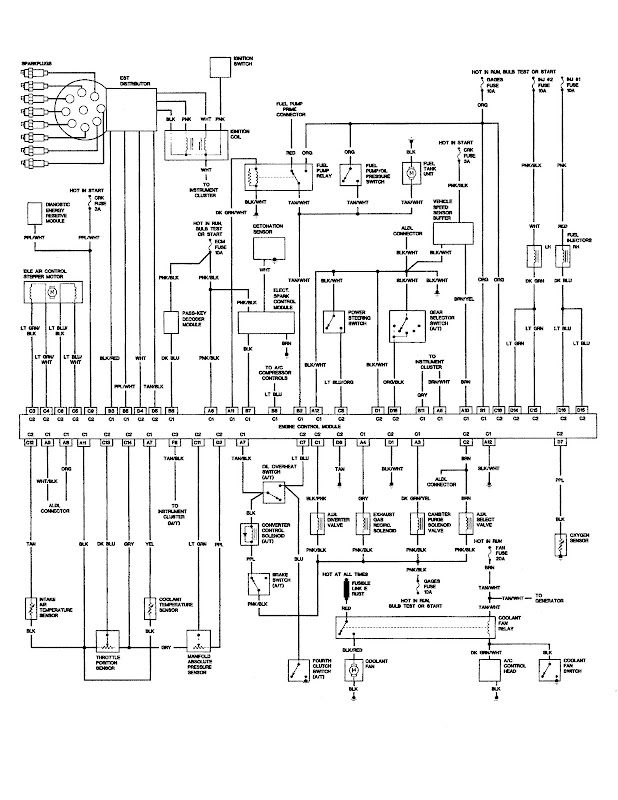

Is this the print for the 7165 that you used?

IP: Logged
chetw77cruiser
Member
Posts: 426
From: Walden, Colorado
Registered: Aug 2009


Feedback score: N/A
Leave feedback

Rate this member

Report this Post10-23-2011 05:40 PM Click Here to See the Profile for chetw77cruiserSend a Private Message to chetw77cruiserEdit/Delete MessageReply w/QuoteDirect Link to This Post
From what I can see(low resolution), this is mostly what I used. Of course some of the input and output pins have been changed for other functions. For instance, the air divert valve is now the fan relay control. A3 is now a programable output instead of used for the canister purge valve.

Overall, most of the wiring is the same. I will make a pinout chart to go between the 7170 and the 7165.
IP: Logged
josef644
Member
Posts: 6939
From: Dickinson, Texas USA
Registered: Nov 2006


Feedback score:    (71)
Leave feedback





Total ratings: 103
Rate this member

Report this Post10-23-2011 06:31 PM Click Here to See the Profile for josef644Click Here to Email josef644Send a Private Message to josef644Edit/Delete MessageReply w/QuoteDirect Link to This Post
This is an excellent thing to do I think. I have a weather pack pin remover on the way so I can remove and replace some broken connectors.

I have a swapped a 3.4 into 2.8 attire for my 88 Duke car. Might as well install a better ECM and programming. This might improve my 3.4 a bit more.

I will stay tuned for more information.
-Joe

Just went to Slez Bay to look at 1227165 ECM's. Looks like they run between 85.00 -150.00 for the most part.

[This message has been edited by josef644 (edited 10-23-2011).]

IP: Logged
chetw77cruiser
Member
Posts: 426
From: Walden, Colorado
Registered: Aug 2009


Feedback score: N/A
Leave feedback

Rate this member

Report this Post10-23-2011 06:52 PM Click Here to See the Profile for chetw77cruiserSend a Private Message to chetw77cruiserEdit/Delete MessageReply w/QuoteDirect Link to This Post
Another ecm part number to look for is 16198259. This is an updated version of the 1227165.

Application:
1986 2.0 L4 TBI “P” LQ5 w/ MT
1986-89 5.0 V8 TPI “F” LB9
1986-89 5.7 V8 TPI “8” L98
1987-91 truck 2.5 L4 TBI “E” LN8
1991 truck 2.5 L4 TBI “A” L38
IP: Logged
phonedawgz
Member
Posts: 16990
From: Green Bay, WI USA
Registered: Dec 2009


Feedback score:    (23)
Leave feedback





Total ratings: 288
Rate this member

Report this Post10-23-2011 07:05 PM Click Here to See the Profile for phonedawgzClick Here to visit phonedawgz's HomePageClick Here to Email phonedawgzSend a Private Message to phonedawgzEdit/Delete MessageReply w/QuoteDirect Link to This Post
I've got one that I can sell

$45 plus $10 shipping.

Hit me up if you are interested.

Edit - V8 Mem/cal in it included if you want.

[This message has been edited by phonedawgz (edited 10-23-2011).]

IP: Logged
josef644
Member
Posts: 6939
From: Dickinson, Texas USA
Registered: Nov 2006


Feedback score:    (71)
Leave feedback





Total ratings: 103
Rate this member

Report this Post10-23-2011 07:10 PM Click Here to See the Profile for josef644Click Here to Email josef644Send a Private Message to josef644Edit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by chetw77cruiser:

From what I can see(low resolution), this is mostly what I used. Of course some of the input and output pins have been changed for other functions. For instance, the air divert valve is now the fan relay control. A3 is now a programable output instead of used for the canister purge valve.

Overall, most of the wiring is the same. I will make a pinout chart to go between the 7170 and the 7165.


Can you make me a nvram for an automatic car? I have an 86 automatic with 3.33 finals
IP: Logged
chetw77cruiser
Member
Posts: 426
From: Walden, Colorado
Registered: Aug 2009


Feedback score: N/A
Leave feedback

Rate this member

Report this Post10-23-2011 07:23 PM Click Here to See the Profile for chetw77cruiserSend a Private Message to chetw77cruiserEdit/Delete MessageReply w/QuoteDirect Link to This Post
I will need to get some parts to make one up. I will let folks know how much the nvram setup costs when completed. Keep in mind that all I have are manuals, no automatics. That shouldn't be a problem. With the tcc you will be giving up one of the programable outputs.
IP: Logged
josef644
Member
Posts: 6939
From: Dickinson, Texas USA
Registered: Nov 2006


Feedback score:    (71)
Leave feedback





Total ratings: 103
Rate this member

Report this Post10-23-2011 07:30 PM Click Here to See the Profile for josef644Click Here to Email josef644Send a Private Message to josef644Edit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by chetw77cruiser:

I will need to get some parts to make one up. I will let folks know how much the nvram setup costs when completed. Keep in mind that all I have are manuals, no automatics. That shouldn't be a problem. With the tcc you will be giving up one of the programable outputs.


Not a problem as I want to pretty well keep the set up as is untill I get about 5K on this new rebuild. Has about 200 miles on it now.

[This message has been edited by josef644 (edited 10-23-2011).]

IP: Logged
Previous Page | Next Page

This topic is 7 pages long:  1   2   3   4   5   6   7
next newest topic | next oldest topic

All times are ET (US)

Post New Topic  Post A Reply
Hop to:

Contact Us | Back To Main Page

Advertizing on PFF | Fiero Parts Vendors
PFF Merchandise | Fiero Gallery | Ogre's Cave
Real-Time Chat | Fiero Related Auctions on eBay



Copyright (c) 1999, C. Pennock
