To fit the front of an 86 2.5 engine with an automatic transmission.

Part Number 14106628

The bracket bolts to the engine block with 2 bolts in the front and 2 bolts in the rear.

It sits on top of the rubber engine mount which bolts to it.

[This message has been edited by 30+mpg (edited 03-27-2025).]

I would suggest taking a picture and then sending it off to a Fiero parts dealer like Wayne Renninger (PA), Tom Derr (PA) Larry Hubert (FL). or Mike Valentine (CO). MOst of those guys don't catalog by part number.

------------------
" THE BLACK PARALYZER" -87GT 3800SC Series III engine, custom ZZP /Frozen Boost Intercooler setup, 3.4" Pulley, Northstar TB, LS1 MAF, 3" Spintech/Hedman Exhaust, P-log Manifold, Autolite 104's, MSD wires, Custom CAI, 4T65eHD w. custom axles, Champion Radiator, S10 Brake Booster, HP Tuners VCM Suite.
"THE COLUSSUS"
87GT - ALL OUT 3.4L Turbocharged engine, Garrett Hybrid Turbo, MSD ign., modified TH125H
" ON THE LOOSE WITHOUT THE JUICE "

[This message has been edited by Dennis LaGrua (edited 04-15-2025).]

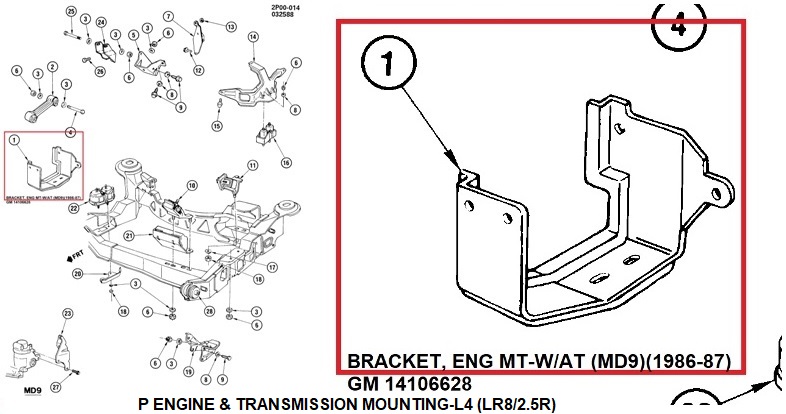

Hey 30+mpg, perhaps *this* will help....

------------------
Original Owner of a Silver '88 GT
Under 'Production Refurbishment' @ 136k Miles
