88 Cluster/Dash wiring help by 4thfiero
Started on: 07-08-2025 01:14 PM
Replies: 4 (43 views)
Last post by: olejoedad on 07-09-2025 11:30 AM
4thfiero
Member
Posts: 831
From: Winnipeg, Manitoba, Canada
Registered: Oct 2012


Feedback score: N/A
Leave feedback

Rate this member

Report this Post07-08-2025 01:14 PM Click Here to See the Profile for 4thfieroSend a Private Message to 4thfieroEdit/Delete MessageReply w/QuoteDirect Link to This Post
Hey Guys...

Can someone provide me the wire colors for each wire for the C3 connector pinout on an 88 Fiero GT? I have the pinout map...but im not sure which colors correspond to each pin.

*Context* a machanic removed my broken stock fuel gauge and replaced it with an aftermarket one...he accomplished this by cutting into the C3 harness and wiring in a custom harness to the after market gauge...Im looking to hook back up the stock gauge now that its fixed, and then put the wiring harness back to stock.
IP: Logged
PFF
System Bot
IMSA GT
Member
Posts: 10678
From: California
Registered: Aug 2007


Feedback score:    (8)
Leave feedback





Total ratings: 253
Rate this member

Report this Post07-08-2025 06:52 PM Click Here to See the Profile for IMSA GTSend a Private Message to IMSA GTEdit/Delete MessageReply w/QuoteDirect Link to This Post

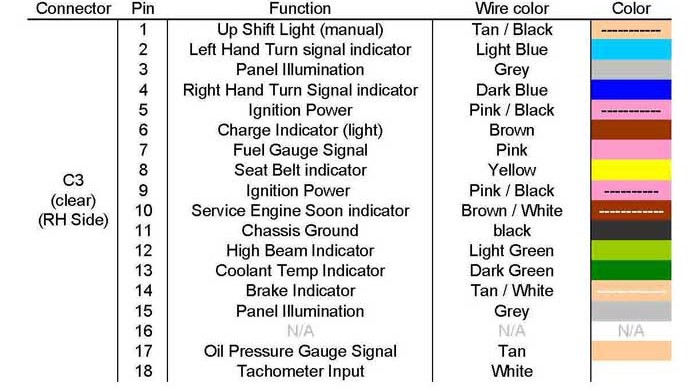

Don't know if this helps:

[This message has been edited by IMSA GT (edited 07-08-2025).]

IP: Logged
rbell2915
Member
Posts: 1512
From: Kenly, NC
Registered: Mar 2013


Feedback score:    (10)
Leave feedback

Rate this member

Report this Post07-08-2025 08:42 PM Click Here to See the Profile for rbell2915Send a Private Message to rbell2915Edit/Delete MessageReply w/QuoteDirect Link to This Post
While you're in there, it would be a good idea to do the temp gauge fix if you haven't done so yet!
IP: Logged
Vintage-Nut
Member
Posts: 1614
From: California
Registered: Apr 2020


Feedback score: N/A
Leave feedback

Rate this member

Report this Post07-09-2025 08:24 AM Click Here to See the Profile for Vintage-NutSend a Private Message to Vintage-NutEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
While you're in there, it would be a good idea to do the temp gauge fix if you haven't done so yet!


Fiero Focus Coolant Temperature Gauge Wiring Repair
https://www.fierofocus.com/...osails/tempgage.html

------------------
Original Owner of a Silver '88 GT
Under 'Production Refurbishment' @ 136k Miles

IP: Logged
olejoedad
Member
Posts: 19795
From: Clarendon Twp., MI
Registered: May 2004


Feedback score: (5)
Leave feedback





Total ratings: 207
Rate this member

Report this Post07-09-2025 11:30 AM Click Here to See the Profile for olejoedadSend a Private Message to olejoedadEdit/Delete MessageReply w/QuoteDirect Link to This Post
There is a better way to effect the wire swap for the temp gage that leaves the engine wiring untouched.

1. Snip the wires on the ignition switch at terminal G (lt grn) leaving enough wire to attach the snipped wires from the gage together to complete the gage circuit. (This removes the ground that causes the TEMP gage to peg)

2. Add enough wire to the snipped wires still attached to terminal G to reach the HOT lamp circuit at terminal 13 on the instrument cluster plug C3.

3. Snip the wire from plug C3 terminal 13 (dk grn) and attach one jumper wire to each snipped end. (This will provide the ground path to allow the HOT lamp to illuminate in the BULB TEST position)

This wiring change does not affect the engine wiring and eliminates any confusion when troubleshooting engine wiring in the future.
IP: Logged
