Pennock's Fiero Forum
  General Fiero Chat
  Heat shield help

Post New Topic  Post A Reply
Email This Page to Someone! | Printable Version


next newest topic | next oldest topic
Heat shield help by LornesGT
Started on: 08-10-2014 09:27 PM
Replies: 7 (277 views)
Last post by: fierosound on 08-18-2014 09:04 AM
LornesGT
Member
Posts: 1308
From: Granite City, IL
Registered: Jan 2013


Feedback score: (4)
Leave feedback

Rate this member

Report this Post08-10-2014 09:27 PM Click Here to See the Profile for LornesGTSend a Private Message to LornesGTEdit/Delete MessageReply w/QuoteDirect Link to This Post
Can't remember where these heat shield go



[This message has been edited by LornesGT (edited 08-10-2014).]

IP: Logged
PFF
System Bot
olejoedad
Member
Posts: 14710
From: Clarendon Twp., MI
Registered: May 2004


Feedback score: (5)
Leave feedback





Total ratings: 193
Rate this member

Report this Post08-11-2014 12:51 AM Click Here to See the Profile for olejoedadClick Here to Email olejoedadSend a Private Message to olejoedadEdit/Delete MessageReply w/QuoteDirect Link to This Post

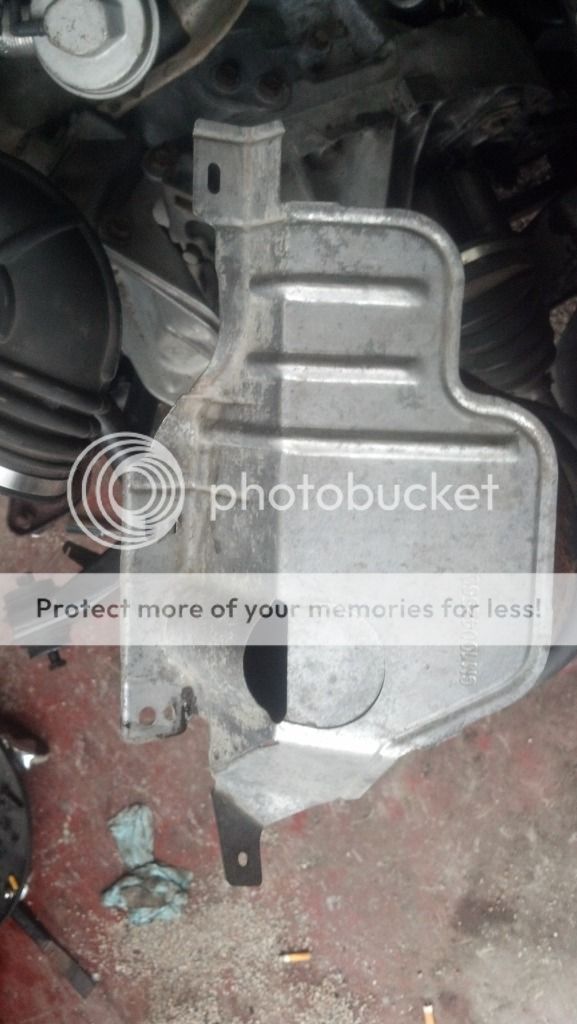

Picture one is between back of engine and trunk wall....the transmission dipstick goes thru the hole.
Picture two goes on the cradle ahead of the front cross member on the passenger side.

[This message has been edited by olejoedad (edited 08-11-2014).]

IP: Logged
2.5
Member
Posts: 41757
From: Southern MN
Registered: May 2007


Feedback score: (1)
Leave feedback





Total ratings: 180
Rate this member

Report this Post08-11-2014 10:31 AM Click Here to See the Profile for 2.5Send a Private Message to 2.5Edit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by olejoedad:

Picture two goes on the cradle ahead of the front cross member on the passenger side.



Yep I removed that one when tightening the belt on my AC compressor on my 88 from under the car.

[This message has been edited by 2.5 (edited 08-11-2014).]

IP: Logged
LornesGT
Member
Posts: 1308
From: Granite City, IL
Registered: Jan 2013


Feedback score: (4)
Leave feedback

Rate this member

Report this Post08-11-2014 03:03 PM Click Here to See the Profile for LornesGTSend a Private Message to LornesGTEdit/Delete MessageReply w/QuoteDirect Link to This Post
Thanks, I should have taken more pictures as I removed the engine.
IP: Logged
unboundmo
Member
Posts: 2242
From: California
Registered: Sep 2006


Feedback score: N/A
Leave feedback

Rate this member

Report this Post08-12-2014 02:41 AM Click Here to See the Profile for unboundmoClick Here to Email unboundmoSend a Private Message to unboundmoEdit/Delete MessageReply w/QuoteDirect Link to This Post
The last picture is the heat shield where the exhaust pipe (after the cat) crosses under the frame cradle as it turns towards the back.. it mounts under your a/c unit on the cradle if you have an a/c.

I have a manual so I don't recognize the other... so you must have an auto as posted above.

[This message has been edited by unboundmo (edited 08-12-2014).]

IP: Logged
LornesGT
Member
Posts: 1308
From: Granite City, IL
Registered: Jan 2013


Feedback score: (4)
Leave feedback

Rate this member

Report this Post08-17-2014 10:40 PM Click Here to See the Profile for LornesGTSend a Private Message to LornesGTEdit/Delete MessageReply w/QuoteDirect Link to This Post
I don't know why the shield is there maybe the auto was removed because I have a stick.
IP: Logged
Kevin87FieroGT
Member
Posts: 1183
From: Michigan
Registered: Nov 2010


Feedback score: (2)
Leave feedback

Rate this member

Report this Post08-18-2014 09:02 AM Click Here to See the Profile for Kevin87FieroGTSend a Private Message to Kevin87FieroGTEdit/Delete MessageReply w/QuoteDirect Link to This Post
Bad post...I saw that Joe covered the info on the first picture. Thanks Joe.

[This message has been edited by Kevin87FieroGT (edited 08-18-2014).]

IP: Logged
fierosound
Member
Posts: 14658
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 281
Rate this member

Report this Post08-18-2014 09:04 AM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageClick Here to Email fierosoundSend a Private Message to fierosoundEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by LornesGT:






quote
Originally posted by unboundmo:

I have a manual so I don't recognize the other... so you must have an auto as posted above.





quote
Originally posted by LornesGT:

I don't know why the shield is there maybe the auto was removed because I have a stick.



Not all cars have this (my 84 didn't). The shield is to deflect radiating heat from the muffler.
On 4-cylinder engines, it protects the distributor. Not sure what it protects on V6 engine.

If you had an automatic, the hole would be punched out for the auto's dipstick.


------------------
Calgary time/temp

3.4L Supercharged 87 GT Click me
Super Duty 4 Indy #163 Click me

[This message has been edited by fierosound (edited 08-18-2014).]

IP: Logged

next newest topic | next oldest topic

All times are ET (US)

Post New Topic  Post A Reply
Hop to:

Contact Us | Back To Main Page

Advertizing on PFF | Fiero Parts Vendors
PFF Merchandise | Fiero Gallery | Ogre's Cave
Real-Time Chat | Fiero Related Auctions on eBay



Copyright (c) 1999, C. Pennock
