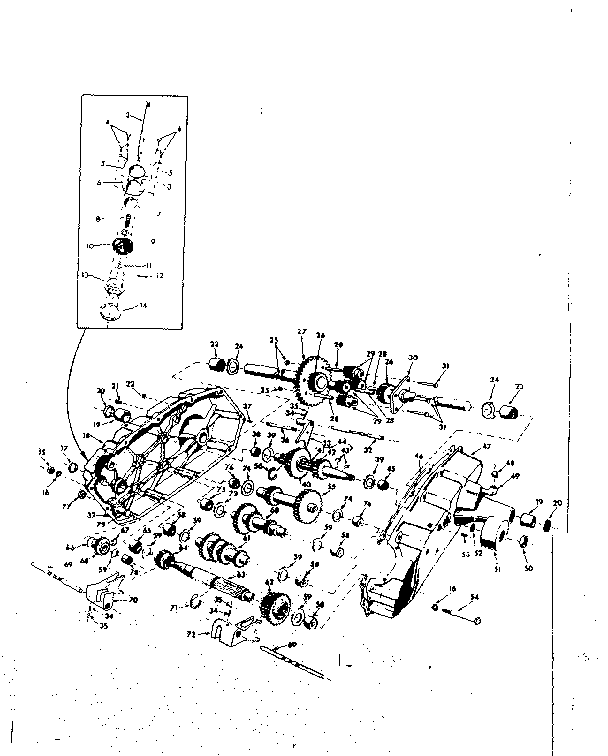

Was going to weld the axle locked later but now i'm looking at the diagram and wondering how the hell am I going to pull this off? Some more info it's off a 1969 sears suburban 12, 8 speed 1-2-3-R high and low range. Model #91725520

[This message has been edited by WellThatsSuprising (edited 05-03-2012).]

.

[This message has been edited by WellThatsSuprising (edited 05-03-2012).]

Have to make it posi?

^ Absolutely have to, people keep saying weld the spider gears together but I don't see spider gears in the diagram.

[This message has been edited by WellThatsSuprising (edited 05-03-2012).]

Looks to me like P/N 29

quote Originally posted by GT-X: Looks to me like P/N 29

A what?

This View might help,scroll down about halfway (Im not sure what this is off of) the spider gears are circled in blue. If you allready know what the spider gears look like ignore this post.
http://www.miata.net/garage/diffguide/index.html
possibley This,I have had time to watch it....see ya.
http://www.youtube.com/watc...sxt8&feature=related

[This message has been edited by James Bond 007 (edited 05-03-2012).]

quote Originally posted by GT-X: Looks to me like P/N 29

Part number 29 in your diagram.
I can't tell if its right.
But I believe thats what he said.

I think those are the planetaries.

quote Originally posted by WellThatsSuprising: I think those are the planetaries.

Me too. There are no spider gears visible in that diagram. Every spider gear set I ever saw had beveled or angle cut gears to interact with the side gear--I don't see that happening in your diagram, but it is a pretty fuzzy drawing.
And, it could be because of the crappy diagram, we just don't see all of it. This, is also what initially appears to be a palnet/sun arraingement, but it is a very basic spider setup from an antique tractor.



The spider gears and ring gear/carrier/bull gear are clearly visible in the photo. To be a three-member planetary gear system, it would have to have a sun gear and a planetary gear as well as an outer ring gear rotating in the same plane.

[This message has been edited by maryjane (edited 05-05-2012).]
