This one comes out of the wire loom that the speed sensor is hooked up to.


Uploaded with ImageShack.us



Uploaded with ImageShack.us

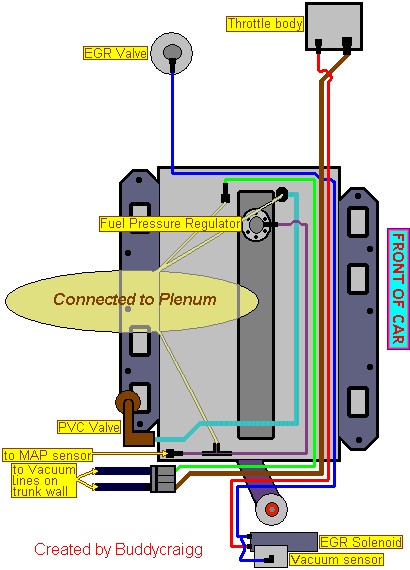

If anyone can take pics of where the hoses go from this connector It would be greatly appreciated this is on the trunk wall and has one hose going to the fuel vapor canister.


Uploaded with ImageShack.us

Thank you guys in advance.

1 - Reverse light - and my guess is that you have the 4 speed that has the reverse light switch at the shifter - inside the car. The 5 speeds have the reverse light switch on the tranny - hense the extra plug

2 - Fan switch



3 - Nothing - those are supposed to have a little foam filter on it. They have rotted off a long time ago - most are just like yours. They let air into the cruise control diaphram when the cruise it turned off.

[This message has been edited by phonedawgz (edited 08-05-2010).]

It would help if you could post the year and engine. For your:

first photo: you will need to say what color the two wires are that lead into the connector.

second photo: appears to the radiator fan switch connector... as long as the wire leading into it is dark green. It plugs into the switch near the base of the thermostat housing.

third photo: use this as a guide as long as it's a V6.

I think the reverse switch connector wires are Dark Blue and Green

I think his 3rd picture is of the relay that releases the pressure from the Cruis control. it is just a vent and no hose goes on the end of it.. a soft foam thingy goes on it and prolly rotted away from age.

------------------
A Forum that plays together... Stays together...

Thanks for the help guy's I got most of it sorted out now except for the one that's supposed to be for the fan switch the one that's plugged into that switch has 3 wire's I believe but maybe it's in the wrong place. Either way one of them doesn't seem to go to anything. The once with the green wire is just hanging there.

[This message has been edited by crazykid87 (edited 08-05-2010).]

Make sure you're looking at the right one. It's possible the PO installed the wrong fan switch, but if three wires are connected, who knows what he's done.

I corrected the fan switch , here's a pic to the connector that was on there, it was clearly wrong it has 3 female prong's on it. Also does anyone know if the injector harness has an extra plug that doesn't go to anything? there's a plug coming from the injector harness with solid orange wire and purple with white stripe and all the injectors are hooked up.

This is the one that was on the fan switch, anybody know where it goes or if it's just an extra plug in the harness?


Uploaded with ImageShack.us



Uploaded with ImageShack.us

That looks like the oil pressure guage/switch plug. If you have a/c it'll be right behind the water pump and battery... If you don't have a/c then it will be down right next to the oil filter. From the other pictures it looks like you have a/c so look for 3 pins pointing straight up right next to the water pump/battery.

Awesome, I'm gonna go look for it. Now I just need to find if the extra plug coming from the injector's is extra or not.

quote Originally posted by crazykid87: Also does anyone know if the injector harness has an extra plug that doesn't go to anything? there's a plug coming from the injector harness with solid orange wire and purple with white stripe and all the injectors are hooked up.

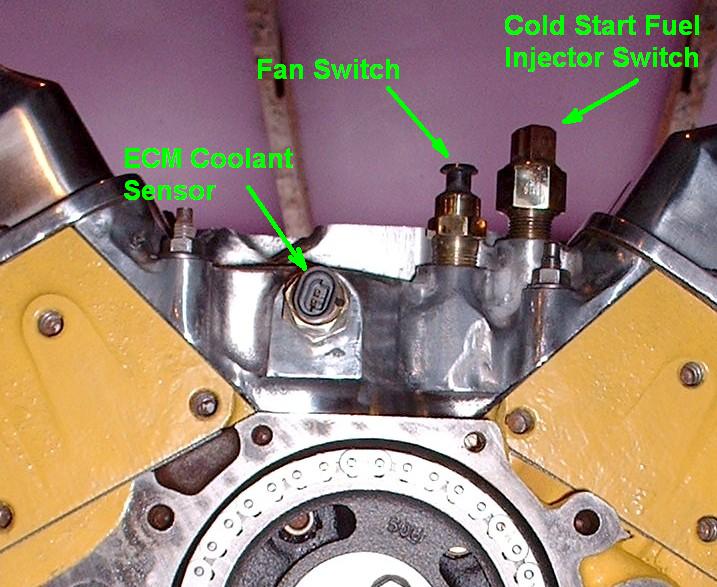

That plug should go to the cold start switch (shown in Bloozberry's photo above).

there's already a plug there this one is just hanging there like right under where the throttle body would be at.

That one probably goes to the cold-start injector itself. The injector is on the lower intake, hidden behind the distributer.

edit to add: if you're having trouble locating the cold-start injector, follow the little metal tube that comes down from the fuel rail. That tube also goes to the cold-start injector.

[This message has been edited by Blacktree (edited 08-06-2010).]
