  85 service manual?????

T H I S   I S   A N   A R C H I V E D   T O P I C


Email This Page to Someone! | Printable Version


85 service manual????? by zza_mud
Started on: 03-18-2008 08:20 PM
Replies: 12
Last post by: Oreif on 04-01-2008 07:09 AM
zza_mud
Member
Posts: 70
From: illinois
Registered: Oct 2007


Feedback score: N/A
Leave feedback

Rate this member

Report this Post03-18-2008 08:20 PM Click Here to See the Profile for zza_mudClick Here to Email zza_mudSend a Private Message to zza_mudDirect Link to This Post
looking to find what color , teeth or part number is needed for a 85 gt 2.8 4 speed speedometer gear. the gear on the bottom of the speed sensor. thanks
IP: Logged
PFF
System Bot
Dodgerunner
Member
Posts: 9684
From: Lincoln, Nebraska
Registered: Sep 2004


Feedback score:    (61)
Leave feedback





Total ratings: 323
Rate this member

Report this Post03-18-2008 10:41 PM Click Here to See the Profile for DodgerunnerClick Here to visit Dodgerunner's HomePageClick Here to Email DodgerunnerSend a Private Message to DodgerunnerDirect Link to This Post
I'd have to pull mine, (probably should check the oil level anyway) but if I remember right it's red.
The car is in my other garage across town right now.
If you don't get any other response I'll stop by and check it..
IP: Logged
Fino
Member
Posts: 811
From: St. Johns, MI. USA
Registered: Jan 2002


Feedback score: N/A
Leave feedback

Rate this member

Report this Post03-18-2008 11:42 PM Click Here to See the Profile for FinoSend a Private Message to FinoDirect Link to This Post
29 teeth GRN 10041031
30 teeth NAT 10041032
30 teeth BLU 25519845
31 teeth WHT 25519846

Ed
IP: Logged
zza_mud
Member
Posts: 70
From: illinois
Registered: Oct 2007


Feedback score: N/A
Leave feedback

Rate this member

Report this Post03-19-2008 12:03 AM Click Here to See the Profile for zza_mudClick Here to Email zza_mudSend a Private Message to zza_mudDirect Link to This Post
how do i know what teeth i heve or need? mine is missing all together
IP: Logged
J Gunsett
Member
Posts: 1336
From: KY
Registered: Apr 2003


Feedback score: (2)
Leave feedback

Rate this member

Report this Post03-19-2008 09:18 AM Click Here to See the Profile for J GunsettClick Here to visit J Gunsett's HomePageClick Here to Email J GunsettSend a Private Message to J GunsettDirect Link to This Post
I thought mine was red or pink, maybe that was due to oil staining the gear? Someone on here will have the answer.

Jack

------------------
If you can not run with the big dogs, stay on the porch!

IP: Logged
Fino
Member
Posts: 811
From: St. Johns, MI. USA
Registered: Jan 2002


Feedback score: N/A
Leave feedback

Rate this member

Report this Post03-19-2008 09:44 AM Click Here to See the Profile for FinoSend a Private Message to FinoDirect Link to This Post

quote
Originally posted by zza_mud:

how do i know what teeth i heve or need? mine is missing all together


The teeth will depend on gear ratio and tire size and that chart I cannot find.

Ed

[This message has been edited by Fino (edited 03-19-2008).]

IP: Logged
Tinkrr
Member
Posts: 412
From: Whitby,ON, Canada
Registered: Aug 2004


Feedback score: N/A
Leave feedback

Rate this member

Report this Post03-19-2008 10:06 AM Click Here to See the Profile for TinkrrSend a Private Message to TinkrrDirect Link to This Post
Look on your SERVICE PARTS IDENTIFICATION label on the inner left fender

D4N - red 10041031 29 teeth
D4O - purple 10041032 30 teeth
D4P - blue 25519845 30 teeth
D4Q - white 25519846 31 teeth

I will scan in the chart and post it for you

[This message has been edited by Tinkrr (edited 03-19-2008).]

IP: Logged
zza_mud
Member
Posts: 70
From: illinois
Registered: Oct 2007


Feedback score: N/A
Leave feedback

Rate this member

Report this Post03-20-2008 09:57 AM Click Here to See the Profile for zza_mudClick Here to Email zza_mudSend a Private Message to zza_mudDirect Link to This Post
ive looked up all rpo decoders here found nothing. my rpo for my speedo gear is D4T


edit: i also found out my tire size is205 65r 15 and axle is 4-speed 3.65

[This message has been edited by zza_mud (edited 03-20-2008).]

IP: Logged
zza_mud
Member
Posts: 70
From: illinois
Registered: Oct 2007


Feedback score: N/A
Leave feedback

Rate this member

Report this Post03-30-2008 12:12 AM Click Here to See the Profile for zza_mudClick Here to Email zza_mudSend a Private Message to zza_mudDirect Link to This Post
still looking for information conserning my lost speedo gear as stated before
rpo code D4T
15" wheels
munchie 4 speed 3.63
IP: Logged
zza_mud
Member
Posts: 70
From: illinois
Registered: Oct 2007


Feedback score: N/A
Leave feedback

Rate this member

Report this Post03-30-2008 11:33 PM Click Here to See the Profile for zza_mudClick Here to Email zza_mudSend a Private Message to zza_mudDirect Link to This Post
anyone? anyone? or can someone blow up the chart posted earlier so i can read it
IP: Logged
Oreif
Member
Posts: 16460
From: Schaumburg, IL
Registered: Jan 2000


Feedback score:    (19)
Leave feedback





Total ratings: 442
Rate this member

Report this Post03-31-2008 07:01 AM Click Here to See the Profile for OreifClick Here to visit Oreif's HomePageClick Here to Email OreifSend a Private Message to OreifDirect Link to This Post

quote
Originally posted by zza_mud:

anyone? anyone? or can someone blow up the chart posted earlier so i can read it

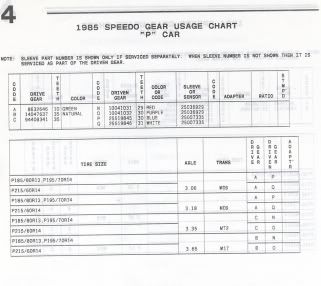

Per my 1986 service manual (page 7A-7 Figure 3) the M17 4-speed manual transmission gets the 30 teeth natural with the 29 teeth red gear.
This is for both the 14" and 15" wheels.

I E-mailed you a larger print of the Speedo Gear chart to you.

[This message has been edited by Oreif (edited 04-01-2008).]

IP: Logged
PFF
System Bot
zza_mud
Member
Posts: 70
From: illinois
Registered: Oct 2007


Feedback score: N/A
Leave feedback

Rate this member

Report this Post03-31-2008 08:58 PM Click Here to See the Profile for zza_mudClick Here to Email zza_mudSend a Private Message to zza_mudDirect Link to This Post
i read the chart u emailed it says i need the red 29 tooth gear is this right? i need the small plastic gear that goes on the end of my speed sensor
IP: Logged
Oreif
Member
Posts: 16460
From: Schaumburg, IL
Registered: Jan 2000


Feedback score:    (19)
Leave feedback





Total ratings: 442
Rate this member

Report this Post04-01-2008 07:09 AM Click Here to See the Profile for OreifClick Here to visit Oreif's HomePageClick Here to Email OreifSend a Private Message to OreifDirect Link to This Post

quote
Originally posted by zza_mud:

i read the chart u emailed it says i need the red 29 tooth gear is this right? i need the small plastic gear that goes on the end of my speed sensor


That is correct. If you are missing the small gear than you need the "speed gear".
Look at your RPO codes:
Speed Gears (on vehicle speed sensor)
D4N Gear, speedometer driven (N) 29 teeth 10041031 (red)
D4O Gear, speedometer driven (O) 30 teeth 10041032 (purple)
D4P Gear, speedometer driven (P) 30 teeth 25519845 (blue)
D4Q Gear, speedometer driven (Q) 31 teeth 25519846 (white)

Drive Gears (in transaxle on the differential)
D9A Gear, speedometer drive (A) 10 teeth 8632646 (green)
D9B Gear, speedometer drive (B) 35 teeth 14047637 (natural)
D9C Gear, speedometer drive (C) 35 teeth 94408341 (blue)

These are the CORRECT part numbers for the gears.

[This message has been edited by Oreif (edited 04-01-2008).]

IP: Logged
