Continued.

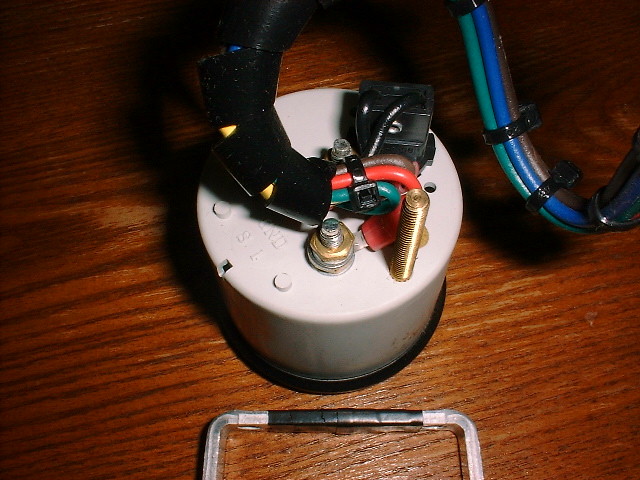

This one shows the wiring I did for the gauge itself. I used spiral wrap on the wires so they wont chaf on the hold down bracket. I also put electrical tap on the bracket for a little extra protection.

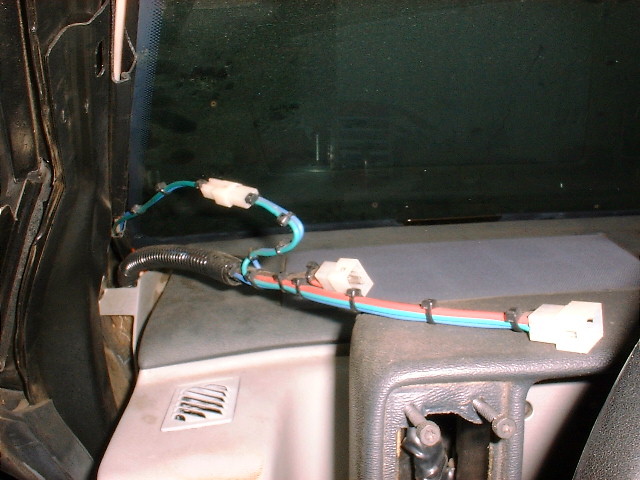

This is the vehical side of the harness. I used to rewire Military and civilian aircraft. I make the wiring as modular as possible for ease or repair. It requires extra effort but will pay off if I ever need to repair somthing.
The connector (Molex 2 circuit) contain the sender wires. I have water andoil pressure gauges in my pod. I did not trust my factory oil press gauge. I installed all of this in 96-97. Never had any issues.
I have a couple more pics but PIP says they are too big and I have never been able to figure out how to save size changes. If someone is willing to resize and send back to me, IM me with your e-mail and I will send them to you. I want to post them so I can give an explaination with them.
Thanks for looking.
