does anyone have a pic of the funny circle thing that goes on top of the strut mount by buddycraigg
Started on : 07-03-2006 08:28 PM Replies : 11 Last post by : buddycraigg on 07-04-2006 09:37 PM
Jul 3rd, 2006
buddycraigg Member Posts: 13620
as the title says, i need a pic of the funny circle thing that goes between the upper strut mount and the strut tower of the frame.
IP: Logged
08:28 PM
PFF
System Bot
buddycraigg Member Posts: 13620

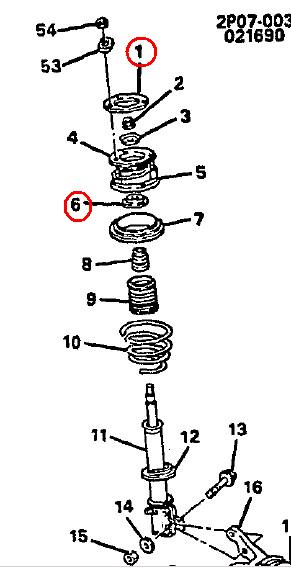

number 1 in this exploded view.
IP: Logged
08:35 PM
shawnkfl Member Posts: 2457

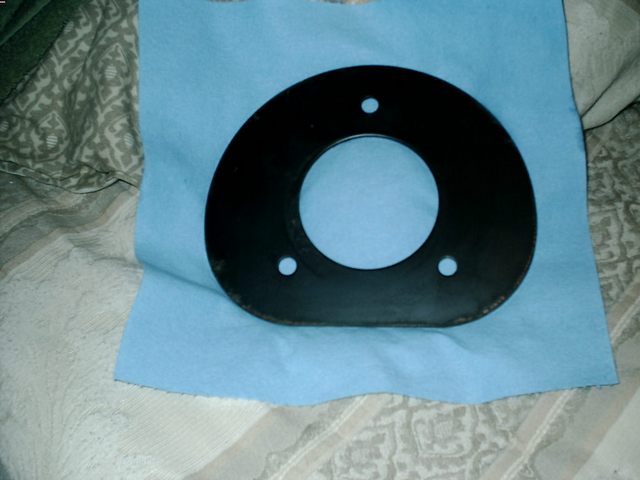

went out in the rain, got tore up by mosquitos, cleaned it up a bit, and here you go.....i hope this is what you need. (sorry about the poor pic quality)
edit to add....that's off an 87GT. don't know if the 88's are different?
[This message has been edited by shawnkfl (edited 07-03-2006).]
IP: Logged
09:41 PM
shawnkfl Member Posts: 2457
if you need any dimensions, i can whip it up in inventor and post them for you. just let me know and i'll send an invoice....J/K
IP: Logged
09:45 PM
buddycraigg Member Posts: 13620
quote Originally posted by shawnkfl:
WHAT?!!!
you didn't paint it?
thanks for the help +
IP: Logged
09:49 PM
buddycraigg Member Posts: 13620
quote Originally posted by shawnkfl:
nope, just needed a pic.
thanks again.
IP: Logged
09:53 PM
shawnkfl Member Posts: 2457
damn...i knew i should have set up a spray booth first!
IP: Logged
09:56 PM
Jul 4th, 2006
jscott1 Member Posts: 21676
quote Originally posted by shawnkfl:
As far as I know the 88 struts are put together the same way. The part labeled 53 is a little different though. Instead of three oval shaped pieces of metal it is a solid ring.
IP: Logged
12:26 AM
wanobi Member Posts: 1257
do all fiero's have that metal ring? Cause mine don't. '86 GT
IP: Logged
12:39 AM
kyote Member Posts: 1232
Yes. they all do... You don't see it because it is on top of the strut assembly, but under the strut tower body sheet metal.
------------------'86 Fastback SE 5 spd -'00 HD 1200XL Sportster -'99 Chevy K-1500 Z-71
IP: Logged
08:33 AM
wanobi Member Posts: 1257
quote Originally posted by kyote:
Cool.. got a little nervous for a minute.
IP: Logged
07:52 PM
PFF
System Bot
buddycraigg Member Posts: 13620
quote Originally posted by kyote:
well, they all come from the factory that way.
the car i'm working on doesn't have them, that's why i wanted the pic, is to show the owner what part is missing.
IP: Logged
09:37 PM
