A headlamp motor exploded view diagram - Who has one or knows where it is in the service manual, etc?

Specificly I have a spring washer that I cannot recall where it goes. I believe it goes on the outside.

A buddycraigg
classic.

quote Originally posted by spark1: A buddycraigg classic.

I did search a couple hours before I posted and had been reading everything on headlamps. I Say that from Buddy. In all my searching before I started I did see a service manual type - exploded parts diagram of the motor assembly. I'll take the other motroe apprt today and can determine where it came from.

It's just making me crazy that I cannot find that diagram again. The index is so helpful in the service manual. What I need is the 'GM shop manual'. I'll find it later today

What is the problem with the system????

Before you spend a huge amount of time and effort on fixing the Gen 1 system, what will probably break again in fairly short order, look up the Gen 2 system. It's not teribly hard to convert and the Gen 2 system is far more reliable. Likey cost allot less as well.

The only reason to fix the Gen 1 system is to show the car in a strict factory class.

------------------
Dr. Ian Malcolm: Yeah, but your scientists were so preoccupied with whether or not they could, they didn't stop to think if they should.
(Jurasic Park)

The Ogre's Fiero Cave (It's also at the top of every forum page...)

The headlamp motors are dying the standard Fiero death.
I understand the arguments for chaning the whole system and I considered that. I just don't have the time to find a junked car, pull the parts (or find the parts at a junk yard), etc, etc. I find it easier to simply rebuild the motors - for now.
I started on the dead motor days ago and last night before coming back into the office I was almost complet when I found that I could not recall wher the flat spring washer should go. When I start disassembly of the other motor I'll determine where it goes.

I know I say that diagram somewhere - I will find it!

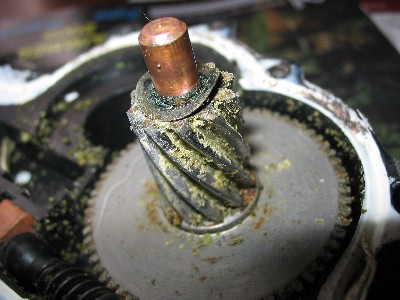

quote Originally posted by samt: [Flat washer on shaft] image removed

Dag-nab-it! You beat me to it. That's the spring washer! I started taking the other motor apart to rebuild it and there it was. It all looks a lot like yours! Thanks for posting that. Now I just need to find theat diagram to prove to myself that I'm not as crazy - as I act!
