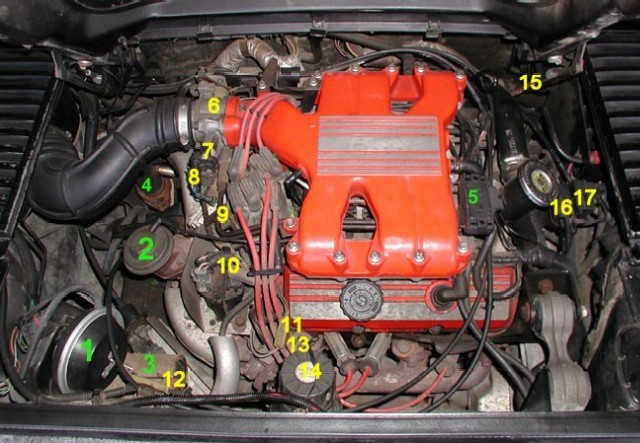

newbie engine guy here learning and looking to get started on the engine . if you can name the parts i have pictured and if you could name the ones i missed . i am looking for a general description so i can get to know my fiero thanks .

[This message has been edited by bsculptor (edited 07-05-2004).]

1. Vacuum-operated throttle servo for cruise control

(throws a lateral pass to Ogre)

------------------
88 Formula, "Asphalt Aviator"

Celebrate Artesian New Year!!!

[This message has been edited by Vonov (edited 07-05-2004).]

2 is egr
4 is y pipe i think that is what it is on. the o2 sensor is there too.
5 is the map sensor

------------------
1987 Gold SE
V6, 5spd, sunroof, 65k miles on the clock
Mods= underdrive pulley, no cat, exhaust cut out, new exhaust, accel coil, 8mm plug wires, occasionally a stage 2 jet chip, k&n filter, advanced timing to what felt better!
to come= ported intakes and exhuast manifolds. and a TURBO

3 is the vacuum canister for the Cruise Control

"They got them all right"
1
2
3
4
5

Next Welcome to the Forum

------------------
88GT/Auto/Beechwood Leather/SunRoof/Wing/JVC-CD-Sub-Woofer/225/45/17 Michelin Pilots/All Opts Ex.T-Tops

<<< <<< <<< <<< < Pix of my GT /- -/ Pix of my Vettes> >>> >>> >>> >>>
*** *** *** *** *** * "If you appreciate my contribution,..please rate me, Thanks"* *** *** *** *** ***

6 throttle body
7 TPS
8 IAC
9 throttle body coolant lines
10 coil
11 connector for tach filter
12 control valve for cruse control
13 cracked and broken connector for temp sensor for gauge and warning light
14 aftermarket alarm system horn
15 ground strap to head
16 egr solenoid
17 egr vacuum sensor

NEXT…

[This message has been edited by buddycraigg (edited 07-05-2004).]

quote Originally posted by buddycraigg: 6 throttle body 7 TPS 8 IAC 9 throttle body coolant lines 10 coil 11 connector for tach filter 12 control valve for cruse control 13 cracked and broken connector for temp sensor for gauge and warning light 14 aftermarket alarm system horn 15 ground strap to head 16 egr solenoid 17 egr vacuum sensor NEXT…

thanks for all your help . i think i will label them all in a better picture . does this help anyone else .. or am i the only one ?

quote Originally posted by bsculptor: wait ... i just saw you wrote the "cracked and broken cennector for temp sensor for gauge and warning lights" i have a better picture for that area. can you point that out .I am guessing that it is marked "A" ?? thanks

"A" would be correct.
and they all do it.

Yes, the one marked "A"

"B" is the connector for the Tach Filter (#11 in buddycraig's pic)

and "B" is the tach filter connector
