  Fiero Diagram / Pictures?

T H I S   I S   A N   A R C H I V E D   T O P I C


Email This Page to Someone! | Printable Version


Fiero Diagram / Pictures? by neghcho
Started on: 12-06-2002 01:57 AM
Replies: 2
Last post by: 87gt guy on 12-06-2002 07:44 AM
neghcho
Member
Posts: 957
From: Pittsburg, IL, United States
Registered: Oct 2002


Feedback score: N/A
Leave feedback

Rate this member

Report this Post12-06-2002 01:57 AM Click Here to See the Profile for neghchoClick Here to visit neghcho's HomePageSend a Private Message to neghchoDirect Link to This Post
I am looking for an online diagram / drawing of fieros. Where everything is located, etc. Mainly interested in info about 4cyl and v6 engines. I am mechanically handicapped, and this would help me greatly.

-Shaun

IP: Logged
PFF
System Bot
FieroJunkie
Member
Posts: 21
From: Vancouver, WA, U.S.A.
Registered: Mar 2002


Feedback score: N/A
Leave feedback

Rate this member

Report this Post12-06-2002 04:13 AM Click Here to See the Profile for FieroJunkieSend a Private Message to FieroJunkieDirect Link to This Post
Handicapped? Aren't we all.

What specifically are you looking for or trying to do? What year do you have? What year are you 'borrowing' from, etc?

The reason I ask is that I just went through a 4cyl to 2.8 v6 engine swap and the first 2 wiring harness' I got were wrong.

IP: Logged
87gt guy
Member
Posts: 111
From: Bel Air, MD, USA
Registered: Nov 2001


Feedback score: N/A
Leave feedback

Rate this member

Report this Post12-06-2002 07:44 AM Click Here to See the Profile for 87gt guySend a Private Message to 87gt guyDirect Link to This Post
You are lucky I am snowed in and bored
This stuff is from the Haynes Manual.
the pics came out a little blurry but I'll type the legend.

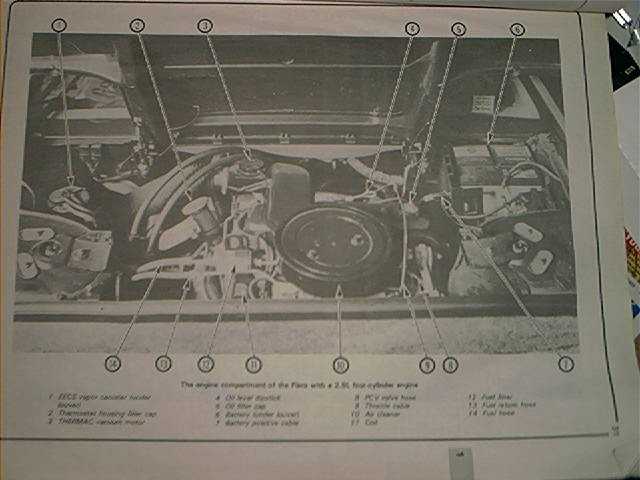

1)EECS Vapor Canistore (under louver)
2) Thermostat Housing filler cap
3)THERMAC vacuum motor
4)Oil Level dipstick
5)Oil filler cap
6)Battery (under louver)
7)Battery Positive cable
8)PCV valve hose
9)Throttle Cable
10)Air Cleaner
11)coil
12) fuel filter
13)fuel return hose
14)fuel Hose

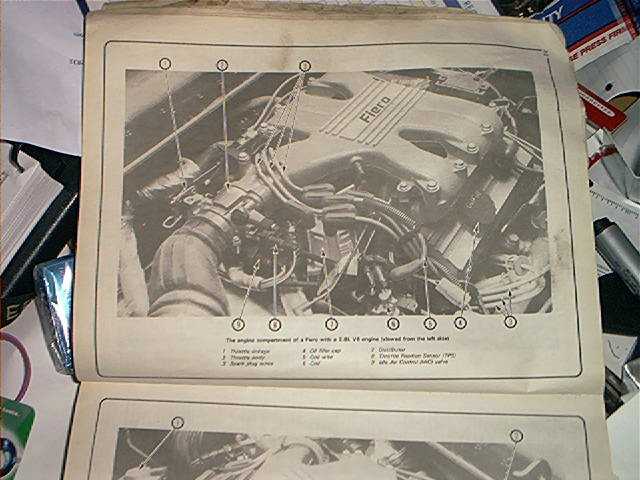

V6 (where the real power is)

1)Throttle Linkage
2)throttle Body
3)spark plug wires
4)oil filler cap
5)coil wire
6)coil
7)distributer
8)throttle position sensor (TPS)
9)Idle Air control Valve (IAC)

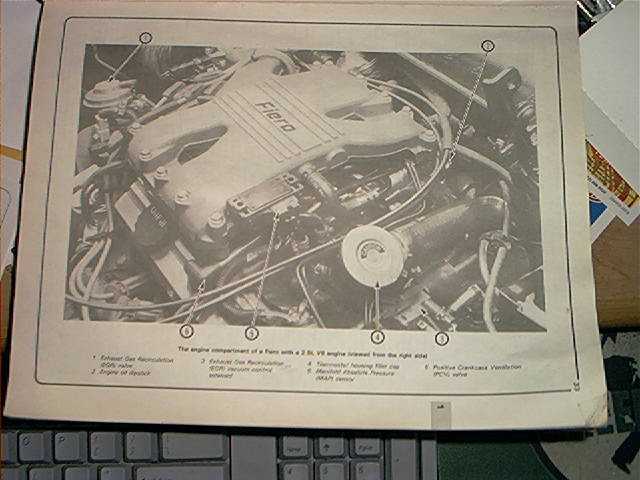

1)Exaust Gas Recirculation valve. (EGR valve)
2)Engine oil dipstick
3)EGR vacum control solenoid
4)Thermostat housing filler cap
5)Manifold Absolute Pressure (MAP) sensor
6) Positive crankcase Ventilation (PCV) valve.

There you go, I hope this helps you.

------------------
87 GT stock 5sp.
Kills:
countless hondas
91-92 V6 firebird
99 firebird V6 (walked)
Older Golf GTI
Newer Golt 1.8T
Lexus GS300
Cavalier Z24, older
92-94 Chevy Silverado
98 Chrysler Sebring (my gf's)
Brand New mustang V6 (my fav, and my mom was in the car)

IP: Logged
