Okay. I just got a 93 Cadillac Instrument Panel. I'm going to be installing it on the passenger side of the dash (inside a custom made glove box, no more heater core). By installing this cluster I'll be able to scan the ECM and have codes flashed on the screen. What I need though is the wiring diagram for the actual cluster. There are two plugs, one for gauges the other for climate control. I don't have the harness, just the plug so color coded wires are useless to me, I need the actual pin out number. Thanks in advance.

------------------
Jay
1986 Northstar GT
www.members.home.net/jaygrande

Which one would you need?

What type of caddy did it come from?

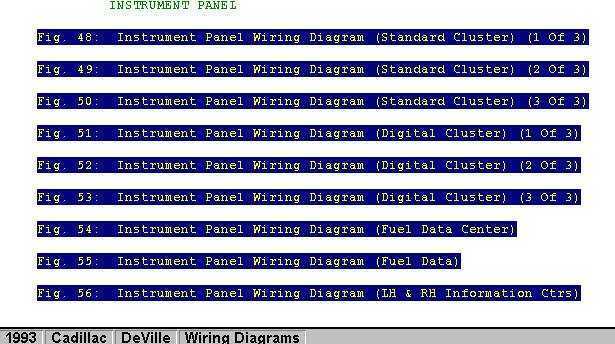

These is the menu from the mitchell ondemand cd set.

It came from a 93 analog cluster. As for which caddy they couldn't tell me.

well. lets try these 3 to see if they look familar

(didnt post direct links because of size

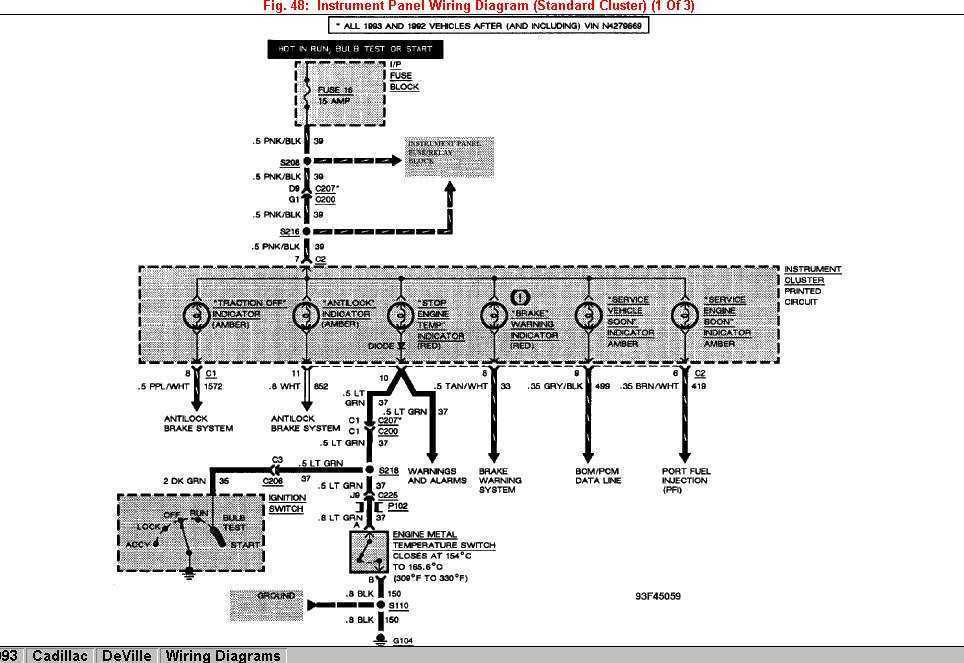

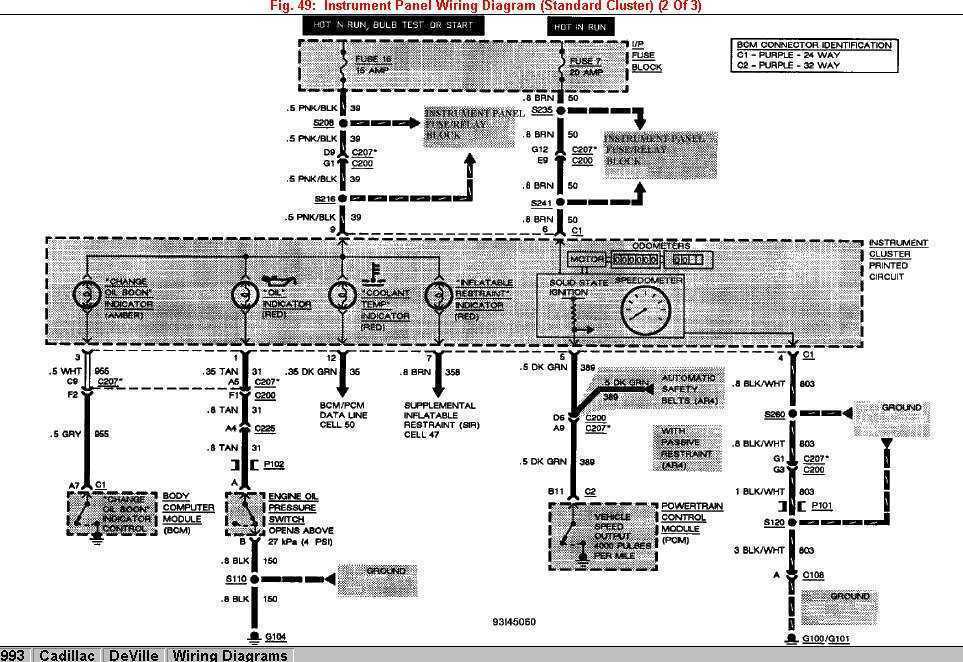

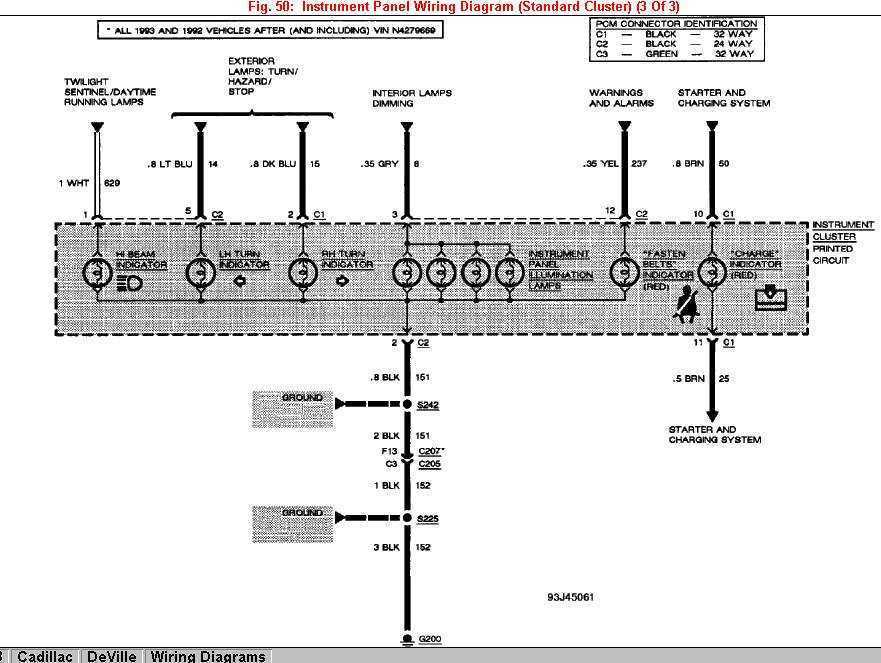

https://www.fiero.nl/uploads/standard1.jpg https://www.fiero.nl/uploads/standard2.jpg https://www.fiero.nl/uploads/standard3.jpg

Looks like that is it. I'll go compare it with the cluster and let you know. Thanks I appreciate the quick response!

would it be the info center? It has the service air cond. control..?

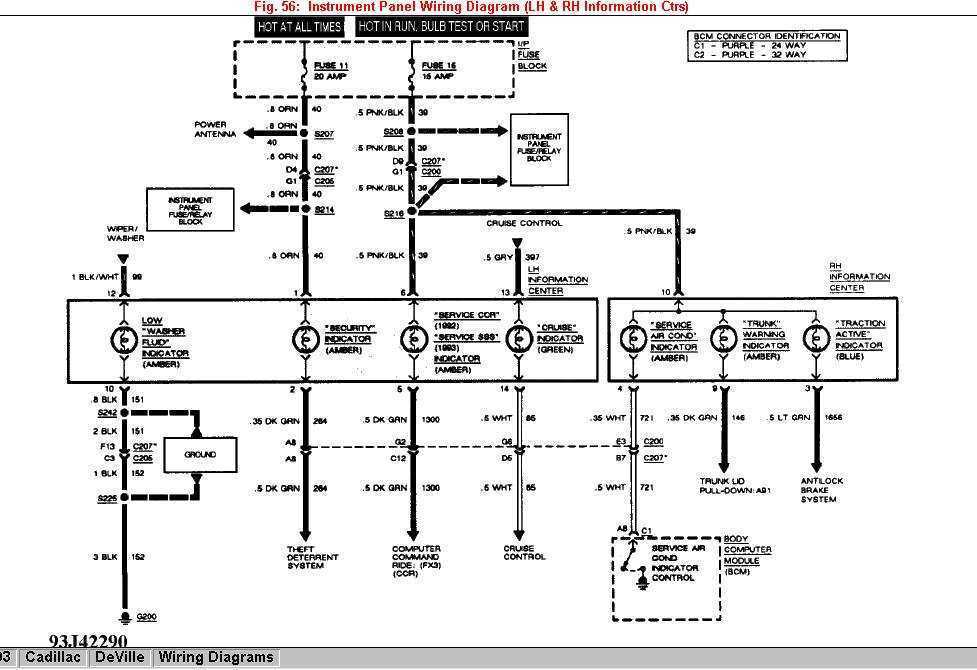

https://www.fiero.nl/uploads/infocenter.jpg

That's the one, these are for a Northstar engine correct?

Yes, They are all the same (4.9 gas & SFI).. If these are the correct ones, you have the dash out of a 93 deville.

Any other N* info you need, feel free to msg me.
