AND, I actually did something yesterday. I started mocking everything up...

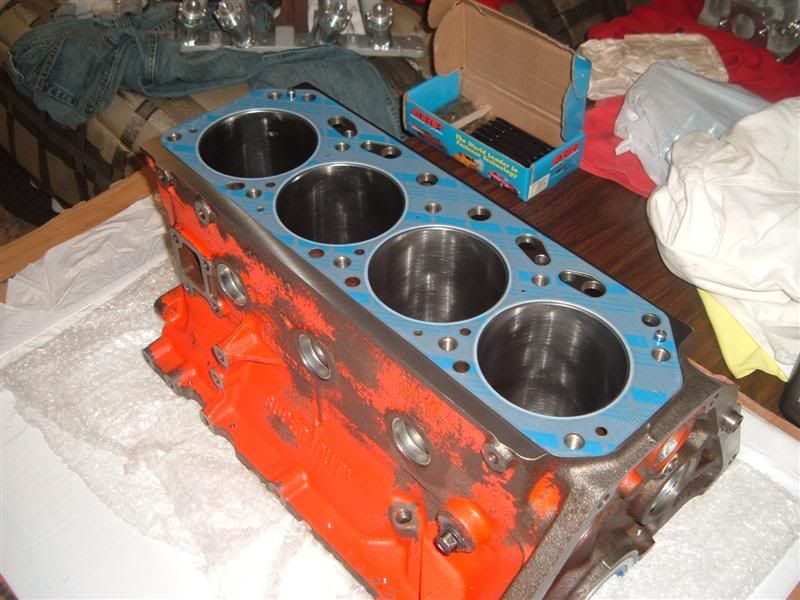

I used the old head gasket:

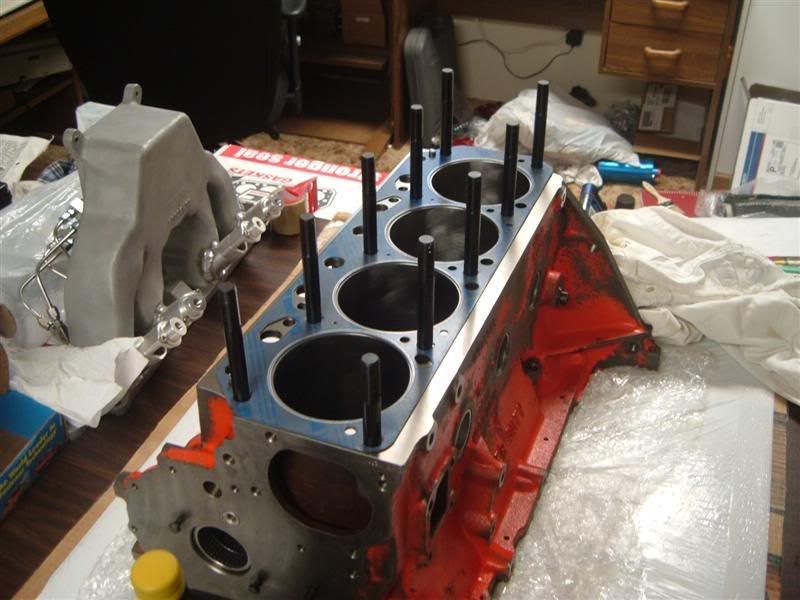

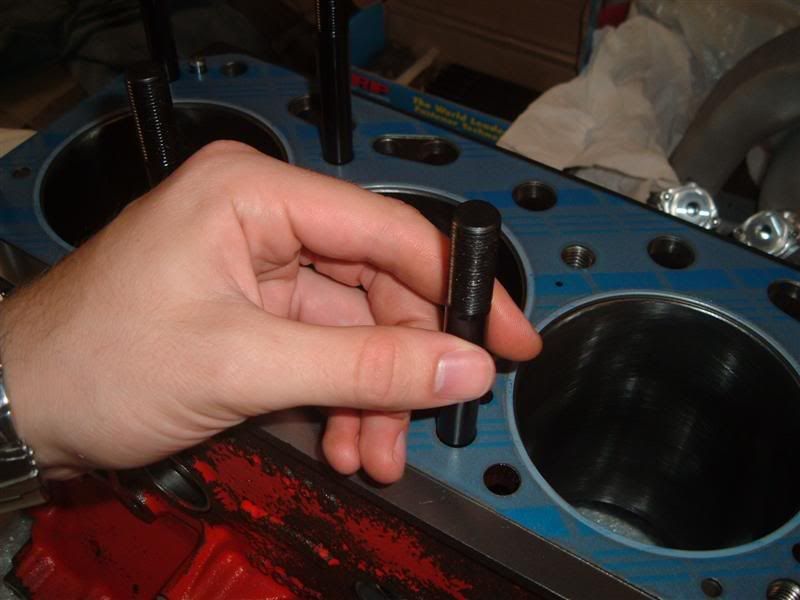

Then started oiling, cleaning, and installing the head studs:



After that I set the head on:

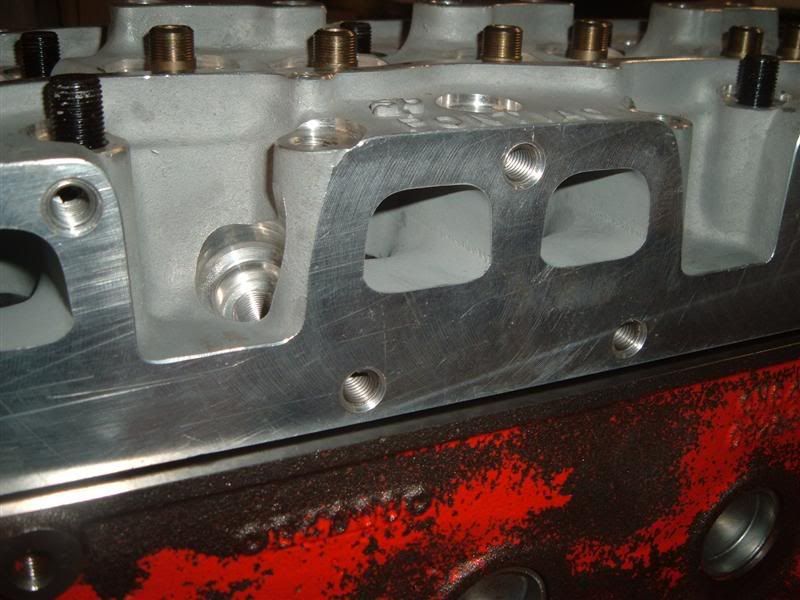

You can also see in this picture that the middle head stud is missing. This is because the header bolt thread insert extends into the hole for the stud, and must be trimmed (carefully).

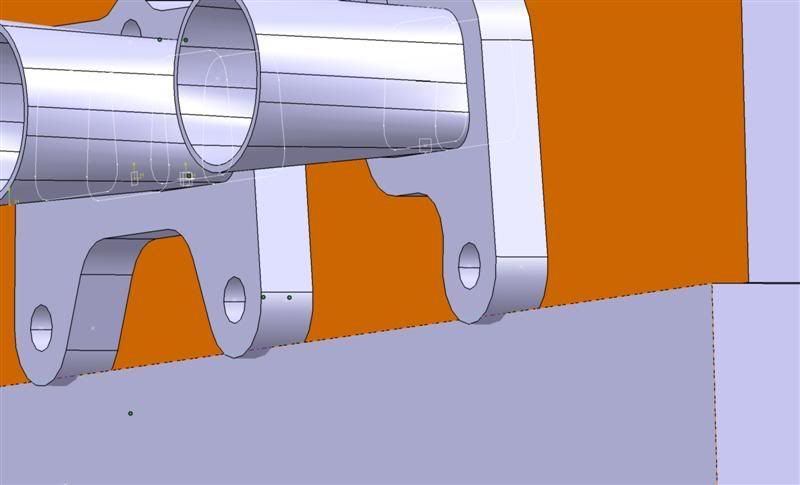

I've already found another problem. The exhaust flange that I designed above, is going to interfere. I should've trusted my CAD model:

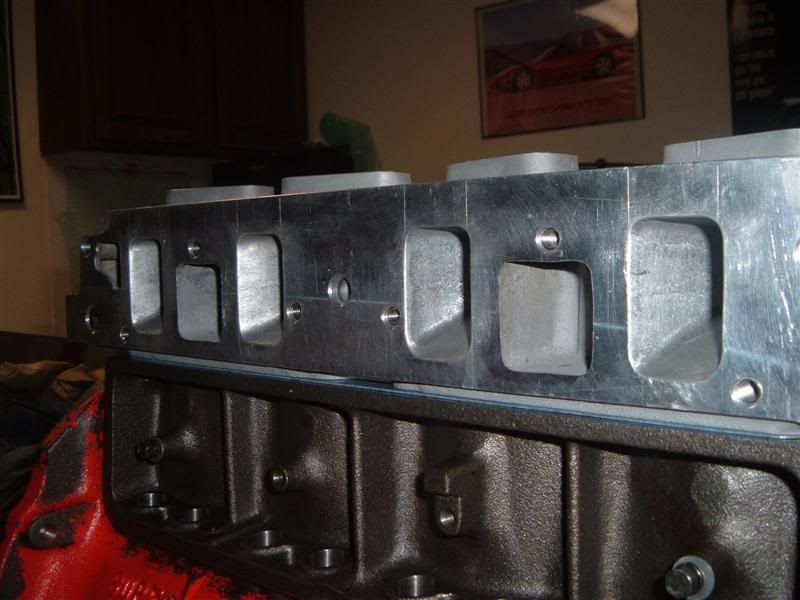

The exposed intake side:

[This message has been edited by FastIndyFiero (edited 05-27-2007).]

FastIndyFiero MAY 27, 01:31 PM

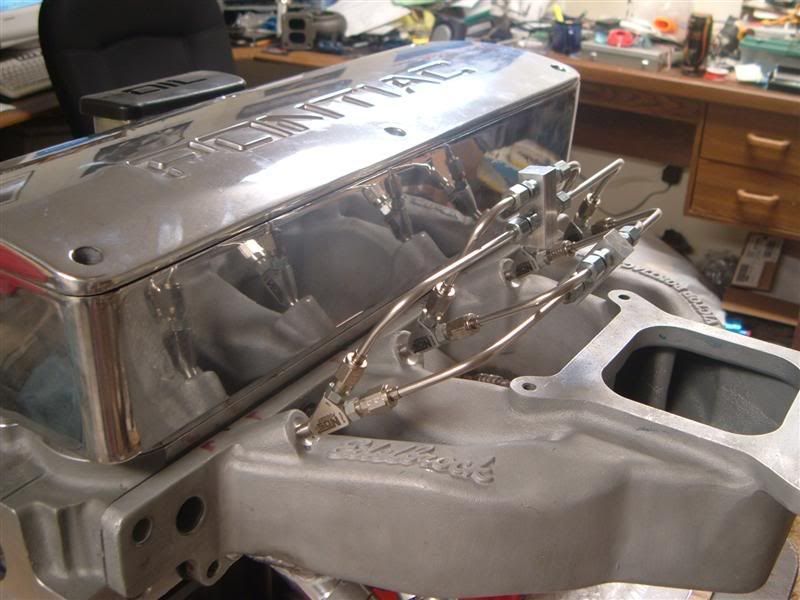

I then fitted the intake:




I couldn't help myself from putting the VC on too:



I wasn't too surprised about this:



I have a cheap Moroso SBC crank trigger wheel on the way that I'm going to play with.

[This message has been edited by FastIndyFiero (edited 05-27-2007).]
