lift points using a QuickJack with my 87' Fiero (Page 2/2)
theogre
FEB 20, 06:20 PM
quote
Originally posted by Will: This is the lift point:
No. That is the Gas Tank. Look again. Lift head shows the lift point then follow floor as bends into tank tunnel.
That area of floor is double thick or more where meets lower front subframe. If same area shown above then that is drain hole between to metal layers. Hard to tell from that picture. More correct image... Note these are one 4 arm 2 post frame hoist on P-side of car.
CLICK FOR FULL SIZE
88 Jack front/rear on page 0A-10 seem to have same images from early years but still valid... (edit it shorten image height.)
CLICK FOR FULL SIZE
While FSM have control arm as lift points, I avoid using them.
Will
FEB 21, 10:13 AM
quote
Originally posted by Will: This is the lift point:
quote
Originally posted by theogre:
No. That is the Gas Tank. Look again. Lift head shows the lift point then follow floor as bends into tank tunnel.

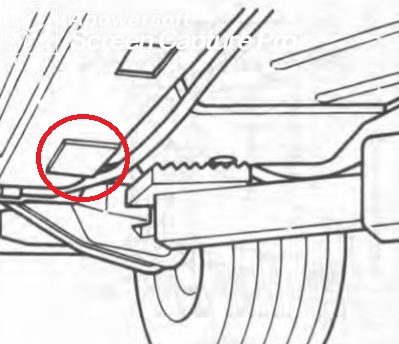

Tough to argue over a crappy drawing in a 35 year old shop manual. To me it looks like the tank is to the left of the drawing, out of frame. The tube depicted is the rear brake line.
[This message has been edited by Will (edited 02-23-2020).]
luvatenor
FEB 21, 10:48 AM
Thanks Will for all the info. Much appreciated. I don't think I can use the QuickJack on the Fiero- I tried-Rolf
nero
FEB 21, 07:04 PM
quote
Originally posted by luvatenor:
Thanks Will for all the info. Much appreciated. I don't think I can use the QuickJack on the Fiero- I tried-Rolf
I have the largest Quickjack model. I have had it up on the quickjacks for the last 4 months. Check out the post below for pics. Use the yellow lift points in the front. You will end up with the Quickjacks not being paralell. The instructions say to keep them as paralel as possible. I emailed quickjack to ask them what 'close as possible to paralel' meant and they said they had no exact measurement. It is completly solid but I also blocked up some jack stands just for backup. It has not moved or shifted in the 4 months I have had it on the quickjacks.
[This message has been edited by nero (edited 02-21-2020).]
Will
FEB 23, 02:30 PM

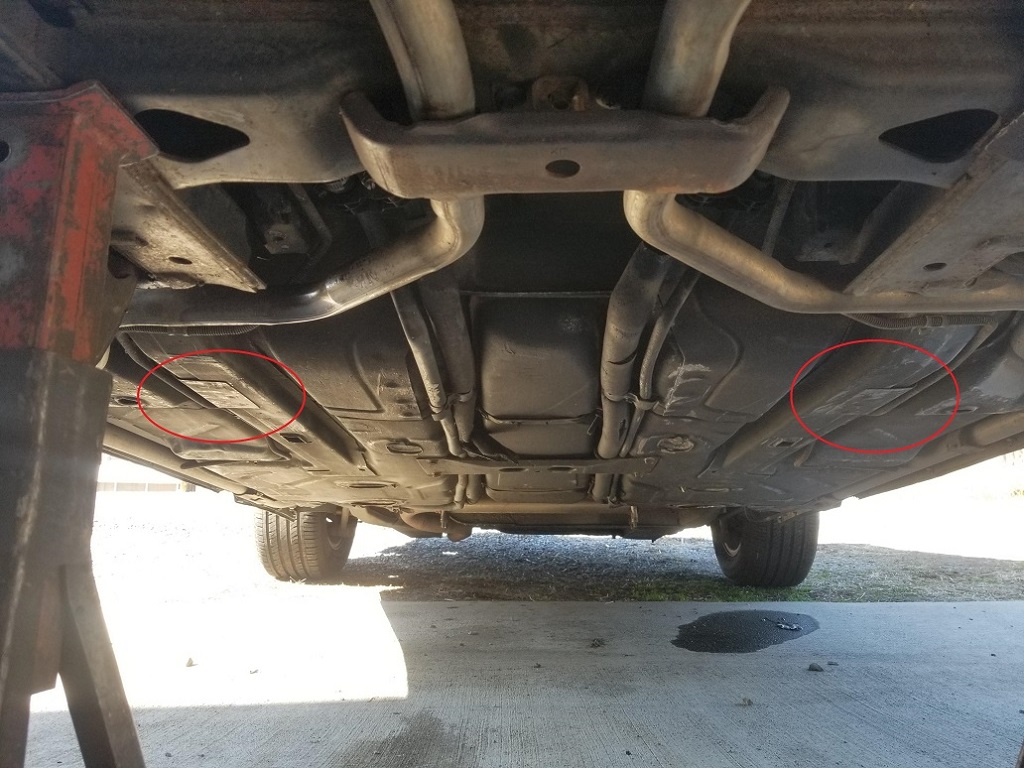

Dammit, here's where the F$%#ing lift points are:
Notice they are INBOARD of the spring wound tubing. The spring wound tube on the RIGHT side of the CAR (left in image) goes to the rear brakes. The spring wound tube on the LEFT side of the CAR (right in image) is either the clutch hydraulic line or the transmission cooler lines depending on whether the car is auto or manual.
Notice that there are small sheet metal doubler panels on the lift points.
