In an effort to try to give something back to the forum that I have taken from for many years. I have decided to try to compile as much information as possible into one location regarding the Gen III 3400/3500 (non VVT) swap. So here goes.

Firstly, I am in no way an expert on this, or any, engine swap. However, I have had my 3400 Fiero running for several years, and it has gone through many changes. Along the way I have learned some things, and I will try to highlight them here. Hopefully this will help some people attempting one of these engine swaps. There are other members on here that have more experience and knowledge on this swap, and I would welcome and encourage them to share here as well.

THE ENGINES:
I won't get into specifics here. Bassically I am centering this thread on the 3400 LA1 and 3500 LX9 engines; and to a lesser extent the newer Equinox LNJ 3400. If you would like to get more details on these engines then what you find here. The best place I would reccomend is this forum: http://60degreev6.com/forum/forum.php
Basically, what these engines offer to the Fiero enthusiest is a very simple, easy to work on, reliable, and low cost engine swap, with a good upgrade in power, and potential for much more power down the road. Yes, I said relaiable, and I will come back to that later.
These engines get very good milage when installed into a Fiero. I can average up to 35mpg highway if desired. They bolt directly to the Fiero transmissions, with little to no modification.
These engines are plentiful, and can be found nearly anywhere in North America. They have good aftermarket support, not great, but good. Also, they have a large cross section of parts interchangeability between versions. They also have a very nice exhaust note. There is quite a bit of hosepower hiding in these engines, that can be had just from mixing and matching parts.
These engines are also pretty lightweight compared to the majority of other popular Fiero swaps. In most cases these engines come in below 350 pounds, when installed into Fieros. For an Iron block V6, that is not bad. They are noticeably lighter then the Fieros 2.8L.
The only issue to really mention as a flaw in these engines is the lower intake manifold gasket failure. This set of gaskets seperate the engine oil and coolant between the cylinder banks in the engine. The factory gaskets were plastic and wore out for various reasons. If these fail, damage to the engine will likely occur if the engine is ran for any period of time. Do yourself a favor and replace these gaskets on the engine with the upgraded metal ones. This can be done with the engine installed, but is, like most things easier if done prior to install. It is a pretty simple proceedure, requireing only basic tools and skill. Do this, and these engines will run for a very long time, and take an incredible amount of punishment.

Performance:
The biggest horsepower bottlenecks on these engines are the intakes and exhausts. I would start there first. The factory exhaust manifolds are the worse of the two.
These engines respond very well to cams and cylinder head portwork. The stock bottom end is very robust and typically only needs to be upgraded when large amounts of boost are added to the engine. The stock pistons can handle mild boost (less then 10 psi), this has been shown numerous times. Forged pistons and rods are available, and to my knowledge, nobody has found the limit of those yet. These engines have been built well into the 400hp range.

Engine Info/support:
http://wot-tech.com/shop/
http://60degreev6.com/
http://www.fullthrottlev6.com/forums/index.php
http://www.tcemotorsports.c...m_frontpage&Itemid=1
http://www.ftpp.net/V6Main.htm
http://www.milzymotorsports.com/

3400 LA1

3500 LX9

3400 LNJ


TRANSMISSIONS

Like I mentioned before, these engines have the same bellhousing pattern as the Fiero 2.8L (60 degree). So, for the most part any transmission that bolts to the 2.8L will also work with the 3400/3500. To my knowledge, the LA1/LX9 were never offered from GM with a manual transmission. If you are going to mate these engines to a manual transmission, you will need the nuetrally balanced flywheel from an '88 Fiero. Here is a list of manual tranmissions that will work with these engines:

Fiero Getrag 5 speed
Fiero Isuzu 5 speed
Fiero Muncie 4 speed
92-94 fwd Getrag
F40 6 speed
F23 5 speed

ENGINE MANAGEMENT

The usual wiring required for any swap is also necessary for the 3400/3500. One nice feature of these engines is that they can be ran on either the OBD1 or OBD2 systems. OBD1 is the least amount of wiring and utilizes the well supported 7730 ecu. I ran my 3400 off of OBD1,OBD1.5, and OBD2. I would not reccomend the OBD1.5 system, as it is unsupported due to its mostly un-tunable flash format. I would reccomend the OBD2 system, it runs smoother, gets slightly better milage, and requires less tuning to get started.
One thing to mention is that if you plan to swap the LX9, or LNJ you will need an externally mounted 7x crank sensor (available from TCE).
Pictured here


On these engines (LX9/LNJ) you will also need to swap out the crank pulley for a 3400 style and attach the 24x crank sensor that resides behind it.




On some LX9/LNJ engines you will need to change the coil packs to the older 3400 style.


The cam position sensor on the LX9/LNJ will need to be replaced with the 3400 style.



ECU/Wiring Support:

http://www.gmtuners.com/
http://westersgarage.eidnet.ca/
http://www.reddevilriver.com/
http://wot-tech.com/shop/

ENGINE MOUNTS

One nice feature of these engines is that there is no need to modify the cradle to accomodate the engine mounting. If you are mounting the 3400/3500 to the Manual transmission already in your Fiero you will need no transmission mounts. You may need modified transmission mounts if you are upgrading the transmission to the F40 or F23 for instance. The engine mounting is very similar to how the Fiero 2.8L mounts. The '88 2.8L Fiero engine mount will work with some slight modifications.
There is a small amount of the aluminum oil pan to be ground down. The rear-most bolt hole on the mount needs to be relocated up and forward slightly. You could just elongate the hole but it doesn't leave much material. I welded on some aditional plateing and redrilled the hole.









If you have the older style 2.8L Fiero bracket it will fit the LNJ with no modifications (and likely the LX9 and LA1)




For the dogbone mount you have two options. Relocate the alternator ( More info on that later) and use the stock mount on the Fiero. Which is what I did.





I ended up adding aditional support to the dogbone bracket down the road but i don't have a picture of it.

**Edit** Here is a pic of the additional bracing I added to the Fiero dogbone bracket. I cut up one of the 3400 egine lift point brackets.



The second option is to relocate the mount to the drivers side and keep the factory alternator location. If you do keep the alternator in its factory location it will require some of the decklid be notched out to clear it and some trimming around the strut tower.



Notched decklid


ENGINE PLUMBING

The engine coolant plumbing is a pretty straight forward affair. The drivers side coolant hose I used is from a Chevy Astro that needs some minor trimming at the lower end.


On the passenger side I used some odds and ends I had lying around, along with a "T" from an older Sunfire, which my expansion tank feeds into. Here is a pic of the passenger side coolant hose on my setup.

In the pic you can see the "Y" allowing the expansion tank to drain into the system.

Air is bled from the system into the expansion tank (mounted in old battery box). The bleed line comes off of the thermostat neck on the drivers side and is routed across the valvecover over to the passenger side. There are other ways to setup the expansion tank, that's just how I did mine. Here is a picture of how I mounted and plumbed my expansion tank.


The heater feeds both exit to the rear of the engine (when mounted into a Fiero) For '86 (I think) and down Fieros, one needs to be re-routed, on the newer Fieros the coolant lines moved. (Mabey someone can clarify this) My solution was simply to shorten the one metal feed that comes off the coolant Tree on the passanger front corner of the engine so it stops about midway down the valve cover. Then I put a flare on the end to help grip the rubber hose and clamped it.
The other feed comes off of the thermmostat housing and exits towards the Fieros trunk. This line need no modifications as it lines up good with the Fieros connection.
This picture should help a bit.



FUEL DELIVERY

The 3400 fuel lines are very easy. The engine comes with two fuel lines, a feed and return line. They have rubber ends with a "Quick connect" fitting. This connector is not that "quick" unless you have the special tool to remove it. With patience it can be disconnected with a small pick. The ones on the engine are the "female" side of the connection. The "male" portion can simply be cut off from the fuel lines of the donor vehicle. Try to leave at least 1"-1.5" past the flare on the connection to connect a rubber fuel line to. Again I added a small flare at the very back of the metal tube and used two special fuel line hose clamps on each line. Then plugged them back in.
Here is what the "male" side looks like from the donor vehicle after it is cut off.


Alternately, the newer 3100 engines have a fuel rail with the "male" ends on the hardlines that supply the fuel rail. This is the opposite of the 3400. These could be connected directly with double clamped fuel hose. You will need to swap the injectors from your engine over to the 3100 rail as well.
You can see the 3100 rail in this pic.

This is a good solution for LX9/LNJ swaps as these engines have a "returnless" system requireing you to swap out the fuel rail to the older "return" style rail.

An even better (looking) solution is to buy the quick connect to AN adapter and build some custom braided fuel lines. I am working on this now and will post pics when I'm finished.
Here is what the adapter looks like.



BELT ROUTING

In my opinion if you are not going to need AC in your car. Then I would re-route the belt to the low mount alternator setup. The main benifit is this allows you to use the stock dogbone location; also avoiding having to trim the shock tower and notch the decklid to clear the alternator. To do this you need the AC bracket from an early 3100 equipt car. The bracket is not on all 3100's but there were quite a few. The 3100 AC bracket replaces the 3400/3500 AC bracket and the alternator mounts to it. A good portion of the 3100 AC bracket gets cut off as well. I'm am about 90% certain the '88 Fiero alternator will bolt to this bracket, however, I did mine many years ago now and I cannot say for sure. The alternator will need a new pulley to bring the belt into alignment. The stock tensioner from the 3400 is relocated, and the power steering pump is removed and replaced with an idler pulley. The idler I used was from a spare parts bin I had. Most people use this idler: http://www.rockauto.com/cat...reinfo.php?pk=347145

Here are a few pics to explain things better.




EXHAUST

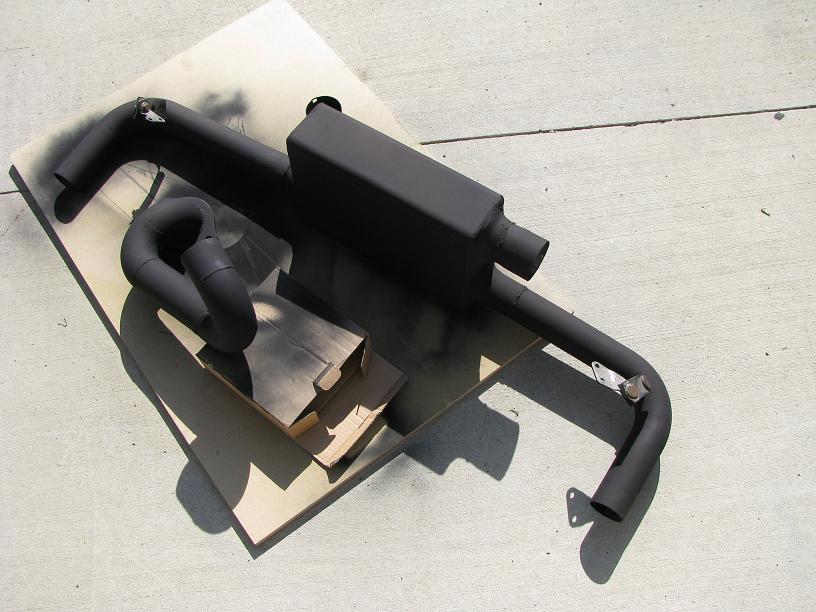

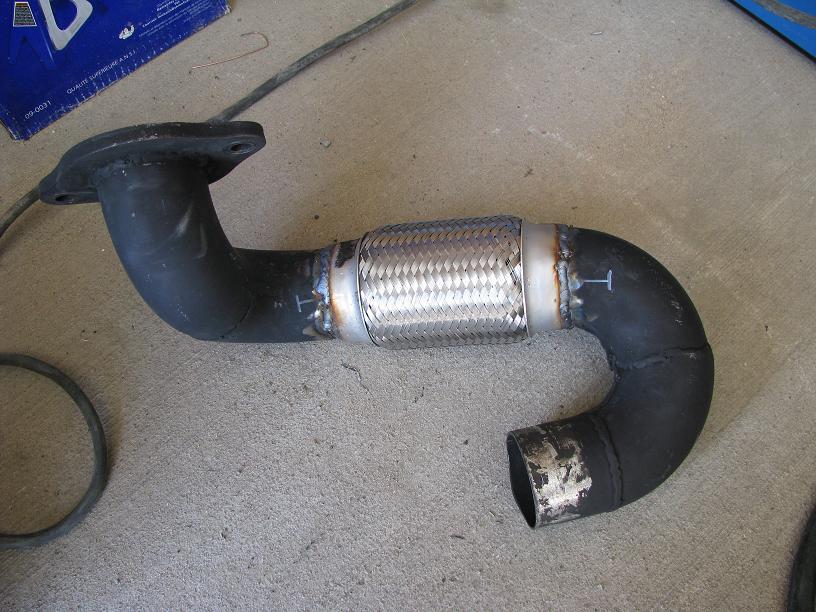

For my first exhaust I was using the 3400 manifolds and tried to make the system as simple as possible. I have since installed headers and re-routed the exhaust a couple times since. For my original setup, I cut off the connector from a 3400 equiped van and welded it onto the new pipe to connect to the stock manifold outlet. Here are some pics of my first system.



Here is another setup that would use the stock Fiero muffler and tailpipes.



You can use some Fiero 2.8L headers currently available on these engines with minor modifications.
First, the exhaust ports on the head are a "D" shape, unlike the 2.8L which are round.


You can purchase new exhaust flanges from TCE which can replace the ones on the Fiero headers.
Usually, you will need to clearence the crossover pipe around the thermostat housing. Some need more then others.




EXTRAS

I will try to compile all the small things I can think of here.
The throttle cable is quite simple if you are not running cruise. The stock 3400 cable bracket that is mounted to the throttle body will work. Some minor grinding is needed to allow the Fiero cable to lock into the bracket. Then a universal type cable stop can be installed that will fit into the throttle bodies plastic cable guide.
Here is a pic of the cable stop.

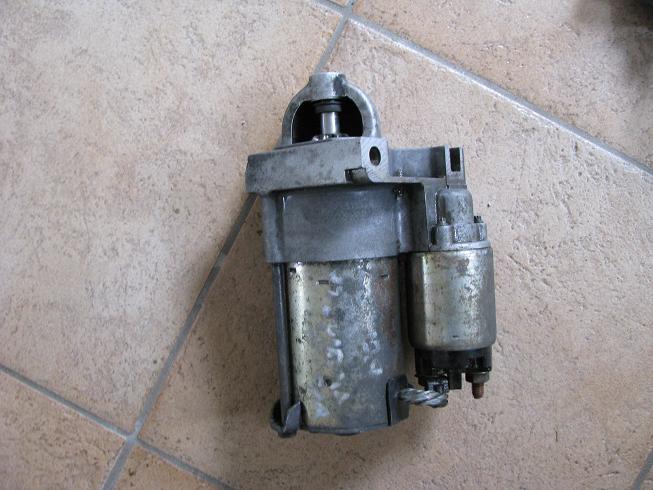

The stock Fiero starter will bolt up to the 34/3500 but I wouldn't bother. I would use the newer, much lighter gear reduced starters pictured here:


There are many options for the upper intake on these engines. Some are better for performance then others, some have other advantages. It is important to note that the upper and lower intakes should be from the same engine. For example you should only use a 3500 upper intake with a 3500 lower intake; when it is going on a 3400.

Early 3400 upper. Usually found in vans. The poorest performer due to restrictions in the neck of the intake. However, it is free of any markings on the top.


Newer 3400. Improved flow, but has the "3400" cast into it.

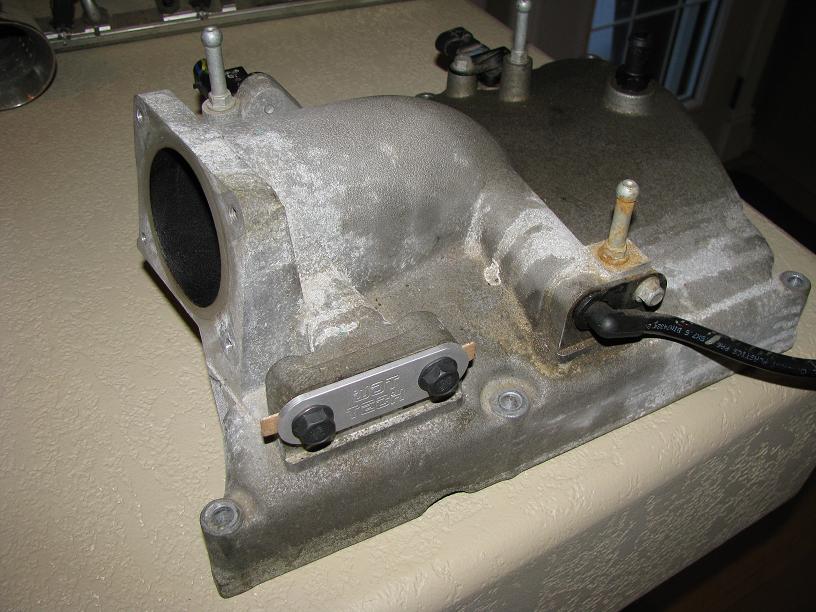

3500 upper. Larger volume and an increased 65mm throttle body opening. Void of any markings on top as well. Probably the best choice for the Fiero in regards to performance.


The Equinox LNJ upper. Largest volume and most even air distribution, but will not clear the Fiero decklid.


If you are swapping the 3500 LX9 you will need to convert the throttlebody to a manually operated unit. The 3500 uses a drive-by-wire TB. An aftermarket billet alum. TB is available from TCE. An alternative is to purchase an adapter plate from WOT-Tech and use the TB from the Olds LX5 V6. It is 65mm.

Note* you must match the throttle body to the intake between 3400s (or do some cutting.) The "3400 SFI" plenum has a notch for Idle Air Control, while the smooth plenum does not.
Newer 3400

Older 3400

I will try to keep this updated with more information and part numbers as I can. Enjoy.
