  In search of a simple plastic clip for the brake lines

Post New Topic  Post A Reply
Email This Page to Someone! | Printable Version


next newest topic | next oldest topic
In search of a simple plastic clip for the brake lines by Chris Eddy
Started on: 07-14-2020 12:58 PM
Replies: 10 (141 views)
Last post by: olejoedad on 07-16-2020 07:59 AM
Chris Eddy
Member
Posts: 439
From: Pittsburgh, PA
Registered: May 2016


Feedback score: N/A
Leave feedback

Rate this member

Report this Post07-14-2020 12:58 PM Click Here to See the Profile for Chris EddyClick Here to Email Chris EddySend a Private Message to Chris EddyEdit/Delete MessageReply w/QuoteDirect Link to This Post

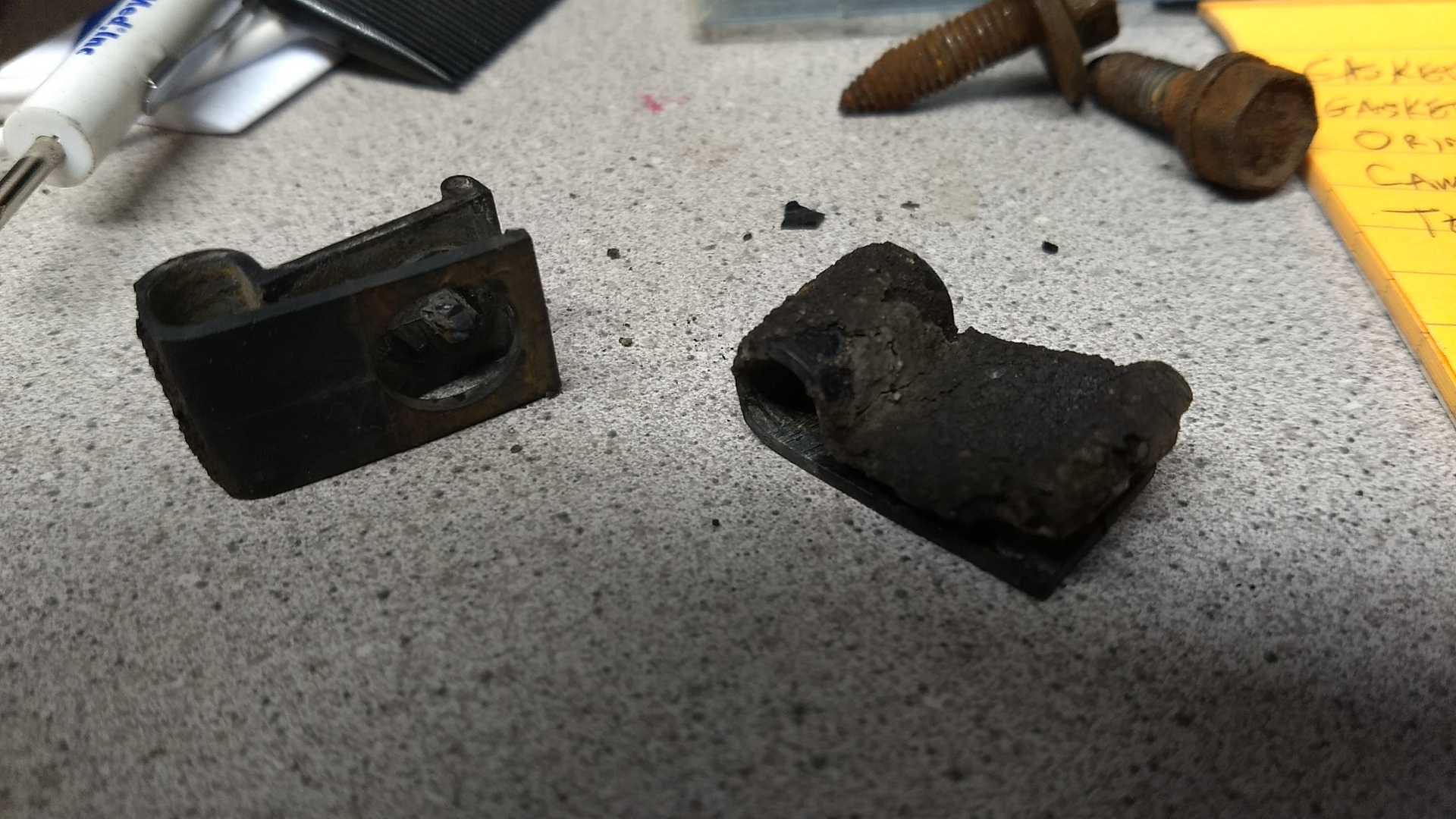

I know it is a little item, but here is the pic..

They are under the spare tire bucket, they strap the brake line to the metal brackets.
I know that I can just wire tie it together, but that is not quite right.. given a choice, I would get new plastic clips..
I do not see them on Rodney or TFS..
Based on this post..
http://www.fiero.nl/forum/Forum2/HTML/132585.html
I may be asking too much.
Anyone seen this before?
IP: Logged
PFF
System Bot
ltlfrari
Member
Posts: 5263
From: Wake Forest,NC,USA
Registered: Jan 2002


Feedback score: (4)
Leave feedback





Total ratings: 127
Rate this member

Report this Post07-14-2020 01:43 PM Click Here to See the Profile for ltlfrariClick Here to visit ltlfrari's HomePageClick Here to Email ltlfrariSend a Private Message to ltlfrariEdit/Delete MessageReply w/QuoteDirect Link to This Post

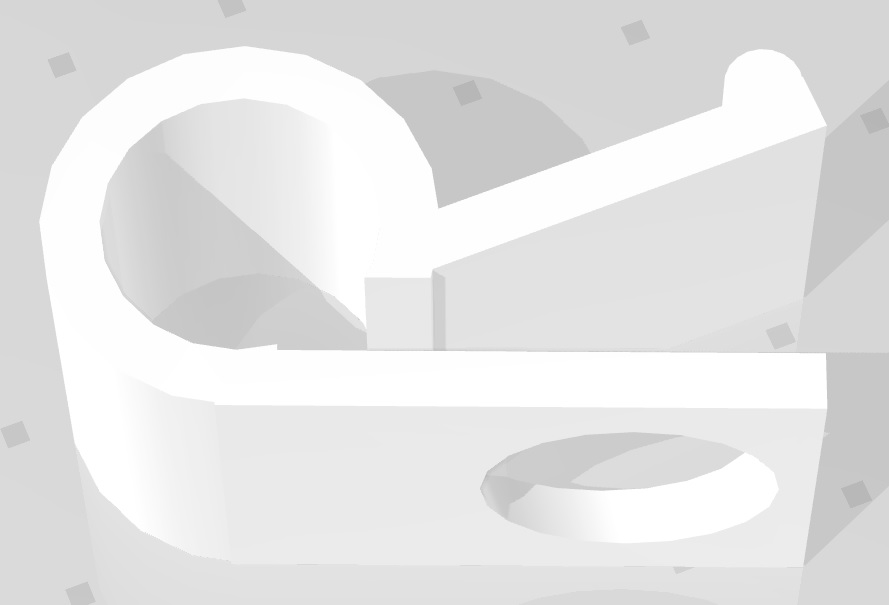

Something like this?



Send me measurements for the clip (I'm too old to go climbing under my car to do it!) and I'll see if I can 3D print one?

------------------
Anything I might say is probably worth what you paid for it, so treat it accordingly!

Dave

www.ltlfrari.com

IP: Logged
dremu
Member
Posts: 140
From: Livermore CA
Registered: Feb 2019


Feedback score: N/A
Leave feedback

Rate this member

Report this Post07-14-2020 02:55 PM Click Here to See the Profile for dremuClick Here to Email dremuSend a Private Message to dremuEdit/Delete MessageReply w/QuoteDirect Link to This Post

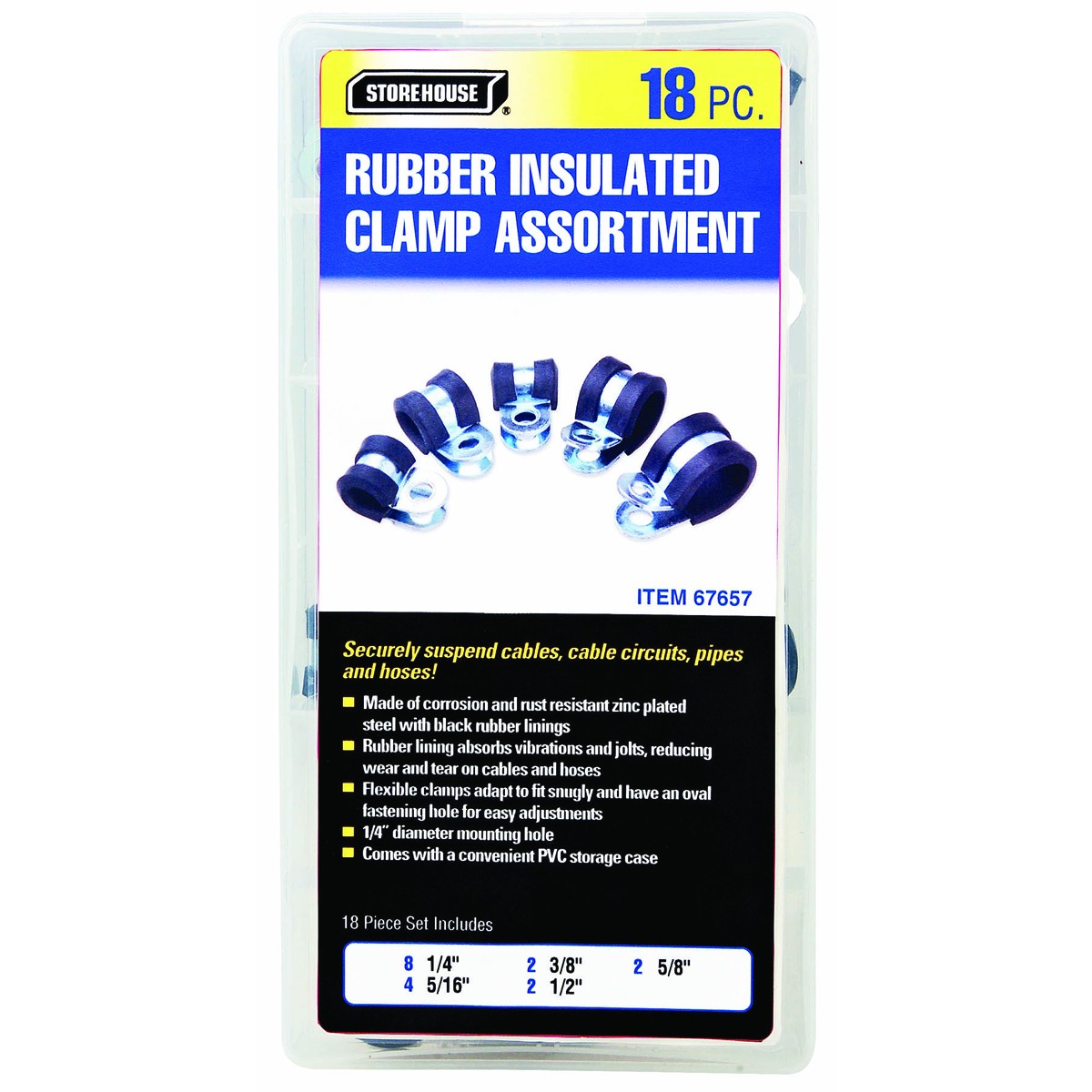

I just used wire clips from the hardware store, I think 1/4", like these
