Another EPS thread - 2013 Buick Lacrosse by qwikgta
Started on: 09-02-2017 07:48 PM
Replies: 6 (383 views)
Last post by: pmbrunelle on 09-04-2017 12:39 PM
qwikgta
Member
Posts: 4534
From: Virginia Beach, VA
Registered: Jan 2001


Feedback score:    (21)
Leave feedback





Total ratings: 83
Rate this member

Report this Post09-02-2017 07:48 PM Click Here to See the Profile for qwikgtaClick Here to Email qwikgtaSend a Private Message to qwikgtaEdit/Delete MessageReply w/QuoteDirect Link to This Post

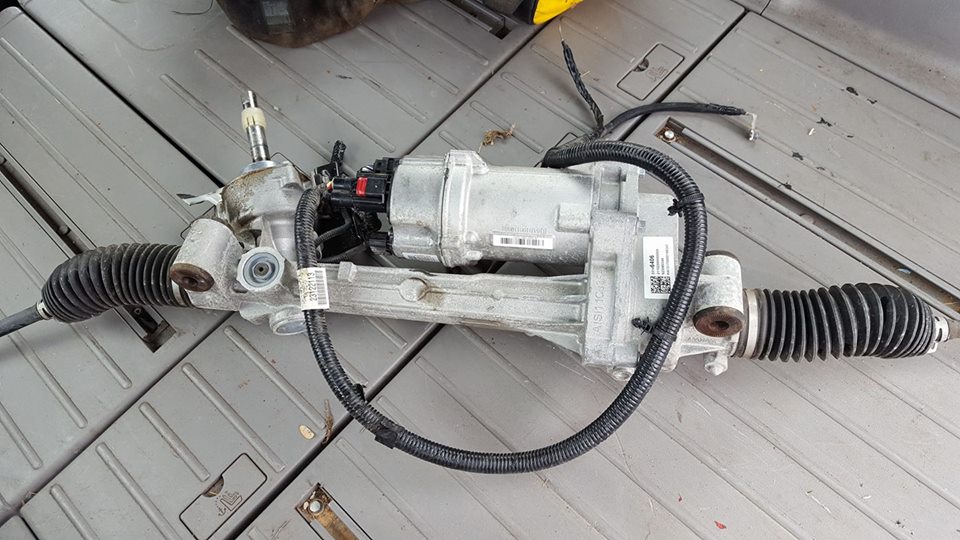

I know there are other threads about Electronic Power Steering, but I could not find anything about this specific EPS rack. Its off a 2013 Buick Lacrosse and I grabbed it up this weekend from my local Pick n Pull. I was able to get the wire harness from the power supply to the rack but the harness that was attached to the engine was cut. I'm sure that was all the wires that went to the BCM/ECM to control it. Has anyone looked into this rack. I like that the EPS unit is attached to the rack vs. attached to the steering column. No issues w/ installing it under the dash.






When i put the rack on top of my pulled 88 front you can see the the rack is w/in 1 inch of being the same size. End to end its an exact fit. Two issues are the rack boss's are way different and will require cutting off the stock rack mounts, and the other is the angle of the steering rack to steering column, it looks way off. I could create the mounts w/ a 45 deg angle that would help the steep angle, but its also off left/right too.

if anyone has any idea about the electrical, i'd appreciate any help.

Rob

------------------


88 Coupe, CJB #95, LS376, F40 and a GT clip
88 GT "Daily Driver" w/ SIII 3800 NA
