Russ544 SEP 17, 10:15 PM
Another abbreviated chapter today, but I have two days ahead of me with no obligations other than working on the IMSA project so perhaps a better chapter will follow by Monday.

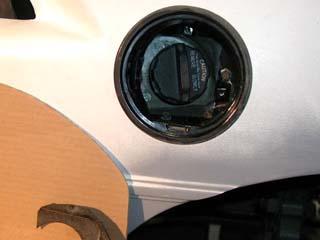

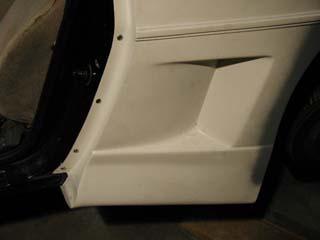

Today I worked out a solution for the fuel filler, which with the IMSA fender becomes recessed about 4" deeper, and lacks any provision for an outer fuel door. my trusty air reciprocating saw was used to remove the abbreviated cup provided (taped back into the fender for this photo).

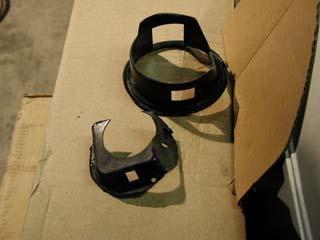

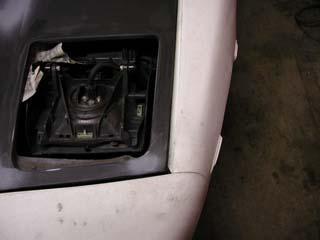

I wanted to utilize the Fiero flipper door, so some modifications were in order. I first thought of extending the metal fuel tube, but upon more detailed investigation I found it to be more work than I was willing to devote to it. The new filler opening doesn't line up with the old filler well enough to simply extend the metal pipe without a tricky curve. but by carefully removing most of the bottom of the fuel filler "cup", ......

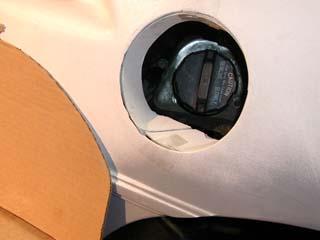

there is now room to reach the fuel cap without too much effort.
The areas originally used to secure the fuel cup to the fender are now out of reach, so I plan to bond my modified fuel cup, which retains areas used to support the cover latch and hinge mechanisms, to the fiberglass fender with the same 3M body panel adhesive used to attach the substructure to the rear clip fiberglass. Now when the filler door gets reinstalled everything will function the same as the stock unit, compleat with interior door release.


<front facia and fender installations come next>

[This message has been edited by Russ544 (edited 07-07-2009).]

NotAFieroAnyLonger SEP 18, 02:34 AM
Lookin' GREAT Russ!!

------------------
----------------------------------
*Custom-Shaved HandBuilt!!*
*FIRST-EVER CHOPTOP-WIDEBODY GT!!*
(( 4.9L-V8-5speed)) swap soon
-----------------------------------------------

Will SEP 18, 07:39 AM

quote
Originally posted by Russ544:
The areas originally used to secure the fuel cup to the fender are now out of reach, so I plan to bond my modified fuel cup, which retains areas used to support the cover latch and hinge mechanisms, to the fiberglass fender with the same 3M body panel adhesive used to attach the substructure to the rear clip fiberglass. Now when the filler door gets reinstalled everything will function the same as the stock unit, compleat with interior door release.

Just out of curiosity, once you do that, are you going to be able to remove the rear clip, should it be required at some point in the future?

------------------
Turn the key and feel the engine shake the whole car with its lope; Plant the gas pedal and feel in your chest neither a shriek nor a wail but a bellowing roar; Lift and be pushed into the harness by compression braking that only comes from the biggest cylinders while listening to music of pops and gurgles. Know that you are driving and American V8. There are finer engines made, but none of them are this cool.

Luck, Fate and Destiny are words used by those who lack the courage to define their own future

Russ544 SEP 18, 10:20 AM

quote
Originally posted by Will:


Just out of curiosity, once you do that, are you going to be able to remove the rear clip, should it be required at some point in the future?


Yes. even though it's bonded to the body panel now, the fuel filer "cup" has had it's base removed so it no longer captures the metal fuel filler tube (plus the metal filler is now below where the base was anyway). The three sheet metal screws which retain the metal fuel tube to the rear clip substructure can still be removed if one should need to pull the rear clip.

Russ

[This message has been edited by Russ544 (edited 09-18-2004).]

gascarracer SEP 18, 11:52 AM
You are doing a fantasic job. Keep it comming. Thanks.

------------------
Ernie

1988 Silver GT
One owner 47000 miles.
Soon to be a 3.4 DOHC powered.

blackrams SEP 18, 04:53 PM
Outstanding thread, has given me several ideas that may get used on my Pantero project. Hope you don't mind. The gas filler is one that I've been trying to figure out. Keep up the great work.

------------------
Ron
aka: Blackrams

Russ544 SEP 18, 06:47 PM

quote
Originally posted by blackrams:

Outstanding thread, has given me several ideas that may get used on my Pantero project. Hope you don't mind. The gas filler is one that I've been trying to figure out. Keep up the great work.


Glad to hear people are getting some usefull info and ideas out of this.
The process of observing others creations and then devising "but I'd do this part a little different here" ideas is what hot rodding is all about IMHO.

Russ544 SEP 18, 11:40 PM
CHAPTER 7

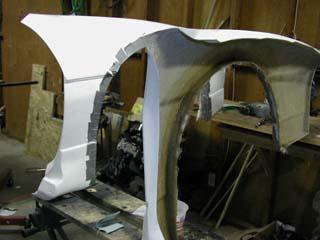

Not a bad day........ The front wheel openings received an enlargement similar to the rears, but the same process as used on the rear, with the temporary aluminum strip "molds", was used to replace the lip in the front wheel opening so I won't repeat those details.
