fieroguru NOV 19, 06:40 PM
Finally back working on the LS4 swap!

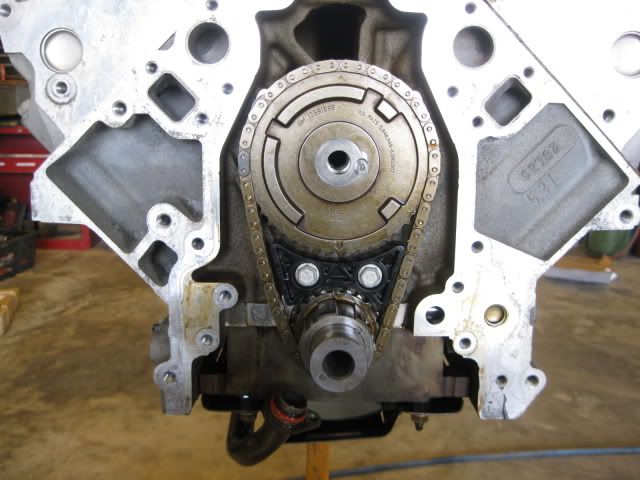

When I installed the camshaft it was supposed to come with the LS2 style chain guide. I couldn't see it in the box, so I left the stock LS4 one in. Well when I was packing up all the LS4 stuff to store it while working on the 383/Getrag, I found it... so first order of business was installing the LS2 timing chain guide:

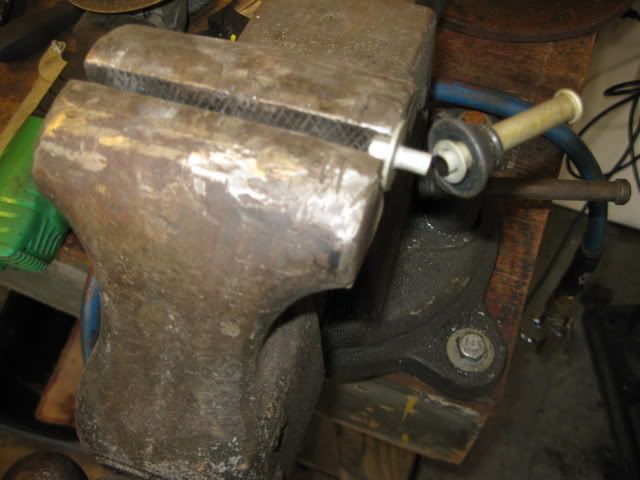

Then the engine was given a bath at the carwash and the reassembly began. My button head obsession required that I replace the valve cover bolts with stainless button heads. To do this the stock bolts had to be cut to remove the support sleeve.

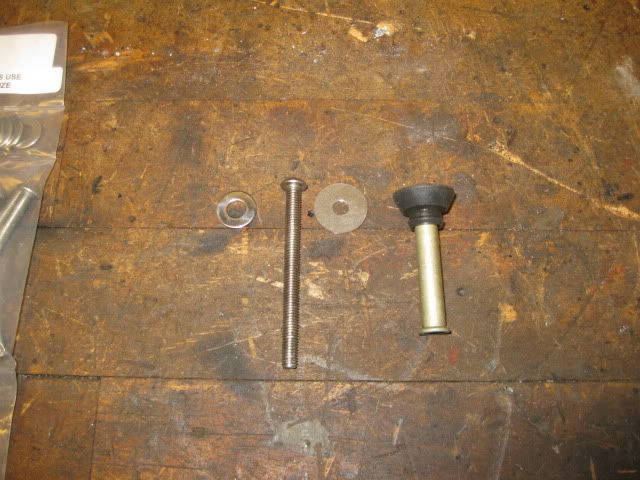

In this pic you can see the small washer on the left that some vendor thought would work fine for these bolts, but it is way too small, and the center hole as too much slop... the larger washer with the smaller hole is the one I modified:

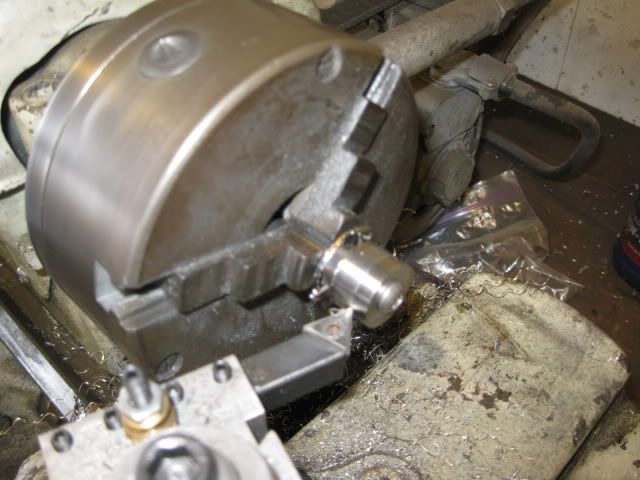

I stacked 10 on a bolt and put them in the lathe and turned them down to the desired size:

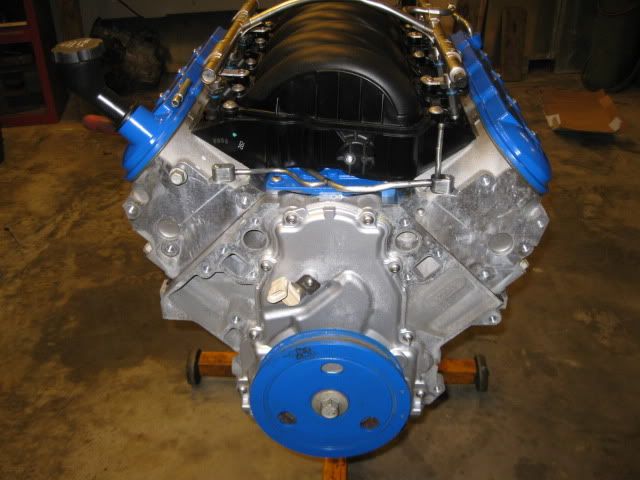

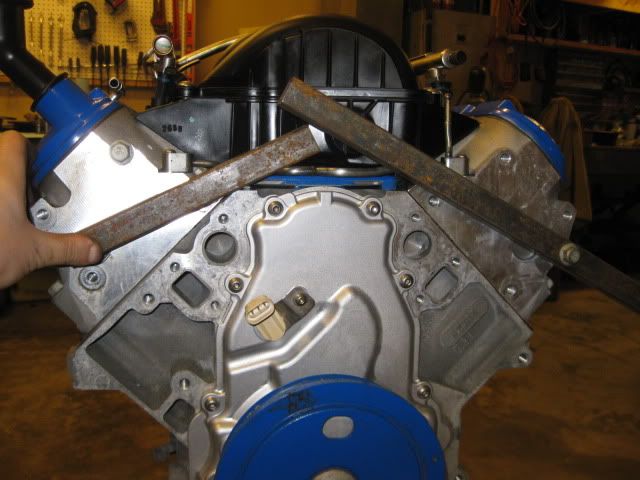

Here is a pic of the engine going back together... you can see the stainless button heads and the washers on the valve cover, also you can see the intake and fuel rail resting in place (I have the VOLM cover off being painted blue).

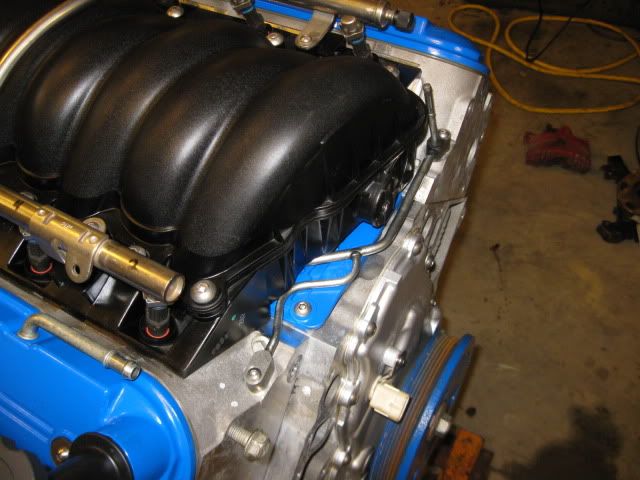

I painted the front timing cover, installed the stainless button heads and installed the balancer for the last time. It is hard to see in this pic, but I also cut the vacuum elbow off the end of the intake and tapped the holes for 2 plugs. The brake booster vacuum supply will come off the neck of the intake.


It will be a rather slow process as I clean everything prior to installation... I am also fighting the urge to redo the LS4 water pump...

[This message has been edited by fieroguru (edited 11-19-2011).]

KissMySSFiero NOV 20, 09:15 AM
I like the fact that the blue masking tape in the valley matches everything else.
Bloozberry NOV 20, 10:00 AM
Ooooooo.... that's purrrdy. Glad to see you're back on the LS4

I was flipping through the November issue of Street Rodder magazine the other day and thought about you when I saw this ad for a new low profile cast aluminum oil pan for LS series engines by Holley. Thought I'd stick a link to the product in your thread in case you or anyone else in the future might find it useful: www.holley.com/302-1.asp
dobey NOV 20, 10:47 AM

quote
Originally posted by Bloozberry:

Ooooooo.... that's purrrdy. Glad to see you're back on the LS4

I was flipping through the November issue of Street Rodder magazine the other day and thought about you when I saw this ad for a new low profile cast aluminum oil pan for LS series engines by Holley. Thought I'd stick a link to the product in your thread in case you or anyone else in the future might find it useful: www.holley.com/302-1.asp



Interesting pan. I think the C6 Vette pan would be a better choice though, especially for the Fiero, since it's baffled to avoid all the oil piling up on one side during heavy acceleration in any direction. I think it also fits the applications that Holley pan was designed for pretty well, though not entirely certain.
fieroguru NOV 20, 05:12 PM

quote
Originally posted by KissMySSFiero:

I like the fact that the blue masking tape in the valley matches everything else.



Its all about color coordination!
fieroguru NOV 20, 05:24 PM

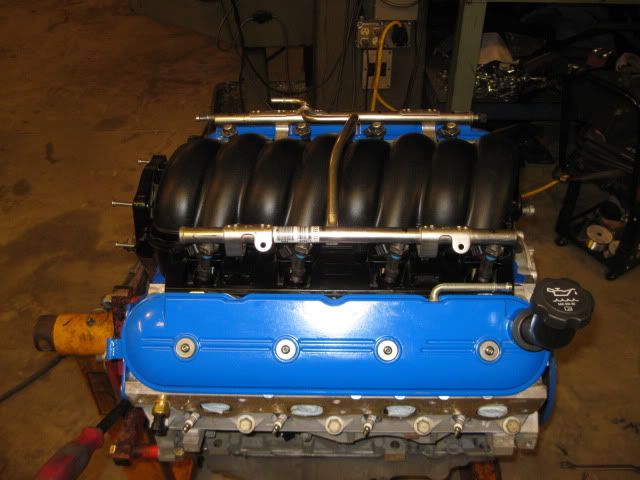

I was able to get the valley cover installed, if you look close you will notice I was slacking and only used the button heads on the bolts that will be visible:

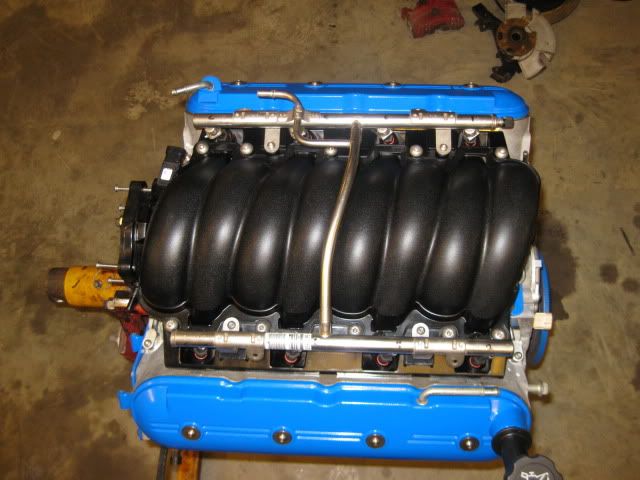

Then the intake went on with more stainless steel button heads:
