dobie1 JUL 01, 11:03 PM
Thanks for visiting and for the comments guys, much appreciated.


Shem anything happening on your build?

Wayne
dobie1 JUL 24, 12:06 AM
It's been a busy couple weeks , I put the dash HVAC aside to work on getting all the car wiring cleaned up and getting the new electrical wiring run at the same time.
#### I hate wiring !!!!
I've decided I needed to install a sub panel up front in the trunk area for all the additional relays and fuses associated with the additional lights on the grill . Also needed to run wiring for the switches in the centre consul, and the new pushbutton shifter and paddle shifter .
At the same time I decided I wanted to install a push button start , boy did I ever open up a can of worms, but its done and everything works great.
Pictures to come soon.

So the next step was to get the seat mounting points finalized and finish welding them hard points, that completed I cleaned it all up ]

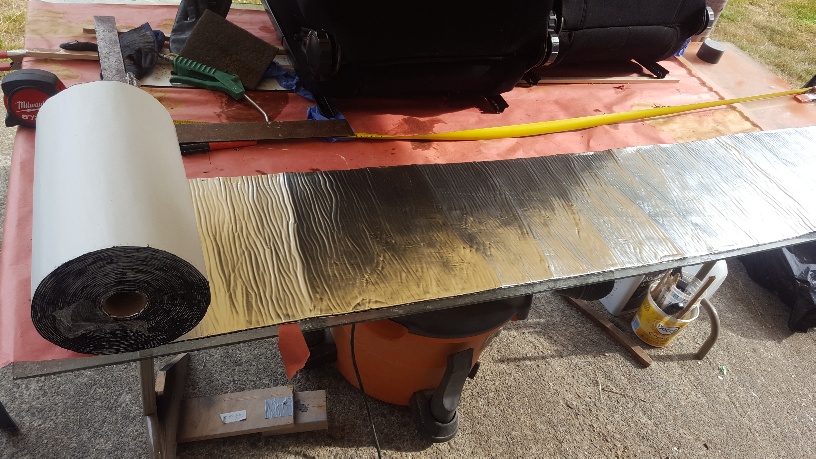

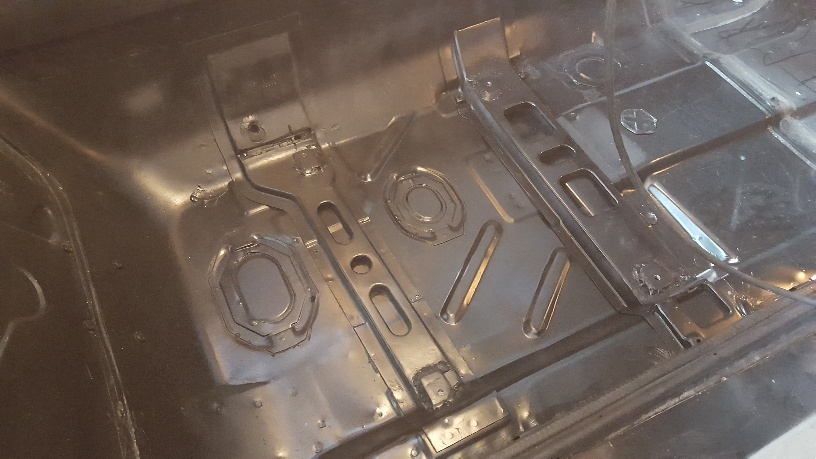

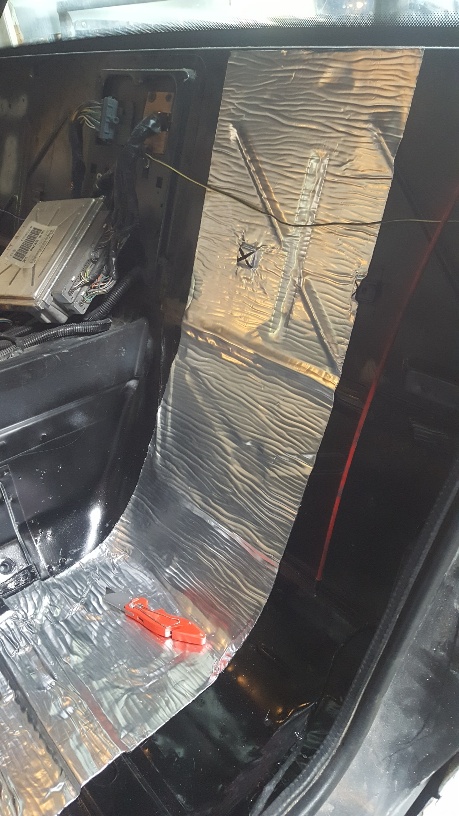

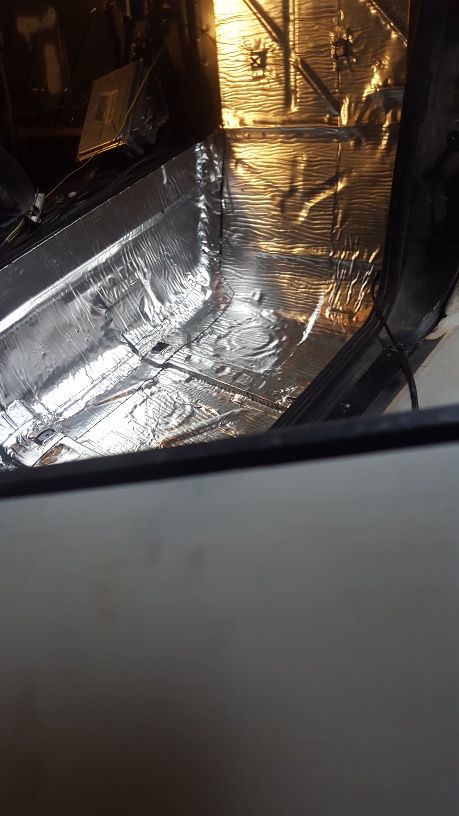

once that was done I am covering all the interior with Butyl sound deadening , in me 88 3800SC my wife hated how loud it was and always complained so seeing this one also has the 3800SC I'm hoping this will quite it down bit. I'm also going to put a quieter exhaust in in a couple months.





I did have a chance to do a carbon fibre Aux panel and instrument panel , They came out pretty good still need to wet sand to get the finish I want. Then need to cut out the hole for all the gauges. Again I'll post pics soon.
It seems the more I get done the more I need to do.

Wayne

[This message has been edited by dobie1 (edited 07-24-2019).]

dobie1 JUL 27, 10:13 PM

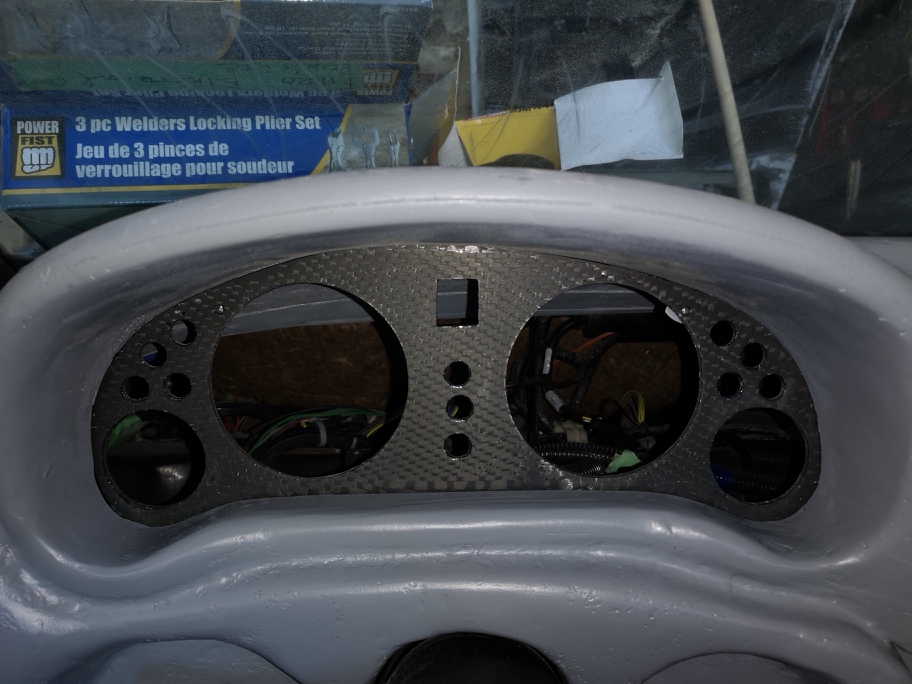

Here are a few pics from the build on the Carbon Fibre instrument panel, its still needs another coat of expo resin and then a polish but I'm quite happy with the layout.

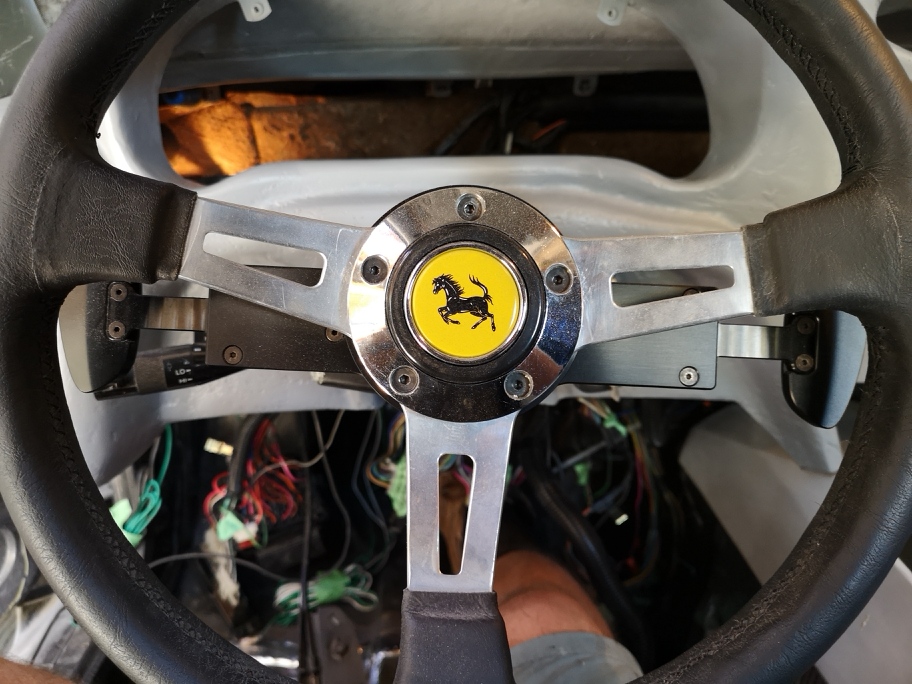

I also got the Paddle Shifter installed works amazing ,I can hardly wait to get the car on the road!!!



more pictures to come

Wayne
dobie1 AUG 05, 10:37 PM
Had my son and his new wife home for a week so not too much was completed during his visit.

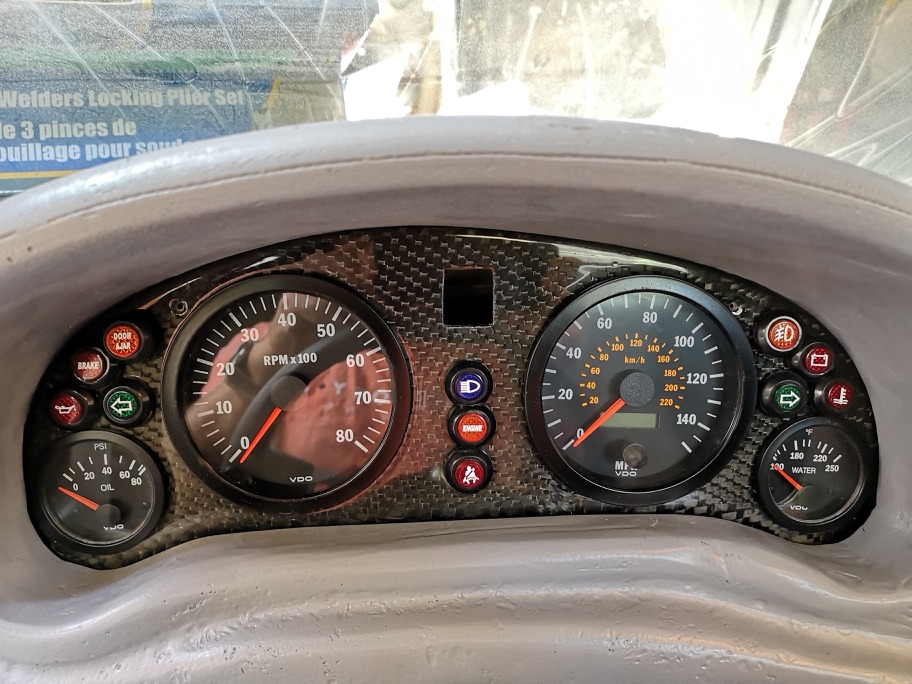

I did get a chance to wet sand and polish the dash today, I mounted all the gauges and advisory lights in the dash , getting the wiring bundles ready for the multi pin plugs.
The square hole in the middle is where the gear indicator gauge will mount .

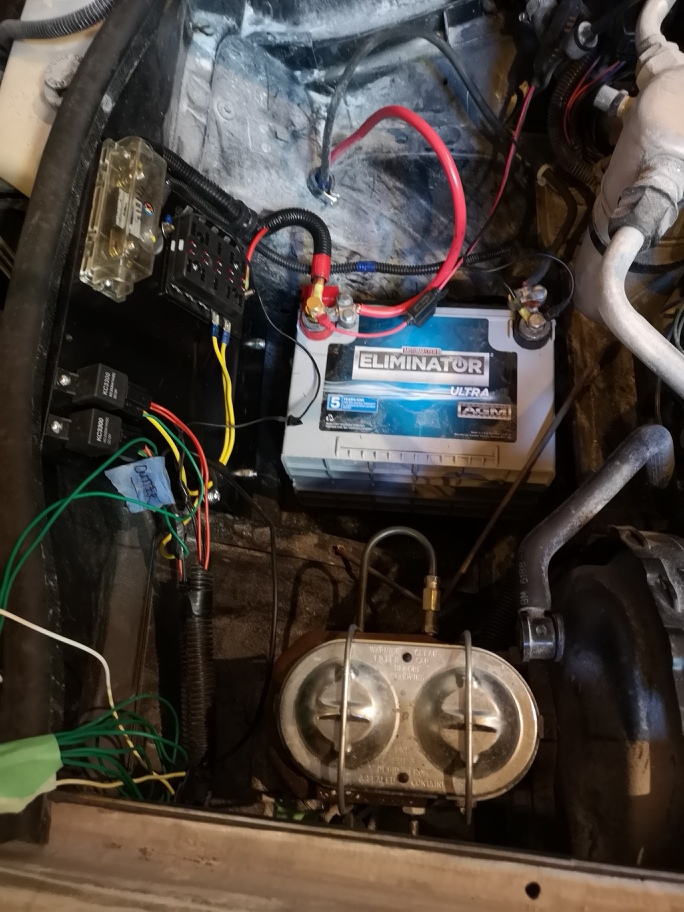

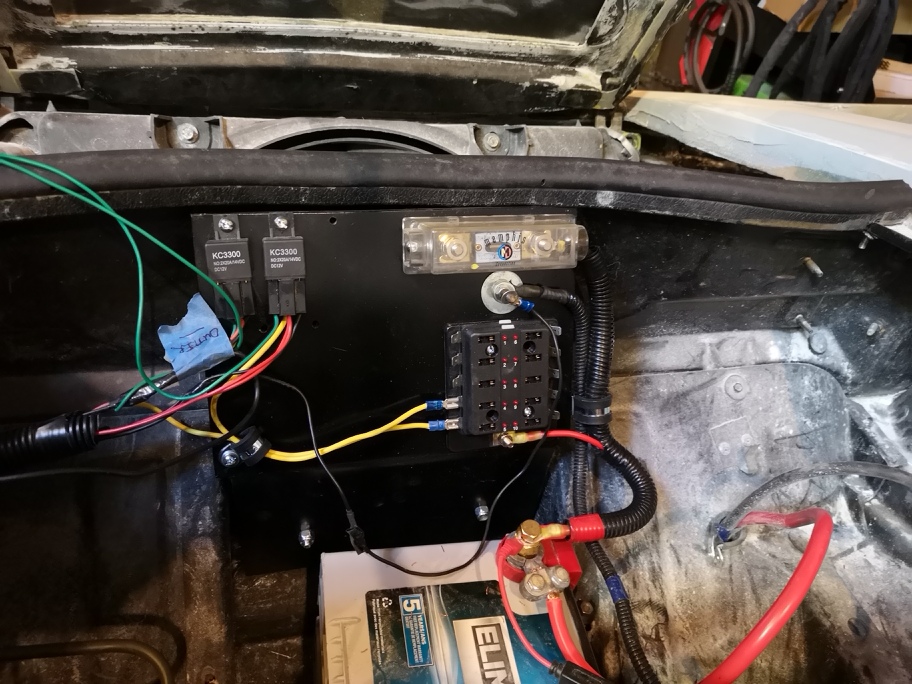

I got the new electrical panel completed and mounted upfront happily it turned out great.





Wayne

[This message has been edited by dobie1 (edited 08-05-2019).]
