| Starter wires (Page 1/1) |
|
M.aaron80
|
FEB 16, 05:49 PM
|
|

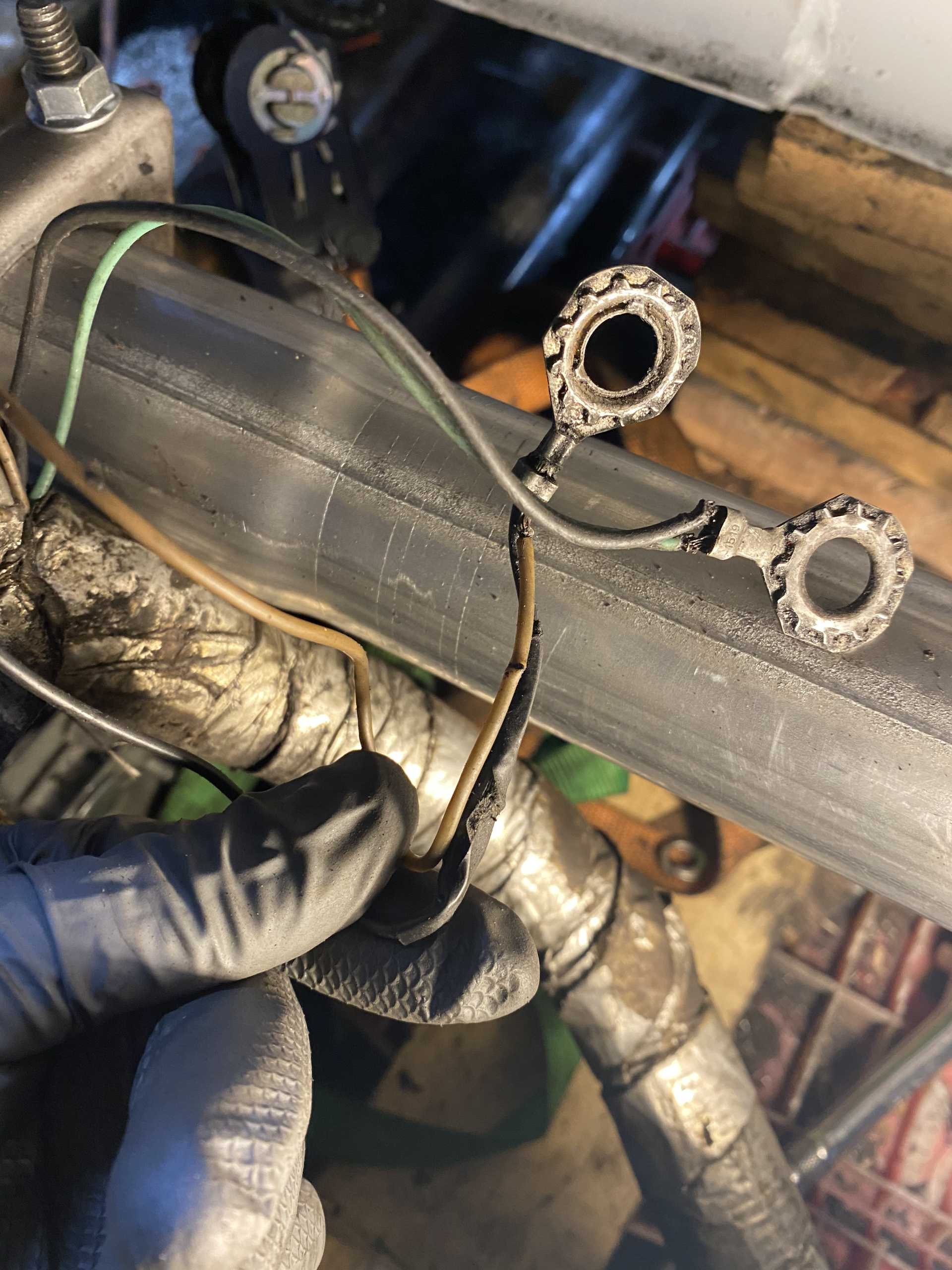

Does anyone have starter wires like this? I forgot how I took off. But I know one side should have a smaller connector and mine are both big and I’m sure one side should  be smaller so it will connect to starter on the small post. I tried to find a Diagram.
1 side is blk and green.
Other side is blk and brown.
|
|
|
|
FieroJimmy
|
FEB 16, 06:03 PM
|
|
The solenoid wire should be purple, generally. I believe those are both grounds.
What year and engine? I'll check the manuals/diagrams I've got.
|
|
|
|
theogre
|
FEB 16, 06:03 PM
|
|
They Are Not "Starter wires" but Grounds.
They often went to Stud Top bolts to mount trans on engine or stud top head bolt.
Can go anywhere except exhaust manifolt bolts etc.
Otherwise can be "A Hot Time in the Ol' Fiero Tonight" thread again...------------------
Dr. Ian Malcolm: Yeah, but your scientists were so preoccupied with whether or not they could, they didn't stop to think if they should.
(Jurassic Park)
The Ogre's Fiero Cave
|
|
|
|
FieroJimmy
|
FEB 16, 06:14 PM
|
|

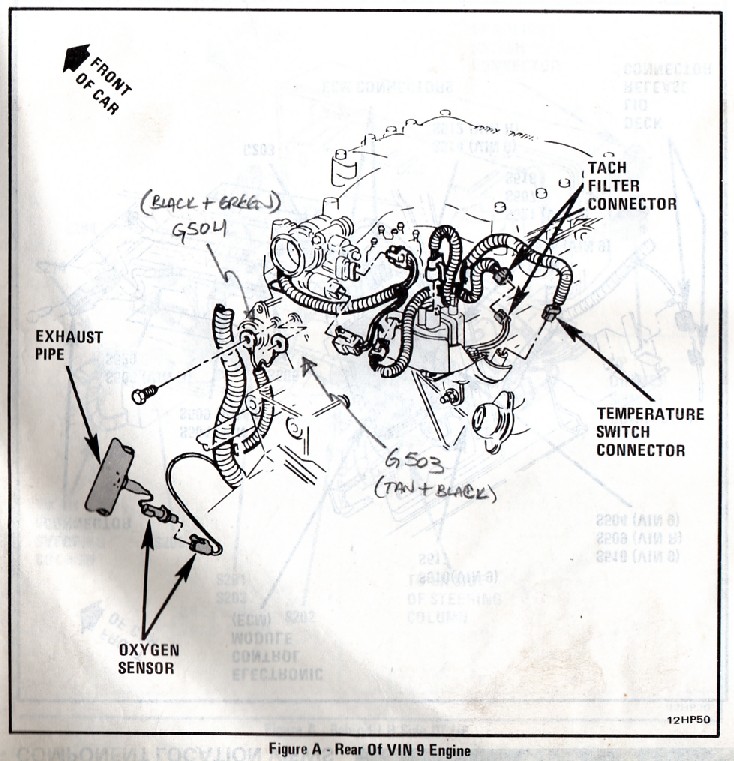

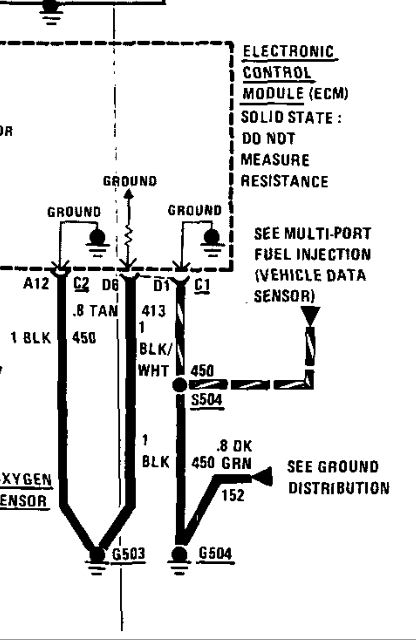

Those appear to be G503 and G504. They should go to the back of the forward cylinder head. But as Ogre said, they can go anywhere except the exhaust.
 [This message has been edited by FieroJimmy (edited 02-16-2020).]
|
|
|
|
Gall757
|
FEB 16, 06:48 PM
|
|
|
|
|
M.aaron80
|
FEB 16, 07:00 PM
|
|

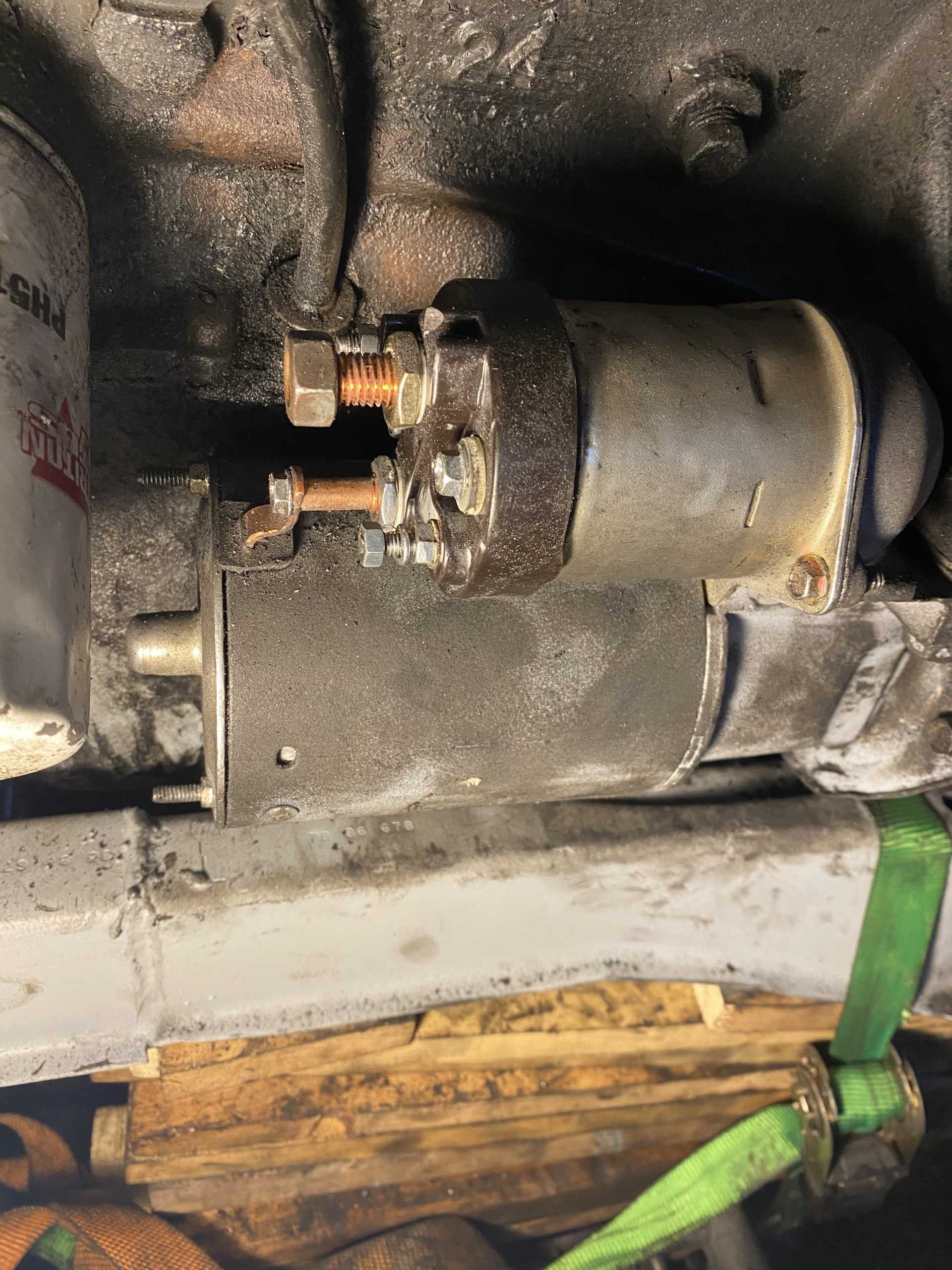

I have a 86 gt 2.8l. So it looks like the blk and green go on larger post on starter?
|
|
|
|
M.aaron80
|
FEB 16, 07:07 PM
|
|

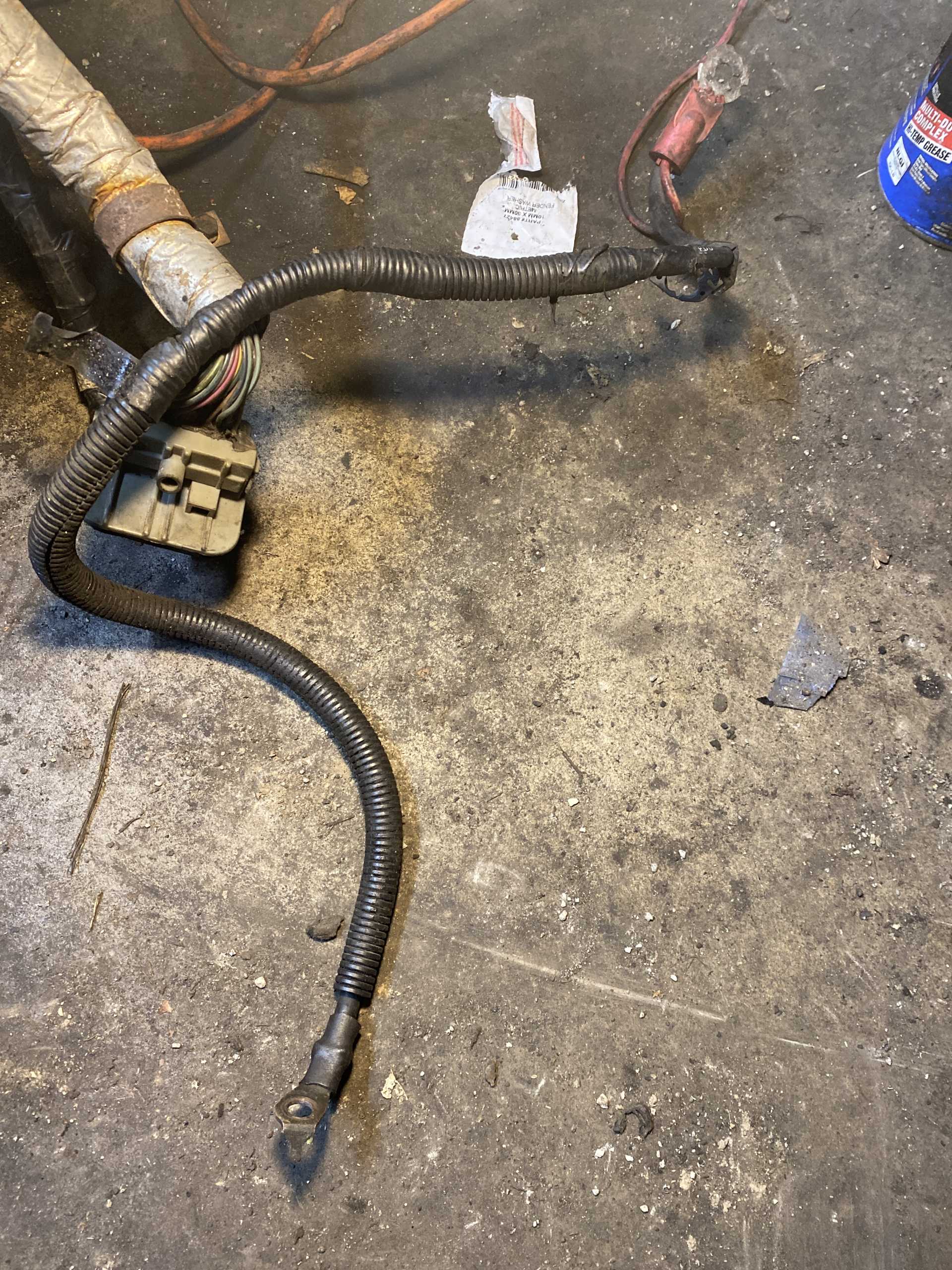

I think I have it figured out. I have engine pulled and forgot about positive cable for battery. Correct me if wrong but I think both of this wires go to smaller post and this one in photo only go to larger post on starter?
|
|
|
|
FieroJimmy
|
FEB 16, 07:12 PM
|
|
No. Both of the wires in the first picture are grounds. Neither goes to the starter.

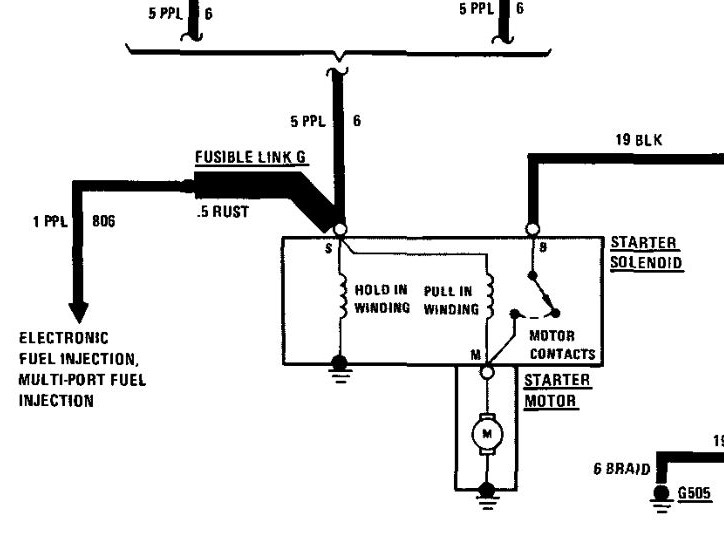

The heavy wire from the battery goes to the large lug on the starter. There should be a purple wire that attaches to the smaller lug.
 [This message has been edited by FieroJimmy (edited 02-16-2020).]
|
|
|
|
theogre
|
FEB 16, 07:39 PM
|
|
| quote | Originally posted by M.aaron80:
I have a 86 gt 2.8l. So it looks like the blk and green go on larger post on starter? |
|
No!
They are Grounds going to a bolt on engine.
OE bolt is this: (This is L4 engine rear side view but GM use 2 of them to mount trans to engine for most cars.)
 | | CLICK FOR FULL SIZE |
This is a bolt w/ other side hidden is often a bigger diameter and thread.
Starter big is + to battery. Not a ground.
Starter Small one is + to ignition switch. Not a ground.[This message has been edited by theogre (edited 02-16-2020).]
|
|
|
