Fabricating Custom Knuckles with plate steel (Page 4/7)
Bloozberry JAN 25, 04:00 PM
It can be made to work as long as your lower coil over mount is a pivot, not a rigidly fixed end.

We probably should take this discussion over to your build thread in the CZ.
wftb JAN 25, 04:32 PM
Yes .I would like to see more info about custom spindles .I have street dreams by ross drop spindles on the front of my car , but nothing is available for the rear .
wftb JAN 25, 10:25 PM

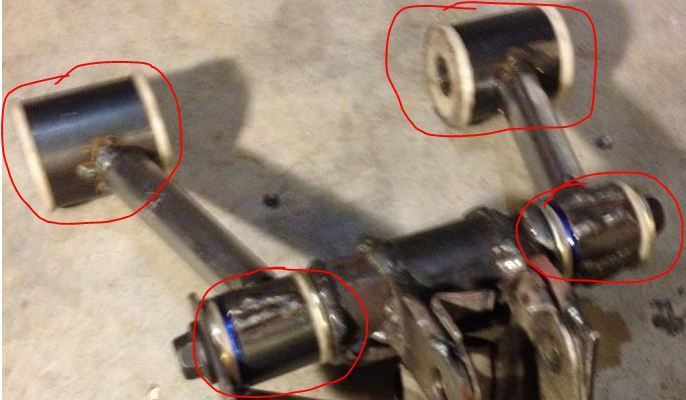

This is what will be used to hold the upper arms to the stub on the spindle .This allows me to get rid of the strut and use normal coilovers in the rear of the car .Using coilovers instead of Fiero struts gives you a choice of hundreds of shocks .We have a choice of three at present , none of them adjustable .I have coilovers on my 91 civic wagon that have 36 damper positions .And the set for all 4 corners was less than 1000.00 .Now this design you see in the pic is just a variation of what people on the locostusa website have done for quite a while now .the difference is that they usually use a true upper A arm with a ball joint and a tie rod .A locost frame has tons of free space to be able to mount the inner tie rod pivot in the perfect spot . I made this mount to eliminate the tie rod because :1 It is next to impossible to find the magic inner mount point(it is not where GM put it) and 2 with an upper arm setup like this , you simply eliminate the tie rod .If somebody would make spindles that could accept upper arms , then a lot of work could be saved and geometry could be improved .But most of the member made spindles still use a strut and are 88 style trailing arm suspension .And I am not interested in either of those features .So here is the pic of my mount system , I have not added the coilover mount yet and it will get cleaned up with the grinder before I paint it .I won't post any more on this thread because I have led it astray and all this is all on my own thread anyways .But I will hopefully comment if someone comes up with something good .

[This message has been edited by wftb (edited 01-25-2015).]

Knight JAN 26, 09:41 AM
wtfb, would you please post a link to your build site?
zkhennings JAN 26, 04:37 PM
He has the ecotec build in the CZ.

Are you planning on having the upper arm be the sole link that keeps the wheel straight?

I have been looking at essentially running square tubing from the cradle that would bolt to the underside of the strut tower where the strut would bolt, and building an upper A arm off of that. Obviously the profile would be complex to keep it close to the lower frame rails, I may bolt it to there in addition.... I will scan a picture of my idea... hold on for edit
wftb JAN 26, 05:38 PM

quote
Originally posted by zkhennings:

He has the ecotec build in the CZ.

Are you planning on having the upper arm be the sole link that keeps the wheel straight?

I have been looking at essentially running square tubing from the cradle that would bolt to the underside of the strut tower where the strut would bolt, and building an upper A arm off of that. Obviously the profile would be complex to keep it close to the lower frame rails, I may bolt it to there in addition.... I will scan a picture of my idea... hold on for edit



The plan is to eliminate the toe link and have the upper arm keep it all straight .So far I think it will work .If you go to my build thread you will see that it takes quite a bit of surgery and bracing to get a place to mount the arms .
KurtAKX JAN 27, 11:43 AM

quote
Originally posted by wftb:


The plan is to eliminate the toe link and have the upper arm keep it all straight .So far I think it will work .If you go to my build thread you will see that it takes quite a bit of surgery and bracing to get a place to mount the arms .



Where did you source your bushings and outer sleeves?
wftb JAN 27, 01:55 PM
West coast fiero 84-87 front bushing replacement kit .They have to be machined to fit the tubes shown .They actually fit stock control arms .I do not know if these are still available or not.These arms are just a mockup and the outers are getting machined to fit proper tubing now .
FIEROFLYER JAN 27, 04:32 PM
I really need to drop by one of these days to check out what all you are building after all you are only a half hour or so away. Dan

------------------


DARN Cars now open with
Over 30 years wiring experience between cars and trade as an avionics technician in both Canadian Air Force and civilian aviation.
Over 25 years experience building and modifying cars.
Over 10 years of full Fiero engine swaps and harnesses building and still going.

wftb JAN 27, 10:16 PM
That would be great .I work 12 hour rotating shifts so I will PM you my cell .Easiest way to get hold of me .Upcoming Super Bowl weekend :working nights lucky me .
