Sheared off the alternator pivot bolt (Page 2/2)
tnkgnr SEP 01, 09:03 PM

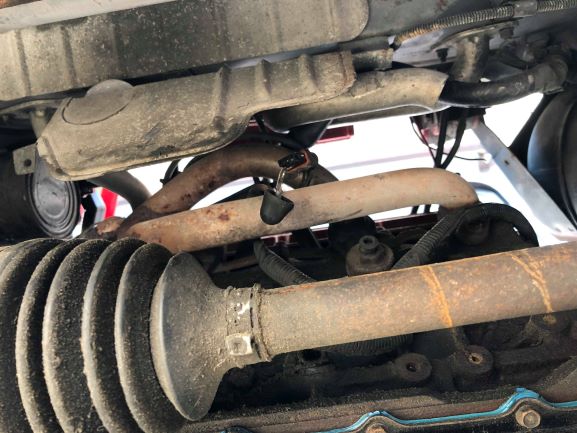

Welp, I was able to get the whole alternator and bracket out through the bottom! It looks like there's a metal sleeve that goes on the pivot bolt that might have been causing problems? Who knows...




It was an extremely tight fit, but I was able to get the whole assembly out through the bottom. Pulley was towards the back of the car.
Patrick SEP 01, 09:56 PM

quote
Originally posted by tnkgnr:

It looks like there's a metal sleeve that goes on the pivot bolt that might have been causing problems?

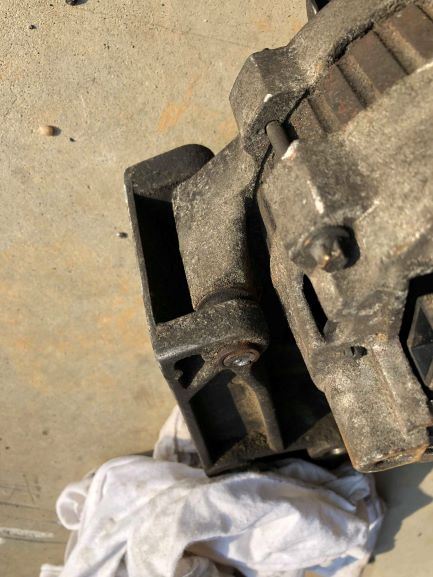

I believe that steel sleeve is part of the bracket. Did the bolt rust solid to that... as opposed to the bolt getting stuck in the aluminum threads?
fierosound SEP 01, 11:06 PM

quote
Originally posted by Patrick:

I believe that steel sleeve is part of the bracket. Did the bolt rust solid to that... as opposed to the bolt getting stuck in the aluminum threads?



That seems very likely... and the head of the bolt broke off.
Wow - that could be a problem separating all that.

GM PN from the P22 Parts Book is # 10028767 - sleeve, generator bracket
It's a floating sleeve to "take up the slack" in the bracket opening and the alternator.

Been used on GM products forever.
Use anti-seize in that sleeve upon reassembly too.

Typical GM pic below. It is Part #8

[This message has been edited by fierosound (edited 09-02-2019).]

Dennis LaGrua SEP 02, 07:14 PM
If that bracket keeps giving you trouble, you can buy a brand new one from the Fiero Store. As those brackets age they corrode and work harden. Broken brackets are common and we've replaced quite a few of them.

------------------
" THE BLACK PARALYZER" -87GT 3800SC Series III engine, custom ZZP /Frozen Boost Intercooler setup, 3.4" Pulley, Northstar TB, LS1 MAF, 3" Spintech/Hedman Exhaust, P-log Manifold, Autolite 104's, MSD wires, Custom CAI, 4T65eHD w. custom axles, Champion Radiator, S10 Brake Booster, HP Tuners VCM Suite.
"THE COLUSSUS"
87GT - ALL OUT 3.4L Turbocharged engine, Garrett Hybrid Turbo, MSD ign., modified TH125H
" ON THE LOOSE WITHOUT THE JUICE "

tnkgnr SEP 02, 08:42 PM
Completely forgot to check the Fiero Store. Just picked one up off of ebay for a few bucks cheaper.
