| Faster power windows with 2 relays per door (Page 2/3) |
|
Fie Ro
|
APR 27, 06:29 PM
|
|
|
|
|
thesameguy
|
APR 27, 07:49 PM
|
|
|
I really enjoy your center console - any chance you could give a larger view of it, and a brief description of how you got there?
|
|
|
|
theogre
|
APR 28, 04:48 PM
|
|
| quote | Originally posted by Mike Gonzalez:
.jpg) | | CLICK FOR FULL SIZE |
|
|
A note I missed... Turn relays so top is pointing up and coat terminals w/ bulb grease or brake/silicone grease.
Why?
Door guts are very wet when car is washed etc.
Helps keeping terminals dry/drier.
Is another reason to do this in the A pillar.
Orig88GT-NC, thanks for the socket #. Many sells single sockets as pig tails.
The pig tails are easy to work with.[This message has been edited by theogre (edited 04-28-2015).]
|
|
|
|
sjmaye
|
APR 26, 10:24 AM
|
|
| quote | Originally posted by theogre:
Thanks.
Do this at A pillars is allot easier. You don't need to dig into the door. (Your car is in the shop but others can to same at A pillar below the dash.) A pillar you get a better ground too. If you ground in the door then ground path goes thru hinges and latch. Is not a good plan to do that.
|
|
Is there a write-up on this mod? I looked through the cave and could not find it.
|
|
|
|
fierosound
|
APR 26, 10:52 AM
|
|
|
|
|
theogre
|
APR 26, 03:10 PM
|
|
| quote | Originally posted by sjmaye:
Is there a write-up on this mod? I looked through the cave and could not find it. |
|
Not there. Just follow top post but pull down carpet to access car side wiring on A pillar inside of car.
You add power and ground wires to the relays but should be same size as wires to the motors and pink wire...
Power should come from same + pink wire for PW switches w/ 30a Breaker protecting the circuit.
But You have to "rewire" OE PW switches to use them too.
Likely Drk Blu and Drk Bru/wht goes to up relays. Brn and Tan to down relays.
These Wires get short to ground for oposite direction but easy the release the ground wire on the switch plugs by pushing very small screwdriver in front slot and pull out from back.
(Could likely ignore that ground wire since relay coils won't care if connected to ground on both ends.)
Maybe can get pink wire by removing bottom trim for dash pod. It goes behind and under the radio. Not sure exact where. Been a long time since I took the dash out.
Based on above plus Fiero SM. Note that SM diagram and others is wrong. Correct switch is a 3 position type w/ center off by default.
They should be installed in the A pillars or under dash too.
Why?
Either area shortens the main power to the relays and motors.
If a relay dies can quickly replace a relay. If needed for emergency can jump the relay(s) too. But Cheap Simply relays last for many years and most won't need to worry about that.
Plus keeps out water etc from relays in the door.
|
|
|
|
sjmaye
|
APR 27, 06:07 AM
|
|
| quote | Originally posted by theogre:
Not there. Just follow top post but pull down carpet to access car side wiring on A pillar inside of car. |
|
Want to fully understand the details. Please bear with me. Do I assume from above that I am pulling the carpet back to expose the PW wiring going the cabin through the rubber bellows out to the PW motor in the door? So, I will be positioning the 2 new relays just before the wiring leaves out to the door?
| quote | Originally posted by theogre:
Power should come from same + pink wire for PW switches w/ 30a Breaker protecting the circuit. |
|
Understood. I have located this via the factory service manual
| quote | Originally posted by theogre:
But You have to "rewire" OE PW switches to use them too.
These Wires get short to ground for opposite direction but easy the release the ground wire on the switch plugs by pushing very small screwdriver in front slot and pull out from back.
(Could likely ignore that ground wire since relay coils won't care if connected to ground on both ends.) |
|
The IGNORE thing here. So do I or do I not remove that wire from the PW switches? I get by when it comes to wiring, but can you explain why the PW switch wires were originally wired to short to ground and why that wire is removed for this new configuration?
| quote | Originally posted by theogre:
Maybe can get pink wire by removing bottom trim for dash pod. It goes behind and under the radio. Not sure exact where. Been a long time since I took the dash out. |
|
I have to do some gauge cluster work anyway. I will find the pink wire then.
Thanks for your help, Ogre.
|
|
|
|
theogre
|
APR 27, 12:00 PM
|
|
Pull down carpet so don't mess w/ doors at all. Just pull down and see. May need to pull trim screws to pull down carpet. Should Have enough wires after seeing them to put relays under dash not in A pillar or under carpet. More so w/ dual relay pigtail shown above etc.
You Wire the new relays on car side of PW connector in A pillar so anyone can remove or even replace the doors w/o bothering abound wiring.
Example: If top post had a door wreck in a crash and body shop doesn't know abound relays will cause problems and could fry any mod'ed PW switches sim to Fie Ro mod interior.

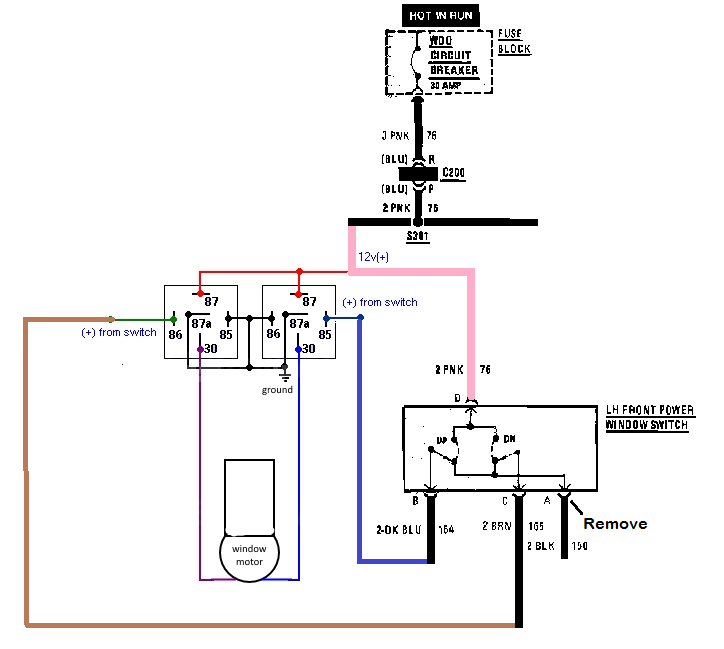

OE PW Switch for Fiero and Many others not just GM cars is made to reverse power to the motors for up and down. The "jumpers" for this is Built into the switch. Both Switch contacts are tied together to connect middle to top or bottom as you push one side or the other. (you pushing up makes contacts moving down because of rocker pivot.)
 | | CLICK FOR FULL SIZE |
Switch ground isn't needed for the relays and can remove that the wire from switch plugs and tuck it out of the way.
Or not as I said in (). For simple relays, I would remove the black wire and fold/stuff ends away. It doesn't need tape or whatever but won't hurt.
Could put a note/sign under them warning the car has relays (or RD's "module") in the A pillars or wherever to run PW now. You know but other won't working later.
Remove the terminal same way in my Cave Defect & Connection notes w/ bent wire.[This message has been edited by theogre (edited 04-27-2020).]
|
|
|
|
LornesGT
|
APR 27, 10:59 PM
|
|
|
|
|
theogre
|
APR 28, 02:56 AM
|
|
| quote | Originally posted by LornesGT:
I added this for one touch control but window are still slow with the new dew wipes.
amazon.com/Dire...n/dp/B00H4N1Y2O... |
|
No surprise because most don't fix/clean the window tracks, regulator and more when they replace dew wipes.
Plus the soft "pop rivets" GM used has worn out making everything loose and even window moves on the track it's attach to.
New Motors, relays, RD's module, and other "mods" often won't help until you fix the rest of window parts.
Relays mainly keep the PW Switch from burning out the contacts over time.
Reducing Wire path to power the motors may help but many Relays and RD module next to the switches doesn't matter. Only time they speed up is when OE switches have already burn some.
Cheap relays can burn too but easy to replace if installed near A pillar. These relays should last 5 to 10 years or more depending on several things.
RD module have relays w/ "snubers" to prevent contact burning but way too expensive for many.[This message has been edited by theogre (edited 04-28-2020).]
|
|
|
