I believe that there are many people here who would love to be able to 'mod' their already owned 90's Pontiac CD radio themselves and save some money, but after searching here/everywhere on the web for a definitive "how to" method, I keep coming up empty.
All the sources I have found for information conclude with reason to leave doubt if it will even actually work or state how a CD has to be installed to trick the radio or a switch has to be added, etc/etc.
I know that there is in fact a way to add an aux input jack(with the right amount of pins?) that doesn't require tricking the radio or adding a 3 position switch, etc/etc.
I have a soldering iron, minimal electronic experience, a couple of these radios already in my possession, and the desire to learn how to do it if anyone would be kind enough to offer this information.
I realize that people are already offering these modded radios, but I'm not looking to step on anyone's toes/sell modded radios.
I would just like to be able to do it myself to a radio that I already own.
Even if anyone can post a link(s) that explains a definitive method that doesn't include "blowing fuses",someone saying "this won't work", or "I know a better way"(with no explanation) I would be grateful because I haven't found anything yet.
Thank you in advance!
|
|
|
IMSA GT
|
JUN 10, 05:57 PM
|
|

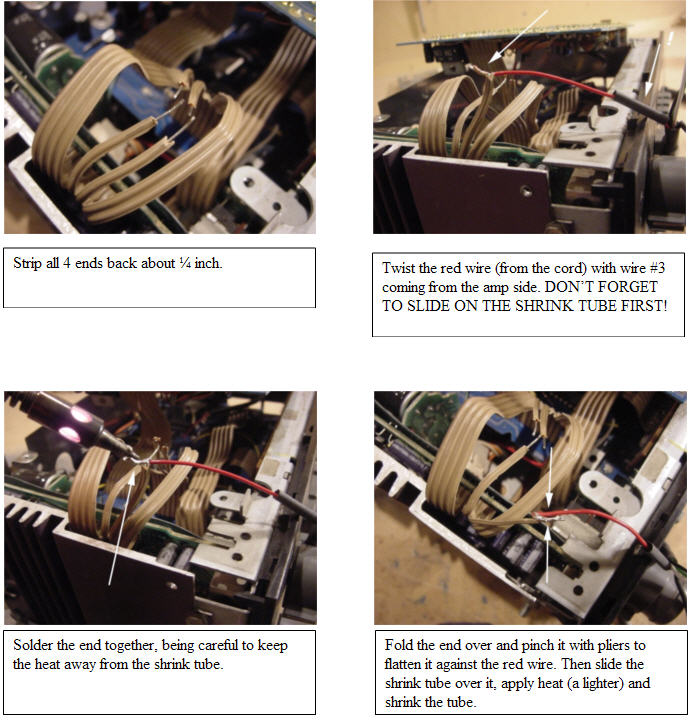

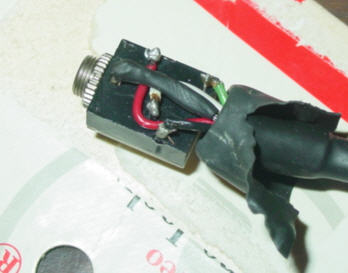

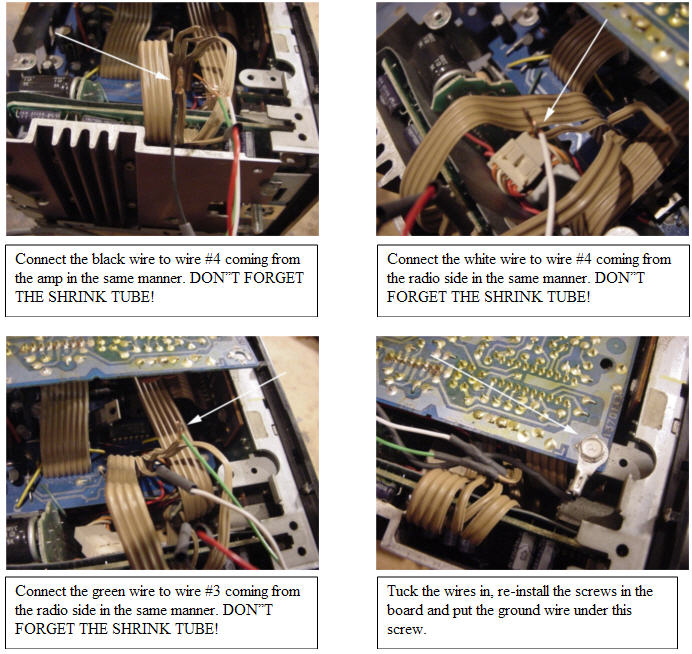

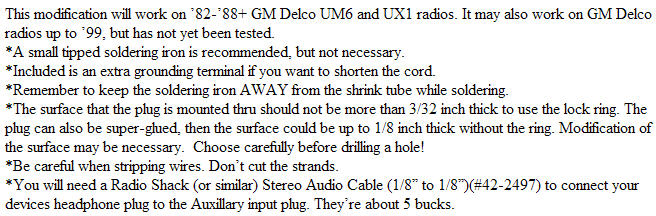

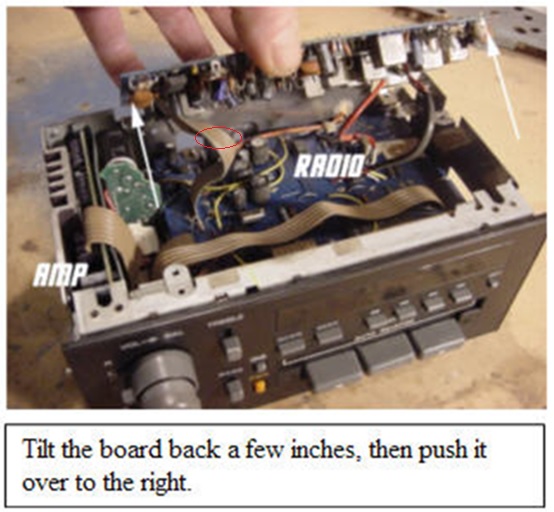

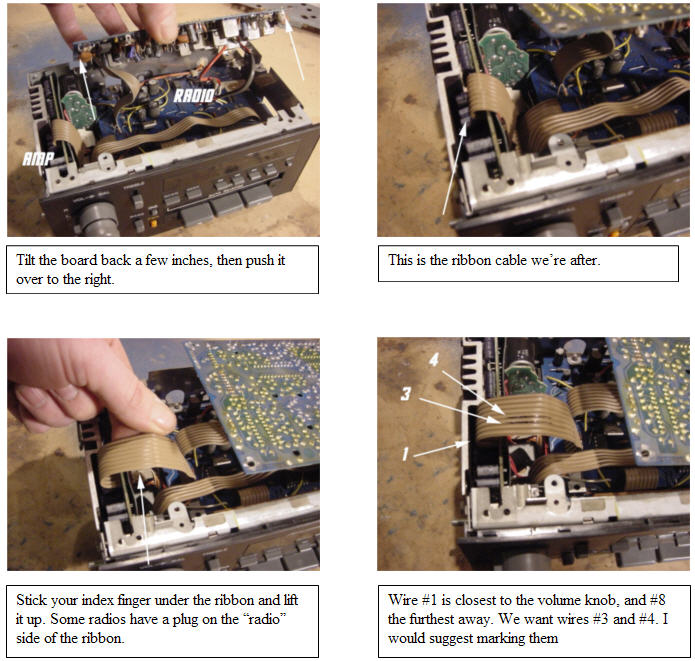

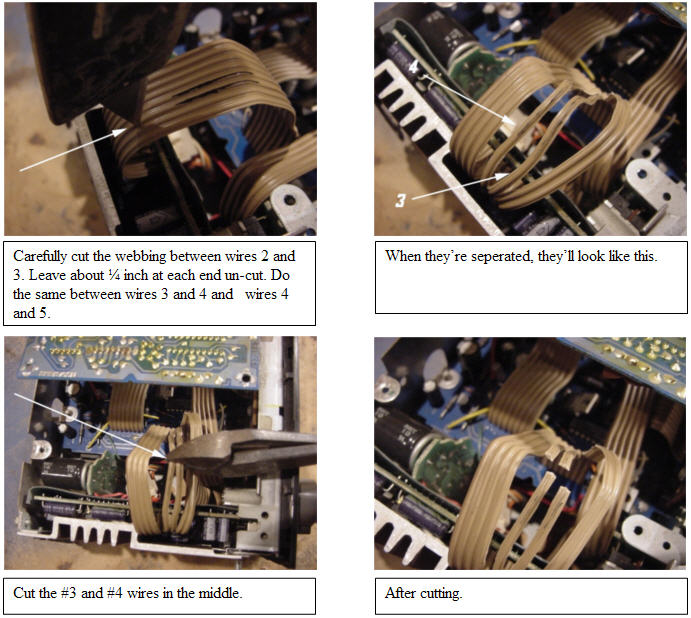

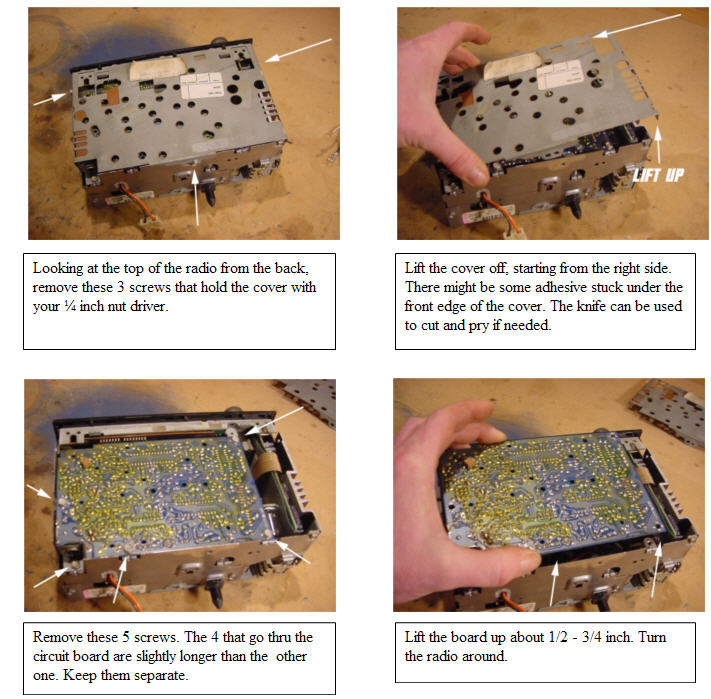

I stole these from someone on here. I can't remember who so I can't answer any questions about this. Maybe someone else can chime in if you have any questions. This is if you want an external mounted aux input on your dash. If you want it on the actual stereo, obviously just shorten your wiring and mount it on the face of the stereo.
|
|
|
|
86.4SPD.GT
|
JUN 10, 06:14 PM
|
|
|
Thank you for the reply and all of that information! I will look it over and maybe others can comment on whether or not this will in fact work with the slightly newer Pontiac CD radios as well. I read where it says it will work on radios up to '99, but I believe the radio I have was offered up until like 2002 or so. It is the 7 band EQ version, similar in appearance to the monsoon version.
|
|
|
|
IMSA GT
|
JUN 10, 06:24 PM
|
|
See this thread and you can see the variation of stereos that Tom has done. I believe your model is shown. I assume the guts may be the same as far as the input wiring.
http://www.fiero.nl/forum/Forum4/HTML/075303.html[This message has been edited by IMSA GT (edited 06-10-2018).]
|
|
|
|
Fiero Thomas
|
JUN 10, 08:12 PM
|
|
|
|
|
86.4SPD.GT
|
JUN 10, 08:16 PM
|
|
Actually, soon after becoming a member here and seeing Tom's thread is where I got the desire to have one of these radios(with the aux input jack installed). I did post with interest to purchase one from Tom in that thread, but between my unfamiliarity with this site/private message system and the fact that Tom seemed to sell his last radio, I wasn't able to make a purchase from him.
After about a week and not realizing that Tom would end up having more for sale, I purchased a couple from eBay(without the input jack).
I do believe that Tom does do great work. Right now though, I have 3 of these radios, a good soldering iron, 10 of the 3.5 mm aux input jacks(5 pin) that I purchased, and the desire to try and learn to do it myself(just for myself-not to try and undercut anyone or step on anyone's toes).
I have checked online quite a bit for the exact radio that I have and directions to add that aux jack, but it seems that all of the radios I have found information for are either newer or older than the one I have.
I believe that this would surely help many people here who may be able to do this type of work and also contribute to the vast amount of information that this forum contributes to us fiero owners who get the pride of having done things for ourselves whenever we can.
These radios DO fit the interior/lighting of these cars nicely. I already have one installed and I love it. I just would like to add the aux input to put my 1986 into 21st century  [This message has been edited by 86.4SPD.GT (edited 06-10-2018).]
|
|
|
|
IMSA GT
|
JUN 10, 08:21 PM
|
|
| quote | Originally posted by 86.4SPD.GT:
Actually, soon after becoming a member here and seeing Tom's thread is where I got the desire to have one of these radios(with the aux input jack installed). I did post with interest to purchase one from Tom in that thread, but between my unfamiliarity with this site/private message system and the fact that Tom seemed to sell his last radio, I wasn't able to make a purchase from him.
After about a week and not realizing that Tom would end up having more for sale, I purchased a couple from eBay(without the input jack).
|
|
No guts, no glory. Rip one of those son of a bitches apart and get soldering
|
|
|
|
86.4SPD.GT
|
JUN 10, 08:43 PM
|
|
I was typing an edit to my last post while you posted above.
I know that THAT may be the approach I end up taking. I am just hoping that someone increases my odds of it being successful
*IF* I do end up figuring this out, I will try to help others out by providing some info on how I ended up getting mine done.
Let's face it, not everyone(including even me) would be able to successfully do this type of project which would still allow those who sell these types of radios already modded to be purchased.[This message has been edited by 86.4SPD.GT (edited 06-10-2018).]
|
|
|
theogre
|
JUN 11, 01:09 PM
|
|

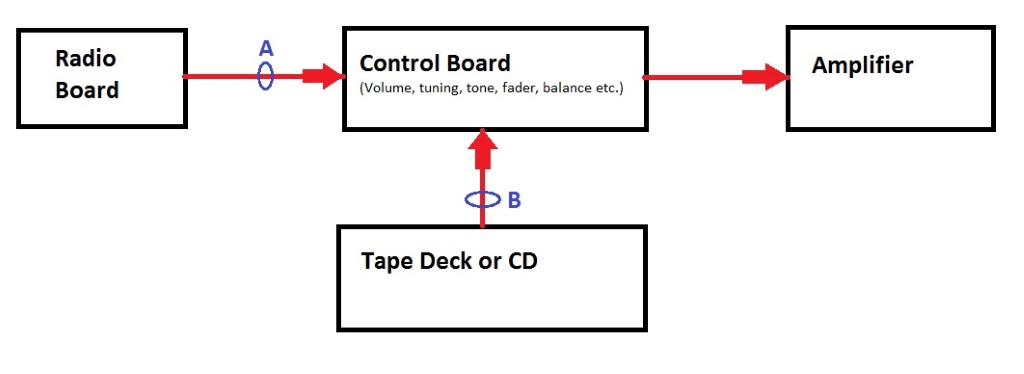

Most GM radios w/ "old style plugs" that Fiero uses are "easy" because amp and radio are separate boards and easy to fit a plug.
But this plug often isn't a "Line In" etc plug and many things in it needs to watch volume output signal to the plug. (Line In/Out is a "standard" connection = 1v Peak Signal. See http://www.shure.com/americ...el-what-do-they-mean )
Most MP3 players etc outputs expect 30+Ω "headphones" and even then signal is very weak so most will work w/o problems.
Even then wires between boards can change from one unit to next. If you find radio output in 1 unit, don't count same wires in next w/o checking or can kill the radio or whatever plugged into the line. Is why we had 2 directions to add plugs to two of head types. (I'm not digging thru threads to find the data.)
Many people installed the plug in the Tape or CD signal lines and why need a tape/CD in the head or switching to fake it. People that push or follow this often have no clue.
Radios w/ new style plugs can be same as above in 90's but more newer you get the more problems to find the radio output.
To the point Many now have single boards w/ surface mount parts (SMT boards w/ many to all SMD parts) and many or every "radio" is different to meet OEM needs. Again, If you find radio output in 1 unit, don't count same traces in next w/o checking or can kill the radio or whatever plugged into the line.
Even cutting a trace can cause problems because many are multi-layer boards and can cut into next layer very easy.
Many just use aux and/or BT adapters that broadcast FM or plug into antenna wiring and be done.
Is often ok but FM channels doesn't = to wiring directly. FM cuts low and high sounds because how FM works to get stereo. Even then adapters can cut sound rage more then FM specs too. (See https://en.wikipedia.org/wi...oadcasting#Stereo_FM )------------------
