Started my fiberglass dash build. (pics) by Taijiguy
Started on: 08-23-2009 10:02 PM
Replies: 52 (11842 views)
Last post by: Taijiguy on 07-20-2011 04:10 PM
Taijiguy
Member

Posts: 12198
From: Delaware, OH.
Registered: Jul 99


Feedback score:    (8)
Leave feedback





Total ratings: 244
Rate this member

Report this Post11-09-2009 08:25 PM Click Here to See the Profile for TaijiguyClick Here to Email TaijiguySend a Private Message to TaijiguyEdit/Delete MessageReply w/QuoteDirect Link to This Post

Thanks for the comments. I'll do a test fit tomorrow night and grab a couple of pics of it in the car to give an idea of how it'll sit.

IP: Logged

Blacktree
Member

Posts: 19871
From: Central Florida
Registered: Dec 2001


Feedback score:    (9)
Leave feedback





Total ratings: 343
Rate this member

Report this Post11-10-2009 10:35 AM Click Here to See the Profile for BlacktreeClick Here to visit Blacktree's HomePageClick Here to Email BlacktreeSend a Private Message to BlacktreeEdit/Delete MessageReply w/QuoteDirect Link to This Post

Wow, that's a lot of gauges. But I agree that the new design looks better than the old. The old one looked "art deco" to me, which is fine for your living room but not for a car.

I'm curious as to how you'll handle the ventilation?

IP: Logged

Taijiguy
Member

Posts: 12198
From: Delaware, OH.
Registered: Jul 99


Feedback score:    (8)
Leave feedback





Total ratings: 244
Rate this member

Report this Post11-10-2009 03:24 PM Click Here to See the Profile for TaijiguyClick Here to Email TaijiguySend a Private Message to TaijiguyEdit/Delete MessageReply w/QuoteDirect Link to This Post


quote
Originally posted by Blacktree:

Wow, that's a lot of gauges. But I agree that the new design looks better than the old. The old one looked "art deco" to me, which is fine for your living room but not for a car.

I'm curious as to how you'll handle the ventilation?


Art deco....hadn't really thought of that, I'll have to take another look, although, it probably would have looked different with paint and vinyl.
I don't have A/C and probably won't be installing it, so the ventilation is a relatively minor issue. I have space on the ends for the ducts there, and the center vent, well, I could put it below the LCD screen, or split it and put a half a vent on either side. On the ends, I'll divert some air flow to vents in the doors as well. I'll be making door panels that will mate to the dash (I hope).
As for gauges, there are 7 aux gauges, including fuel level, fuel pressure, oil pressure, temp, volts, trans temp, and vacuum. I'll most likely add a wide band O2 gauge at some point, but that may have to go to the A pillar.

IP: Logged

Taijiguy
Member

Posts: 12198
From: Delaware, OH.
Registered: Jul 99


Feedback score:    (8)
Leave feedback





Total ratings: 244
Rate this member

Report this Post11-11-2009 10:38 PM Click Here to See the Profile for TaijiguyClick Here to Email TaijiguySend a Private Message to TaijiguyEdit/Delete MessageReply w/QuoteDirect Link to This Post

Did a quick test-fit of the plug tonight. I like the way it sits. Obviously still have to finish the sides and make some small section for underneath. The top including the lip will be vinyl, which will cover the end piece as well, but only about half way down. The bottom half will be painted. The face of the dash will probably be mostly polished or aluminum. I'm still working that part out.

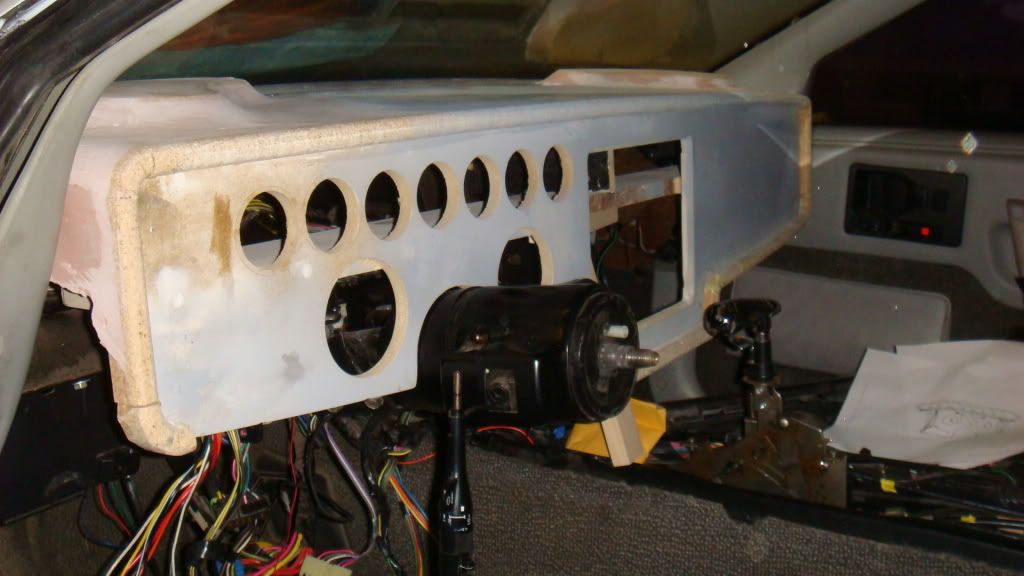

This is what the drivers view is. This shot was at my eye level sitting in the driver's seat.

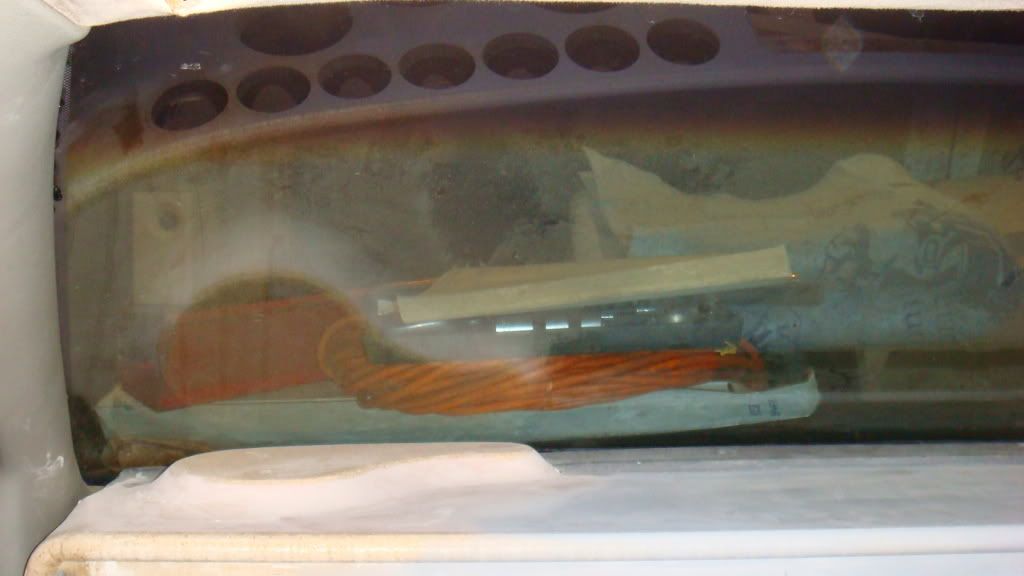

Another shot just looking over the dash, obviously a clear view.
