  Upper control arm ripping off ball joint boot ?

Post New Topic  Post A Reply
Email This Page to Someone! | Printable Version


next newest topic | next oldest topic
Upper control arm ripping off ball joint boot ? by cam-a-lot
Started on: 05-20-2020 06:48 AM
Replies: 14 (276 views)
Last post by: cvxjet on 05-30-2020 03:22 PM
cam-a-lot
Member
Posts: 2226
From: Barrie- Ontario, Canada
Registered: Oct 2010


Feedback score: (3)
Leave feedback





Total ratings: 99
Rate this member

Report this Post05-20-2020 06:48 AM Click Here to See the Profile for cam-a-lotSend a Private Message to cam-a-lotEdit/Delete MessageReply w/QuoteDirect Link to This Post
Hello

Can anyone tell me why this is happening? 88 GT, stock suspension except for TFS drop springs.

When the car is on a hoist, the bump stop pad on the upper control arm touches and pulls off the upper ball joint boot (both sides of the car)

Any suggestions as to what causes this?

thanks

[This message has been edited by cam-a-lot (edited 05-20-2020).]

IP: Logged
PFF
System Bot
fieroguru
Member
Posts: 12517
From: Champaign, IL
Registered: Aug 2003


Feedback score:    (45)
Leave feedback





Total ratings: 260
Rate this member

Report this Post05-20-2020 06:52 AM Click Here to See the Profile for fieroguruSend a Private Message to fieroguruEdit/Delete MessageReply w/QuoteDirect Link to This Post
There are 3 primary causes.

Poor installation.
Age of the rubber boot allows it to crack and separate.
Excessive use of grease. Someone fills the boot with grease to the point of it popping the boot free or tearing it.

[This message has been edited by fieroguru (edited 05-20-2020).]

IP: Logged
cam-a-lot
Member
Posts: 2226
From: Barrie- Ontario, Canada
Registered: Oct 2010


Feedback score: (3)
Leave feedback





Total ratings: 99
Rate this member

Report this Post05-20-2020 06:52 AM Click Here to See the Profile for cam-a-lotSend a Private Message to cam-a-lotEdit/Delete MessageReply w/QuoteDirect Link to This Post

[This message has been edited by cam-a-lot (edited 05-20-2020).]

IP: Logged
cam-a-lot
Member
Posts: 2226
From: Barrie- Ontario, Canada
Registered: Oct 2010


Feedback score: (3)
Leave feedback





Total ratings: 99
Rate this member

Report this Post05-20-2020 06:55 AM Click Here to See the Profile for cam-a-lotSend a Private Message to cam-a-lotEdit/Delete MessageReply w/QuoteDirect Link to This Post

cam-a-lot

2226 posts
Member since Oct 2010

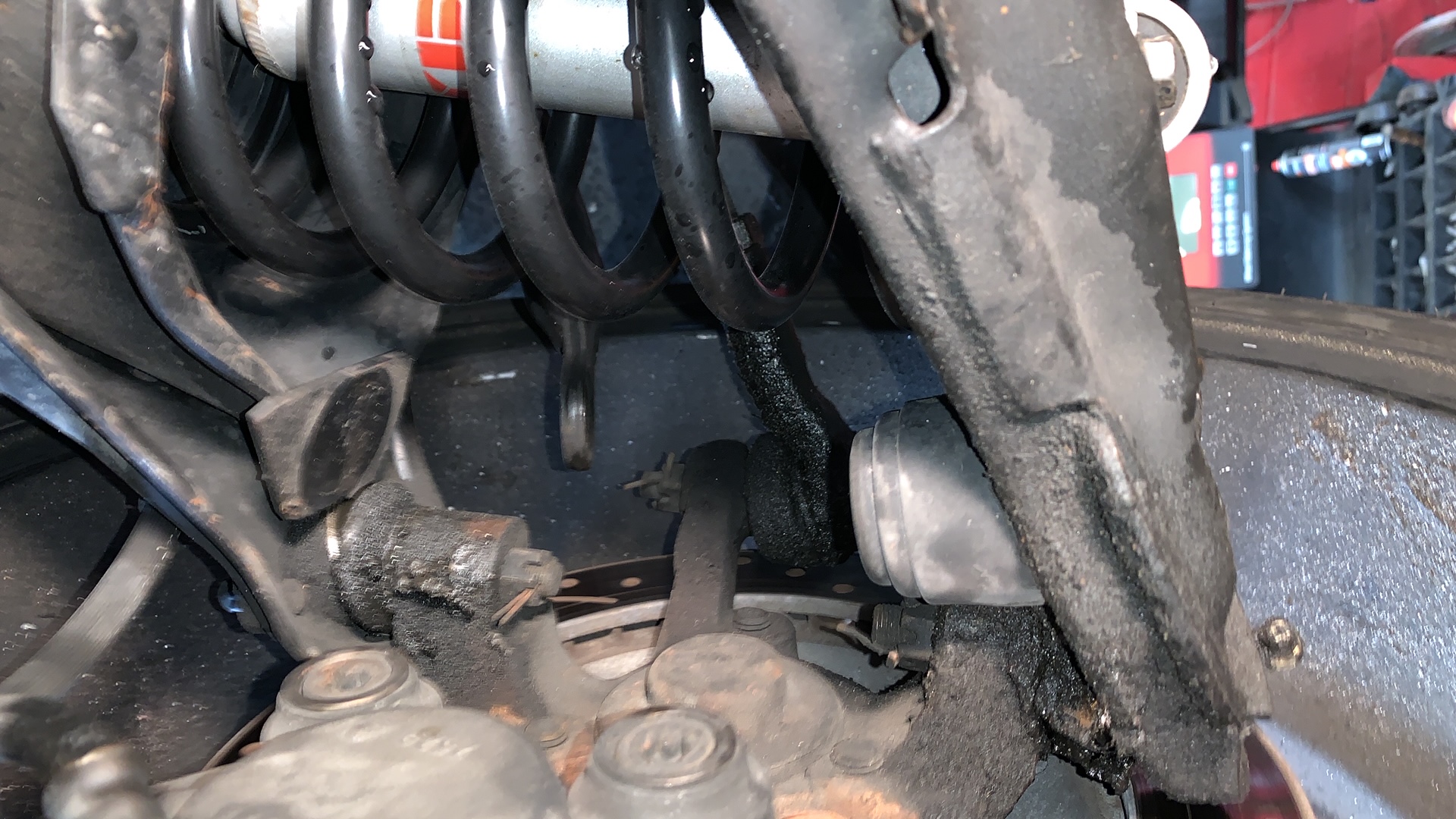

Thanks, but how would any of those 3 possibilities allow the control arm to touch the boot? It is interfering quite a bit. Even if I put on a brand new balljoint and put the correct amount of grease in it, it will rub from the looks of things...

Not sure why the picture loaded sideways, sorry.

[This message has been edited by cam-a-lot (edited 05-20-2020).]

IP: Logged
Will
Member
Posts: 14284
From: Where you least expect me
Registered: Jun 2000


Feedback score: (1)
Leave feedback





Total ratings: 237
Rate this member

Report this Post05-20-2020 08:46 AM Click Here to See the Profile for WillSend a Private Message to WillEdit/Delete MessageReply w/QuoteDirect Link to This Post
Are you aligned with a lot of camber? That will move the control arm inboard.

Maybe your crossmember is just assembled with the bump stop plates a little further outboard than most?
IP: Logged
fieroguru
Member
Posts: 12517
From: Champaign, IL
Registered: Aug 2003


Feedback score:    (45)
Leave feedback





Total ratings: 260
Rate this member

Report this Post05-20-2020 08:55 AM Click Here to See the Profile for fieroguruSend a Private Message to fieroguruEdit/Delete MessageReply w/QuoteDirect Link to This Post
Now that I see the pic... the issue is the KYB shocks. They are longer than stock and allow the suspension to droop down further. The longer length also make them more prone to bottom out internally on lowered cars. I always recommend installing spacers between the lower t-bar and the lower a-arm.

From the picture, you are constantly riding on the (non-stock) bump stops as well.


This images is larger than 153600 bytes. Click to view.
IP: Logged
theogre
Member
Posts: 32520
From: USA
Registered: Mar 99


Feedback score: N/A
Leave feedback





Total ratings: 572
Rate this member

Report this Post05-20-2020 11:50 AM Click Here to See the Profile for theogreClick Here to visit theogre's HomePageSend a Private Message to theogreEdit/Delete MessageReply w/QuoteDirect Link to This Post
If you have aftermarket boot like most w/ polly boots they are not made right and won't seal same way as OE or Boots came w/ Moog etc joints.

"Factory" and other "rubber" boots have a hidden metal ring in the base end that hold on the outer joint.
Moog and maybe others also have extra vent area on stud end so can't wreck them w/ grease.

For OE and others w/o "Moog vent boots," I made a tool to vent them.
small wire or "geek tool" w/ tip bent 90° push into stud opening is often enough to vent grease to prevent tearing them.
(if using screwdriver, heat to bend or most will break.)

------------------
Dr. Ian Malcolm: Yeah, but your scientists were so preoccupied with whether or not they could, they didn't stop to think if they should.
(Jurassic Park)


The Ogre's Fiero Cave

IP: Logged
cvxjet
Member
Posts: 3897
From: ca, usa
Registered: May 2010


Feedback score: (1)
Leave feedback

Rate this member

Report this Post05-20-2020 12:27 PM Click Here to See the Profile for cvxjetSend a Private Message to cvxjetEdit/Delete MessageReply w/QuoteDirect Link to This Post
I believe it may be your after-market bump stop; 1988 Fiero bump stops are wedge shaped, while yours appears to be a round shape. You may be able to cut away a small portion on the offending side......

IP: Logged
88Fingers
Member
Posts: 231
From: Burlington Ontario Canada
Registered: Sep 2018


Feedback score: N/A
Leave feedback

Rate this member

Report this Post05-20-2020 06:38 PM Click Here to See the Profile for 88FingersSend a Private Message to 88FingersEdit/Delete MessageReply w/QuoteDirect Link to This Post
Hello Pete, is the sway bar link missing? If it is not there connected, does that let the suspension drop too far? Maybe I am missing something?
IP: Logged
cam-a-lot
Member
Posts: 2226
From: Barrie- Ontario, Canada
Registered: Oct 2010


Feedback score: (3)
Leave feedback





Total ratings: 99
Rate this member

Report this Post05-20-2020 07:12 PM Click Here to See the Profile for cam-a-lotSend a Private Message to cam-a-lotEdit/Delete MessageReply w/QuoteDirect Link to This Post
Thanks everyone

Sway bar link is missing for some reason- just noticed it and ordered a new set

I don't think the car rides on the bump stops anymore. It used to when the PO installed springs that were cut far too much and there was no suspension travel.

Good info on the KYB shocks- may try to play with them or replace them to see if the issue is resolved. Bump stops were from TFS- I don't think they are the issue since I recently replaced the front springs to the TFS drop springs, and now I have a lot more suspension travel.

Thanks everyone for your advice
IP: Logged
cam-a-lot
Member
Posts: 2226
From: Barrie- Ontario, Canada
Registered: Oct 2010


Feedback score: (3)
Leave feedback





Total ratings: 99
Rate this member

Report this Post05-29-2020 09:32 AM Click Here to See the Profile for cam-a-lotSend a Private Message to cam-a-lotEdit/Delete MessageReply w/QuoteDirect Link to This Post
Can someone please comment whether going with Munro shocks would resolve this issue- are they the correct length?

Not really interested in spending a ton of money on trying to find Koni shocks, as this is more of a weekend cruiser and I don't need the best handling. More interested in a comfortable ride

thanks!
IP: Logged
PFF
System Bot
cam-a-lot
Member
Posts: 2226
From: Barrie- Ontario, Canada
Registered: Oct 2010


Feedback score: (3)
Leave feedback





Total ratings: 99
Rate this member

Report this Post05-30-2020 08:07 AM Click Here to See the Profile for cam-a-lotSend a Private Message to cam-a-lotEdit/Delete MessageReply w/QuoteDirect Link to This Post
Bump- can someone please advise if Munro shocks for the 88 appear to be the correct length, so that this issue is avoided?
IP: Logged
cvxjet
Member
Posts: 3897
From: ca, usa
Registered: May 2010


Feedback score: (1)
Leave feedback

Rate this member

Report this Post05-30-2020 11:36 AM Click Here to See the Profile for cvxjetSend a Private Message to cvxjetEdit/Delete MessageReply w/QuoteDirect Link to This Post
I believe your BUMPSTOP is hitting the boot- you need to cut away the outer edge(Towards the Boot) so that it does not contact the BJ boot. Different shocks will not make any difference as far as your BJ boots are concerned.
IP: Logged
cam-a-lot
Member
Posts: 2226
From: Barrie- Ontario, Canada
Registered: Oct 2010


Feedback score: (3)
Leave feedback





Total ratings: 99
Rate this member

Report this Post05-30-2020 02:36 PM Click Here to See the Profile for cam-a-lotSend a Private Message to cam-a-lotEdit/Delete MessageReply w/QuoteDirect Link to This Post
Thanks

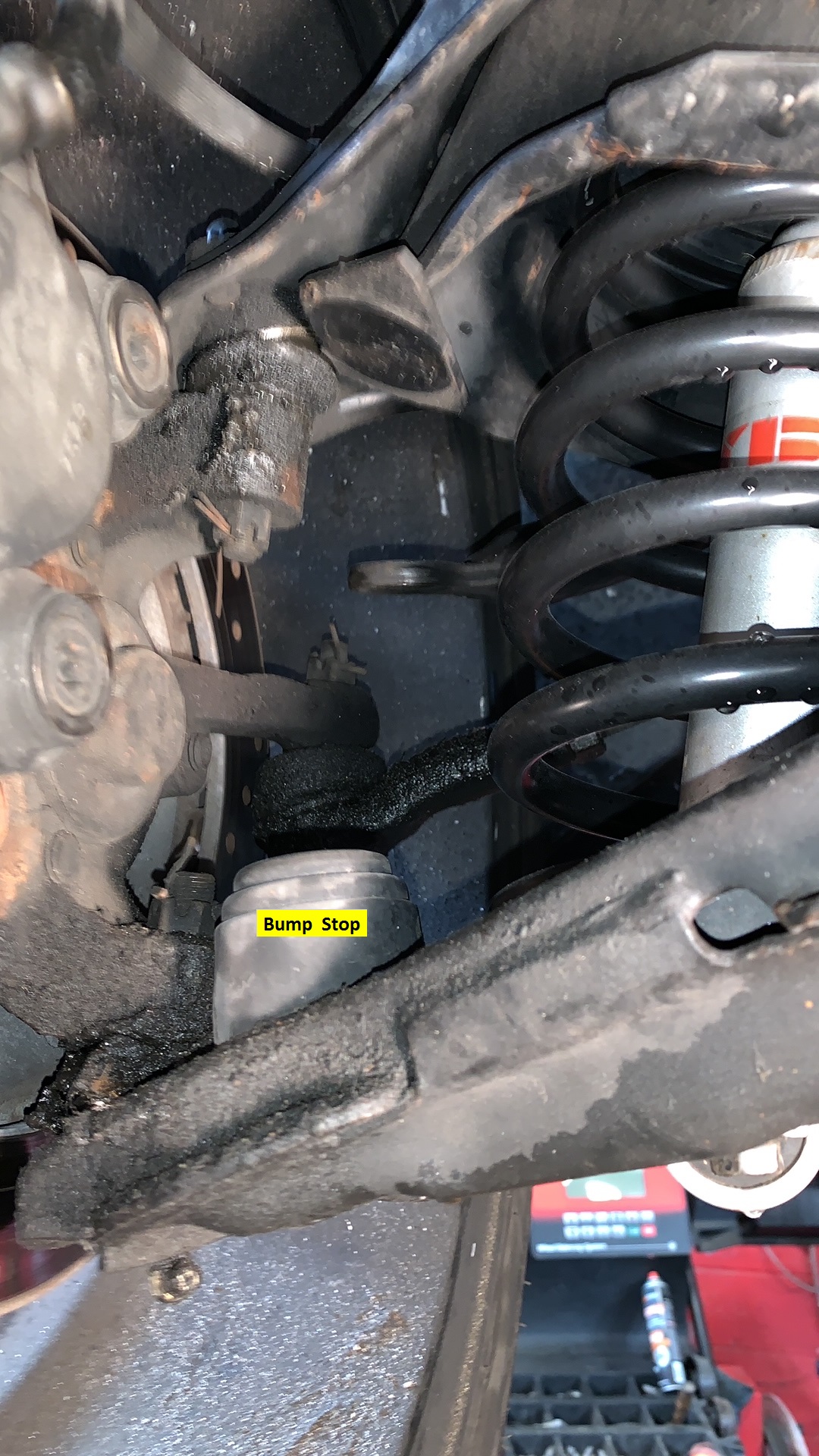

The boot is only being pulled apart when the car is on a hoist and there is no weight on the suspension. You can see the metal part of the control arm physically pushing up and against the boot in the picture. I am not sure if I undertand how the bump stop would have anything to do with this? If I was to have a similar picture of another 88 front suspension on a hoist, I assume the control arm is not interfering with the ball joint boot?
IP: Logged
cvxjet
Member
Posts: 3897
From: ca, usa
Registered: May 2010


Feedback score: (1)
Leave feedback

Rate this member

Report this Post05-30-2020 03:22 PM Click Here to See the Profile for cvxjetSend a Private Message to cvxjetEdit/Delete MessageReply w/QuoteDirect Link to This Post
Jiminy christmas!!! I am a big ole dumb-dumb......Now I see that I was wrong-o.....

It looks like the Bump stop STOP is what is interfering....Have you cranked in a lot of negative camber? That would close the gap between the BJ and that stop.......Now, either you could crank it back a bit to clear, or you could grind the edge back on that stop.......

(Jeez, I hope I am (Now) seeing it right now (If so, I will mark this day down!)
IP: Logged
