Turbo location by Cajun
Started on: 12-02-2019 12:42 PM
Replies: 9 (187 views)
Last post by: wftb on 12-07-2019 10:22 AM
Cajun
Member

Posts: 1375
From: Youngsville, La., USA
Registered: Dec 2003


Feedback score: (1)
Leave feedback

Rate this member

Report this Post12-02-2019 12:42 PM Click Here to See the Profile for CajunClick Here to Email CajunSend a Private Message to CajunEdit/Delete MessageReply w/QuoteDirect Link to This Post
For those of you who have installed turbos.....have you considered installing the turbo in place of the Cat?

Wondering if that location would be feasible?
IP: Logged
wftb
Member

Posts: 3375
From: kincardine,ontario,canada
Registered: Jun 2005


Feedback score: (4)
Leave feedback

Rate this member

Report this Post12-02-2019 02:38 PM Click Here to See the Profile for wftbClick Here to Email wftbSend a Private Message to wftbEdit/Delete MessageReply w/QuoteDirect Link to This Post
That would work , but you will need an oil evac pump to get the oil from the turbo back in to the oil pan. And you will be putting a lot of large piping in a small area, so be careful choosing a turbo and make sure all the inlets/outlets point the way you want them to.

------------------
86 GT built 2.2 ecotec turbo
rear SLA suspension
QA1 coilovers on tube arms

IP: Logged
pmbrunelle
Member

Posts: 3079
From: Grand-Mère, Québec
Registered: Sep 2008


Feedback score: N/A
Leave feedback





Total ratings: 55
Rate this member

Report this Post12-02-2019 08:29 PM Click Here to See the Profile for pmbrunelleClick Here to Email pmbrunelleSend a Private Message to pmbrunelleEdit/Delete MessageReply w/QuoteDirect Link to This Post
You should start by determining what items you would like your turbo system to have. Here is a sample list:
Air filter
MAF
Turbo
Intercooler
BOV
Wastegate
Oxygen sensor
Catalyst
Muffler

Then, you play the Tetris game where you try to make the puzzle pieces fit with the simplest (i.e. least expensive and easiest to implement) plumbing to connect it all.

We cannot tell you what spot is good, because the correct solution depends on your priorities, what parts you want to fit, the engine you have, etc. It is a puzzle that must be solved by you to your personal satisfaction.

********************************************************************************

Personally, for my (not yet completed) non-intercooled stock V6 turbo engine, I decided that having the turbocompressor near the air filter can and the throttle body made sense. Hence, my turbo ended up above the gearbox, in a spot where the exhaust from both banks is available, and where the oil can drain downhill towards the pan.

The BOV piston will be visible enough with the hood open that I can inspect its correct operation (open on throttle lift, closed at idle) while running the engine in the driveway and manipulating the throttle.

Right now the stock catalyst spot is empty; making oil filter replacement easy. Optionally, I'll be able to use the area for an air-to-air intercooler in the future, at the expense of poor oil filter and front cradle bolt access (at least in the way I'm imagining things).

Wherever you place the turbo, you'll have to implement some heat shielding to protect the parts around it. Down in the stock catalyst area, there's the starter to worry about. In that area, you might be able to get the turbo high enough for a gravity drain.
IP: Logged
Cajun
Member

Posts: 1375
From: Youngsville, La., USA
Registered: Dec 2003


Feedback score: (1)
Leave feedback

Rate this member

Report this Post12-02-2019 08:54 PM Click Here to See the Profile for CajunClick Here to Email CajunSend a Private Message to CajunEdit/Delete MessageReply w/QuoteDirect Link to This Post
Thanks guys for the feedback, comments and opinions.

IP: Logged
Dennis LaGrua
Member

Posts: 12932
From: Hillsborough, NJ U.S.A.
Registered: May 2000


Feedback score:    (10)
Leave feedback





Total ratings: 315
Rate this member

Report this Post12-02-2019 09:20 PM Click Here to See the Profile for Dennis LaGruaClick Here to Email Dennis LaGruaSend a Private Message to Dennis LaGruaEdit/Delete MessageReply w/QuoteDirect Link to This Post
The usual location for a Turbocharger on a Fiero is on the crossover pipe in the space over it on the left side of the engine compartment. There is plenty of room there.

------------------
" THE BLACK PARALYZER" -87GT 3800SC Series III engine, custom ZZP /Frozen Boost Intercooler setup, 3.4" Pulley, Northstar TB, LS1 MAF, 3" Spintech/Hedman Exhaust, P-log Manifold, Autolite 104's, MSD wires, Custom CAI, 4T65eHD w. custom axles, Champion Radiator, S10 Brake Booster, HP Tuners VCM Suite.
"THE COLUSSUS"
87GT - ALL OUT 3.4L Turbocharged engine, Garrett Hybrid Turbo, MSD ign., modified TH125H
" ON THE LOOSE WITHOUT THE JUICE "

IP: Logged
2.5
Member

Posts: 40440
From: Southern MN
Registered: May 2007


Feedback score: (1)
Leave feedback





Total ratings: 179
Rate this member

Report this Post12-06-2019 08:51 AM Click Here to See the Profile for 2.5Send a Private Message to 2.5Edit/Delete MessageReply w/QuoteDirect Link to This Post
Pics of Turbo Fieros? (Since we can post pics easy now!)
IP: Logged
wftb
Member

Posts: 3375
From: kincardine,ontario,canada
Registered: Jun 2005


Feedback score: (4)
Leave feedback

Rate this member

Report this Post12-06-2019 01:23 PM Click Here to See the Profile for wftbClick Here to Email wftbSend a Private Message to wftbEdit/Delete MessageReply w/QuoteDirect Link to This Post

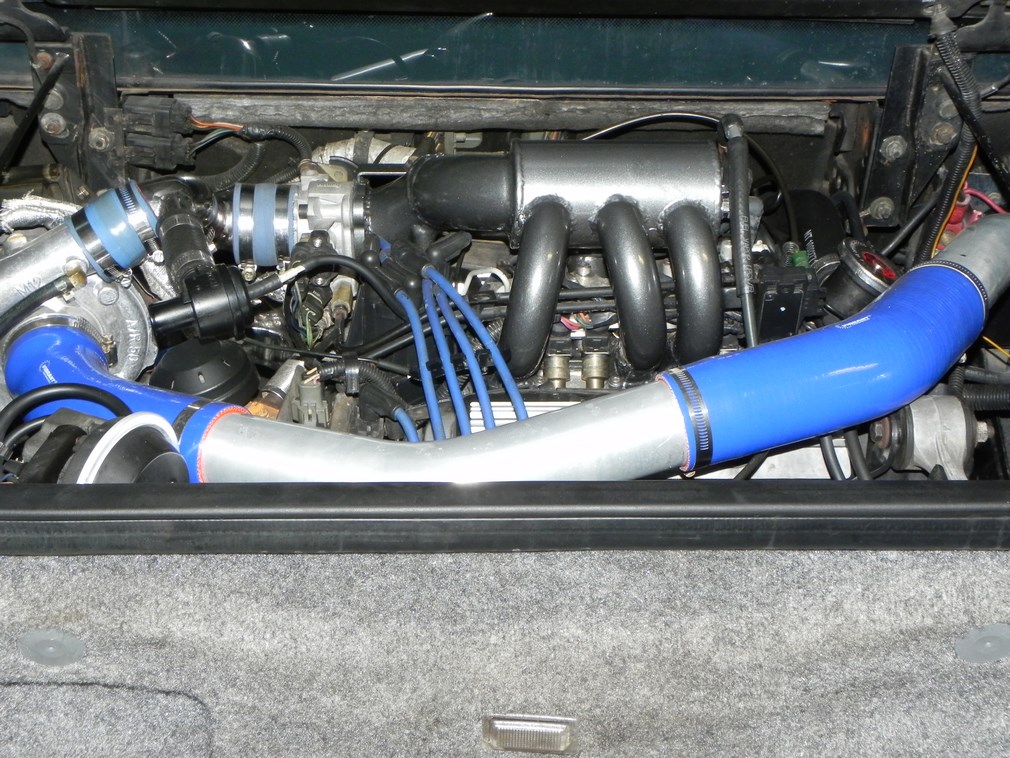

This is my old setup but the new turbo will end up very similar. I tried to mount the turbo I am in the process of installing ( 16G meant for a WRX) in the space above the transmission but the way everything points it was a no go. So I have made an adapter and it is now in the same place as my old 20G. This will actually be a big improvement, because the charge pipe will no longer have to go across above the hot exhaust manifold and the smaller turbo has lots of space to connect everything to.
