  Tachometer wiring

Post New Topic  Post A Reply
Email This Page to Someone! | Printable Version


next newest topic | next oldest topic
Tachometer wiring by AL87
Started on: 01-12-2015 01:32 AM
Replies: 4 (265 views)
Last post by: LostNotForgotton on 02-07-2015 08:23 AM
AL87
Member
Posts: 2578
From: Bradenton, Florida, United States
Registered: Mar 2010


Feedback score: (5)
Leave feedback

Rate this member

Report this Post01-12-2015 01:32 AM Click Here to See the Profile for AL87Click Here to Email AL87Send a Private Message to AL87Edit/Delete MessageReply w/QuoteDirect Link to This Post
I'm going to wire in an aftermarket gauge into the factory position, I would like to know which wires from which connector(s) I'll need.

I'm going to splice into the wiring for the tach somewhere behind the connector(s) in case I want to revert to the stock one later on.

keep in mind this aftermarket tach is going in place of the stock one, and I will not be running two tachs.

I do not want a bulky tach pudging out and disrupting the look of the interior, which is why I want to put it in place of the original.
IP: Logged
PFF
System Bot
LostNotForgotton
Member
Posts: 185
From: Newark, DE
Registered: Dec 2014


Feedback score: N/A
Leave feedback

Rate this member

Report this Post02-04-2015 11:55 AM Click Here to See the Profile for LostNotForgottonClick Here to visit LostNotForgotton's HomePageClick Here to Email LostNotForgottonSend a Private Message to LostNotForgottonEdit/Delete MessageReply w/QuoteDirect Link to This Post
I just got done filming a video on installing an aftermarket Heads Up Display in a Fiero which also included a tach display. If only the video were finished editing it would have been something to check out. I'm not at home at the moment to check but I believe if you removes the rear trim from the gauge cluster you'll see a connector plugged in directly behind the tach location. You'll want to locate a solid white wire. I can get you the pin location when I get home if no one else chimes in beforehand. That white wire is the tach pulse wire. You can also tap any pink with a black stripe wire as your ignition switchable power wire.

------------------
87 Fiero GT 3.4 Pushrod with 7730 ECM & DIS
88 MERA #8013
85 Fiero SE with 3.1 pushrod
86 Fiero SE 2.8 stock
http://www.youtube.com/LostNotForgotton

IP: Logged
LostNotForgotton
Member
Posts: 185
From: Newark, DE
Registered: Dec 2014


Feedback score: N/A
Leave feedback

Rate this member

Report this Post02-04-2015 12:01 PM Click Here to See the Profile for LostNotForgottonClick Here to visit LostNotForgotton's HomePageClick Here to Email LostNotForgottonSend a Private Message to LostNotForgottonEdit/Delete MessageReply w/QuoteDirect Link to This Post

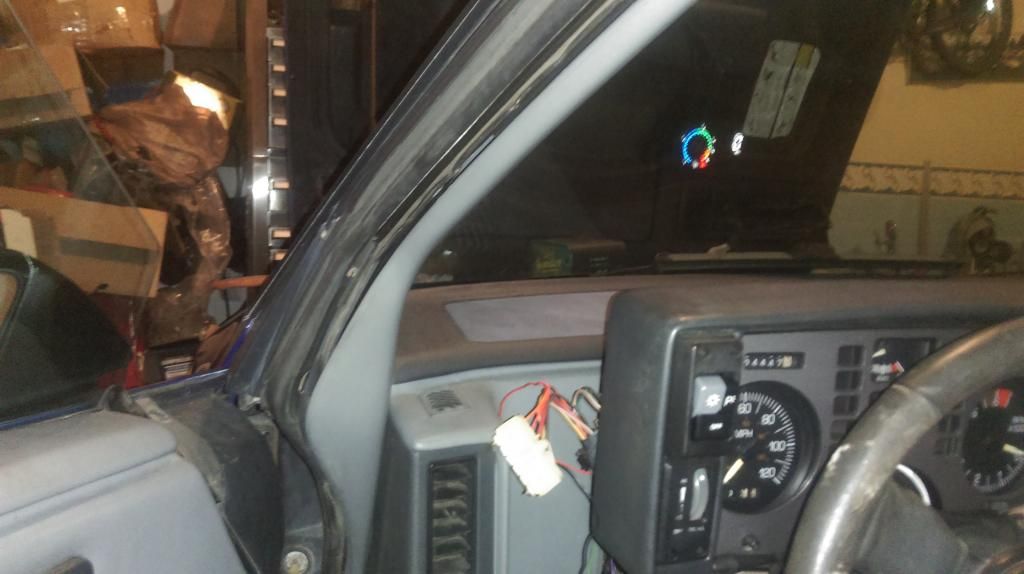

I just happen to have a pic of the HUD I was working on a few weeks ago. The white 0 is the speedo. The round light on the windshield is the tach. My tach gauge is off so I was hoping this one would be more accurate but it is off too so that means the issue is in the transmission.

IP: Logged
garage monster
Member
Posts: 350
From: Rogue Valley, Oregon
Registered: Nov 2007


Feedback score: (1)
Leave feedback

Rate this member

Report this Post02-06-2015 11:18 PM Click Here to See the Profile for garage monsterSend a Private Message to garage monsterEdit/Delete MessageReply w/QuoteDirect Link to This Post
What does the transmission have to do with the Tach reading?
IP: Logged
LostNotForgotton
Member
Posts: 185
From: Newark, DE
Registered: Dec 2014


Feedback score: N/A
Leave feedback

Rate this member

Report this Post02-07-2015 08:23 AM Click Here to See the Profile for LostNotForgottonClick Here to visit LostNotForgotton's HomePageClick Here to Email LostNotForgottonSend a Private Message to LostNotForgottonEdit/Delete MessageReply w/QuoteDirect Link to This Post
Oops sorry. I must have been multitasking at work. I didn't mean to say transmission. The speedometer is the one read through the transmission. We're you able to locate the wire you needed. If not I can pop off the trim panel and give you the pin location or take a pic of it?
IP: Logged
