SBC valve covers?? by jaredmurray88
Started on: 08-06-2013 10:09 AM
Replies: 17 (506 views)
Last post by: FFIEROFRED on 08-21-2013 03:33 PM
jaredmurray88
Member
Posts: 1151
From: wellersburg pa
Registered: Mar 2011


Feedback score: (3)
Leave feedback

Rate this member

Report this Post08-06-2013 10:09 AM Click Here to See the Profile for jaredmurray88Click Here to Email jaredmurray88Send a Private Message to jaredmurray88Edit/Delete MessageReply w/QuoteDirect Link to This Post
I was looking at valve covers for my sbc and it appears that all the two piece ones are the tall covers. I know clearence is tight once in so has anybody used tall two piece covers or even regular tall covers? I have a junk set of short ones I was tossing around making into two piece and using a whole stock valve cover gasket to seal the two halves once cut and flanged. Thoughts or ideas?

edit to add: Forgot to put in I found these also. They look to be a shorter style than what I have seen so far and cheap
http://www.motorchrome.com/...alve%2Ccovers/Detail

[This message has been edited by jaredmurray88 (edited 08-06-2013).]

IP: Logged
PFF
System Bot
fieroguru
Member
Posts: 11232
From: Champaign, IL
Registered: Aug 2003


Feedback score:    (45)
Leave feedback





Total ratings: 255
Rate this member

Report this Post08-06-2013 10:33 AM Click Here to See the Profile for fieroguruSend a Private Message to fieroguruEdit/Delete MessageReply w/QuoteDirect Link to This Post

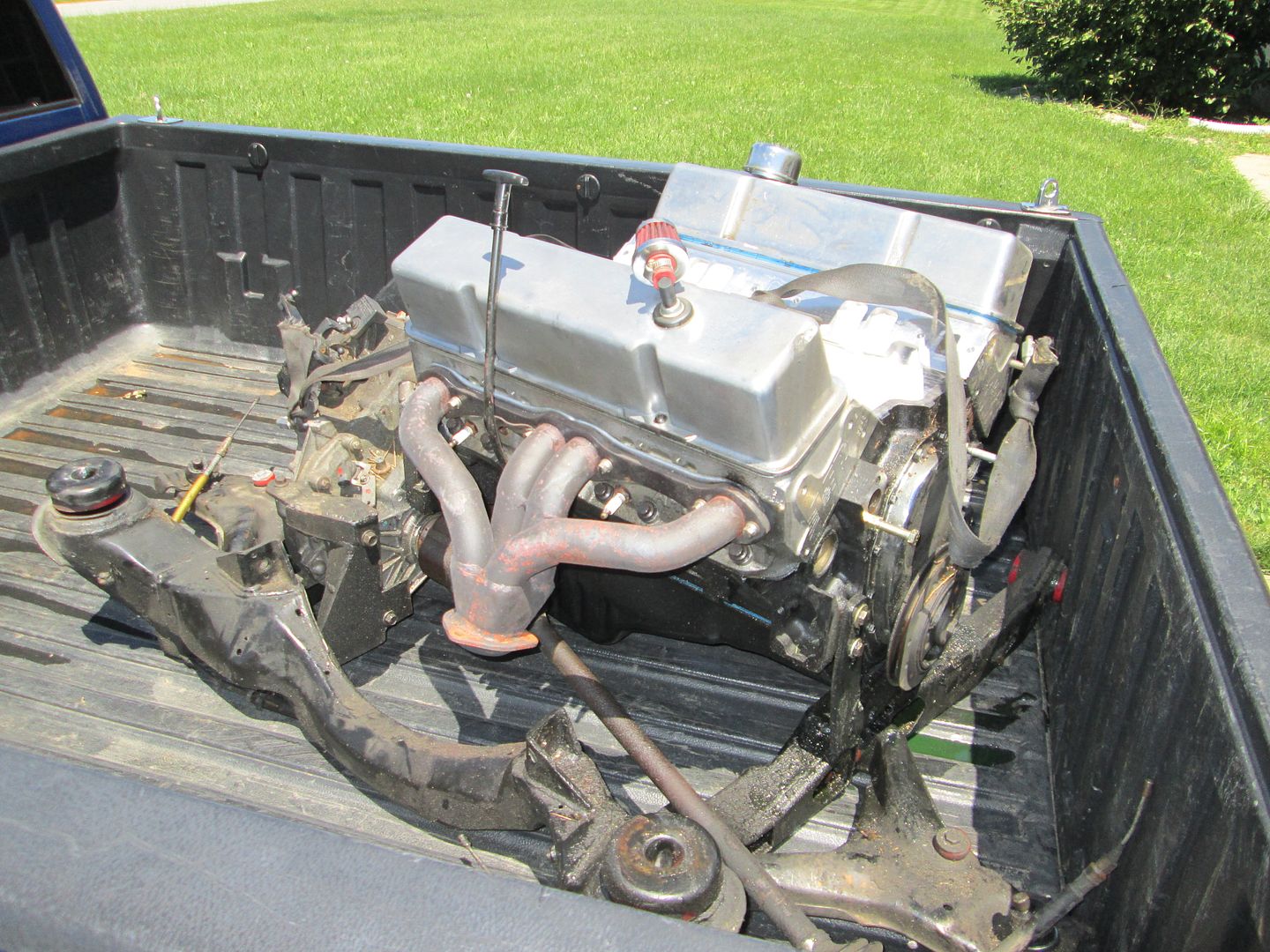

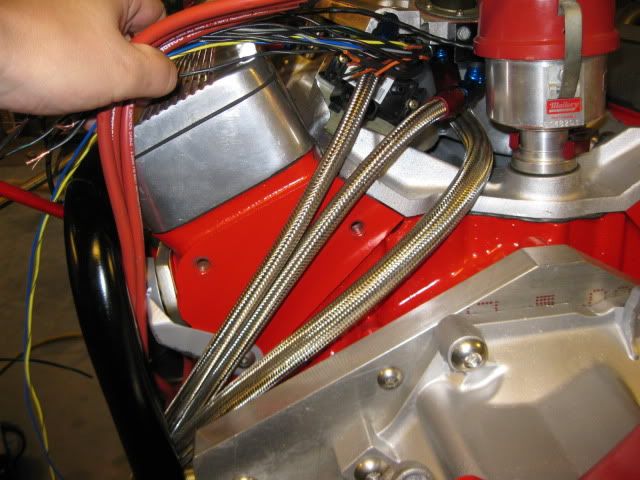

Here is a set that were relatively low on a SBC swap I reworked a couple years ago:


IP: Logged
fieroguru
Member
Posts: 11232
From: Champaign, IL
Registered: Aug 2003


Feedback score:    (45)
Leave feedback





Total ratings: 255
Rate this member

Report this Post08-06-2013 10:39 AM Click Here to See the Profile for fieroguruSend a Private Message to fieroguruEdit/Delete MessageReply w/QuoteDirect Link to This Post
The SBC swap I am currently reworking came with tall valve covers and the passenger decklid hinge box was trimmed significantly due to the covers and the installed height of the drivetrain. As part of the rework shorter valve covers will be installed.

[This message has been edited by fieroguru (edited 08-06-2013).]

IP: Logged
jaredmurray88
Member
Posts: 1151
From: wellersburg pa
Registered: Mar 2011


Feedback score: (3)
Leave feedback

Rate this member

Report this Post08-06-2013 10:43 AM Click Here to See the Profile for jaredmurray88Click Here to Email jaredmurray88Send a Private Message to jaredmurray88Edit/Delete MessageReply w/QuoteDirect Link to This Post

The ones in the link say 3.75 inch tall.. I guess you couldn't measure or take a swag at how tall the ones pictured are for me could ya?
IP: Logged
2.5
Member
Posts: 40899
From: Southern MN
Registered: May 2007


Feedback score: (1)
Leave feedback





Total ratings: 178
Rate this member

Report this Post08-06-2013 12:30 PM Click Here to See the Profile for 2.5Send a Private Message to 2.5Edit/Delete MessageReply w/QuoteDirect Link to This Post
On ebay they call them "short"

http://www.ebay.com/sch/i.h...y+valve+covers+short

http://www.ebay.com/itm/Che...em3f2732f4cb&vxp=mtr

[This message has been edited by 2.5 (edited 08-07-2013).]

IP: Logged
fieroguru
Member
Posts: 11232
From: Champaign, IL
Registered: Aug 2003


Feedback score:    (45)
Leave feedback





Total ratings: 255
Rate this member

Report this Post08-06-2013 04:56 PM Click Here to See the Profile for fieroguruSend a Private Message to fieroguruEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by jaredmurray88:
I guess you couldn't measure or take a swag at how tall the ones pictured are for me could ya?

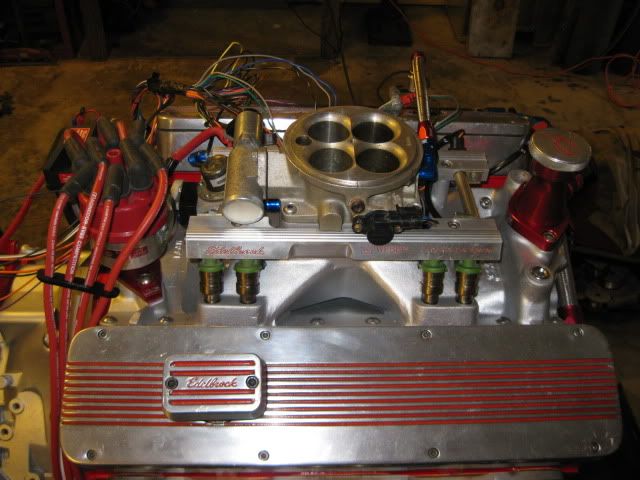

The 2 piece ones above are about 3" tall. The two bolt holes on the heads are 4.2" apart, so calipers to the screen and ratio'd the screen distance between the holes and the height of the valve covers.

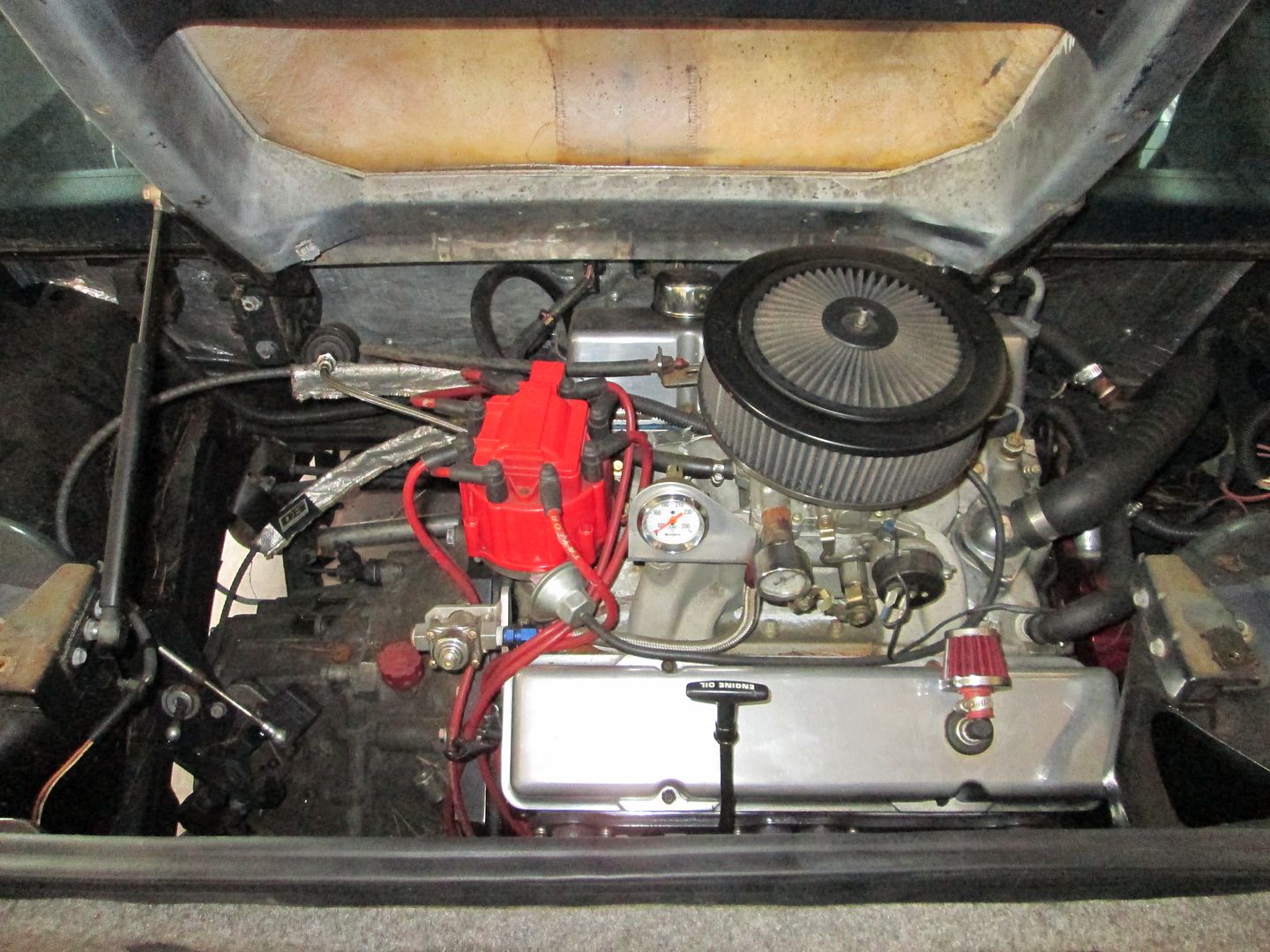

The tall 1 piece valve covers shown above are 3 3/4" tall.

Depending on mfg, there are short valve covers down to 2 5/16" and tall ones up to 4 5/8"

[This message has been edited by fieroguru (edited 08-06-2013).]

IP: Logged
dematrix86gt
Member
Posts: 490
From: havana arkansas
Registered: Jul 2013


Feedback score: (2)
Leave feedback

Rate this member

Report this Post08-06-2013 05:44 PM Click Here to See the Profile for dematrix86gtClick Here to Email dematrix86gtSend a Private Message to dematrix86gtEdit/Delete MessageReply w/QuoteDirect Link to This Post
just curious as to how much you can raise or lower the motor in the cradle to help with valve cover clearance.I havent delt with the V8 swapping yet. also has anyone used the dry sump system on a build yet?
IP: Logged
fieroguru
Member
Posts: 11232
From: Champaign, IL
Registered: Aug 2003


Feedback score:    (45)
Leave feedback





Total ratings: 255
Rate this member

Report this Post08-06-2013 08:22 PM Click Here to See the Profile for fieroguruSend a Private Message to fieroguruEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by dematrix86gt:

just curious as to how much you can raise or lower the motor in the cradle to help with valve cover clearance.I havent delt with the V8 swapping yet. also has anyone used the dry sump system on a build yet?


The lower you go, the more things you will have to modify. The one I am working on right now is a typical setup and is 9 1/2" from cradle bottom to crankshaft centerline. I have installed several at 8 3/8" and this one I am targeting 8". It requires modifying the front engine mount, trimming the edge of the adapter plate, reworking the transmission mounts and possibly notching the cradle for transmission (depending on transmission) and AC.

Going lower also places the coolant inlet ports below the top of the frame rail, so access to the bolts as well as room overall for the coolant hoses gets very, very tight... but completely doable if you are motivated to have the engine as low as possible.

You can go to 8" and keep the oil pan flush with the bottom of the cradle, so no need for a drysump and not sure there would be room for it.

At 8 3/8" on an 88, you can install a SBC with stock stamped steel valve covers w/o any trimming to the decklid hinge box, dogbone bracket, passenger frame rail or wheel well sheet metal... with the right selection of parts.


IP: Logged
jaredmurray88
Member
Posts: 1151
From: wellersburg pa
Registered: Mar 2011


Feedback score: (3)
Leave feedback

Rate this member

Report this Post08-07-2013 09:13 AM Click Here to See the Profile for jaredmurray88Click Here to Email jaredmurray88Send a Private Message to jaredmurray88Edit/Delete MessageReply w/QuoteDirect Link to This Post
Sorry to be a pest but how much of the hinge box is removed? I know a bit has to be cut to clear the covers to begin with and the torsion rods removed.
IP: Logged
fieroguru
Member
Posts: 11232
From: Champaign, IL
Registered: Aug 2003


Feedback score:    (45)
Leave feedback





Total ratings: 255
Rate this member

Report this Post08-07-2013 11:31 AM Click Here to See the Profile for fieroguruSend a Private Message to fieroguruEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by jaredmurray88:

Sorry to be a pest but how much of the hinge box is removed? I know a bit has to be cut to clear the covers to begin with and the torsion rods removed.


Depending on how low and the distance forward you mount the drivetrain and the valve covers you use, you can install the SBC w/o any trimming of the hinge box.

Now if you install the engine at typical height (around 9 1/2" from crankshaft centerline to the bottom of the cradle) and use the 3 3/4" tall valve covers, most of the hinge box is removed and the valve cover is within an inch or two of the top bolt holding the hinge to the hinge box.
IP: Logged
dematrix86gt
Member
Posts: 490
From: havana arkansas
Registered: Jul 2013


Feedback score: (2)
Leave feedback

Rate this member

Report this Post08-07-2013 11:46 AM Click Here to See the Profile for dematrix86gtClick Here to Email dematrix86gtSend a Private Message to dematrix86gtEdit/Delete MessageReply w/QuoteDirect Link to This Post
Entertain this idea for a min. If the rear frame rails were spread 4 inches (2 each side) and frame extended say 3 to 4 inches. taking measurements off the Northstar motor valve covers that would leave enough room for a BigBlock Chev. provided that the oilpan can be modified to stay up inside the cradle. My family is a bunch of old school gear heads and BB's arent in short supply with them. I know a adapter can be built for trans or use a FWD cad trans. water pump wouldnt be that much of a issue. Cooling is a big issue but remote mounting a few smaller Rads could solve that prob. a wide body for sure. lol

[This message has been edited by dematrix86gt (edited 08-07-2013).]

IP: Logged
PFF
System Bot
fieroguru
Member
Posts: 11232
From: Champaign, IL
Registered: Aug 2003


Feedback score:    (45)
Leave feedback





Total ratings: 255
Rate this member

Report this Post08-07-2013 01:29 PM Click Here to See the Profile for fieroguruSend a Private Message to fieroguruEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by dematrix86gt:
Entertain this idea for a min.


Anything can be made to fit with enough time, $$$, skill, and determination - but you must have all 4.

Russ Fiero has a transverse BBC in a stock wheel base/track width fiero (he took it to fierorama 3-4 years ago). He also was fitting a transverse BMW V12 into one (engine is in, just needs wired up).

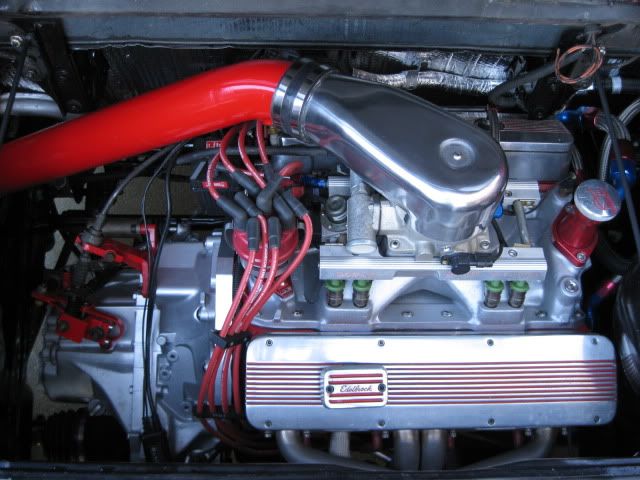

BBC:

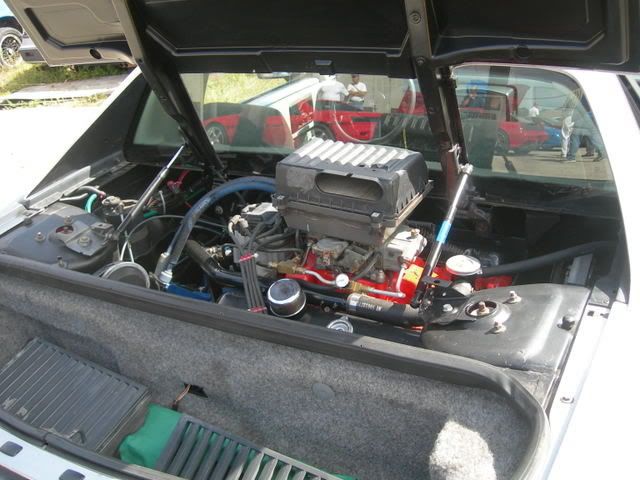

V12:

[This message has been edited by fieroguru (edited 08-07-2013).]

IP: Logged
dematrix86gt
Member
Posts: 490
From: havana arkansas
Registered: Jul 2013


Feedback score: (2)
Leave feedback

Rate this member

Report this Post08-07-2013 05:19 PM Click Here to See the Profile for dematrix86gtClick Here to Email dematrix86gtSend a Private Message to dematrix86gtEdit/Delete MessageReply w/QuoteDirect Link to This Post
is there a build thread of that v12 from that pic? wow thats Tight (awsome)
IP: Logged
dematrix86gt
Member
Posts: 490
From: havana arkansas
Registered: Jul 2013


Feedback score: (2)
Leave feedback

Rate this member

Report this Post08-07-2013 05:22 PM Click Here to See the Profile for dematrix86gtClick Here to Email dematrix86gtSend a Private Message to dematrix86gtEdit/Delete MessageReply w/QuoteDirect Link to This Post

dematrix86gt

490 posts
Member since Jul 2013
sorry dbl post.

[This message has been edited by dematrix86gt (edited 08-07-2013).]

IP: Logged
fieroguru
Member
Posts: 11232
From: Champaign, IL
Registered: Aug 2003


Feedback score:    (45)
Leave feedback





Total ratings: 255
Rate this member

Report this Post08-07-2013 05:39 PM Click Here to See the Profile for fieroguruSend a Private Message to fieroguruEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by dematrix86gt:

is there a build thread of that v12 from that pic? wow thats Tight (awsome)


http://www.fiero.nl/forum/A...130314-2-100795.html
IP: Logged
La fiera
Member
Posts: 1550
From: Mooresville, NC
Registered: Jun 2008


Feedback score:    (7)
Leave feedback

Rate this member

Report this Post08-07-2013 09:35 PM Click Here to See the Profile for La fieraSend a Private Message to La fieraEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by fieroguru:

The SBC swap I am currently reworking came with tall valve covers and the passenger decklid hinge box was trimmed significantly due to the covers and the installed height of the drivetrain. As part of the rework shorter valve covers will be installed.





Vince's car right?

IP: Logged
fieroguru
Member
Posts: 11232
From: Champaign, IL
Registered: Aug 2003


Feedback score:    (45)
Leave feedback





Total ratings: 255
Rate this member

Report this Post08-07-2013 09:58 PM Click Here to See the Profile for fieroguruSend a Private Message to fieroguruEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by La fiera:
Vince's car right?


Correct.
IP: Logged
FFIEROFRED
Member
Posts: 741
From: GULFPORT, MS
Registered: May 2008


Feedback score: N/A
Leave feedback

Rate this member

Report this Post08-21-2013 03:33 PM Click Here to See the Profile for FFIEROFREDClick Here to Email FFIEROFREDSend a Private Message to FFIEROFREDEdit/Delete MessageReply w/QuoteDirect Link to This Post
On my sbc install I use tall covers to clear the roller rockers. I had to cut a lot out of the hinge box and notch the end of the valve cover So I could get it off with the engine in the car.
