  IAT sensor ohms per degree?

Post New Topic  Post A Reply
Email This Page to Someone! | Printable Version


next newest topic | next oldest topic
IAT sensor ohms per degree? by XgovernmentAgent
Started on: 06-29-2013 05:03 PM
Replies: 7 (444 views)
Last post by: Hudini on 06-29-2013 08:19 PM
XgovernmentAgent
Member
Posts: 322
From:
Registered: Feb 2011


Feedback score: (2)
Leave feedback

Rate this member

Report this Post06-29-2013 05:03 PM Click Here to See the Profile for XgovernmentAgentSend a Private Message to XgovernmentAgentEdit/Delete MessageReply w/QuoteDirect Link to This Post
What are the ohms per degree F for the GM temp sensor? This is apparently very difficult info to find.
IP: Logged
PFF
System Bot
sleevePAPA
Member
Posts: 776
From:
Registered: Jan 2013


Feedback score: N/A
Leave feedback

Rate this member

Report this Post06-29-2013 05:44 PM Click Here to See the Profile for sleevePAPASend a Private Message to sleevePAPAEdit/Delete MessageReply w/QuoteDirect Link to This Post
CTS and IAT/MAT are the same values

http://www.thirdgen.org/tec...le-please-ctsmat.gif
IP: Logged
XgovernmentAgent
Member
Posts: 322
From:
Registered: Feb 2011


Feedback score: (2)
Leave feedback

Rate this member

Report this Post06-29-2013 06:42 PM Click Here to See the Profile for XgovernmentAgentSend a Private Message to XgovernmentAgentEdit/Delete MessageReply w/QuoteDirect Link to This Post
Link says I do not have permission to view page. Can you share the info you see on that page on here?
IP: Logged
1fast2m4
Member
Posts: 513
From: Frederick, MD (U.S.A)
Registered: Feb 2013


Feedback score: N/A
Leave feedback

Rate this member

Report this Post06-29-2013 06:51 PM Click Here to See the Profile for 1fast2m4Send a Private Message to 1fast2m4Edit/Delete MessageReply w/QuoteDirect Link to This Post
Google " GM IAT resistance"

EDITED BECAUSE I GOOGLED TOO FAST..................

------------------
1986 SE 3800SC/4t65eHD (12.871@104.96) I'll Sell it if you like
1985 GT 3800SC (swap in progress)

[This message has been edited by 1fast2m4 (edited 06-29-2013).]

IP: Logged
Marvin McInnis
Member
Posts: 11597
From: ~ Kansas City, USA
Registered: Apr 2002


Feedback score: N/A
Leave feedback





Total ratings: 226
Rate this member

Report this Post06-29-2013 07:11 PM Click Here to See the Profile for Marvin McInnisClick Here to visit Marvin McInnis's HomePageSend a Private Message to Marvin McInnisEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by 1fast2m4:

scroll down to IAT
...




For some reason, those two sources don't agree very well.



quote
Originally posted by XgovernmentAgent:

What are the ohms per degree F for the GM temp sensor?



Good question, but note that it these sensors (thermistors) are highly nonlinear, so "ohms per degree" doesn't really apply.

[This message has been edited by Marvin McInnis (edited 06-29-2013).]

IP: Logged
1fast2m4
Member
Posts: 513
From: Frederick, MD (U.S.A)
Registered: Feb 2013


Feedback score: N/A
Leave feedback

Rate this member

Report this Post06-29-2013 07:25 PM Click Here to See the Profile for 1fast2m4Send a Private Message to 1fast2m4Edit/Delete MessageReply w/QuoteDirect Link to This Post

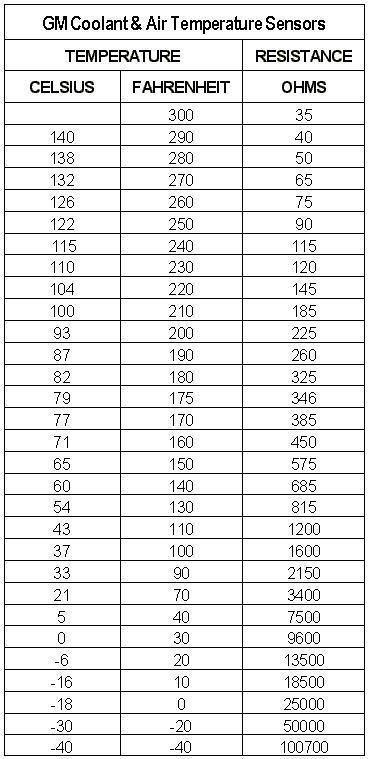

My Bad this is the one I used when I made my own ZZP race pellet.


You can find that image on THIS PAGE

------------------
1986 SE 3800SC/4t65eHD (12.871@104.96) I'll Sell it if you like
1985 GT 3800SC (swap in progress)

IP: Logged
phonedawgz
Member
Posts: 17011
From: Green Bay, WI USA
Registered: Dec 2009


Feedback score:    (23)
Leave feedback





Total ratings: 290
Rate this member

Report this Post06-29-2013 07:58 PM Click Here to See the Profile for phonedawgzClick Here to visit phonedawgz's HomePageClick Here to Email phonedawgzSend a Private Message to phonedawgzEdit/Delete MessageReply w/QuoteDirect Link to This Post
.

[This message has been edited by phonedawgz (edited 06-29-2013).]

IP: Logged
Hudini
Member
Posts: 7968
From: Shanghai, China
Registered: Feb 2006


Feedback score: N/A
Leave feedback





Total ratings: 158
Rate this member

Report this Post06-29-2013 08:19 PM Click Here to See the Profile for HudiniClick Here to Email HudiniSend a Private Message to HudiniEdit/Delete MessageReply w/QuoteDirect Link to This Post
I always liked this one Dodgerunner interpolated from the FSM:

IP: Logged
