Installing a LS4 bearing in an 88 knuckle by Jims88
Started on: 09-16-2012 11:02 AM
Replies: 14 (1238 views)
Last post by: Jims88 on 04-26-2014 08:16 PM
Jims88
Member
Posts: 267
From: Kalamazoo MI
Registered: Jul 2011


Feedback score: (1)
Leave feedback

Rate this member

Report this Post09-16-2012 11:02 AM Click Here to See the Profile for Jims88Click Here to Email Jims88Send a Private Message to Jims88Edit/Delete MessageReply w/QuoteDirect Link to This Post
I bought a LS4 package to install in my 88 Formula. After looking things over and comparing this and that I came to the realization this thing is MASSIVE. Compared to my 2.8. So I decided to try and install the LS4 bearing into the 88 knuckle, this would give me the factory drive-train all the way to the wheels.




I bought a low mileage OEM Delco non-ABS Grand Prix bearing at Morris Rose Salvage to play with. I then measured and compared the hub to flange widths and found them to be about the same.




The shoulder fits between the the bolt holes.



So I started to tear the LS4 bearing apart.



This cover was glued down tight with some green stuff.







I used a piece of 1-1/4" black pipe as a spacer to pull the bearing race off.




I expected the bearing race would come off hard but pulled off relatively easy.





I ground down an old bi-metal sawzall blade and carefully tapped out the grease seal. I wish I could purchase new seals but these are throw-away bearings, so I doubt they are available.

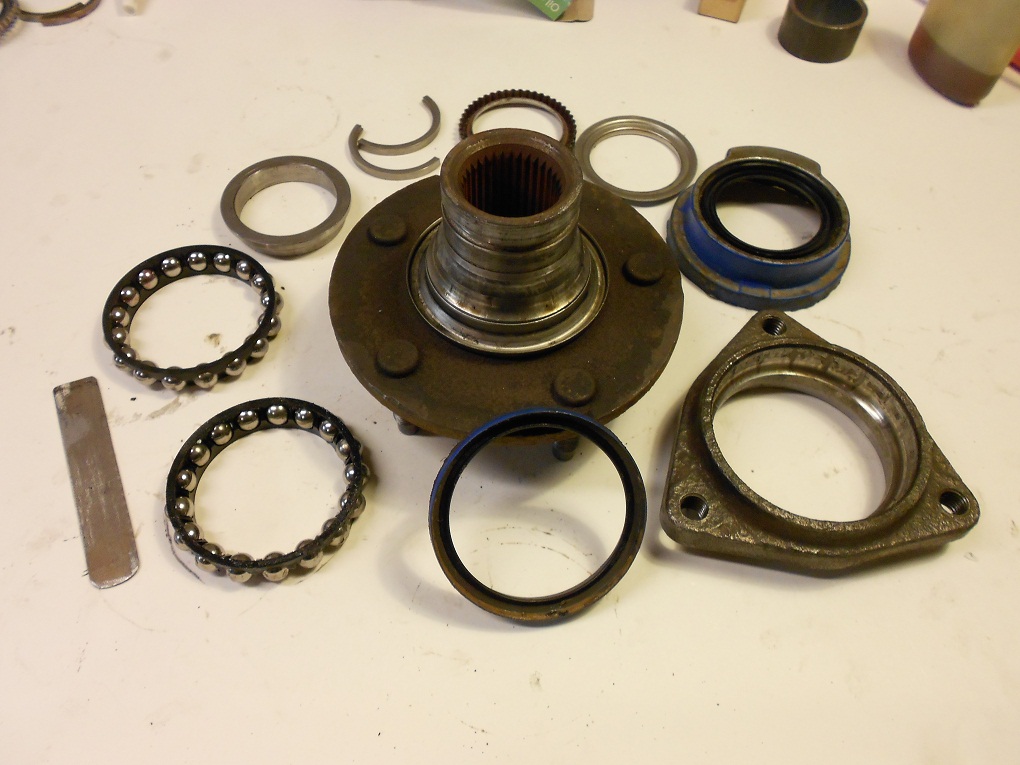

All the parts



This shoulder measured about .375" and centers the bearing on the knuckle.



Here is how deep I would have to bore into the knuckle. I decided to go for it; but if I were to do it over I would face off about .125" from the bearing shoulder to move farther away from the brake flange.



The knuckle is bored to accept the bearing, I allso have the seal sleeve installed with Loctite instant gasket.
I can always turn up a bushing and install the factory wheel bearing if I have to.





This is the wear line left from the balls.



If I spot face for the bolt heads down to the flange face; I am concerned about leaving enough metal for strength.



.082" then becomes the race thickness at this point.



.202" is going to be my minimum



I notched and drilled a 5/16 grade 8 washer and did not spot face as deep. I can live with .208". The spot face on the bearing flange is below the washer.
I didn't want to take any chances with the bolt head clamping down near the bearing race and distorting something.



This sharp edge had to be smoothed off so the seal wouldn't snag on assembly. There was a plug I knocked out of the wheel flange and drille out to 3/4", I still had to use my die grinder to elongate it towards the hub center to get my allen bolts threw.



Some trial fitting and the bearing seal is turned up. The seal is a SKF 19630. This seal will only fit the OEM Delco Bearing, Chinese and other aftermarket wheel bearings wont work with this seal.



I had to trim down the ABS reluctance wheel/clip retainer for seal clearence. I turned up a piece of aluminum with a .050" shoulder to get the depth I needed on assembly.



Going back together





I opened up a old bearing race with my dremel tool to use as a spacer when I pressed the race back together.





Some more Loctite Instant Gasket before I drop in the bearing











There is .045" between the top of the bolt heads and back side of the wheel lugs bolts. If I were to go with thicker washers; so I wouldn't have to spot face as deep, I would cut down the allen bolt heads a touch.



.010" gap between the stub axel and and seal sleeve, if I here any strange noises back there; this will be my "wear indicator"



Finally all together!



A trial fit



Now I will have to waite and see how well this experiment works.I have about another years worth of work, before I am done with the project.

[This message has been edited by Jims88 (edited 03-01-2018).]

IP: Logged
PFF
System Bot
Bloozberry
Member
Posts: 7760
From:
Registered: Jan 2009


Feedback score: N/A
Leave feedback





Total ratings: 307
Rate this member

Report this Post09-16-2012 12:12 PM Click Here to See the Profile for BloozberrySend a Private Message to BloozberryEdit/Delete MessageReply w/QuoteDirect Link to This Post
Great write-up and excellent pictures! Way to go thinking outside the box (a metal lathe sure opens up the possibilities) I'll be curious to see how well that 0.010" clearance between the CV joint housing and the knuckle plays out in practice.
IP: Logged
fieroguru
Member
Posts: 11307
From: Champaign, IL
Registered: Aug 2003


Feedback score:    (45)
Leave feedback





Total ratings: 255
Rate this member

Report this Post09-16-2012 06:39 PM Click Here to See the Profile for fieroguruSend a Private Message to fieroguruEdit/Delete MessageReply w/QuoteDirect Link to This Post
Great writeup! Mind sharing a picture of the fixture you used to hold the upright in place when you bored it? When I did mine for the S10 wheel bearing the new hole diameter was constant, so I bored from the inside out. With your stepped hole, you had to have bored it outside in.

[This message has been edited by fieroguru (edited 09-16-2012).]

IP: Logged
Jims88
Member
Posts: 267
From: Kalamazoo MI
Registered: Jul 2011


Feedback score: (1)
Leave feedback

Rate this member

Report this Post09-16-2012 07:41 PM Click Here to See the Profile for Jims88Click Here to Email Jims88Send a Private Message to Jims88Edit/Delete MessageReply w/QuoteDirect Link to This Post
Thank You Bloozberry,
Yea I'm a littel nervous about the .010" clearance. If some metal flakes show up the easiest fix may be chamfering the seal sleeve or maybe a thin washer on the axel.

Thank You Fieroguru,
Brilliant observation about boring the hole, fact is I cheated and outsourced it.
After talking with 3 different machinist, 2 of which would'nt touch it for liability reasons; I found a guy who had access to a machine that auto-centers itself and machines the hole with 1/2" end mill.
IP: Logged
darkhorizon
Member
Posts: 12227
From: Flint Michigan
Registered: Jan 2006


Feedback score: (1)
Leave feedback





Total ratings: 450
Rate this member

Report this Post09-16-2012 11:25 PM Click Here to See the Profile for darkhorizonSend a Private Message to darkhorizonEdit/Delete MessageReply w/QuoteDirect Link to This Post
Had I known you were doing them, i would have ordered my spare knuckles to be done!!

I am dying to go to that bolt pattern here in the near future.
IP: Logged
Jims88
Member
Posts: 267
From: Kalamazoo MI
Registered: Jul 2011


Feedback score: (1)
Leave feedback

Rate this member

Report this Post09-17-2012 08:49 PM Click Here to See the Profile for Jims88Click Here to Email Jims88Send a Private Message to Jims88Edit/Delete MessageReply w/QuoteDirect Link to This Post
darkhorizon,

PM me when your ready and I will see if I can hook you up,
IP: Logged
Jims88
Member
Posts: 267
From: Kalamazoo MI
Registered: Jul 2011


Feedback score: (1)
Leave feedback

Rate this member

Report this Post10-03-2012 10:07 PM Click Here to See the Profile for Jims88Click Here to Email Jims88Send a Private Message to Jims88Edit/Delete MessageReply w/QuoteDirect Link to This Post
I noticed some rotational resistance in the bearing after I had torqued the bolts to 62 ft/lbs.
It wasn't much, at first I thought it was just seal drag but I had to be sure, so I took it back apart.



Turns out; the plastic bearing cage was touching the knuckle and left a shinny ring.


I then noticed the bearing cage sticking up .040" off the shoulder.



I rigged up my dremel tool in my drill press on the cross slide rotory table and ground some clearence.



Back together again, for good I hope.




IP: Logged
carbonfiber_kid
Member
Posts: 202
From: Oxford, Mi, USA
Registered: Apr 2006


Feedback score:    (7)
Leave feedback

Rate this member

Report this Post05-18-2013 10:27 AM Click Here to See the Profile for carbonfiber_kidClick Here to Email carbonfiber_kidSend a Private Message to carbonfiber_kidEdit/Delete MessageReply w/QuoteDirect Link to This Post
any updates. i am very interested in how well this works
IP: Logged
Jncomutt
Member
Posts: 8876
From: Charlotte, NC
Registered: Apr 2001


Feedback score: (3)
Leave feedback





Total ratings: 221
Rate this member

Report this Post05-18-2013 11:19 AM Click Here to See the Profile for JncomuttClick Here to Email JncomuttSend a Private Message to JncomuttEdit/Delete MessageReply w/QuoteDirect Link to This Post
Please keep this updated!
IP: Logged
fierogt28
Member
Posts: 2778
From: New-Brunswick, Canada.
Registered: Feb 2005


Feedback score:    (14)
Leave feedback

Rate this member

Report this Post05-18-2013 07:03 PM Click Here to See the Profile for fierogt28Click Here to Email fierogt28Send a Private Message to fierogt28Edit/Delete MessageReply w/QuoteDirect Link to This Post
Is this a bearing off a Corvette?? I'm confused about the LS4 name you've mentioned.

Thanks,

------------------
fierogt28

88 GT, Loaded, 5-speed.
88 GT, 5-speed. Beechwood interior, All original.

IP: Logged
Jncomutt
Member
Posts: 8876
From: Charlotte, NC
Registered: Apr 2001


Feedback score: (3)
Leave feedback





Total ratings: 221
Rate this member

Report this Post05-18-2013 07:28 PM Click Here to See the Profile for JncomuttClick Here to Email JncomuttSend a Private Message to JncomuttEdit/Delete MessageReply w/QuoteDirect Link to This Post
I think grand prix gxp.
IP: Logged
PFF
System Bot
fieroguru
Member
Posts: 11307
From: Champaign, IL
Registered: Aug 2003


Feedback score:    (45)
Leave feedback





Total ratings: 255
Rate this member

Report this Post05-18-2013 08:28 PM Click Here to See the Profile for fieroguruSend a Private Message to fieroguruEdit/Delete MessageReply w/QuoteDirect Link to This Post
Its a front wheel bearing from a stock LS4 application: Grand Prix GXP | Monte Carlo SS | Impala SS | Lacrosse Super
IP: Logged
Will
Member
Posts: 13446
From: Where you least expect me
Registered: Jun 2000


Feedback score: (1)
Leave feedback





Total ratings: 234
Rate this member

Report this Post04-25-2014 11:17 AM Click Here to See the Profile for WillClick Here to Email WillSend a Private Message to WillEdit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by Jims88:
I expected the bearing race would come off hard but pulled off relatively easy.



I think this is the problem most of the time when replacement hubs loosen up without other material failures.

Did you tack weld the inner races to the spindle? That might be a good idea...
IP: Logged
Jims88
Member
Posts: 267
From: Kalamazoo MI
Registered: Jul 2011


Feedback score: (1)
Leave feedback

Rate this member

Report this Post04-26-2014 08:03 PM Click Here to See the Profile for Jims88Click Here to Email Jims88Send a Private Message to Jims88Edit/Delete MessageReply w/QuoteDirect Link to This Post

quote
Originally posted by Will:


I think this is the problem most of the time when replacement hubs loosen up without other material failures.

Did you tack weld the inner races to the spindle? That might be a good idea...


Interesting idea Will,
The Grand Prix wheel bearings use a precision ground 2 piece, C type retaining clip, which is secured by pressing on the ABS reluctance wheel/clip retainer.
If the axel nut were to loosen up, it would have no effect on the bearing preload.



IP: Logged
Jims88
Member
Posts: 267
From: Kalamazoo MI
Registered: Jul 2011


Feedback score: (1)
Leave feedback

Rate this member

Report this Post04-26-2014 08:16 PM Click Here to See the Profile for Jims88Click Here to Email Jims88Send a Private Message to Jims88Edit/Delete MessageReply w/QuoteDirect Link to This Post
Not much to update, I am about 4 months away from actually getting the Ls4 running.
I did turn up a .075" spacer washer; for more clearance between the axel and the knuckle.


IP: Logged
