Wire connections by LornesGT
Started on: 08-02-2014 11:24 PM
Replies: 6 (127 views)
Last post by: Bloozberry on 08-03-2014 10:00 PM
LornesGT
Member
Posts: 1291
From: Granite City, IL
Registered: Jan 2013


Feedback score: (4)
Leave feedback

Rate this member

Report this Post08-02-2014 11:24 PM Click Here to See the Profile for LornesGTSend a Private Message to LornesGTEdit/Delete MessageReply w/QuoteDirect Link to This Post

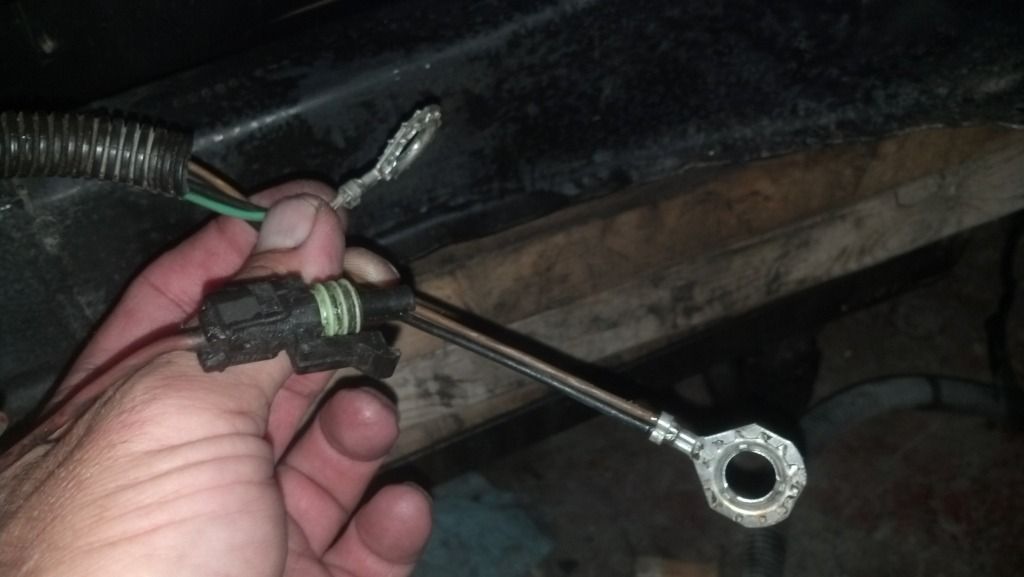

I have 3 wires I need help with, they exit the bundle by the a/c compressor. Two appear to be ground and the other has a plug. I need a connecting point.

IP: Logged
PFF
System Bot
hiwil88formula
Member
Posts: 617
From: San Antonio, Texas
Registered: Oct 2001


Feedback score:    (12)
Leave feedback

Rate this member

Report this Post08-03-2014 12:20 AM Click Here to See the Profile for hiwil88formulaClick Here to Email hiwil88formulaSend a Private Message to hiwil88formulaEdit/Delete MessageReply w/QuoteDirect Link to This Post
You are right. Two are a ground the other looks like an o2 sensor to me.
IP: Logged
LornesGT
Member
Posts: 1291
From: Granite City, IL
Registered: Jan 2013


Feedback score: (4)
Leave feedback

Rate this member

Report this Post08-03-2014 12:45 AM Click Here to See the Profile for LornesGTSend a Private Message to LornesGTEdit/Delete MessageReply w/QuoteDirect Link to This Post
Yes the O2, I don't have the exhaust installed, thanks for jogging my memory. Do you now the connection points for the grounds? Seems there would be optimum point for ignition or what have you. I suppose the starter bolt just not sure.
IP: Logged
hiwil88formula
Member
Posts: 617
From: San Antonio, Texas
Registered: Oct 2001


Feedback score:    (12)
Leave feedback

Rate this member

Report this Post08-03-2014 07:38 AM Click Here to See the Profile for hiwil88formulaClick Here to Email hiwil88formulaSend a Private Message to hiwil88formulaEdit/Delete MessageReply w/QuoteDirect Link to This Post
Those two grounds usually connect to the front head under the throttle body.
IP: Logged
Bloozberry
Member
Posts: 7760
From:
Registered: Jan 2009


Feedback score: N/A
Leave feedback





Total ratings: 307
Rate this member

Report this Post08-03-2014 07:44 AM Click Here to See the Profile for BloozberrySend a Private Message to BloozberryEdit/Delete MessageReply w/QuoteDirect Link to This Post
Those are grounds G503 and G504:

IP: Logged
LornesGT
Member
Posts: 1291
From: Granite City, IL
Registered: Jan 2013


Feedback score: (4)
Leave feedback

Rate this member

Report this Post08-03-2014 08:42 PM Click Here to See the Profile for LornesGTSend a Private Message to LornesGTEdit/Delete MessageReply w/QuoteDirect Link to This Post
Thanks everyone! Bloozberry what manual do you have?
IP: Logged
Bloozberry
Member
Posts: 7760
From:
Registered: Jan 2009


Feedback score: N/A
Leave feedback





Total ratings: 307
Rate this member

Report this Post08-03-2014 10:00 PM Click Here to See the Profile for BloozberrySend a Private Message to BloozberryEdit/Delete MessageReply w/QuoteDirect Link to This Post
I have an 86 and an 88 FSM. The picture above is found on page 8A-201-5 figure A in the '86 FSM and a slightly different one on page 8A-201-3 figure A in the '88 FSM.
IP: Logged
