Anyone need a Transmission Control Module? by ryan.hess
Started on: 02-03-2011 12:19 AM
Replies: 35
Last post by: Dennis LaGrua on 09-09-2011 06:47 PM
ryan.hess
Member
Posts: 20784
From: Orlando, FL
Registered: Dec 2002


Feedback score: (1)
Leave feedback





Total ratings: 319
Rate this member

Report this Post02-03-2011 12:19 AM Click Here to See the Profile for ryan.hessSend a Private Message to ryan.hessDirect Link to This Post
Features:

- 6 Solenoid Outputs (for controlling shift solenoids)
- 3 PWM Outputs (for pressure control, TCC lockup, other)
- LED Gear indicator
- 3 Transmission switch inputs
- VSS, Tach, and TPS inputs (for automatic mode)
- Automatic / Manual mode selection
- Up / Down manual shift button inputs (paddle shifting)
- USB programming of shift points, solenoid selection, and features

This transmission controller is going Beta (soon) and based on another controller I built in 2005, with many upgrades and new features. I sold several of them to forum members, and still have my original in my fiero today.

It basically is this: http://www.powertraincontro...com/transcontrol.php and will control all of those transmissions and more.

The manual only TCM will be TBD (less than $300, delivered.)
The automatic/manual TCM will be TBD (less than $500, delivered.)

I'm hoping to get the price to about $200 and $400, respectively, but the actual time allocation to mass produce these is still an unknown. Also the more interest there is, the cheaper they get.

Standard disclaimer of OFFROAD USE ONLY, may cause power train damage, may void warranties, etc etc, applies. Beta testers that want to help will get a substantial discount. Let me know if there is any interest!

------------------
Ryan - Northstar GT - 256RWHP / 258TQ - First Paddle shifted N* Fiero

"An election is coming. Universal peace is declared and the foxes have a sincere interest in prolonging the lives of the poultry." - T.S. Eliot

IP: Logged
PFF
System Bot
RCR
Member
Posts: 4425
From: Shelby Twp Mi
Registered: Sep 2002


Feedback score:    (7)
Leave feedback





Total ratings: 102
Rate this member

Report this Post02-03-2011 06:54 PM Click Here to See the Profile for RCRSend a Private Message to RCRDirect Link to This Post
Hey Ryan,
Good to see you at it again...I thought you were done with the TCM's a while ago...

Bob
IP: Logged
joshua riedl
Member
Posts: 1426
From: watertown wi USA
Registered: Jan 2004


Feedback score: N/A
Leave feedback

Rate this member

Report this Post02-03-2011 08:09 PM Click Here to See the Profile for joshua riedlSend a Private Message to joshua riedlDirect Link to This Post
I'm interested and ready to wire in and test.
IP: Logged
jetsnvettes2000
Member
Posts: 3311
From: Menasha,Wisconsin,USA
Registered: Dec 2009


Feedback score: N/A
Leave feedback

Rate this member

Report this Post02-03-2011 08:58 PM Click Here to See the Profile for jetsnvettes2000Send a Private Message to jetsnvettes2000Direct Link to This Post

quote
Originally posted by joshua riedl:

I'm interested and ready to wire in and test.


Me too possibly!
IP: Logged
Snapperhead
Member
Posts: 1982
From: Grand Rapids, MI USA
Registered: Jul 2006


Feedback score:    (57)
Leave feedback

Rate this member

Report this Post02-04-2011 11:55 AM Click Here to See the Profile for SnapperheadClick Here to visit Snapperhead's HomePageSend a Private Message to SnapperheadDirect Link to This Post
If it's ready in time for my swap. I would pick one up -

The automatic/manual TCM

Vince
IP: Logged
Jncomutt
Member
Posts: 8913
From: Charlotte, NC
Registered: Apr 2001


Feedback score: (3)
Leave feedback





Total ratings: 221
Rate this member

Report this Post02-04-2011 05:26 PM Click Here to See the Profile for JncomuttSend a Private Message to JncomuttDirect Link to This Post
Pros/Cons compared to MegaShift? I'm thinkin of building one of these if I run into issues with my AEM standalone controlling my auto this season...
IP: Logged
ryan.hess
Member
Posts: 20784
From: Orlando, FL
Registered: Dec 2002


Feedback score: (1)
Leave feedback





Total ratings: 319
Rate this member

Report this Post02-04-2011 10:22 PM Click Here to See the Profile for ryan.hessSend a Private Message to ryan.hessDirect Link to This Post

quote
Originally posted by Jncomutt:

Pros/Cons compared to MegaShift? I'm thinkin of building one of these if I run into issues with my AEM standalone controlling my auto this season...


It would be fully assembled for the price shown. (No soldering of components, no assembly, etc)
USB support
Self Diagnostics*

Otherwise not much different (from what I can see glancing through their specs... their website is pretty confusing)

edit: wanted to add *that in there, as I didn't see anything that suggested the MS did. Basically, the transmission and module are monitored continuously, and if any irregularities occur, a "check transmission light" is set, and outputs are adjusted to limit potential damage.

[This message has been edited by ryan.hess (edited 02-05-2011).]

IP: Logged
joshua riedl
Member
Posts: 1426
From: watertown wi USA
Registered: Jan 2004


Feedback score: N/A
Leave feedback

Rate this member

Report this Post02-06-2011 07:02 PM Click Here to See the Profile for joshua riedlSend a Private Message to joshua riedlDirect Link to This Post
Would it be possible to program an upshift on the manual controller to prevent over revving and provide consistant full throttle runs? The same could be done with a shift light but it may make a more affordable option for those who don't want to buy the auto setup.
IP: Logged
ryan.hess
Member
Posts: 20784
From: Orlando, FL
Registered: Dec 2002


Feedback score: (1)
Leave feedback





Total ratings: 319
Rate this member

Report this Post02-07-2011 10:43 AM Click Here to See the Profile for ryan.hessSend a Private Message to ryan.hessDirect Link to This Post

quote
Originally posted by joshua riedl:

Would it be possible to program an upshift on the manual controller to prevent over revving and provide consistant full throttle runs? The same could be done with a shift light but it may make a more affordable option for those who don't want to buy the auto setup.


Yes, and there will be a downshift lockout feature where if you accidentally hit the wrong lever it won't respond by sending you into a tailspin..
IP: Logged
phonedawgz
Member
Posts: 17104
From: Green Bay, WI USA
Registered: Dec 2009


Feedback score:    (23)
Leave feedback





Total ratings: 291
Rate this member

Report this Post02-07-2011 11:21 AM Click Here to See the Profile for phonedawgzClick Here to visit phonedawgz's HomePageSend a Private Message to phonedawgzDirect Link to This Post
So just wondering what is the problem(s) with the TCM you linked to?
IP: Logged
ryan.hess
Member
Posts: 20784
From: Orlando, FL
Registered: Dec 2002


Feedback score: (1)
Leave feedback





Total ratings: 319
Rate this member

Report this Post02-07-2011 07:00 PM Click Here to See the Profile for ryan.hessSend a Private Message to ryan.hessDirect Link to This Post

quote
Originally posted by phonedawgz:

So just wondering what is the problem(s) with the TCM you linked to?


None at all, other than the $750 price tag.
IP: Logged
PFF
System Bot
Jncomutt
Member
Posts: 8913
From: Charlotte, NC
Registered: Apr 2001


Feedback score: (3)
Leave feedback





Total ratings: 221
Rate this member

Report this Post02-09-2011 05:40 PM Click Here to See the Profile for JncomuttSend a Private Message to JncomuttDirect Link to This Post
Edit, opps wasn't thinkin at first.. I asked about a trans temp sensor but thought about it after I posted, lol.

[This message has been edited by Jncomutt (edited 02-09-2011).]

IP: Logged
Snapperhead
Member
Posts: 1982
From: Grand Rapids, MI USA
Registered: Jul 2006


Feedback score:    (57)
Leave feedback

Rate this member

Report this Post02-11-2011 07:54 AM Click Here to See the Profile for SnapperheadClick Here to visit Snapperhead's HomePageSend a Private Message to SnapperheadDirect Link to This Post
Just a bump to keep it on top....

Do you have an idea on production dates...

Starting to smell spring coming.

Vince
IP: Logged
joshua riedl
Member
Posts: 1426
From: watertown wi USA
Registered: Jan 2004


Feedback score: N/A
Leave feedback

Rate this member

Report this Post02-17-2011 06:25 PM Click Here to See the Profile for joshua riedlSend a Private Message to joshua riedlDirect Link to This Post
back up
IP: Logged
ryan.hess
Member
Posts: 20784
From: Orlando, FL
Registered: Dec 2002


Feedback score: (1)
Leave feedback





Total ratings: 319
Rate this member

Report this Post02-18-2011 12:04 PM Click Here to See the Profile for ryan.hessSend a Private Message to ryan.hessDirect Link to This Post
Just as an update, the production boards were ordered last week. They should arrive late next week or so...

IP: Logged
Snapperhead
Member
Posts: 1982
From: Grand Rapids, MI USA
Registered: Jul 2006


Feedback score:    (57)
Leave feedback

Rate this member

Report this Post02-21-2011 08:35 AM Click Here to See the Profile for SnapperheadClick Here to visit Snapperhead's HomePageSend a Private Message to SnapperheadDirect Link to This Post

quote
Originally posted by ryan.hess:

Just as an update, the production boards were ordered last week. They should arrive late next week or so...


Sounds good.
IP: Logged
joshua riedl
Member
Posts: 1426
From: watertown wi USA
Registered: Jan 2004


Feedback score: N/A
Leave feedback

Rate this member

Report this Post02-22-2011 08:27 PM Click Here to See the Profile for joshua riedlSend a Private Message to joshua riedlDirect Link to This Post
something I've been thinking about is I have a cadillac shifter installed with tap shift that I'm currently using and I'm pretty sure it has a micro switch that shows when the shifter moves over for tap operation. I can't remember if it's open or closed in tap mode or how you plan on switching your controller but it would be a pretty neat setup to have it go from auto to manual automatically. I tried making paddles but it never quite looked right so I went to the cadi shifter.
IP: Logged
joshua riedl
Member
Posts: 1426
From: watertown wi USA
Registered: Jan 2004


Feedback score: N/A
Leave feedback

Rate this member

Report this Post03-04-2011 04:39 PM Click Here to See the Profile for joshua riedlSend a Private Message to joshua riedlDirect Link to This Post
Any news?
IP: Logged
Snapperhead
Member
Posts: 1982
From: Grand Rapids, MI USA
Registered: Jul 2006


Feedback score:    (57)
Leave feedback

Rate this member

Report this Post03-04-2011 05:05 PM Click Here to See the Profile for SnapperheadClick Here to visit Snapperhead's HomePageSend a Private Message to SnapperheadDirect Link to This Post

quote
Originally posted by joshua riedl:

Any news?


The last he told me the manual was about done and the full auto will be next..

Vince
IP: Logged
ryan.hess
Member
Posts: 20784
From: Orlando, FL
Registered: Dec 2002


Feedback score: (1)
Leave feedback





Total ratings: 319
Rate this member

Report this Post03-17-2011 08:55 AM Click Here to See the Profile for ryan.hessSend a Private Message to ryan.hessDirect Link to This Post
Just an update... The boards came in and there were some fitment issues that prevented testing in vehicle. So new boards are on their way (probably be here by this time next week). In the meantime, here's some EEP (electrical engineering pr0n):



IP: Logged
Snapperhead
Member
Posts: 1982
From: Grand Rapids, MI USA
Registered: Jul 2006


Feedback score:    (57)
Leave feedback

Rate this member

Report this Post03-18-2011 10:41 AM Click Here to See the Profile for SnapperheadClick Here to visit Snapperhead's HomePageSend a Private Message to SnapperheadDirect Link to This Post
Looking forward to that full automatic controller....

and da bump


Vince
IP: Logged
PFF
System Bot
rourke_87_T-Top
Member
Posts: 1347
From: Toronto Ontario Canada
Registered: Jan 2009


Feedback score:    (9)
Leave feedback

Rate this member

Report this Post03-18-2011 11:59 AM Click Here to See the Profile for rourke_87_T-TopSend a Private Message to rourke_87_T-TopDirect Link to This Post
Do you think this enable the traction control feature on my 91 Allante' 4T60 trans model 1KZH ? I have an MSD D.I.S. 4 with programmable HSR feature and the Allante axles. http://download.telematica.gr/MSD/6211.pdf

quote
Originally posted by rourke_87_T-Top:





[/QUOTE]
IP: Logged
joshua riedl
Member
Posts: 1426
From: watertown wi USA
Registered: Jan 2004


Feedback score: N/A
Leave feedback

Rate this member

Report this Post03-18-2011 06:34 PM Click Here to See the Profile for joshua riedlSend a Private Message to joshua riedlDirect Link to This Post

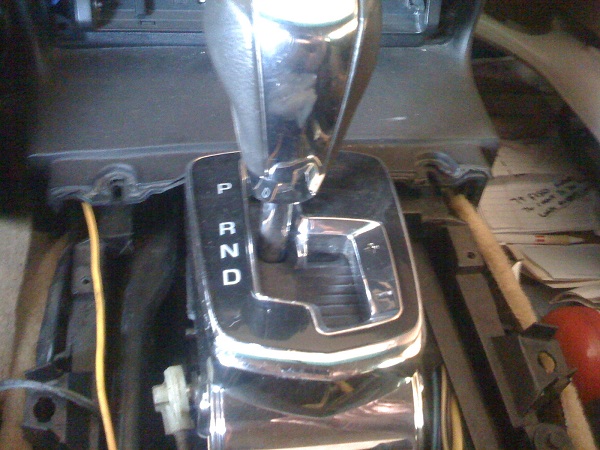

Here's a shot of my shifter so you have an idea of what I'm wanting to do. It should work seamlessly. I like the manual shift but having an auto option would be nice for the lazy days.
IP: Logged
joshua riedl
Member
Posts: 1426
From: watertown wi USA
Registered: Jan 2004


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-10-2011 09:52 PM Click Here to See the Profile for joshua riedlSend a Private Message to joshua riedlDirect Link to This Post
any progress?
IP: Logged
jasonfox
Member
Posts: 818
From: virginia
Registered: Oct 2010


Feedback score: (5)
Leave feedback

User Banned

Report this Post04-18-2011 06:03 PM Click Here to See the Profile for jasonfoxSend a Private Message to jasonfoxDirect Link to This Post
This looks like a great solution to the 3800 pcm / 4t80 pressure control solenoid frequency issue!

How much did that shifter cost you? I may be interested in this quite a bit.
IP: Logged
joshua riedl
Member
Posts: 1426
From: watertown wi USA
Registered: Jan 2004


Feedback score: N/A
Leave feedback

Rate this member

Report this Post04-18-2011 07:00 PM Click Here to See the Profile for joshua riedlSend a Private Message to joshua riedlDirect Link to This Post
I got my shifter on ebay, can't remember exactly how much it was but I'm fairly cheap so it couldn't have been bad. Like I mentioned before I am running my trans with a smart relay and don't have pressure control. for that I am waiting on ryan's computer but it seems like his free time is limited and it's unknown when this will be available.
IP: Logged
jasonfox
Member
Posts: 818
From: virginia
Registered: Oct 2010


Feedback score: (5)
Leave feedback

User Banned

Report this Post04-22-2011 03:13 AM Click Here to See the Profile for jasonfoxSend a Private Message to jasonfoxDirect Link to This Post
Have cash and interested. Don't mind if it's manual only as long as it will run a 4t80e tranny.
IP: Logged
Snapperhead
Member
Posts: 1982
From: Grand Rapids, MI USA
Registered: Jul 2006


Feedback score:    (57)
Leave feedback

Rate this member

Report this Post05-12-2011 10:53 AM Click Here to See the Profile for SnapperheadClick Here to visit Snapperhead's HomePageSend a Private Message to SnapperheadDirect Link to This Post
just a bump
IP: Logged
josef644
Member
Posts: 6939
From: Dickinson, Texas USA
Registered: Nov 2006


Feedback score:    (71)
Leave feedback





Total ratings: 103
Rate this member

Report this Post05-22-2011 06:47 PM Click Here to See the Profile for josef644Send a Private Message to josef644Direct Link to This Post
,

[This message has been edited by josef644 (edited 06-21-2011).]

IP: Logged
Snapperhead
Member
Posts: 1982
From: Grand Rapids, MI USA
Registered: Jul 2006


Feedback score:    (57)
Leave feedback

Rate this member

Report this Post06-15-2011 05:41 PM Click Here to See the Profile for SnapperheadClick Here to visit Snapperhead's HomePageSend a Private Message to SnapperheadDirect Link to This Post
Just a bump - Any luck with the full auto controller

Thanks,

Vince
IP: Logged
Snapperhead
Member
Posts: 1982
From: Grand Rapids, MI USA
Registered: Jul 2006


Feedback score:    (57)
Leave feedback

Rate this member

Report this Post06-21-2011 07:48 AM Click Here to See the Profile for SnapperheadClick Here to visit Snapperhead's HomePageSend a Private Message to SnapperheadDirect Link to This Post
Just a bump for you

------------------
Hop Till You Drop!!
www.worldwidefieros.com
"Uniting Fiero Owners Worldwide"
Snapperhead Productions


Snapperhead Used Fiero Parts
Mirror Finish Stainless Steel Door Sill Plates.
Mirror Finish Stainless Steel Deck Lid Mirrors.
Acrylic Hood & Trunk Mirrors.
Vette Brake Swap Consentric Rings.
Powder Coating Services.

Rides:
85 Gt Black, 2.8, 4sp, Lowered, Koni, Black
86 GT " Snapperhead" .. Lambo Doors, ZZ4 FI 350, 5sp, Car pc, Laser Blue
87 GT "Whippersnapper" .. 2.8, Auto.. Black, Planning a LS4 Conversion
88 Formula.. 2.8, Auto, White... Wife Ride

99 K2500 Suburban, 454, 4X4, The Tow Rig
04 Trailblazer, 4x4, Green, Wife Ride

[This message has been edited by Snapperhead (edited 06-21-2011).]

IP: Logged
PFF
System Bot
Snapperhead
Member
Posts: 1982
From: Grand Rapids, MI USA
Registered: Jul 2006


Feedback score:    (57)
Leave feedback

Rate this member

Report this Post07-21-2011 11:39 AM Click Here to See the Profile for SnapperheadClick Here to visit Snapperhead's HomePageSend a Private Message to SnapperheadDirect Link to This Post
Just a bump, how's it going

IP: Logged
hammer18
Member
Posts: 383
From: Maplewood Minnesota
Registered: Jun 2007


Feedback score: (5)
Leave feedback

Rate this member

Report this Post09-01-2011 08:02 PM Click Here to See the Profile for hammer18Send a Private Message to hammer18Direct Link to This Post
bump for you,any updates? and interested in the manual tcm.

Tyler

edit. this might be stupid question but could this controller work with say a ratchet style shifter?

[This message has been edited by hammer18 (edited 09-01-2011).]

IP: Logged
mikejhjr
Member
Posts: 740
From: AR/FL
Registered: Apr 2008


Feedback score: N/A
Leave feedback

Rate this member

Report this Post09-01-2011 11:21 PM Click Here to See the Profile for mikejhjrSend a Private Message to mikejhjrDirect Link to This Post
Another bump for you.

This is cool. I am getting closer to a swap and will probably end up running a 4t65 behind a 3500. I can't commit right now since everything is up in the air, but I'll keep watching. The manual control would be nice for what I am planning.
IP: Logged
ryan.hess
Member
Posts: 20784
From: Orlando, FL
Registered: Dec 2002


Feedback score: (1)
Leave feedback





Total ratings: 319
Rate this member

Report this Post09-09-2011 09:33 AM Click Here to See the Profile for ryan.hessSend a Private Message to ryan.hessDirect Link to This Post
Okey dokey - might as well update this. As is pretty typical, "life happens"... Obviously there is a lot of interest in this, so I am going to keep plugging along and get some (manual) testers out soon.
IP: Logged
Dennis LaGrua
Member
Posts: 15855
From: Hillsborough, NJ U.S.A.
Registered: May 2000


Feedback score:    (13)
Leave feedback





Total ratings: 328
Rate this member

Report this Post09-09-2011 06:47 PM Click Here to See the Profile for Dennis LaGruaSend a Private Message to Dennis LaGruaDirect Link to This Post
All of the more recent GM transmissions are shifted electrically but the frequencies/ waveforms that control the line pressure solenoids differ from box to box. For instance the GTP 4T65eHD from 03-up used a different control scheme than the earlier transmissions. If you are successful in making a universal trans shift controller I would venture to say that there will be demand. The market isn't just here but also with other swaps, street rods, N*'s and 1/4 mile cars and those that use aftermarket ECM.s like the Megasquirt and Haltech that are solely fuel injection and ignition control computers..

------------------
" THE BLACK PARALYZER" -87GT 3800SC Series III engine, ZZP Intercooler, 3.4" Pulley, N* TB, LS1 MAF, Flotech Exhaust Autolite 104's Custom CAI 4T65eHD w. custom axles, HP Tuners VCM Suite.
"THE COLUSSUS"
87GT - ALL OUT 3.4L Turbocharged engine, Garrett Hybrid Turbo, MSD ign., modified TH125H
" ON THE LOOSE WITHOUT THE JUICE "

IP: Logged



All times are ET (US)

T H I S   I S   A N   A R C H I V E D   T O P I C


Contact Us | Back To Main Page

Advertizing on PFF | Fiero Parts Vendors
PFF Merchandise | Fiero Gallery
Real-Time Chat | Fiero Related Auctions on eBay



Copyright (c) 1999, C. Pennock
