  Any Factory Sub wiring guru's around?

T H I S   I S   A N   A R C H I V E D   T O P I C


Email This Page to Someone! | Printable Version


Any Factory Sub wiring guru's around? by linenoise
Started on: 08-06-2003 08:51 PM
Replies: 12
Last post by: linenoise on 08-08-2003 11:12 PM
linenoise
Member
Posts: 3789
From:
Registered: Jun 2003


Feedback score: N/A
Leave feedback





Total ratings: 121
Rate this member

Report this Post08-06-2003 08:51 PM Click Here to See the Profile for linenoiseClick Here to visit linenoise's HomePageSend a Private Message to linenoiseDirect Link to This Post
Basically I have the courtesy panel installed and the wiring from it to the stereo looks in place. At the radio I have the radio electrical Connector (10 Wires) and no wiring from there to the amp or Sub. On my Amp I have a connector with the wires (15 Wires) cut at about 6" do these wires wire into the Radio Electrical Connector? Do 2 of these wires go to the Subwoofer? I have a white and Yellow that appear to go up towards the windshield that have been cut any ideas on them?

Once my Camera's battery is charged I'll take pictures.

Thanks. Pulling my hair out here.

------------------

Fiero 20th Anniversary Pictures
My Black 88 GT

IP: Logged
PFF
System Bot
Phil
Member
Posts: 7029
From: Coventry, RI
Registered: Apr 99


Feedback score: (2)
Leave feedback





Total ratings: 154
Rate this member

Report this Post08-06-2003 10:13 PM Click Here to See the Profile for PhilClick Here to Email PhilSend a Private Message to PhilDirect Link to This Post

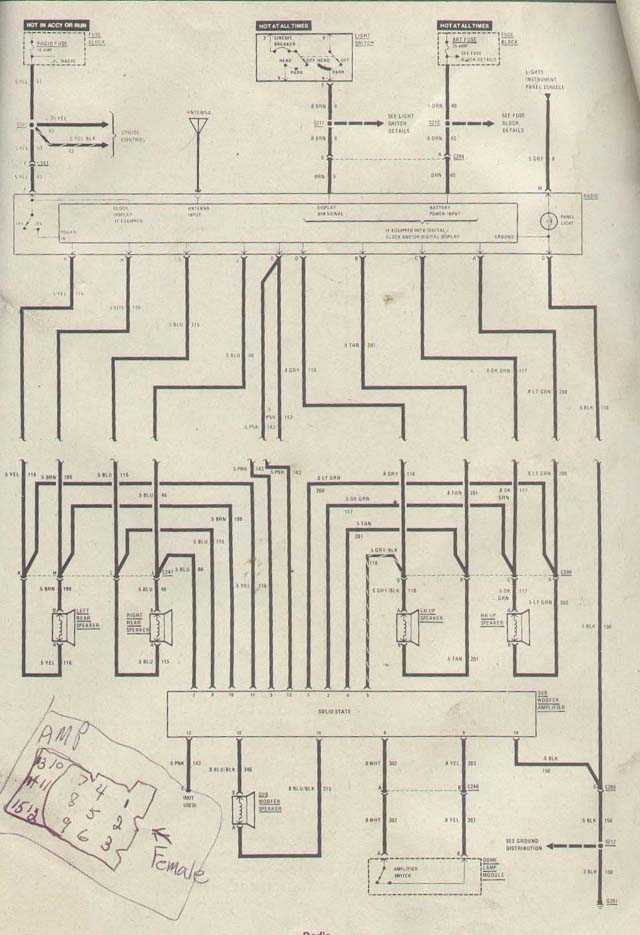

From my Haynes manual
IP: Logged
linenoise
Member
Posts: 3789
From:
Registered: Jun 2003


Feedback score: N/A
Leave feedback





Total ratings: 121
Rate this member

Report this Post08-06-2003 10:59 PM Click Here to See the Profile for linenoiseClick Here to visit linenoise's HomePageSend a Private Message to linenoiseDirect Link to This Post
The Connector that you drew in was my missing puzzle piece. Thank you so much. Was going nuts as I have the Haynes Manual and I couldn't figure out the plug.

So if I read this right.

12 , 15 goto the Sub speaker, 13 Is not used

6,9 goto these wires.


All the rest (7,8,10,11,3,13,1,2,4,5)get wired into this connector.

[This message has been edited by linenoise (edited 08-06-2003).]

IP: Logged
linenoise
Member
Posts: 3789
From:
Registered: Jun 2003


Feedback score: N/A
Leave feedback





Total ratings: 121
Rate this member

Report this Post08-07-2003 10:56 AM Click Here to See the Profile for linenoiseClick Here to visit linenoise's HomePageSend a Private Message to linenoiseDirect Link to This Post
TTT Anyone wanna confirm my thinking?
IP: Logged
MooCow
Member
Posts: 2263
From: Charlotte, NC
Registered: Sep 1999


Feedback score:    (22)
Leave feedback

Rate this member

Report this Post08-07-2003 01:09 PM Click Here to See the Profile for MooCowClick Here to Email MooCowSend a Private Message to MooCowDirect Link to This Post
It looks to be right. The yellow and white wires that go up by the windshiel have to get pluged in. There is a box in the upper corner that it plugs into. It take some small hands to get it in, or you can unplug that big box and plug the connector to it. I just got done installing my stock sub in my 85GT, but non of my wires were cut.
So how far are you from Grand Rapids??

Thanks Ken

IP: Logged
linenoise
Member
Posts: 3789
From:
Registered: Jun 2003


Feedback score: N/A
Leave feedback





Total ratings: 121
Rate this member

Report this Post08-07-2003 02:14 PM Click Here to See the Profile for linenoiseClick Here to visit linenoise's HomePageSend a Private Message to linenoiseDirect Link to This Post

quote
Originally posted by MooCow:

It looks to be right. The yellow and white wires that go up by the windshiel have to get pluged in. There is a box in the upper corner that it plugs into. It take some small hands to get it in, or you can unplug that big box and plug the connector to it. I just got done installing my stock sub in my 85GT, but non of my wires were cut.
So how far are you from Grand Rapids??

Thanks Ken

Ok you lost me. I thought the yellow and White that I havecut goto the yellow and white on the plug that goes into the amp.

I'm east side of the state. about 4 hours, I travel over to Comstock Park monthly tho.

IP: Logged
linenoise
Member
Posts: 3789
From:
Registered: Jun 2003


Feedback score: N/A
Leave feedback





Total ratings: 121
Rate this member

Report this Post08-07-2003 09:05 PM Click Here to See the Profile for linenoiseClick Here to visit linenoise's HomePageSend a Private Message to linenoiseDirect Link to This Post
Found a wiring harness thank god. Went to a new Junk yard today 1 2m6 Sub enclosure/amp gone but wiring harness complete. Yippppeee!
IP: Logged
fieromadman
Member
Posts: 2217
From: Oconomowoc WI, USA
Registered: Jan 2003


Feedback score: (1)
Leave feedback





Total ratings: 63
Rate this member

Report this Post08-08-2003 12:58 AM Click Here to See the Profile for fieromadmanClick Here to visit fieromadman's HomePageClick Here to Email fieromadmanSend a Private Message to fieromadmanDirect Link to This Post
heh, i just got an e-mail from a guy that was trying to get his subwoofer together too. Anyhow, i think that itsdamn near impossible to do unless you have the harness. Im sure you can see why now. Its just so tricky!

my webpage may be of some assistance.. http://www.geocities.com/j_depies/fierosubwooferinstallation.htm

IP: Logged
linenoise
Member
Posts: 3789
From:
Registered: Jun 2003


Feedback score: N/A
Leave feedback





Total ratings: 121
Rate this member

Report this Post08-08-2003 06:24 AM Click Here to See the Profile for linenoiseClick Here to visit linenoise's HomePageSend a Private Message to linenoiseDirect Link to This Post

quote
Originally posted by fieromadman:

heh, i just got an e-mail from a guy that was trying to get his subwoofer together too. Anyhow, i think that itsdamn near impossible to do unless you have the harness. Im sure you can see why now. Its just so tricky!

my webpage may be of some assistance.. http://www.geocities.com/j_depies/fierosubwooferinstallation.htm

Already found your website. and BTW the guy that emailed you was me.

IP: Logged
Phil
Member
Posts: 7029
From: Coventry, RI
Registered: Apr 99


Feedback score: (2)
Leave feedback





Total ratings: 154
Rate this member

Report this Post08-08-2003 06:33 AM Click Here to See the Profile for PhilClick Here to Email PhilSend a Private Message to PhilDirect Link to This Post
You may have to add 12V to the 2 pink wires from an outside source.
IP: Logged
Mickey_Moose
Member
Posts: 7288
From: Edmonton, AB, Canada
Registered: May 2001


Feedback score: (3)
Leave feedback





Total ratings: 142
Rate this member

Report this Post08-08-2003 09:13 AM Click Here to See the Profile for Mickey_MooseClick Here to visit Mickey_Moose's HomePageClick Here to Email Mickey_MooseSend a Private Message to Mickey_MooseDirect Link to This Post
#12 (Dark Blue/White) and 15 (Light Blue/Black) goes to the sub
#3(pink) and 13 (pink) goes to power (on the 'stock' radio these are connected to the power antenna output) - otherwise just use ignition (GM calls pin #3 Mute and 13 is power for the amp - I don't recall if I had both wires hooked up or just 13).
#6 (white) and 9 (yellow) goes to the 'Performance Sound' switch on the dome lights.
#1, 2, 4, 5, 7, 8, 10, 11 gets connected to the speaker outputs of the 'stock' radio.

NOTE: the above is correct, there is an error in the Haynes manual (pin 13 - actually it is listed twice, ignore the one on the bottom that says it is not used).

Tim

IP: Logged
PFF
System Bot
linenoise
Member
Posts: 3789
From:
Registered: Jun 2003


Feedback score: N/A
Leave feedback





Total ratings: 121
Rate this member

Report this Post08-08-2003 09:36 AM Click Here to See the Profile for linenoiseClick Here to visit linenoise's HomePageSend a Private Message to linenoiseDirect Link to This Post

quote
Originally posted by Mickey_Moose:

#12 (Dark Blue/White) and 15 (Light Blue/Black) goes to the sub
#3(pink) and 13 (pink) goes to power (on the 'stock' radio these are connected to the power antenna output) - otherwise just use ignition (GM calls pin #3 Mute and 13 is power for the amp - I don't recall if I had both wires hooked up or just 13).
#6 (white) and 9 (yellow) goes to the 'Performance Sound' switch on the dome lights.
#1, 2, 4, 5, 7, 8, 10, 11 gets connected to the speaker outputs of the 'stock' radio.

NOTE: the above is correct, there is an error in the Haynes manual (pin 13 - actually it is listed twice, ignore the one on the bottom that says it is not used).

Tim


Thank you so much thats excatly what I was looking for.

IP: Logged
linenoise
Member
Posts: 3789
From:
Registered: Jun 2003


Feedback score: N/A
Leave feedback





Total ratings: 121
Rate this member

Report this Post08-08-2003 11:12 PM Click Here to See the Profile for linenoiseClick Here to visit linenoise's HomePageSend a Private Message to linenoiseDirect Link to This Post
Subwooofer is in and working. Yipppeeeeee! Tomorrow I am replacing the other speakers. They crackle and pop.

------------------

Fiero 20th Anniversary Pictures
My Black 88 GT

IP: Logged
