After looking at the pic of Bill Levin's cradle dolly on the yahoo 3800SC swap group, I thought this is just what I need for my own project. Bill's dolly can be seen at this link (it's a very long link, but should take you right to the pic)
http://photos.groups.yahoo.com/group/3800v6superchargedfieros/vwp?.dir=/Bill+Levin/Cradle+Dolly&.src=gr&.dnm=Cradle+Dolly+3.jpg&.view=t&.done=http%3a//photos.groups.yahoo.com/group /3800v6superchargedfieros/lst%3f%26.dir=/Bill%2bLevin/Cradle%2bDolly%26.src=gr%26.view=t

Now that's a long link!

In addition, I figured that this would be a great way to learn to use the MIG welder that I had purchased (who said that at age 59 that you're too old to learn to weld?)

At first, I was just going to copy Bill's design, but then I realized that this structure would be a problem for me to store when not in use. My shop is my garage, and my wife likes to park her car there also, especially in our Canadian winters. So, storage space is limited, a common problem.

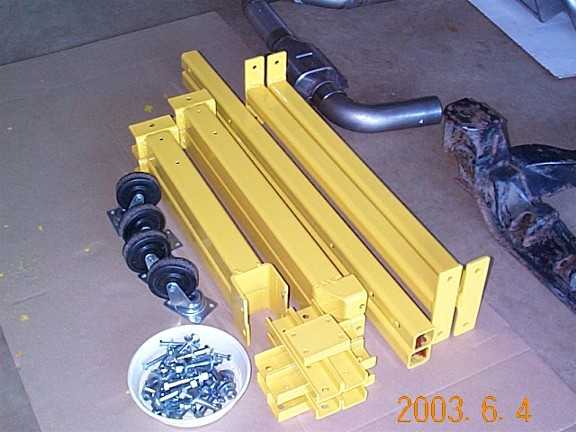

So, I got on my computer and made some layouts and detail CAD drawings of a design that can be disassembled and stowed away. There was still quite a bit of welding to do, as well as jig-drilling all the holes with minimum clearance. Before you put it together, it looks like this:

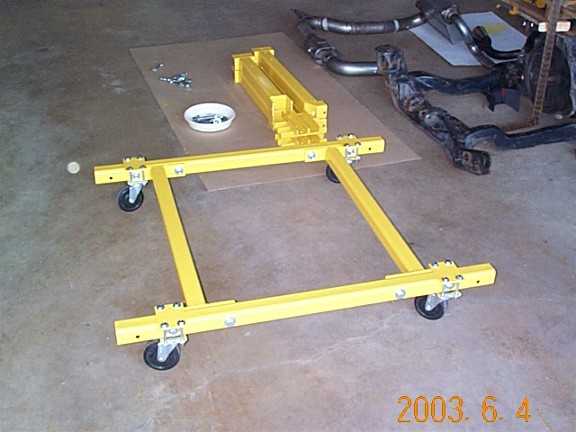

There are 8 lineal members that bolt together to make a very rigid stucture. The base is a simple frame on casters as shown below:

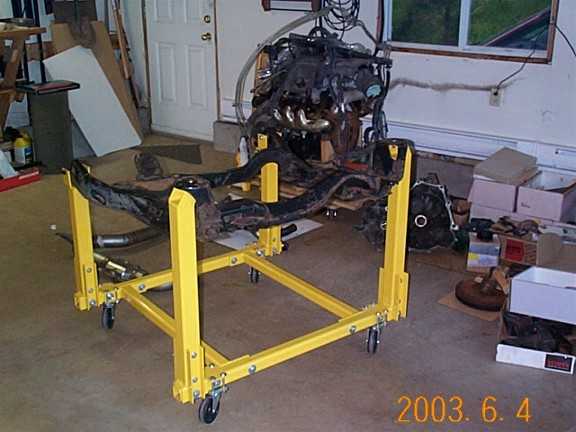

Then, the 4 vertical posts go on, which support the cradle. The trick here was to get a very rigid and strong joint. I did not want diagonal braces which would be in the way. Here's what it looks like with the vertical posts bolted in place. Note the 8" long 1"X2" channel supports at each corner.

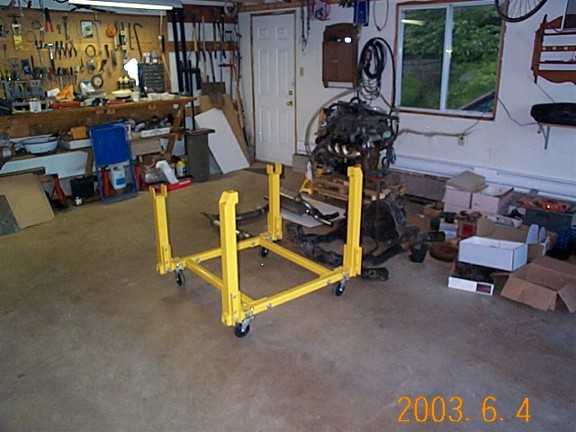

I was fortunate that jelly2m8 loaned me one of his '88 cradles as well as a Getrag, so I can work out a lot of the details of the swap before pulling the 2.8 out of my Fiero. Here's what the dolly looks like with the cradle bolted in place:

All in all, not a big deal, but it is a useful product. I don't enjoy bending down and working on the floor as much as I used to 30 years ago. After all the time I spent practicing with the welder, then doing the real welds, drilling holes and painting everything, I thought I would share this with you.

Now will come the fun part of lifting the 3800SC/Getrag into position on the cradle, installing the SLP roller rockers, 3.25" SC pulley, headers, etc.... Yes!!!

...Rickker
