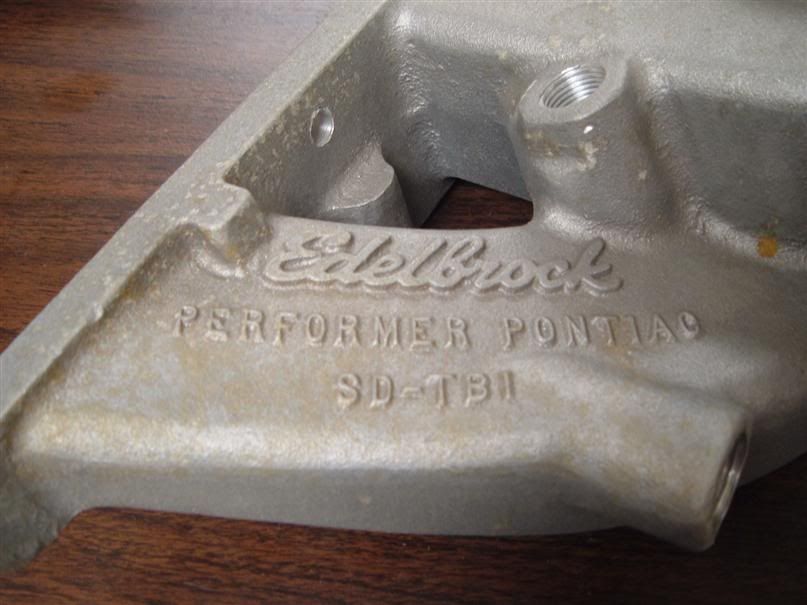

I recently acquired this prime example of an Edelbrock Super Duty manifold a couple of weeks ago. So, as I usually have PM's and or emails arriving asking about some of the different manifolds, I thought I would post this information so all could see it. After I've obtained all of the information (part numbers, dimensions, etc) needed from this intake I'll be putting it up for sale in the Mall. I'll probably put up some port size measurements and some things like that later this week, for reference. So (duh), here's the pics!
Obviously, it has some features that the 4 or 2 barrel Edelbrock manifolds did not have.
Features that the manifold has:
Stock TBI flange pattern
EGR passageway
Coolant passages
All stock mounting flanges
Oil drain passages
Very smooth runners in a dual-plane configuration
What it doesn't have:
the (only slightly) larger ports of the 4 barrel manifold
external bosses for mechanical fuel injection or nitrous
Enjoy!
------------------
