Ok, im seriously losing my mind right now. I recently have had my top end of my motor apart installing some 19lb injectors, and now it seems that i have mixed up my Injector harnesses. I have SOMEWHAT of an idea as to which ones go where, but im not 100% sure. I need to be 100% sure. Is there anyway to find a diagram of some sort that shows the proper hook ups? I have looked at the harnesses themselves and i see that some of them have #'s on them, BUT the numbers are not 1,2,3,4,5,6 more like 4,4,6,1, and so on. Is there anything i can do to make this easier? Like i said before im losing my mind tryin to figure this out. Thank you for your time and input.
-Chris

the harness should lay down where it was origonally,

ya, with the wires at or near 20 years old, they should pretty much lay in the corrct place

I belive I even had the injector wires on my Camaro backwards and it still ran.Good Luck.....

The fiero uses a batch fire so three injectors fire off of one circuit and three fire off of the second circuit. It shouldn't matter either way. Also as stated before the harness should lay as it was originally installed.

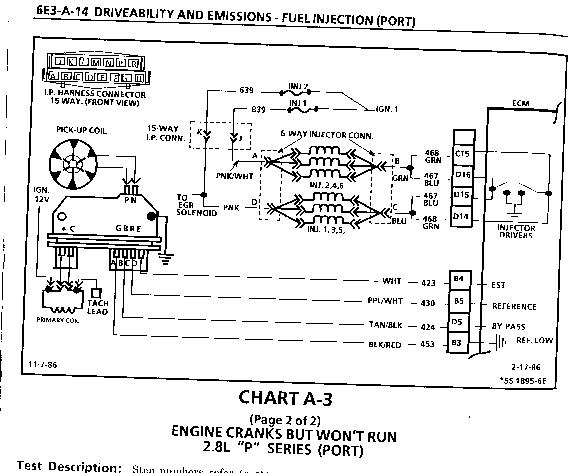

This might help. As long as you keep them connected in banks they should work.

[This message has been edited by avengador1 (edited 02-27-2005).]

The way the wires are bundled its fairly easy to put the harness back on correctly:

The injectors are fired in banks, all the odd numbered cylinders simultaneously alternating with all the even numbered cylinders simultaneously. The odd-numbered injector wires are pink and blue/black, the even-numbered cylinders are pink/white and green/black.

JazzMan

YOU GUYS ARE THE SH*T!!!!!! thank you sooooo much for helpin me out. I do see what you mean about the way they lay from old age, i just wanted to make sure they go back the right way. Again thanks for all the help. Nice pic Jazzman and avengador1, helped a ton!

-c
