  anyone have good pics of factory sub install?

T H I S   I S   A N   A R C H I V E D   T O P I C


Email This Page to Someone! | Printable Version


anyone have good pics of factory sub install? by Hank is Here
Started on: 02-15-2001 10:20 PM
Replies: 7
Last post by: ferg on 02-16-2001 01:09 PM
Hank is Here
Member
Posts: 4350
From: Hershey, Pa
Registered: Sep 2000


Feedback score: (1)
Leave feedback





Total ratings: 102
Rate this member

Report this Post02-15-2001 10:20 PM Click Here to See the Profile for Hank is HereClick Here to Email Hank is HereSend a Private Message to Hank is HereDirect Link to This Post
This weekend, hopefully I will put the wiring for the factory sub in my car. I have read several articles on it but there were no pics of the install. Basically I want pics of the layout of the wiring. From what I have read I can add this without removing the dash, correct?

Also the factory amp is how many watts?

Any anyone know what brand sub speaker Rodney Dickman's is? he does not say on the site. Who has his sub speaker, how is the quality?
Lastly the little plastic piece that has the slider in it does not have the sticker anymore, I want to paint this- I should use SEM paint correct? This is the grey for an 87 GT.

Thanks for the help.

------------------
Hank is Here
87 GT
88 Coupe
84 SE

IP: Logged
PFF
System Bot
fierosound
Member
Posts: 14431
From: Calgary, Canada
Registered: Nov 1999


Feedback score: N/A
Leave feedback





Total ratings: 278
Rate this member

Report this Post02-15-2001 10:50 PM Click Here to See the Profile for fierosoundClick Here to visit fierosound's HomePageClick Here to Email fierosoundSend a Private Message to fierosoundDirect Link to This Post
IP: Logged
Hank is Here
Member
Posts: 4350
From: Hershey, Pa
Registered: Sep 2000


Feedback score: (1)
Leave feedback





Total ratings: 102
Rate this member

Report this Post02-15-2001 11:03 PM Click Here to See the Profile for Hank is HereClick Here to Email Hank is HereSend a Private Message to Hank is HereDirect Link to This Post
Thanks,
I have looked there already. I am just wondering if there are pics of this out there?
IP: Logged
skitime
Member
Posts: 5761
From: Akron, PA, USA
Registered: Aug 2000


Feedback score:    (10)
Leave feedback





Total ratings: 333
Rate this member

Report this Post02-15-2001 11:14 PM Click Here to See the Profile for skitimeClick Here to Email skitimeSend a Private Message to skitimeDirect Link to This Post

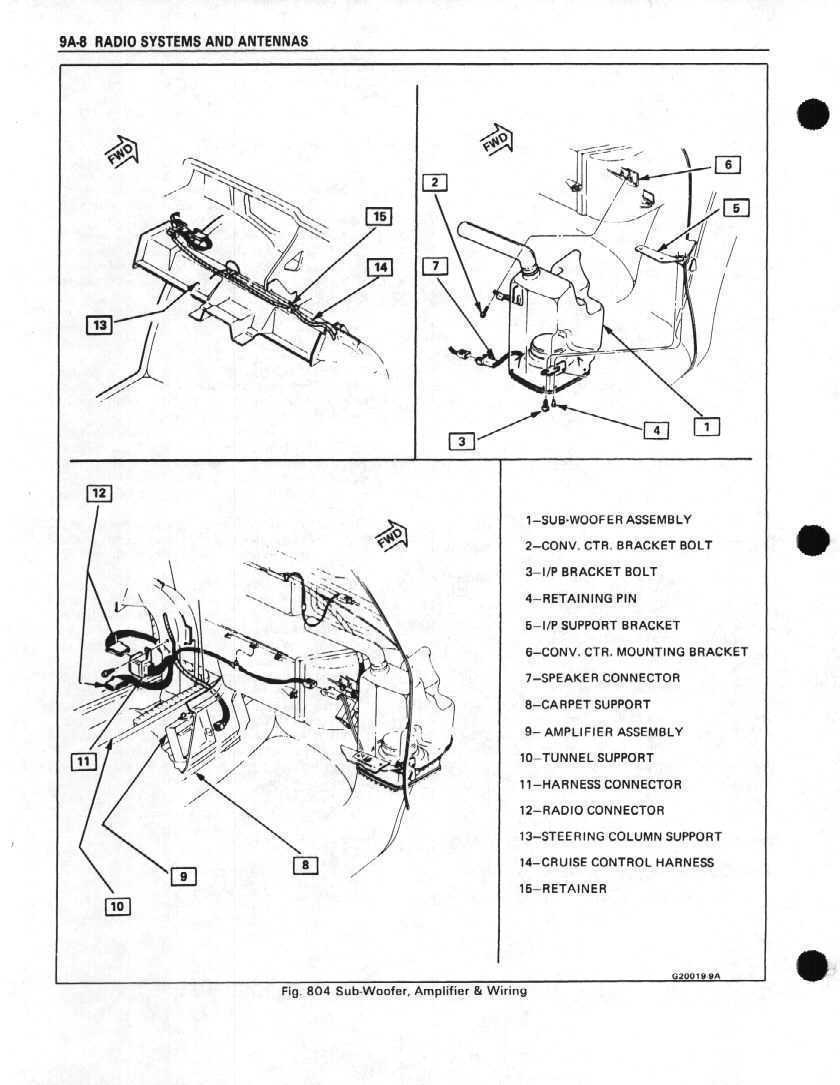

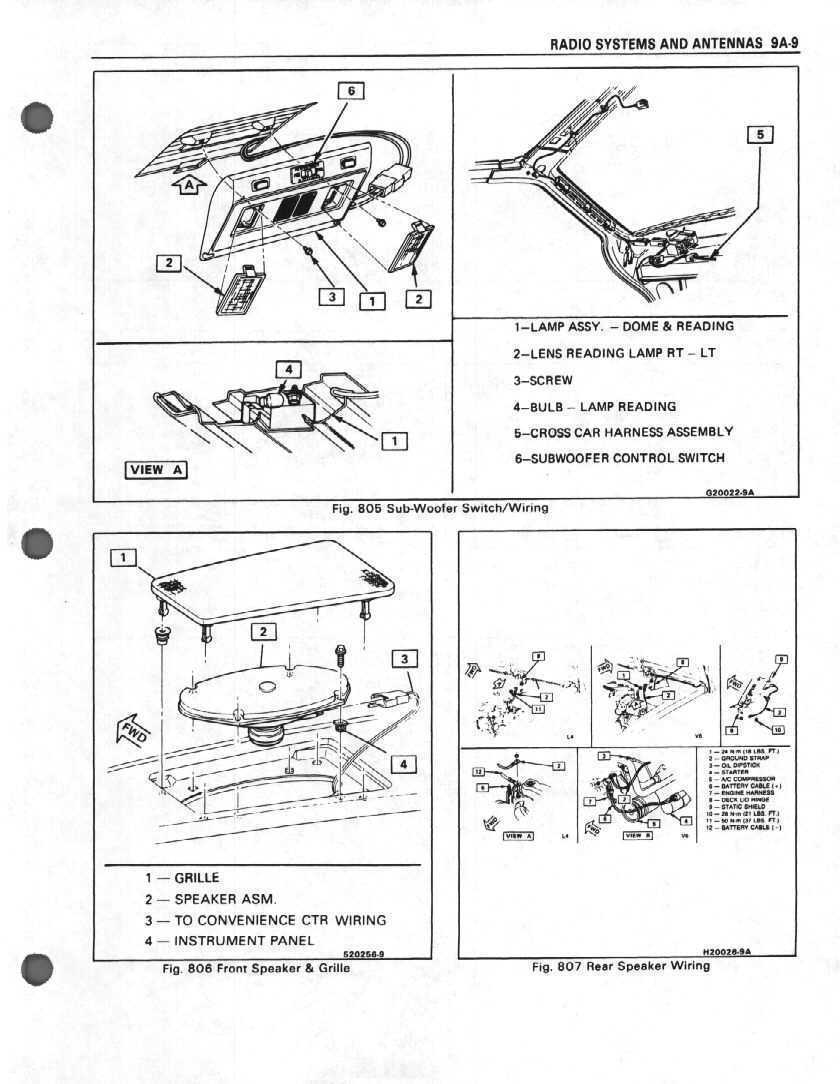

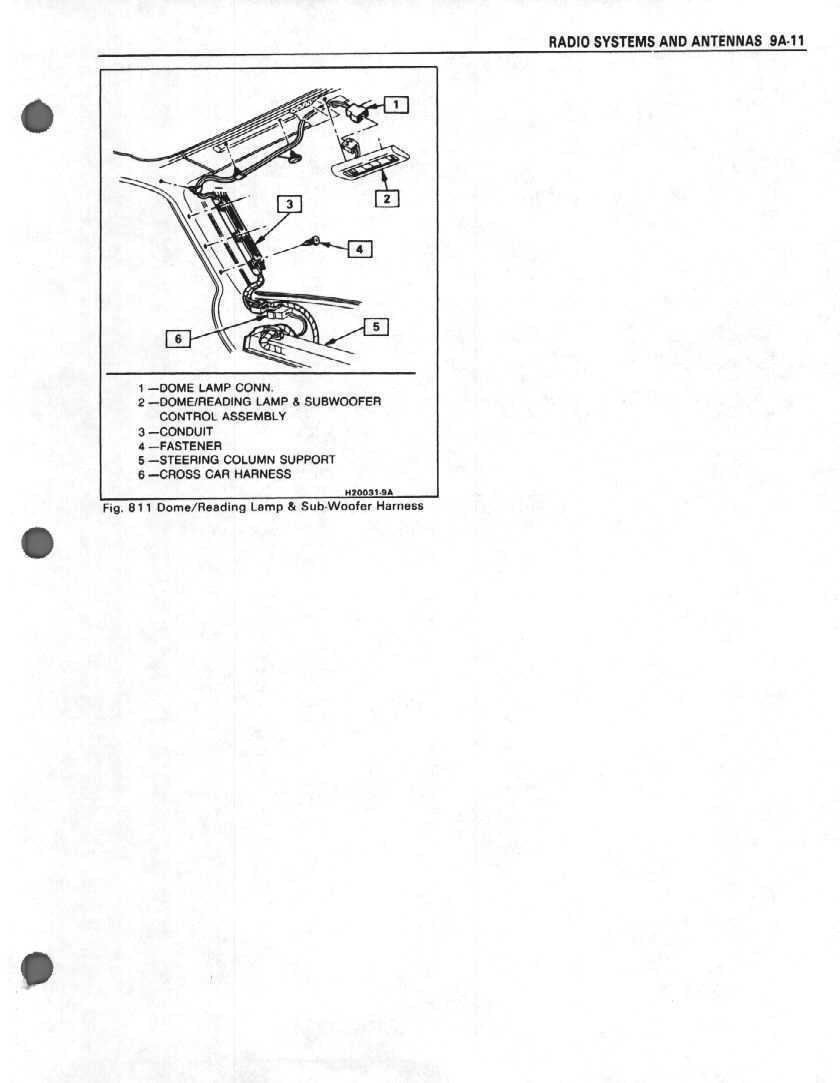

Hank, I don't have any pictures but after installing three factory subwoofers I feel it is a very easy thing to do. I did post the drawings from the factory manual. The easy part is the main harness. Remove the plug from your radio and plug it into the harness. Plug the harness into the radio. Mount the subwoofer in its location. bolt holes are already there for it. Plug the main harness into the subwoofer with the correct plug. The final plug on the main harness is feed over the steering column to a location above the fuse box. I mount the amp under the carpet on the passenger side center console. This save a lot of dimantling for the orginal location but is unnoticeable. This all takes about 15 minutes. Now the harder part. Remove the trim going up the drivers windshield and door and possible the rear pillar depending if you have a sunroof. You need to drop the front of the headliner to run the volume control wire to the overhead light. Just follow the wire supplying power to the overhead light. Plug in the overhead volume control and new power supply for the overhead light. Reassemble the panels. Sit back and enjoy.
