Inside the GM tilt steering column
Topic started by: JazzMan, Date: 12-04-2007 08:54 AM
Original thread: http://www.fiero.nl/forum/Forum2/HTML/088020.html


JazzMan (jazzman@fierocentral.com) MSG #1, 12-04-2007 08:54 AM
      Deleted per Cliffw's request.

[This message has been edited by JazzMan (edited 11-22-2011).]

Emc209i (emc209i@yahoo.com) MSG #2, 12-04-2007 09:30 AM
      AWESOME!!!!!!!!!!!!!!!!!!!!!!!!!!!!

Robert 2 MSG #3, 12-04-2007 09:39 AM
      Very helpful
Best i ever seen
You're terrific man
Thanks for all the Fieros owners

[This message has been edited by Robert 2 (edited 03-10-2012).]

tesmith66 MSG #4, 12-04-2007 09:56 AM
      Friggen' INCREDIBLE!!!! Thank you. Big plus for this!

Cliff, we really, really, really need stickies or a section devoted to stuff like this. This is invaluable information.



buddycraigg (buddycraigg@yahoo.com) MSG #5, 12-04-2007 10:37 AM


quote
Originally posted by JazzMan:
(shoot new picture)

HA i have so been there.

but really, you make this look easy.
i've done this one or twice. i think i'll just pay you.


buddycraigg (buddycraigg@yahoo.com) MSG #6, 12-04-2007 10:54 AM
      hey...

look what i can do








really a good job man.


MstangsBware (stephen_p38@yahoo.com) MSG #7, 12-04-2007 11:14 AM


quote
Originally posted by buddycraigg:

HA i have so been there.

but really, you make this look easy.
i've done this one or twice. i think i'll just pay you.


X2--I had Jazz drive over a few years ago and reapir a few columns for me, one that was in my DD and got loose fast. He made it look very easy but I can tell you there are alot of parts in there. If I need to have it done again, you better beilieve I will just shell out the money for James to do it.


Tinkrr MSG #8, 12-04-2007 11:35 AM
      A plus for you JazzMan excellent write up.
It required a lot of forethought. Thanks for sharing it.
I have bookmarked this for future reference


madcurl (madcurl@fiero-performance.com) MSG #9, 12-04-2007 11:41 AM
      Nice write-up.

Dizzixx (dizzixx@gmail.com) MSG #10, 12-04-2007 01:45 PM
      Holy Cow! that was an in depth write up. You have been promoted to chief column technician and now have my aproval to work on anything cylindrical, or even a little bit round on one side.

GT86 (fierogt@cox.net) MSG #11, 12-04-2007 01:51 PM


quote
Originally posted by tesmith66:

Cliff, we really, really, really need stickies or a section devoted to stuff like this. This is invaluable information.



I agree. Write-ups like this should really be gathered together in one place, and not get dropped into the archives.

Great job Jazzman



JazzMan (jazzman@fierocentral.com) MSG #12, 12-04-2007 01:53 PM


[This message has been edited by JazzMan (edited 11-22-2011).]

TK MSG #13, 12-04-2007 07:08 PM
      A++++

Cliff has got to give us a repository for this stuff. It might take a few people to decide what goes in but we have to organize these threads better. This one will wind up in the archives with no pictures eventually.

Terry


JazzMan (jazzman@fierocentral.com) MSG #14, 12-04-2007 07:15 PM


[This message has been edited by JazzMan (edited 11-22-2011).]

Dennis LaGrua (dlagrua@comcast.net) MSG #15, 12-04-2007 07:23 PM
      I've only disassembled a tilt steering column once to fix a wobble problem and it was about a 2 hour job. Not all that difficult but you need to remove each part, note its location and position carefully and save them in a magnetic pan so they don't get lost. The parts only fit in one way so there is little chance for error, but there's just so many parts to fit and place. I hope not to be doing this job again anytime soon. Good post, excellent pics and instruction. However, a word to the wise; steering column repair should only be attempted by those mechanically competant and if I might add GREAT ARTICLE!!!



theogre MSG #16, 12-04-2007 08:22 PM
      Nice work.

Some notes for reference...

The cap for the big tilt spring is fairly soft. If someone can't turn it, they probably haven't pushed it down far enough to clear. (Or pushed so far it's binding.) Don't force it or the hole will strip out.

It is tempting to pry or use a slide hammer to remove the tilt pivots. Be very careful if you try that. If they are stuck tight it is possible to break the casting that way. There are several ways to make a puller if you can't find the Lisle or other products at your local stores.

See how the anchor plate for the tilt assembly just hooks into the top of the column? That fairly weak connection is part of why the screws come loose. Even if you locktite the screws, avoid allowing the tilt to slam and don't use the steering wheel as a grab bar to enter/exit the vehicle. The assembly can come loose if it's abused just from flexing and damage to the anchor plate and column tube.

Someone once posted about the steering wheel falling down. Unless there is a major problem in the tilt system, the only way it can move w/o using the lever is someone is pulling/pushing pretty hard on the steering wheel. The latch will slip under high load. Every one I've seen does this so I have to think it was intentionally made to do so. Maybe to allow the steering wheel some float in a wreck. No sure idea but they are all built that way.

If you are having trouble with the ignition switch functions, and you've already adjusted/replaced the switch, the problem could be wear in one or more of the linkage parts shown above. The rack gear can often be found thru MotorMite's catalog and is fairly common at many parts stores. Be warned tho that such parts are usually not in the store's computer system as part of vehicle searches. You'll have to check store racks and/or paper catalogs.



fieroguru MSG #17, 12-04-2007 08:40 PM
      That was AWESOME!

This is probably a record for # of pics in a single post... I counted (or miscounted) 141...


BoostedSeries1 MSG #18, 12-05-2007 12:37 AM
      A friggen + man. sweet wright up. I do like the "shop towls" back drop. nice touch, works well with the colors of the column parts.



----------------


RotrexFiero MSG #19, 12-05-2007 09:40 AM
      Hey Jazz, when I lift up on my steering wheel there is a little play in there. Not pulling it straight out, but lifting it up. Is that normal? Otherwise it feels okay.



JohnF (johnfussell@charter.net) MSG #20, 12-05-2007 09:45 AM
      Hmmmm, James, you say that the key interlock is installed on the manual transmission columns. My son's '86 SE has one on his auto also. Do we have a car that has had a change-over?

FieroRumor (thedigitalalchemist@nyc.rr.com) MSG #21, 12-05-2007 11:04 AM
      "Insert the ball assembly into the stub shaft sideways, then rotate ninety degrees to lock it into place:"
Ohhhhhhhhhhhhhhhhhhhhh... so THAT'S how you get it back in!


Thanks for creating this thread... VERY informative!


Synthesis (synssins@gmail.com) MSG #22, 12-05-2007 11:44 AM
      Jazzman, this is a great write-up.. When you get the corrections listed, please let me know.

For posterity, I have posted this at the new Minnesota Fieros Forever site in the Tech Articles. If this is not OK with you, let me know, and I can remove it.

MFF Tech Articles


jimbolaya (jsmoreland4@cox.net) MSG #23, 12-05-2007 12:17 PM
      WOW! Awesome thread. I have added it to my favorites and given you a plus. I must say though, that first pic of all the parts reminds me of a reoccurring dream that ends with me waking up in a cold sweat.

Jim


JazzMan (jazzman@fierocentral.com) MSG #24, 12-05-2007 01:29 PM


[This message has been edited by JazzMan (edited 11-22-2011).]

JazzMan (jazzman@fierocentral.com) MSG #25, 12-05-2007 01:31 PM


[This message has been edited by JazzMan (edited 11-22-2011).]

JazzMan (jazzman@fierocentral.com) MSG #26, 12-05-2007 01:32 PM


[This message has been edited by JazzMan (edited 11-22-2011).]

Synthesis (synssins@gmail.com) MSG #27, 12-05-2007 04:36 PM


quote
Originally posted by JazzMan:


No problem as long as it is all credited to me.

JazzMan


Yup. Specifically credited to you. It even says your name :P


JazzMan (jazzman@fierocentral.com) MSG #28, 12-05-2007 04:44 PM


[This message has been edited by JazzMan (edited 11-22-2011).]

linuxpowered88 (linuxpowered88@yahoo.com) MSG #29, 12-05-2007 05:10 PM
      Very Nice write been in a cpl of these similar columns I wish I had this kinda details when I was I hate taking a column apart. Will your next time i do SUPER write up

Synthesis (synssins@gmail.com) MSG #30, 12-05-2007 07:15 PM


quote
Originally posted by JazzMan:

Actually, under the headline it says "Written by Chris". Someone might get confused and think that's the case.

Also, you should provide a link to this page so that people can get the latest version, I've been updating and editing it regularly and will for a few more days until it's as good as I can get it.

JazzMan



Yeah, That "Written by Chris" is the software used to post an article. The first line in the article credits you. I will post an update link as well. I just felt it good to archive your post off-site for posterity and so that it won't disappear.

I will get it all up to date in the near future.


theogre MSG #31, 12-05-2007 09:57 PM


quote
Originally posted by JohnF:

Hmmmm, James, you say that the key interlock is installed on the manual transmission columns. My son's '86 SE has one on his auto also. Do we have a car that has had a change-over?


If you have a lock lever next to the key in an automatic, someone changed the column with the wrong one. The interlock for the automatic uses a cable between the ignition switch and the shifter that unlocks in park. There are more notes on how that works in my cave tho I don't have pictures nearly as good as these.

Because of how the AT interlock works... If the cable is connected you'd have to put it in park and hit the lever to remove the key. While that could be annoying... If the cable is not connected to the ignition switch properly you've got a fairly serious safety problem. All it takes is leaving the trans unlocked just once to have a big legal problem from a run away car.


perceptionist (perceptionist@yahoo.com) MSG #32, 12-06-2007 10:05 PM
      Sweet thread, this helps answer a lot of questions I had.

Is there a source for the various internals for this column? Does a part # list exist?

Lets say I needed to find a "high beam follower" for example, just wondering if there are alternatives to digging one out of the yards.



spark1 MSG #33, 12-06-2007 11:47 PM
      Great writeup and photography again! Amazing clarity on the photos, are you using a tripod? Light stands?

One suggestion; reduce the width of the second photo to 800 pixels.


JazzMan (jazzman@fierocentral.com) MSG #34, 12-07-2007 09:11 AM


[This message has been edited by JazzMan (edited 11-22-2011).]

perceptionist (perceptionist@yahoo.com) MSG #35, 12-13-2007 01:37 PM
      I considered starting a new thread for this, but this seems to be the place to ask...

My wiper fluid pump is not functioning. I bought a new pump and the fuse is good. The only other area I think might be suspect would be the switch inside the column. When I press the little paddle on the stalk forward, the wipers will swipe a few times as they should, but no pump activity. Could the switch be bad? Is there a relay I need to check?

I did check the 2 relays that are right next to the Wiper fluid reservoir. I know one of them is for the blower fan, not sure what the other is for. I swapped them and the blower works either way, so I assume both relays are good.

Any ideas?

Thanks,

Mike


JZeFF (j_zeff1990@ameritech.net) MSG #36, 12-13-2007 04:39 PM
      Someone has too much spare time =))

Awesome idea!!! this should help quite a few people =D


JazzMan (jazzman@fierocentral.com) MSG #37, 12-13-2007 06:19 PM


[This message has been edited by JazzMan (edited 11-22-2011).]

FieroGT42 (fierogt42@gmail.com) MSG #38, 12-13-2007 06:35 PM
      Awesome documentation! I rebuilt my own steering column without this, but I'm sure it will be of great help to others!

And those pics of the "bolting plate" and the blue glove I find a bit disturbing....


JazzMan (jazzman@fierocentral.com) MSG #39, 12-14-2007 09:13 AM


[This message has been edited by JazzMan (edited 11-22-2011).]

buddycraigg (buddycraigg@yahoo.com) MSG #40, 12-14-2007 09:44 AM
      just make sure both hands are not on your shoulders at the same time.

JazzMan (jazzman@fierocentral.com) MSG #41, 12-21-2007 09:07 AM


[This message has been edited by JazzMan (edited 11-22-2011).]

Fastback 86 MSG #42, 12-21-2007 01:15 PM
      Jazz, I was curious about something. When I switched from 15" wheels to 16" wheels, my car suddenly developed an intermittent shudder in the steering wheel at freeway speeds. Its only there at freeway speeds and there's no pattern to it, though it does seem more pronounced on poorer quality roads. Someone indicated to me that this could be a problem in the steering column, and from what I gathered from your article here, it may be those plastic gears that are meant to break in an accident, is that correct? You say this is non-repairable, does that mean I would need to replace the column or could it be rebuilt? My car has an aftermarket steering wheel that was installed by the previous owner, so I have no idea what amount of force may have been used to remove the original. My car is also sans steering dampener, though I would happily put it back if it might make a difference.

Toddster (toddamelio@gmail.com) MSG #43, 12-21-2007 09:27 PM


quote
Originally posted by Fastback 86:

Jazz, I was curious about something. When I switched from 15" wheels to 16" wheels, my car suddenly developed an intermittent shudder in the steering wheel at freeway speeds. Its only there at freeway speeds and there's no pattern to it, though it does seem more pronounced on poorer quality roads. Someone indicated to me that this could be a problem in the steering column, and from what I gathered from your article here, it may be those plastic gears that are meant to break in an accident, is that correct? You say this is non-repairable, does that mean I would need to replace the column or could it be rebuilt? My car has an aftermarket steering wheel that was installed by the previous owner, so I have no idea what amount of force may have been used to remove the original. My car is also sans steering dampener, though I would happily put it back if it might make a difference.



The steering column can't cause a shudder in the car. The opposite is true of course. More likely your problem is the alignment. Damper might be cause but without taking it for a spin it's hard to say.

BTW Jazz, Very nice write-up. I guess you're good for something afterall.


Fastback 86 MSG #44, 12-22-2007 02:03 PM
      Its not a shudder in the car, though. Just the steering wheel itself, and only intermittently. The rest of the car feels perfect, its just the steering wheel.

Toddster (toddamelio@gmail.com) MSG #45, 12-22-2007 04:29 PM


quote
Originally posted by Fastback 86:

Its not a shudder in the car, though. Just the steering wheel itself, and only intermittently. The rest of the car feels perfect, its just the steering wheel.


I'd check that alignment first. It could be the steering rack, tie rods, or ball joints but start with the cheaper problems first. It is unusual for a steering column to shake on its own. And considering it was fine until you changed wheels I'd go with the undercarriage first.


JazzMan (jazzman@fierocentral.com) MSG #46, 12-22-2007 07:07 PM


[This message has been edited by JazzMan (edited 11-22-2011).]

THE BEAST (jgomez@ircc.cc.fl.us) MSG #47, 12-22-2007 07:48 PM
      Wow, I like it.
Thanks,
JG


buddycraigg (buddycraigg@yahoo.com) MSG #48, 12-22-2007 08:42 PM


quote
Originally posted by JazzMan:
Ok, I've tuned this article up as much as I can, so barring any input or suggestions I'm going to consider it done.
Thanks for stopping by!
JazzMan


well you could have had more hot chics.


Fastback 86 MSG #49, 12-23-2007 12:55 PM
      Good to know, I'll check it out.

carnut122 MSG #50, 12-23-2007 06:54 PM
      I'm glad you posted this, as I "explored" my column when I installed a new turn signal shaft and ended up "forcing" things. Now I can refer to this to take care of issues in a better manner next time.

JazzMan (jazzman@fierocentral.com) MSG #51, 12-24-2007 10:09 AM
      .

[This message has been edited by JazzMan (edited 12-18-2008).]

Robert 2 MSG #52, 12-24-2007 11:57 AM
      Why are they afraid ?


jscott1 MSG #53, 12-24-2007 01:05 PM
      Wow how did I miss this thread? Awesome work. I have a loose column I'm ready to replace the whole thing rather than mess with it. I've been in the column before and it's kind of like brain surgery except harder.

Oh and thanks Cliff, for lifting the pic per post limit. Threads like this would have been impossible before, and harder to read with people interrupting every few posts.

[This message has been edited by jscott1 (edited 12-24-2007).]

Daredevil05 MSG #54, 12-25-2007 12:58 PM
      Good write up. You get a plus from me. I hate it when mechanics use the steering wheel as leverage to get in and out of these cars.

Dave


shawnkfl (kmn9312@knology.net) MSG #55, 01-05-2008 12:36 PM
      awesome. my tilt function is loose. i can just pull the wheel down without using the lever. i have nother column that looks like crap but works good, so i think i'll go tear them down and build one back up. thanks for this write up! i'm going to print the whole thing and get to work!

buddycraigg (buddycraigg@yahoo.com) MSG #56, 06-11-2008 11:42 PM
      (this post will sound wrong because this person contacted me via youtube)

Troy,
read through this thread also
http://www.fiero.nl/forum/Forum2/HTML/089378.html

[This message has been edited by buddycraigg (edited 06-11-2008).]

Intel MSG #57, 07-25-2008 07:07 PM
      Tore down my tilt column today because it was loose.
Everything went smooth, got those 4 torx bolts tightened with red loctite but when I put it all together I got some movement in the shaft.
After looking at your pictures I think I put the preload cup on the upper bearing the wrong way (it fell out when I was struggling with the U-joint separation so I didn't notice how it was placed).
Will have to check this tomorrow. Hope it's the culprint because the threads in my pivot pins won't last another pull (using M4 homebrew puller).
The only thing I can't see in your pictures is how the black plastic ball bearing retainer (upper) is located. It's a little bit bigger in one end and when you put the bearings in you hold it with the bigger chamfered end up. Do you just lower it onto the shaft like this or flip it over using grease to hold the bearings in place?

Anyway thanks for making stuff like this... I know you've put lots of time making this guide. Every time I'm going to make a writeup I get so carried away that I forget to take any pictures and end up with before and after shots.


Intel MSG #58, 07-26-2008 01:46 PM
      Ok I fixed it.

It was the preload cup that I had reversed so that it didn't put enough pressure on the race.
Now it's all tight and non-wobbly.



And again...thanks for this super detailed writeup!!


Sidecar 2M6 SE MSG #59, 10-08-2008 12:49 AM
      Thanks man!! This so informative. If you are not already a technical writer by trade, you should be!
I have two wobbly columns. The one I took out 2 years ago and the one I put in as a replacement which at that time didn't wobble but does now. Now I know why and I agree about the small tab area on the lower plate. Loctite on those 4 torx bolts it is!


fieroboom (fieroboom@gmail.com) MSG #60, 12-18-2008 03:57 PM
      Wish I'd had this 2 years ago! Awesome job, Jazzman. Another + for ya!



DIY_Stu MSG #61, 01-01-2009 02:18 AM
      For anyone who would like a printable version of this I have converted this and another thread to PDF for you.

Jazzman_Steering_Rack_Rebuild.pdf

Stu


Robert 2 MSG #62, 01-01-2009 03:23 AM
      Tried to download
result : message File corrupted can't be fixed ?

[This message has been edited by Robert 2 (edited 01-01-2009).]

DIY_Stu MSG #63, 01-01-2009 04:25 AM
      I made so many changes to it I reuploaded it. Might have been whenyou were getting it. I'm done now.

DIY_Stu MSG #64, 01-01-2009 12:23 PM
      I decided to make these pdf's because the write up is better than the one in the Factory Service Manual. That and the fact that I need it due to my sector slide gear failing on me last night. I had to drop the column just to get the dang thing started. Now knowing that I have to go somewhere I should have pulled the Ignition switch off until it was fixed. Grrrrrr.

Robert 2 MSG #65, 01-02-2009 03:22 AM


quote
Originally posted by DIY_Stu:

I made so many changes to it I reuploaded it. Might have been whenyou were getting it. I'm done now.


Works OK now thanks



telefragg3d (ken.hoff@me.com) MSG #66, 02-06-2009 04:32 PM
      this post is fantastic! thanks so much. i might have to pull apart the column to fix my turn signal switch...agh!

Fiero1Fan (fiero1fan@fieros.eu) MSG #67, 03-10-2009 11:54 PM
      Great How To.



Back On Holiday (bazfl@verizon.net) MSG #68, 03-23-2009 09:41 PM
      Excellent Work, only suggestion is to add a Tear down part to your rebuild part


katatak MSG #69, 03-23-2009 11:15 PM
      I am currently having a problem on my 88 Auto column. I have read through this thread but need some clarification. Here's my problem.

When I go to shut the car off - turn the ignition switch, it sometimes will not turn to the point where you can remove the key - like it is jammed. Sometimes it jams completely and I can not turn it in any direction or get the key out. If I wiggle the steering wheel and move the auto shifter back and forth, eventually it will release and I can get the key out. I believe there is a cable from the shifter to the column? if so, is there an adjustment that can be made or is the problem in the column in the ignition lock setup? Thanks in advance.

Pat



DIY_Stu MSG #70, 03-23-2009 11:52 PM
      I had this problem right before it wouldn't start any more. Here's your fix.

http://www.autozone.com/aut...Value=100836&categor yNValue=101314&fromWhere=&subPartId=prod11818&itemId=prod11818&displayName=Ignition+Switch+Rack+Kit

Autozone Rack Repair kit Part Number: 83211



While you're in there if you wish you can also tighten up the reverse torx screws. Word to the wise MARK THE SHAFT that the steering wheel goes onto to indicate the UP position. I put mine on up side down after the ball joint popped loose at a 90º bend. So I got to tear down and rebuild the column twice!!!

[This message has been edited by DIY_Stu (edited 03-24-2009).]

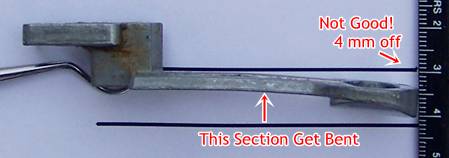

DIY_Stu MSG #71, 03-24-2009 12:00 AM
      The metal part gets bent over time then starts hanging it all up.

Chris_86GT MSG #72, 03-24-2009 05:19 AM
      Added to favorites, great job JazzMan, + for you.

Doni Hagan MSG #73, 03-24-2009 10:11 AM
      Thanks a lot for this thread. I got so disgusted with floppy steering wheels (2 different steering columns) that I got rid of the tilt altogether. I've still got the columns though and will try to rebuild them.



katatak MSG #74, 03-24-2009 07:52 PM


quote
Originally posted by DIY_Stu:

The metal part gets bent over time then starts hanging it all up.


Thanks Stu - Sounds like I know what I'll be doing this weekend.

Pat




Back On Holiday (bazfl@verizon.net) MSG #75, 03-24-2009 11:49 PM


quote
Originally posted by Doni Hagan:

Thanks a lot for this thread. I got so disgusted with floppy steering wheels (2 different steering columns) that I got rid of the tilt altogether. I've still got the columns though and will try to rebuild them.



you might consider sending them away to jazzman to rebuild if he still does them, it might be worth it


madcurl (madcurl@fiero-performance.com) MSG #76, 05-12-2009 12:14 PM
      This thread must be... Saved! (as favorite).

fieroparts.com (pff@fieroparts.com) MSG #77, 10-28-2009 12:59 PM


quote
Originally posted by madcurl:

This thread must be... Saved! (as favorite).



"



theogre MSG #78, 10-29-2009 12:00 AM
      So you think a Ignition Switch is bad?

Maybe and Maybe Not.

Check very carefully the linkage. Linkage can die as well because bad switch overloads it. If link is anything but straight then is bad. Do Not try to fix it. Replacement is only option. Check gear teeth to.



Bend then straighten make it weak.



NAPA or Dorman's HELP! at most auto part store.

Always replace ignition switch when you replace linkage! You do not want to replace the linkage twice.



jwct7 (jwct7@msn.com) MSG #79, 10-30-2009 08:12 PM


quote
Originally posted by JazzMan:

Ok, I've tuned this article up as much as I can, so barring any input or suggestions I'm going to consider it done.

Thanks for stopping by!

JazzMan




jwct7 (jwct7@msn.com) MSG #80, 10-30-2009 08:15 PM


quote
Originally posted by jwct7:



So I have to dismantle all the top end just to change the ignition Barrel?
The chime switch had me thinking.... I have just had a problem appear where my Chime will not turn off, even while I'm driving??? I pulled it out for now, but I have changed the door switches and the one under the hood, I don't have anything at the rear. The lights all go out but the chime sings away, any ideas?


theogre MSG #81, 10-31-2009 10:45 PM
      Some...
Lock plate, turn signal switch (5 screws), and key switch (puts in).
1 bolt hold the lock.

Need
Steering wheel puller
Lock plate tool
2 Phillip Screw drive, #2 for inside and #1 for hazard,
Torx screw driver



Old Fart MSG #82, 01-23-2010 05:20 PM
      EXCELLENT !!
Thank You
Kit


unboundmo (unboundmo@aol.com) MSG #83, 01-24-2010 02:47 AM
      Thanks for the write-up. I/m going to bookmark this page and download the pdf is saw.....

I have a question... Is it possible to change the steering wheel to the disconnects config... Like the racers... and for theft reasons. I've seen the attachments but I don't know if they fit our cars... Has anyone tried this before?


FieroDev MSG #84, 02-07-2010 12:06 AM
      Thanks for the writeup. im 14 and i was able to repar my wobbly steering column!

guitarjerry (guitarjerry@radioheadfan.com) MSG #85, 03-07-2010 08:40 PM


quote
Originally posted by unboundmo:

I have a question... Is it possible to change the steering wheel to the disconnects config... Like the racers... and for theft reasons. I've seen the attachments but I don't know if they fit our cars... Has anyone tried this before?

You mean having the steering wheel you can pull off like on stock cars? You have a good point. Having no steering wheel in the car while its parked would make a great antitheft device.

I have a question myself. I cant seem to find a cancelling cam. The part where the horn spring loaded thingy goes in was broken when I got the car. There are no fieros in my area on death row(wrecking yard) plus I think a cancel cam shouldn't be something you have to get from a boneyard. I mean, they fail almost as much as the turn signal switch, which they DO have at my local parts stores, so where do I get a cancel cam?
And why doesn't the turn signal switch just have a cancel cam come with it? I would be willing to pay an extra 5-10 bucks on every turn signal switch I buy for the rest of my life just to have the cancel cam be there so when I need it, its there. Seems like every second or third one I replace also needs a cancel cam.
Maybe there's another GM car with a cancel cam that fits?

[This message has been edited by guitarjerry (edited 03-07-2010).]

guitarjerry (guitarjerry@radioheadfan.com) MSG #86, 03-07-2010 09:22 PM
      nevermind. If you search for "cancel cam" or "turn signal cancel cam" you get nothing but if you look under turn signal and turn signal directional cam on checker's site, there it is. the non- tilt wheel one. But no tilt wheel listed. So, just for fun, I arbitrarily put in 89 grand am 2.5L. It listed the exact same part for the non-tilt wheel, so I think the one listed under grand am for tilt wheel will work dorman 83232

I haven't had this car long, but with all the hassles I'd almost swear there was some kind of conspiracy going on in the parts industry against fiero owners.

[This message has been edited by guitarjerry (edited 03-07-2010).]

camaropartsforall (acicoria1@tampabay.rr.com) MSG #87, 08-08-2010 10:56 PM
      Hi, great info and great pictrures! I have an early second gen Camaro (1971) and I'm trying to go through the tilt steering column with flloor shift. I can't seem to find any info to help me disassembly it. Do you by chance know where I could get detailed instructions/pictures like this for my column? Any help would be appreicated. Thanks, Tony

longjonsilver (longjonsilver34@juno.com) MSG #88, 11-12-2010 10:43 AM
      i was unable to get the two pivot pins out. the first one came out easily - the second had the threads stripped as i tried to pull it out. i tried to drill out the threads and tap in larger threads but the drillbit broke off as i worked. now i have to get another steering column. so much for the convenience of options on cars.
jon



85 SE VIN 9 (henderson7191@att.net) MSG #89, 11-13-2010 08:38 PM


quote
Originally posted by guitarjerry:

nevermind. If you search for "cancel cam" or "turn signal cancel cam" you get nothing but if you look under turn signal and turn signal directional cam on checker's site, there it is. the non- tilt wheel one. But no tilt wheel listed. So, just for fun, I arbitrarily put in 89 grand am 2.5L. It listed the exact same part for the non-tilt wheel, so I think the one listed under grand am for tilt wheel will work dorman 83232

I haven't had this car long, but with all the hassles I'd almost swear there was some kind of conspiracy going on in the parts industry against fiero owners.



Look in rockauto.com under body-interior


longjonsilver (longjonsilver34@juno.com) MSG #90, 11-22-2010 02:59 PM


quote
Originally posted by longjonsilver:

i was unable to get the two pivot pins out.



an update, i was able to get the two pivot pins out by pulling the column, and using a 9/16 socket with a #8x32 screw, a nut and a couple of washers to pull the pin out. i have then been able to dig into the column and access the four offending bolts. i have red locktited them and torked them as best as i could using a 1/4" 6 point socket. i hope i found all the ball bearings.

jon

edit: i successfully completed the repair and i drove my car yesterday - wow! what a difference! if i can do this, you probably can too! thank you God for Jazzman and his great writeup! thanks Jazzman!

[This message has been edited by longjonsilver (edited 12-01-2010).]

Jim Stabe (stabe_jim_r@solarturbines.com) MSG #91, 01-06-2011 06:19 PM
      Hello. I just joined not because I have a Fiero but because I have a Fiero steering column (manual trans) in my LT1 powered MGB project car. The car has been widened 11" and has C4 suspension. Pictures are here if you are interested http://forum.britishv8.org/read.php?13,7581

I read through Jazzman's tutorial and it is very good but I have a question. I want to remove the ignition switch, locking mechanism and key removal lever. Can I do this without affecting the turn signal, high beam and wiper functions?

I understand Jazzman has left the site but hopefully someone else can shed some light.

Thanks

Jim


JazzMan (jazzman@fierocentral.com) MSG #92, 01-06-2011 06:38 PM


[This message has been edited by JazzMan (edited 11-22-2011).]

Jim Stabe (stabe_jim_r@solarturbines.com) MSG #93, 01-07-2011 10:28 AM
      Jazzman

Glad you are still here. A remote key is exactly what I want to do. Thanks for the help, I'll let you know how it works.

Jim

[This message has been edited by Jim Stabe (edited 01-07-2011).]

chrisb99 (chris7086@shaw.ca) MSG #94, 01-20-2011 04:48 PM
      I haven't been able to find the post that is just to fix the wobbly steering wheel. Would you be able to reply with a link to it or something please? Thanks!



marc-alan MSG #95, 02-06-2011 02:29 PM
      Great write up and pictures. Helped me replace the ignition key today. Much appreciated

m-a


Jim Stabe (stabe_jim_r@solarturbines.com) MSG #96, 04-15-2011 02:04 PM


quote
Originally posted by JazzMan:

It sounds like you want a remote key system? If so, sure, you can remove the ignition switch, lock cylinder, and lock pin w/ spring, but you must keep the lock plate as it is part of the assembly stack and holds the horn cancel cam and plastic trim cover in place properly. You'll need to retain the ignition sector since it guides the high beam follower. You should be able to get away with bolting just the high-beam switch on the column without the ignition switch, though it may be necessary to put some spacer washers under the switch to replace the missing ignition switch assembly.

I got the column back together and the tutorial was a lifesaver, thanks Jazzman. One thing I noticed after I got it together id that it is not necessary to retain the sector or the gear, they have no effect on the high beam follower that I could see. I would post a picture of the column without the key lock but I can't figure out how to add pictures on this forum

Jim



greggk53 (shine@auto-ease.com) MSG #97, 05-02-2011 06:48 PM
      Hello, I has a earlier Chevy Tilt Column without a shifter on it. Can you let me know where to find the two bearing right before and after the signal mechanism it has 12 balls in each of them and I believe they may be in a plastic retainer they are the one you show in your photo. Thanks

phonedawgz (gofast@reddevilriver.com) MSG #98, 05-02-2011 11:42 PM
      You could try posting a message on the MALL section of this forum.

katatak MSG #99, 05-30-2011 11:30 PM
      Just a bump - I had a wobbly steering column on my Formula - my son has been driving it and made a comment the other day that the steering wheel was wobbly. Last night he said it was really bad so I took a look - he was right. It had several inches of movement - every direction. I followed this thread in reverse to tear it down to the bolts (I used a few shortcuts - did not disconnect any wires - just pulled the slack through the column and was able to pull each piece off and let them hang). All four were completely backed out!

I was able to tear it down and put it back together using this thread - ran into a little snag when it was time to remove the pivot pins. I attempted to use a machine screw and "wiggle" each out - was afraid that I would snap the screw off. I posted here in tech and started the internet for a tool. Ended up getting a puller at O'Riellys - worked perfect.

Thanks Jazz for your hard work in this thread!

Thought I'd post a couple of current links for the pivot pin puller tool.

The puller I bought:
http://www.oreillyauto.com/...rd=pivot+pin+remover
"Performance Tool" part #W80652

And a link for the Lisle tool:
http://www.oreillyauto.com/...rd=pivot+pin+remover
"Lisle - Remover" part #19940

Pat


n7vrz (dedgar@hughes.net) MSG #100, 07-08-2011 09:26 PM
      Picked up a column to replace mine with stripped holes for the infamous 4 loose bolts. Found that the replacement columns main shaft was 1 inch shorter than the one I just took out of my car.
So I had to disassemble two columns to make one good one.
So there are at least two different length main shafts out there.


Fiero88GT (fiero88gt12@aim.com) MSG #101, 07-27-2011 05:47 PM
      bump for a great thread! i just had to take apart the column on my gt to tighten loose bolts and this made it a whole lot easier.



fstop MSG #102, 11-02-2011 12:17 AM
      Thanks for the great tech how-to but I haven't been able to see any of the photos. All I have are broken links. Is there somewhere to see the pics that go along with this post?
(I can view pics on other posts so I know it's not my browser settings.)

I'm asking because I just did this repair on my GM tilt column and the steering wheel still wobbles, so I'm wondering what/where I went wrong.

Any help would be greatly appreciated.

Thanks!

[This message has been edited by fstop (edited 11-02-2011).]

Gall757 MSG #103, 11-02-2011 08:43 AM
      The pictures are gone for me too. This thread really need's 'em.....

fstop MSG #104, 11-02-2011 09:28 AM
      DIY_Stu posted a .pdf to Jazzman tech article with all photos intact on Pg 2 of this thread.
For convenience here 'tis:

http://www.diyfiero.com/dro...ing_Rack_Rebuild.pdf

Worked for me!

Thanks to DIY_Stu!
Much appreciated!


fstop MSG #105, 11-02-2011 09:55 AM
      Just a note abt the pivot pin removal tool posted by katatak above:

You can borrow everything but this tool from O'Reilly's/Checker/Kragen Auto Parts (depending on where you live) Steering wheel puller and lock plate removal tools are free loaners from O'Reilly's, et al. The pivot pin tool is $9.99 which was least expensive I found, including Ebay. (Tho it was priced less, shipping made it a lot more expensive and of course, you had to wait for it to arrive.)

Anyway, you can do the whole job for just $9.99 + tax.

If you don't have any Loc-tite handy or are too cheap (or broke) to buy any, you can use your wife's (or girlfriend's) clear nail polish on the bolt threads. Just be sure and wipe the grease off of the bottle before returning it or you'll have more problems than just a loose tilt assembly.

[This message has been edited by fstop (edited 11-02-2011).]

avengador1 (avengador1@aol.com) MSG #106, 11-28-2011 11:26 AM
      Awesome! What else did you delete during your hizzy fit?
Those that want to see the missing article can find it here.
http://www.diyfiero.com/dro...ing_Rack_Rebuild.pdf

[This message has been edited by avengador1 (edited 11-28-2011).]

Fierobsessed (nstarfiero@aol.com) MSG #107, 11-30-2011 08:35 AM
      Story time!

That Little Spring.

I was chasing down a looseness problem that my car has had forever. Ever since I've owned my 88 GT, (06/2003) it has always had loose steering issues, not the usual column falling apart thing. The car had 183K on the ODO already. First I traced a large amount of the play to the passenger side steering rack bushing. So I pulled the rack and found that not only was the bushing shot, but the rack's whole rack gear was corroded, and rusted pretty bad, and as well, the pinion's shaft bearing had deteriorated and broken apart.

I got a good core rack from the local U-Pull-it, did the Rodney dickman bushing, greased the internals, added new bellows and all ball joints and thought this would be the last I'd have to deal with the looseness in the steering. Don't get me wrong, it helped greatly. But It still had some considerable looseness. I gave up on hunting it down for the last 5 years. I had rebuilt the whole front end in 2007, only to have no difference in steering yet again.

Two days ago I decided that enough was enough. At 243K miles, I've had it with this loose steering. I proceeded to jiggle the wheel and find out if there was any looseness translating between the steering wheel and the rack. I noticed that the U-Joints under the steering colum were not exactly responsive to steering wheel jiggling. An AH HA moment. Must be something in the column!

Pulled the steering column apart, and found a great deal of looseness in the U-Joint at the tilt knuckle. Once I took it apart I found the little wire spring in the center of the plastic ball was broken in half. The joint was loose and flopping about. I got a used spring from The Las Vegas Fiero Club (Thanks Rich!) and put it in the ball, and deliberately installed the ball upside down and backwards from its original configuration, it just seemed tighter that way. And presto, the joint wasn't floppy anymore. Got it all back together and into the car and for the first time in the last 60K miles, my car drives like it was meant to. Dare I say it, it feels like a new Fiero.

I can't believe that little spring had such a profound effect on the feel of the steering. It always had almost 1/2" of play. I was always fighting the looseness on the highway.

That's my story.


RWDPLZ MSG #108, 12-11-2011 03:37 AM
      [Message deleted by Cliff Pennock:

I'm very sorry, but I received a notification from JazzMan that he does not want his original post reposted and asked/told me to remove it.

Again, my apologies, but I'm not going to be dragged into a Copyright discussion with him.]


Old Lar MSG #109, 12-11-2011 10:00 AM
      Excellent photo write up on the steering colum fix. I farmed the column fix to my local Fiero mechanic. I couldn't handle the fix myself.

Gall757 MSG #110, 12-11-2011 10:31 AM
      How could copyright be involved?

It's not his real name and it was an unsolicited posting.

Is my advice on this forum my property?

[This message has been edited by Gall757 (edited 12-30-2011).]

Primaris MSG #111, 01-17-2012 11:28 PM
      Edit: Well I screwed that up somehow.

Fixed: .PDF via torrent magnet link
magnet:?xt=urn:btih:AE801AB4720C1B4613434318E1C1C51E58593827&dn=Jazzman_Steering_Rack_Rebuild.pdf&tr=udp%3a%2f%2ftracker.openbittorrent.com%3a80%2fannounce&tr=udp%3a%2f%2ftracker.publicbt.com%3a80%2fannounce
